An abstract base class for Transport Property. More...

#include <Transport_Descriptor_Interface.h>

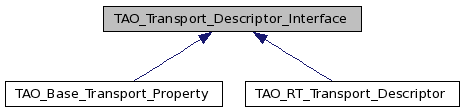

Inheritance diagram for TAO_Transport_Descriptor_Interface:

Collaboration diagram for TAO_Transport_Descriptor_Interface:

Public Member Functions
virtual	~TAO_Transport_Descriptor_Interface (void)
	Destructor.
virtual TAO_Transport_Descriptor_Interface *	duplicate (void)=0
virtual CORBA::Boolean	is_equivalent (const TAO_Transport_Descriptor_Interface *other_prop)=0
	Try to determine if this object is same as the other_prop.
virtual u_long	hash (void) const =0
	Generate hash value for our class.
TAO_Endpoint *	endpoint (void)
	Return the underlying endpoint object.
CORBA::Boolean	reset_endpoint (TAO_Endpoint *ep)
void	set_bidir_flag (CORBA::Boolean flag)
	Set the BiDir flag.
Protected Member Functions
	TAO_Transport_Descriptor_Interface (void)
	Default Constructor.
	TAO_Transport_Descriptor_Interface (TAO_Endpoint *endpoint, CORBA::Boolean take_ownership=false)
	Constructor.
Protected Attributes
TAO_Endpoint *	endpoint_
	The base property of the connection ie. the peer's endpoint.
CORBA::Boolean	bidir_flag_
	Should the endpoint be used in either direction?
CORBA::Boolean	release_

Detailed Description

An abstract base class for Transport Property.

This class provides an abstract interface and holds minimal info on which the Transport Caching scheme is based on. Concrete connection properties can be got by inheriting from this class and implementing the virtual functions. Note 1: Additional properties for connection like Qos, Priority that the RT folks would need, can be added by inheriting from this class and providing the following methods. 1. duplicate () 2. is_equivalent () 3. hash ()

Definition at line 47 of file Transport_Descriptor_Interface.h.

Constructor & Destructor Documentation

TAO_Transport_Descriptor_Interface::~TAO_Transport_Descriptor_Interface ( void ) [virtual]

Destructor.

Definition at line 16 of file Transport_Descriptor_Interface.cpp.

{
  if (this->release_)
    {
      delete this->endpoint_;
    }
}

TAO_Transport_Descriptor_Interface::TAO_Transport_Descriptor_Interface ( void ) [protected]

Default Constructor.

Definition at line 18 of file Transport_Descriptor_Interface.inl.

  : endpoint_ (0),
    bidir_flag_ (false),
    release_ (false)
{
}

TAO_Transport_Descriptor_Interface::TAO_Transport_Descriptor_Interface	(	TAO_Endpoint *	endpoint,
		CORBA::Boolean	take_ownership = `false`
	)			`[protected]`

Constructor.

Definition at line 8 of file Transport_Descriptor_Interface.inl.

  : endpoint_ (endpoint),
    bidir_flag_ (false),
    release_ (take_ownership)
{
}

Member Function Documentation

virtual TAO_Transport_Descriptor_Interface* TAO_Transport_Descriptor_Interface::duplicate ( void ) [pure virtual]

This call allocates and copies the contents of this class and returns the pointer

Implemented in TAO_Base_Transport_Property, and TAO_RT_Transport_Descriptor.

TAO_Endpoint * TAO_Transport_Descriptor_Interface::endpoint ( void )

Return the underlying endpoint object.

Definition at line 27 of file Transport_Descriptor_Interface.inl.

{
  return this->endpoint_;
}

virtual u_long TAO_Transport_Descriptor_Interface::hash ( void ) const [pure virtual]

Generate hash value for our class.

Implemented in TAO_Base_Transport_Property, and TAO_RT_Transport_Descriptor.

virtual CORBA::Boolean TAO_Transport_Descriptor_Interface::is_equivalent ( const TAO_Transport_Descriptor_Interface * other_prop ) [pure virtual]

Try to determine if this object is same as the other_prop.

Implemented in TAO_Base_Transport_Property, and TAO_RT_Transport_Descriptor.

CORBA::Boolean TAO_Transport_Descriptor_Interface::reset_endpoint ( TAO_Endpoint * ep )

Reset the endpoint pointer to point to another, if that one is part of the chain based by the current endpoint. Although this method is public it should only be used by the protocol specific connector, right before caching, and only when a parallel connect was attempted with more than one possible endpoints.

Definition at line 25 of file Transport_Descriptor_Interface.cpp.

{
  // calling on a dynamically allocation descriptor is not allowed.
  if (this->release_)
    return false;

  for (TAO_Endpoint *ptr = this->endpoint_; ptr != 0; ptr = ptr->next())

    if (ptr == ep)
      {
        this->endpoint_ = ep;
        return true;
      }
  return false;
}
