Public Member Functions | Protected Attributes

TAO_ORB_Manager Class Reference

Helper class for simple ORB/POA initialization and registering servants with the POA. More...

#include <ORB_Manager.h>

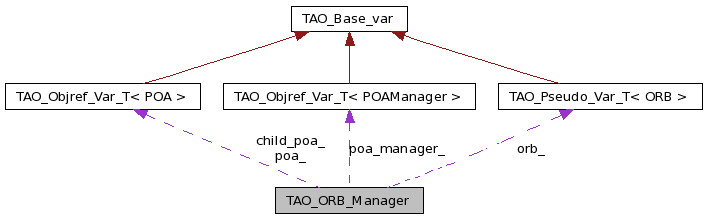

Collaboration diagram for TAO_ORB_Manager:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_ORB_Manager (CORBA::ORB_ptr orb=CORBA::ORB::_nil(), PortableServer::POA_ptr poa=PortableServer::POA::_nil(), PortableServer::POAManager_ptr poa_manager=PortableServer::POAManager::_nil())
int init (int &argc, ACE_TCHAR *argv[], const char *orb_name=0)
int init_child_poa (int &argc, ACE_TCHAR *argv[], const char *poa_name, const char *orb_name=0)
int fini (void)
 ~TAO_ORB_Manager (void)
 Destructor.
int activate_poa_manager (void)
char * activate (PortableServer::Servant servant)
void deactivate (const char *id)
char * activate_under_child_poa (const char *object_name, PortableServer::Servant servant)
void deactivate_under_child_poa (const char *id)
int run (ACE_Time_Value &tv)
int run (void)
CORBA::ORB_ptr orb (void)
PortableServer::POA_ptr root_poa (void)
PortableServer::POA_ptr child_poa (void)
PortableServer::POAManager_ptr poa_manager (void)

Protected Attributes

CORBA::ORB_var orb_
 The ORB.
PortableServer::POA_var poa_
 The POA for this ORB.
PortableServer::POA_var child_poa_
 Child poa under the root POA.
PortableServer::POAManager_var poa_manager_
 The POA manager of poa_.

Detailed Description

Helper class for simple ORB/POA initialization and registering servants with the POA.

This class is a TAO extension that makes it easier to write CORBA applications. It's just a wrapper and doesn't do anything special within the ORB itself.

Definition at line 38 of file ORB_Manager.h.

Constructor & Destructor Documentation

TAO_ORB_Manager::TAO_ORB_Manager ( CORBA::ORB_ptr  orb = CORBA::ORB::_nil(),
PortableServer::POA_ptr  poa = PortableServer::POA::_nil(),
PortableServer::POAManager_ptr  poa_manager = PortableServer::POAManager::_nil()
)

Constructor.

Parameters:
orb pointer to an ORB which is duplicated an stored internally in an ORB_var. If pointer is 0, a new ORB pointer is created internally in the init() call.
poa pointer to a POA which is duplicated and stored internally in a POA_var. If pointer is 0, a pointer to the Root POA is obtained from the ORB.
poa_manager pointer to a POA Manager which is duplicated and stored internally in a POAManager_var. If pointer is 0, a new POAManager is created internally in the init() call.

Definition at line 33 of file ORB_Manager.cpp.

  : orb_ (CORBA::ORB::_duplicate(orb)),
    poa_ (PortableServer::POA::_duplicate(poa)),
    poa_manager_ (PortableServer::POAManager::_duplicate(poa_manager))
{
}

TAO_ORB_Manager::~TAO_ORB_Manager ( void   )

Destructor.

Definition at line 249 of file ORB_Manager.cpp.

{
  try
    {
      if (!CORBA::is_nil (this->poa_.in ()))
        {
          this->poa_->destroy (1,1);
        }
      if (!CORBA::is_nil (this->orb_.in ()))
        {
          this->orb_->destroy ();
        }
    }
  catch (const ::CORBA::Exception&)
    {
      // ignore any exceptions..
    }
}

Member Function Documentation

char * TAO_ORB_Manager::activate ( PortableServer::Servant  servant  )

Activate <servant>, using the POA <activate_object> call. Users can call this method multiple times to activate multiple objects.

Returns:
0 on failure, a string representation of the object ID if successful. Caller of this method is responsible for memory deallocation of the string.

Definition at line 123 of file ORB_Manager.cpp.

{
  PortableServer::ObjectId_var id = this->poa_->activate_object (servant);

  CORBA::Object_var obj = this->poa_->id_to_reference (id.in ());

  CORBA::String_var str = this->orb_->object_to_string (obj.in ());

  return str._retn ();
}

int TAO_ORB_Manager::activate_poa_manager ( void   )

Put POA manager into the <Active> state, so that incoming corba requests are processed. This method is useful for clients, which are not going to enter "orb->run" loop, yet may want to service incoming requests while waiting for a result of CORBA call on a server.

Return values:
-1 Failure
0 Success

Definition at line 114 of file ORB_Manager.cpp.

{
  this->poa_manager_->activate ();
  return 0;
}

char * TAO_ORB_Manager::activate_under_child_poa ( const char *  object_name,
PortableServer::Servant  servant
)

Precondition: init_child_poa has been called. Activate <servant> using the POA <activate_object_with_id> created from the string <object_name>. Users should call this to activate objects under the child_poa.

Parameters:
object_name String name which will be used to create an Object ID for the servant.
servant The servant to activate under the child POA.
Returns:
0 on failure, a string representation of the object ID if successful. Caller of this method is responsible for memory deallocation of the string.

Definition at line 148 of file ORB_Manager.cpp.

{
  if (object_name == 0)
    ACE_ERROR_RETURN ((LM_ERROR,
                       ACE_TEXT ("\n(%P|%t) TAO_ORB_Manager::register: ")
                       ACE_TEXT ("object_name is null!")),
                      0);

  PortableServer::ObjectId_var id =
    PortableServer::string_to_ObjectId (object_name);

  this->child_poa_->activate_object_with_id (id.in (), servant);

  CORBA::Object_var obj = this->child_poa_->id_to_reference (id.in ());

  CORBA::String_var str = this->orb_->object_to_string (obj.in ());

  return str._retn();
}

PortableServer::POA_ptr TAO_ORB_Manager::child_poa ( void   )

Accessor which returns the child poa. Following the normal CORBA memory management rules of return values from functions, this function duplicates the poa return value before returning it.

Returns:
Child POA pointer which has been duplicated. Caller must release pointer when done.

Definition at line 236 of file ORB_Manager.cpp.

{
  return PortableServer::POA::_duplicate (this->child_poa_.in ());
}

void TAO_ORB_Manager::deactivate ( const char *  id  )

Deactivate object in RootPOA.

Parameters:
id A string representation of the Object ID of the servant to deactivate in the POA

Definition at line 135 of file ORB_Manager.cpp.

{
  CORBA::Object_var object = this->orb_->string_to_object (id);

  PortableServer::ObjectId_var object_id =
    this->poa_->reference_to_id (object.in ());

  this->poa_->deactivate_object (object_id.in ());
}

void TAO_ORB_Manager::deactivate_under_child_poa ( const char *  id  )

Deactivate object in child POA.

Parameters:
id string representation of the object ID, which represents the object to deactivate in the POA

Definition at line 170 of file ORB_Manager.cpp.

{
  CORBA::Object_var object = this->orb_->string_to_object (id);

  PortableServer::ObjectId_var object_id =
    this->child_poa_->reference_to_id (object.in ());

  this->child_poa_->deactivate_object (object_id.in ());
}

int TAO_ORB_Manager::fini ( void   )

Shut down. Invoke the destroy() methods on the orb and poa.

Return values:
-1 Failure
0 Success

Definition at line 194 of file ORB_Manager.cpp.

{
  this->poa_->destroy (1, 1);

  this->child_poa_   = PortableServer::POA::_nil();
  this->poa_         = PortableServer::POA::_nil();
  this->poa_manager_ = PortableServer::POAManager::_nil();

  this->orb_->destroy ();

  this->orb_ = CORBA::ORB::_nil();

  return 0;
}

int TAO_ORB_Manager::init ( int &  argc,
ACE_TCHAR *  argv[],
const char *  orb_name = 0
)

Initialize the ORB/root POA, using the supplied command line arguments or the default ORB components.

Return values:
-1 Failure
0 Success

Definition at line 43 of file ORB_Manager.cpp.

{
  if (CORBA::is_nil (this->orb_.in ()))
    {
      this->orb_ = CORBA::ORB_init (argc, argv, orb_name);
    }

  if (CORBA::is_nil (this->poa_.in ()))
    {
      // Get the POA from the ORB.
      CORBA::Object_var poa_object =
        this->orb_->resolve_initial_references (TAO_OBJID_ROOTPOA);

      if (CORBA::is_nil (poa_object.in ()))
        ACE_ERROR_RETURN ((LM_ERROR,
                           ACE_TEXT (" (%P|%t) Unable to initialize the POA.\n")),
                          -1);

      // Get the POA object.
      this->poa_ = PortableServer::POA::_narrow (poa_object.in ());
    }

  if (CORBA::is_nil (this->poa_manager_.in ()))
    {
      // Get the POA_Manager.
      this->poa_manager_ = this->poa_->the_POAManager ();
    }

  return 0;
}

int TAO_ORB_Manager::init_child_poa ( int &  argc,
ACE_TCHAR *  argv[],
const char *  poa_name,
const char *  orb_name = 0
)

Creates a child poa under the root poa with PERSISTENT and USER_ID policies. Call this if you want a child_poa with the above policies, otherwise call init.

Return values:
-1 Failure
0 Success
CORBA::ORB_ptr TAO_ORB_Manager::orb ( void   )

Accessor which returns the ORB pointer. Following the normal CORBA memory management rules of return values from functions, this function duplicates the orb return value before returning it.

Returns:
ORB pointer which has been duplicated, so caller must release pointer when done.

Definition at line 222 of file ORB_Manager.cpp.

{
  return CORBA::ORB::_duplicate (this->orb_.in ());
}

PortableServer::POAManager_ptr TAO_ORB_Manager::poa_manager ( void   )

Accessor which returns the poa manager. Following the normal CORBA memory management rules of return values from functions, this function duplicates the poa manager return value before returning it.

Returns:
POAManager pointer which has been duplicated. Caller must release pointer when done.

Definition at line 242 of file ORB_Manager.cpp.

{
  return PortableServer::POAManager::_duplicate (this->poa_manager_.in ());
}

PortableServer::POA_ptr TAO_ORB_Manager::root_poa ( void   )

Accessor which returns the root poa. Following the normal CORBA memory management rules of return values from functions, this function duplicates the poa return value before returning it.

Returns:
Root POA pointer which has been duplicated. Caller must release pointer when done.

Definition at line 229 of file ORB_Manager.cpp.

{
  return PortableServer::POA::_duplicate (this->poa_.in ());
}

int TAO_ORB_Manager::run ( ACE_Time_Value &  tv  )

Run the ORB event loop with the specified tv time value.

Parameters:
tv the time interval for how long to run the ORB event loop.
Return values:
-1 Failure
0 Success

Definition at line 184 of file ORB_Manager.cpp.

{
  this->poa_manager_->activate ();

  this->orb_->run (tv);

  return 0;
}

int TAO_ORB_Manager::run ( void   )

Run the ORB event loop.

Definition at line 210 of file ORB_Manager.cpp.

{
  this->poa_manager_->activate ();

  this->orb_->run ();

  return 0;
}

Member Data Documentation

PortableServer::POA_var TAO_ORB_Manager::child_poa_ [protected]

Child poa under the root POA.

Definition at line 222 of file ORB_Manager.h.

CORBA::ORB_var TAO_ORB_Manager::orb_ [protected]

The ORB.

Definition at line 216 of file ORB_Manager.h.

PortableServer::POA_var TAO_ORB_Manager::poa_ [protected]

The POA for this ORB.

Definition at line 219 of file ORB_Manager.h.

PortableServer::POAManager_var TAO_ORB_Manager::poa_manager_ [protected]

The POA manager of poa_.

Definition at line 225 of file ORB_Manager.h.

The documentation for this class was generated from the following files:
