TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType > Class Template Reference

Representation of an OMG IDL defined union case for unions with Enum discriminators. More...

#include <TypeCode_Case_Enum_T.h>

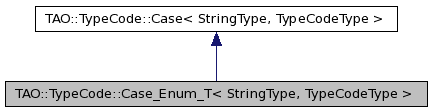

Inheritance diagram for TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >:

Collaboration diagram for TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >:

List of all members.

Public Member Functions
	Case_Enum_T (CORBA::TypeCode_ptr discriminator_tc, CORBA::ULong member_label, char const *member_name, TypeCodeType member_type)
	Constructor.
	Case_Enum_T (CORBA::TypeCode_ptr discriminator_tc, CORBA::ULong member_label)
	Constructor.
@c TAO::TypeCode::Case Methods
Methods required by the TAO::TypeCode::Case abstract base class. See also: TAO::TypeCode::Case
Case< StringType, TypeCodeType > *	clone (void) const
	Cloning/copying operation.
virtual CORBA::Any *	label (void) const
virtual bool	marshal_label (TAO_OutputCDR &cdr) const
virtual bool	equal_label (CORBA::ULong index, CORBA::TypeCode_ptr tc) const
	Verify equality of member labels.
Private Attributes
::CORBA::ULong const	label_
	IDL union case/member label value.
CORBA::TypeCode_var	discriminator_tc_
	IDL union discriminator typecode.

---

Detailed Description

template<typename StringType, typename TypeCodeType>
class TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >

Representation of an OMG IDL defined union case for unions with Enum discriminators.

When dynamically creating a union type with a enum discriminator, there is not way that the template parameter DiscriminatorType can be specified at runtime.

Since enums are encoded as ULongs, DiscriminatorType has been replaced with CORBA::ULong.

Definition at line 49 of file TypeCode_Case_Enum_T.h.

---

Constructor & Destructor Documentation

template<typename StringType , typename TypeCodeType >

TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >::Case_Enum_T	(	CORBA::TypeCode_ptr	discriminator_tc,
		CORBA::ULong	member_label,
		char const *	member_name,
		TypeCodeType	member_type
	)

Constructor.

Definition at line 12 of file TypeCode_Case_Enum_T.inl.

  : Case<StringType, TypeCodeType> (member_name, member_type)
  , label_ (member_label)
  , discriminator_tc_( CORBA::TypeCode::_duplicate (discriminator_tc) )
{
}

template<typename StringType , typename TypeCodeType >

TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >::Case_Enum_T	(	CORBA::TypeCode_ptr	discriminator_tc,
		CORBA::ULong	member_label
	)

Constructor.

Constructor only used in the dynamically constructed union TypeCode case.

Definition at line 26 of file TypeCode_Case_Enum_T.inl.

  : Case<StringType, TypeCodeType> ()
  , label_ (member_label)
  , discriminator_tc_( CORBA::TypeCode::_duplicate (discriminator_tc) )
{
}

---

Member Function Documentation

template<typename StringType , typename TypeCodeType >

TAO::TypeCode::Case< StringType, TypeCodeType > * TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >::clone

(

void

)

const [virtual]

Cloning/copying operation.

Implements TAO::TypeCode::Case< StringType, TypeCodeType >.

Definition at line 25 of file TypeCode_Case_Enum_T.cpp.

{
  Case<StringType, TypeCodeType> * p = 0;

  typedef Case_Enum_T<StringType,
                      TypeCodeType> case_type;

  // The compiler generated memberwise copy constructor is sufficient.
  ACE_NEW_RETURN (p,
                  case_type (*this),
                  p);

  return p;
}

template<typename StringType , typename TypeCodeType >

virtual bool TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >::equal_label	(	CORBA::ULong	index,
		CORBA::TypeCode_ptr	tc
	)			const [virtual]

Verify equality of member labels.

Performing member label equality comparisons in the Case subclass allows us to avoid performing interpretive extraction of the value from the Any returned from the "right hand side" operand TypeCode since the Case subclass already knows what type and value should be extracted from the Any.

Parameters:

	index	Member index of given TypeCode tc being tested.
	tc	The TypeCode whose member "@a index" label is being tested.

Implements TAO::TypeCode::Case< StringType, TypeCodeType >.

template<typename StringType , typename TypeCodeType >

CORBA::Any * TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >::label

(

void

)

const [virtual]

Return the IDL union case label value embedded within a CORBA::Any.

Implements TAO::TypeCode::Case< StringType, TypeCodeType >.

Definition at line 81 of file TypeCode_Case_Enum_T.cpp.

{
    TAO_OutputCDR out_cdr;

    out_cdr.write_ulong (this->label_);

    CORBA::Any *retval = 0;
    ACE_NEW_THROW_EX (retval,
                        CORBA::Any,
                        CORBA::NO_MEMORY ());

    TAO_InputCDR in_cdr (out_cdr);
    TAO::Unknown_IDL_Type *unk = 0;
    ACE_NEW_THROW_EX (unk,
                      TAO::Unknown_IDL_Type (this->discriminator_tc_.in (),
                                             in_cdr),
                      CORBA::NO_MEMORY ());

    CORBA::Any_var safe_value (retval);

    retval->replace (unk);

    return safe_value._retn ();
}

template<typename StringType , typename TypeCodeType >

bool TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >::marshal_label

(

TAO_OutputCDR &

cdr

)

const [virtual]

Marshal the IDL union case label value into the given output CDR stream.

Implements TAO::TypeCode::Case< StringType, TypeCodeType >.

Definition at line 44 of file TypeCode_Case_Enum_T.cpp.

{
  return
    (cdr << this->label_);
}

---

Member Data Documentation

template<typename StringType , typename TypeCodeType >

CORBA::TypeCode_var TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >::discriminator_tc_ [private]

IDL union discriminator typecode.

Definition at line 90 of file TypeCode_Case_Enum_T.h.

template<typename StringType , typename TypeCodeType >

::CORBA::ULong const TAO::TypeCode::Case_Enum_T< StringType, TypeCodeType >::label_ [private]

IDL union case/member label value.

Definition at line 87 of file TypeCode_Case_Enum_T.h.

---

The documentation for this class was generated from the following files:

• TypeCode_Case_Enum_T.h
• TypeCode_Case_Enum_T.cpp
• TypeCode_Case_Enum_T.inl
