Framework_Component.h File Reference

#include "ace/os_include/os_signal.h"
#include "ace/Thread_Mutex.h"
#include "ace/Framework_Component.inl"
#include "ace/Framework_Component_T.h"

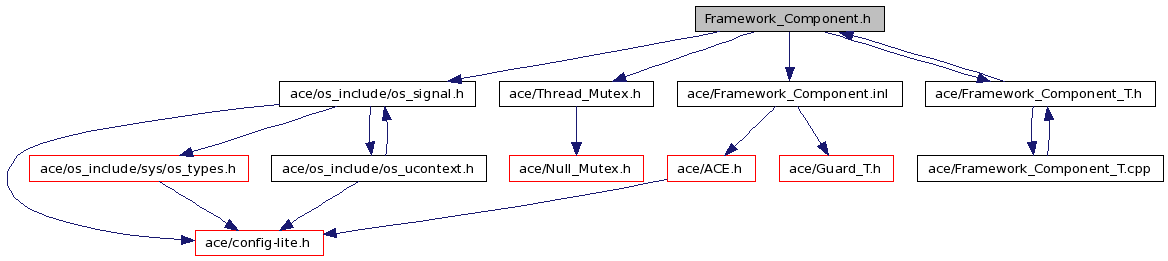

Include dependency graph for Framework_Component.h:

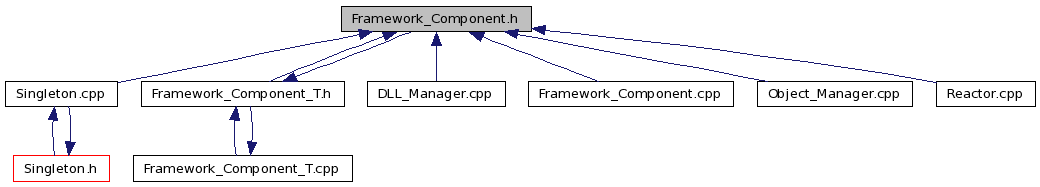

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	ACE_Framework_Component
	Base class that defines a uniform interface for all managed framework components. More...
class	ACE_Framework_Repository
	Contains all framework components used by an application. More...
Defines
#define	ACE_DEFAULT_FRAMEWORK_REPOSITORY_SIZE   1024

---

Detailed Description

Id:

Framework_Component.h 80826 2008-03-04 14:51:23Z wotte

A prototype mechanism that allows framework components, singletons such as ACE_Reactor, ACE_Proactor, etc, to be registered with a central repository managed by the ACE_Object_Manager or ACE_Service_Config that will handle destruction.

This technique obviates changing ACE_Object_Manager and ACE_Service_Config everytime a new framework is added. Which also means that unused framework components don't need to linked into the final application which is important for applications with stringent footprint requirements.

Framework components need only provide a static method, close_singleton() and add the ACE_REGISTER_FRAMEWORK_COMPONENT macro call to their instance() methods in order to participate. Components that don't have a close_singleton() method can also participate via template specialization of ACE_Framework_Component_T.

This design uses the External Polymorphism pattern to avoid having to derive all framework components from a common base class that has virtual methods (this is crucial to avoid unnecessary overhead), and is based on the dump debugging implementation found in <ace/Dump.h>.

Author:

Don Hinton <dhinton@ieee.org>.

Definition in file Framework_Component.h.

---

Define Documentation

#define ACE_DEFAULT_FRAMEWORK_REPOSITORY_SIZE   1024

Definition at line 49 of file Framework_Component.h.
