Provides a hash table of BUCKETs as an implementation for a timer queue. More...

#include <Timer_Hash_T.h>

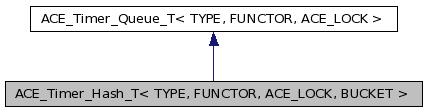

Inheritance diagram for ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >:

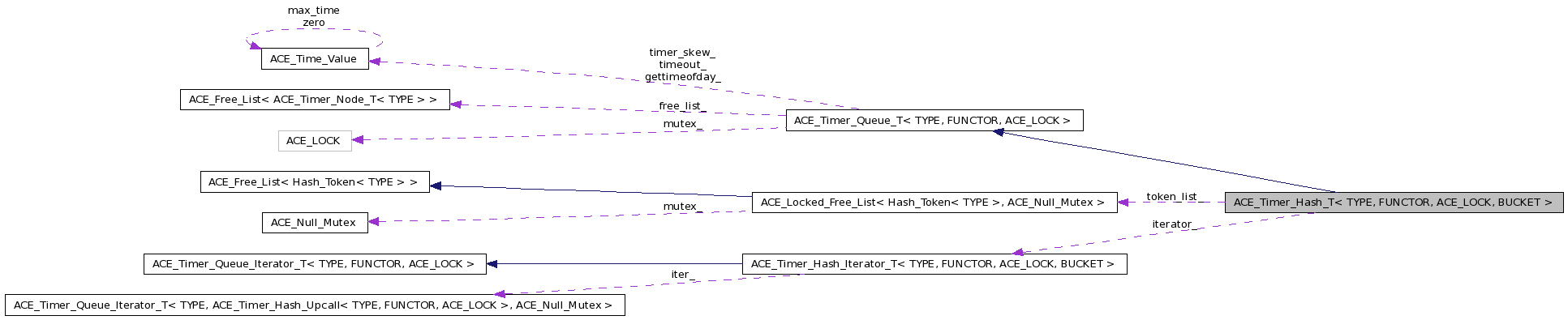

Collaboration diagram for ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >:

Public Types
typedef ACE_Timer_Hash_Iterator_T < TYPE, FUNCTOR, ACE_LOCK, BUCKET >	HASH_ITERATOR
	Type of iterator.
typedef ACE_Timer_Queue_T < TYPE, FUNCTOR, ACE_LOCK >	INHERITED
	Type inherited from.
Public Member Functions
	ACE_Timer_Hash_T (size_t table_size, FUNCTOR upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > freelist=0)
	ACE_Timer_Hash_T (FUNCTOR upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > freelist=0)
virtual	~ACE_Timer_Hash_T (void)
	Destructor.
virtual bool	is_empty (void) const
	True if queue is empty, else false.
virtual const ACE_Time_Value &	earliest_time (void) const
virtual int	reset_interval (long timer_id, const ACE_Time_Value &interval)
virtual int	cancel (const TYPE &type, int dont_call_handle_close=1)
virtual int	cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)
virtual int	expire (void)
virtual int	expire (const ACE_Time_Value &current_time)
virtual ACE_Timer_Queue_Iterator_T < TYPE, FUNCTOR, ACE_LOCK > &	iter (void)
	Returns a pointer to this ACE_Timer_Queue's iterator.
virtual ACE_Timer_Node_T< TYPE > *	remove_first (void)
	Removes the earliest node from the queue and returns it.
virtual void	dump (void) const
	Dump the state of an object.
virtual ACE_Timer_Node_T< TYPE > *	get_first (void)
	Reads the earliest node from the queue and returns it.
Protected Member Functions
virtual void	free_node (ACE_Timer_Node_T< TYPE > *)
	Factory method that frees a previously allocated node.
Private Member Functions
virtual long	schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)
virtual int	dispatch_info_i (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
	Non-locking version of dispatch_info ().
virtual void	reschedule (ACE_Timer_Node_T< TYPE > *)
	Reschedule an "interval" ACE_Timer_Node.
void	find_new_earliest (void)
	Finds the earliest node.
	ACE_Timer_Hash_T (const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &)
void	operator= (const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &)
Private Attributes
size_t	size_
	Keeps track of the size of the queue.
BUCKET **	table_
	Table of BUCKETS.
size_t	table_size_
	Keeps track of the size of table_.
ACE_Timer_Hash_Upcall< TYPE, FUNCTOR, ACE_LOCK >	table_functor_
	Functor used for the table's timer queues.
size_t	earliest_position_
	Index to the position with the earliest entry.
HASH_ITERATOR *	iterator_
	Iterator used to expire timers.
ACE_Locked_Free_List < Hash_Token< TYPE > , ACE_Null_Mutex >	token_list_
Friends
class	ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >
	Iterator is a friend.

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>
class ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >

Provides a hash table of BUCKETs as an implementation for a timer queue.

This implementation uses a hash table of BUCKETs. The hash is based on the time_value of the event. Unlike other Timer Queues, ACE_Timer_Hash does not expire events in order.

Definition at line 162 of file Timer_Hash_T.h.

Member Typedef Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

typedef ACE_Timer_Hash_Iterator_T<TYPE, FUNCTOR, ACE_LOCK, BUCKET> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::HASH_ITERATOR

Type of iterator.

Definition at line 167 of file Timer_Hash_T.h.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

typedef ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::INHERITED

Type inherited from.

Definition at line 173 of file Timer_Hash_T.h.

Constructor & Destructor Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::ACE_Timer_Hash_T	(	size_t	table_size,
		FUNCTOR *	upcall_functor = `0`,
		ACE_Free_List< ACE_Timer_Node_T< TYPE > > *	freelist = `0`
	)

Default constructor. table_size determines the size of the hash table. upcall_functor is the instance of the FUNCTOR to be used by the buckets. If upcall_functor is 0, a default FUNCTOR will be created.

Definition at line 271 of file Timer_Hash_T.cpp.

  : ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK> (upcall_functor, freelist),
    size_ (0),
    table_size_ (table_size),
    table_functor_ (this),
    earliest_position_ (0)
#if defined (ACE_WIN64)
  , pointer_base_ (0)
#endif /* ACE_WIN64 */
  , token_list_ ()
{
  ACE_TRACE ("ACE_Timer_Hash_T::ACE_Timer_Hash_T");

  ACE_NEW (table_,
           BUCKET *[table_size]);

  this->gettimeofday (ACE_OS::gettimeofday);

  for (size_t i = 0;
       i < table_size;
       ++i)
    {
      ACE_NEW (this->table_[i],
               BUCKET (&this->table_functor_,
                       this->free_list_));
      this->table_[i]->gettimeofday (ACE_OS::gettimeofday);
    }

  ACE_NEW (iterator_,
           HASH_ITERATOR (*this));
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::ACE_Timer_Hash_T	(	FUNCTOR *	upcall_functor = `0`,
		ACE_Free_List< ACE_Timer_Node_T< TYPE > > *	freelist = `0`
	)

Default constructor. upcall_functor is the instance of the FUNCTOR to be used by the queue. If upcall_functor is 0, Timer Hash will create a default FUNCTOR. freelist the freelist of timer nodes. If 0, then a default freelist will be created. The default size will be ACE_DEFAULT_TIMERS and there will be no preallocation.

Definition at line 308 of file Timer_Hash_T.cpp.

  : ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK> (upcall_functor, freelist),
    size_ (0),
    table_size_ (ACE_DEFAULT_TIMER_HASH_TABLE_SIZE),
    table_functor_ (this),
    earliest_position_ (0)
#if defined (ACE_WIN64)
  , pointer_base_ (0)
#endif /* ACE_WIN64 */
  , token_list_ ()
{
  ACE_TRACE ("ACE_Timer_Hash_T::ACE_Timer_Hash_T");

  ACE_NEW (table_,
           BUCKET *[ACE_DEFAULT_TIMER_HASH_TABLE_SIZE]);


  this->gettimeofday (ACE_OS::gettimeofday);

  for (size_t i = 0;
       i < this->table_size_;
       ++i)
    {
      ACE_NEW (this->table_[i],
               BUCKET (&this->table_functor_,
                       this->free_list_));
      this->table_[i]->gettimeofday (ACE_OS::gettimeofday);
    }

  ACE_NEW (iterator_,
           HASH_ITERATOR (*this));
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::~ACE_Timer_Hash_T ( void ) [virtual]

Destructor.

Definition at line 346 of file Timer_Hash_T.cpp.

{
  ACE_TRACE ("ACE_Timer_Hash_T::~ACE_Timer_Hash_T");
  ACE_MT (ACE_GUARD (ACE_LOCK, ace_mon, this->mutex_));

  delete iterator_;

  for (size_t i = 0;
       i < this->table_size_;
       ++i)
    delete this->table_[i];

  delete [] this->table_;
}

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::ACE_Timer_Hash_T ( const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > & ) [private]

Member Function Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::cancel	(	const TYPE &	type,
		int	dont_call_handle_close = `1`
	)			`[virtual]`

Cancel all timer associated with type. If <dont_call> is 0 then the <functor> will be invoked. Returns number of timers cancelled. If any valid timer is not cancelled before destruction of this instance of ACE_Timer_Hash_T then user will get a memory leak.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 621 of file Timer_Hash_T.cpp.

{
  ACE_TRACE ("ACE_Timer_Hash_T::cancel");

  size_t i; // loop variable.

  Hash_Token<TYPE> **timer_ids = 0;
  size_t pos = 0;

  ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, -1));

  ACE_NEW_RETURN (timer_ids,
                  Hash_Token<TYPE> *[this->size_],
                  -1);

  for (i = 0;
       i < this->table_size_;
       ++i)
    {
      ACE_Timer_Queue_Iterator_T<TYPE,
                                 ACE_Timer_Hash_Upcall<TYPE, FUNCTOR, ACE_LOCK>,
                                 ACE_Null_Mutex> &iter =
        this->table_[i]->iter ();

      for (iter.first ();
           !iter.isdone ();
           iter.next ())
        if (iter.item ()->get_type () == type)
          timer_ids[pos++] =
            reinterpret_cast<Hash_Token<TYPE> *> (
              const_cast<void *> (iter.item ()->get_act ()));
    }

  if (pos > this->size_)
    return -1;

  for (i = 0; i < pos; ++i)
    {
      int const result =
        this->table_[timer_ids[i]->pos_]->cancel (timer_ids[i]->orig_id_,
                                                  0,
                                                  dont_call);
      ACE_ASSERT (result == 1);
      ACE_UNUSED_ARG (result);

      // We could destruct Hash_Token explicitly but we better
      // schedule it for destruction.
      this->token_list_.add (timer_ids[i]);

      --this->size_;
    }

  delete [] timer_ids;

  this->find_new_earliest ();

  // Call the close hooks.
  int cookie = 0;

  // cancel_type() called once per <type>.
  this->upcall_functor ().cancel_type (*this,
                                       type,
                                       dont_call,
                                       cookie);

  for (i = 0;
       i < pos;
       ++i)
    {
      // cancel_timer() called once per <timer>.
      this->upcall_functor ().cancel_timer (*this,
                                            type,
                                            dont_call,
                                            cookie);
    }

  return static_cast<int> (pos);
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::cancel	(	long	timer_id,
		const void **	act = `0`,
		int	dont_call_handle_close = `1`
	)			`[virtual]`

Cancel the single timer that matches the timer_id value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call> is 0 then the <functor> will be invoked. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found. If any valid timer is not cancelled before destruction of this instance of ACE_Timer_Hash_T then user will get a memory leak.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 551 of file Timer_Hash_T.cpp.

{
  ACE_TRACE ("ACE_Timer_Hash_T::cancel");

  // Make sure we are getting a valid <timer_id>, not an error
  // returned by <schedule>.
  if (timer_id == -1)
    return 0;

#if defined (ACE_WIN64)
  unsigned long const timer_offset =
    static_cast<unsigned long> (timer_id);

  ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, -1));

  Hash_Token<TYPE> * const h =
    reinterpret_cast<Hash_Token<TYPE> *> (this->pointer_base_ + timer_offset);
#else
  Hash_Token<TYPE> * const h =
    reinterpret_cast<Hash_Token<TYPE> *> (timer_id);

  // Grab the lock before accessing the table.  We don't need to do so
  // before this point since no members are accessed until now.
  ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, -1));
#endif /* ACE_WIN64 */

  int const result = this->table_[h->pos_]->cancel (h->orig_id_,
                                                    0,
                                                    dont_call);

  if (result == 1)
    {
      // Call the close hooks.
      int cookie = 0;

      // cancel_type() called once per <type>.
      this->upcall_functor ().cancel_type (*this,
                                           h->type_,
                                           dont_call,
                                           cookie);

      // cancel_timer() called once per <timer>.
      this->upcall_functor ().cancel_timer (*this,
                                            h->type_,
                                            dont_call,
                                            cookie);

      if (h->pos_ == this->earliest_position_)
        this->find_new_earliest ();

      if (act != 0)
        *act = h->act_;

      // We could destruct Hash_Token explicitly but we better
      // schedule it for destruction. In this case next
      // token_list_.remove () will use it.
      this->token_list_.add (h);

      --this->size_;
    }

  return result;
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::dispatch_info_i	(	const ACE_Time_Value &	current_time,
		ACE_Timer_Node_Dispatch_Info_T< TYPE > &	info
	)			`[private, virtual]`

Non-locking version of dispatch_info ().

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 756 of file Timer_Hash_T.cpp.

{
  int const result =
    ACE_Timer_Queue_T<TYPE,FUNCTOR,ACE_LOCK>::dispatch_info_i (cur_time,
                                                               info);

  if (result == 1)
    {
      Hash_Token<TYPE> *h =
        reinterpret_cast<Hash_Token<TYPE> *> (const_cast<void *> (info.act_));

      info.act_ = h->act_;
    }

  return result;
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::dump ( void ) const [virtual]

Dump the state of an object.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 381 of file Timer_Hash_T.cpp.

{
#if defined (ACE_HAS_DUMP)
  ACE_TRACE ("ACE_Timer_Hash_T::dump");
  ACE_DEBUG ((LM_DEBUG, ACE_BEGIN_DUMP, this));
  ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("\ntable_size_ = %d"), this->table_size_));
  ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("\nearliest_position_ = %d"), this->earliest_position_));

  for (size_t i = 0; i < this->table_size_; ++i)
    if (!this->table_[i]->is_empty ())
      ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("\nBucket %d contains nodes"), i));

  ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("\n")));
  ACE_DEBUG ((LM_DEBUG, ACE_END_DUMP));
#endif /* ACE_HAS_DUMP */
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

const ACE_Time_Value & ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::earliest_time ( void ) const [virtual]

Returns the time of the earlier node in the <ACE_Timer_Hash>. Must be called on a non-empty queue.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 374 of file Timer_Hash_T.cpp.

{
  ACE_TRACE ("ACE_Timer_Hash_T::earliest_time");
  return this->table_[this->earliest_position_]->earliest_time ();
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::expire ( void ) [virtual]

Run the <functor> for all timers whose values are <= <ACE_OS::gettimeofday>. Also accounts for <timer_skew>. Returns the number of timers canceled.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 777 of file Timer_Hash_T.cpp.

{
  return ACE_Timer_Queue_T<TYPE,FUNCTOR,ACE_LOCK>::expire();
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::expire ( const ACE_Time_Value & current_time ) [virtual]

Run the <functor> for all timers whose values are <= current_time. This does not account for <timer_skew>. Returns the number of timers canceled.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 785 of file Timer_Hash_T.cpp.

{
  ACE_TRACE ("ACE_Timer_Hash_T::expire");

  int number_of_timers_expired = 0;

  ACE_Timer_Node_T<TYPE> *expired = 0;

  ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, -1));

  // Go through the table and expire anything that can be expired

  for (size_t i = 0;
       i < this->table_size_;
       ++i)
    {
      while (!this->table_[i]->is_empty ()
             && this->table_[i]->earliest_time () <= cur_time)
        {
          expired = this->table_[i]->remove_first ();
          const void *act = expired->get_act ();
          bool reclaim = true;

          Hash_Token<TYPE> *h =
            reinterpret_cast<Hash_Token<TYPE> *> (const_cast<void *> (act));

          ACE_ASSERT (h->pos_ == i);

#if 0
          ACE_DEBUG ((LM_DEBUG, "Hash::expire() expiring %d in slot %d where it's id is %d and token is %x\n",
                      expired->get_timer_value ().msec (),
                      h->pos_,
                      h->orig_id_,
                      h));
#endif

          // Check if this is an interval timer.
          if (expired->get_interval () > ACE_Time_Value::zero)
            {
              // Make sure that we skip past values that have already
              // "expired".
              this->recompute_next_abs_interval_time (expired, cur_time);

              // Since this is an interval timer, we need to
              // reschedule it.
              this->reschedule (expired);
              reclaim = false;
            }
          else
            {
              this->free_node (expired);
            }

          ACE_Timer_Node_Dispatch_Info_T<TYPE> info;

          // Get the dispatch info
          expired->get_dispatch_info (info);

          info.act_ = h->act_;

          const void *upcall_act = 0;

          this->preinvoke (info, cur_time, upcall_act);

          this->upcall (info, cur_time);

          this->postinvoke (info, cur_time, upcall_act);

          if (reclaim)
            {
              --this->size_;
            }

          ++number_of_timers_expired;
         }
    }

  if (number_of_timers_expired > 0)
    this->find_new_earliest ();

  return number_of_timers_expired;
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::find_new_earliest ( void ) [private]

Finds the earliest node.

Definition at line 722 of file Timer_Hash_T.cpp.

{
  for (size_t i = 0; i < this->table_size_; ++i)
    if (!this->table_[i]->is_empty ())
      if (this->table_[this->earliest_position_]->is_empty ()
          || this->earliest_time () == ACE_Time_Value::zero
          || this->table_[i]->earliest_time () <= this->earliest_time ())
          this->earliest_position_ = i;
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::free_node ( ACE_Timer_Node_T< TYPE > * node ) [protected, virtual]

Factory method that frees a previously allocated node.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 746 of file Timer_Hash_T.cpp.

{
  ACE_Timer_Queue_T<TYPE,FUNCTOR,ACE_LOCK>::free_node (node);

  Hash_Token<TYPE> *h =
    reinterpret_cast<Hash_Token<TYPE> *> (const_cast<void *> (node->get_act ()));
  this->token_list_.add (h);
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

ACE_Timer_Node_T< TYPE > * ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::get_first ( void ) [virtual]

Reads the earliest node from the queue and returns it.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 735 of file Timer_Hash_T.cpp.

{
  ACE_TRACE ("ACE_Timer_Hash_T::get_first");

  if (this->is_empty ())
    return 0;

  return this->table_[this->earliest_position_]->get_first ();
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

bool ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::is_empty ( void ) const [virtual]

True if queue is empty, else false.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 364 of file Timer_Hash_T.cpp.

{
  ACE_TRACE ("ACE_Timer_Hash_T::is_empty");
  return this->table_[this->earliest_position_]->is_empty ();
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

ACE_Timer_Queue_Iterator_T< TYPE, FUNCTOR, ACE_LOCK > & ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::iter ( void ) [virtual]

Returns a pointer to this ACE_Timer_Queue's iterator.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 262 of file Timer_Hash_T.cpp.

{
  this->iterator_->first ();
  return *this->iterator_;
}

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::operator= ( const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > & ) [private]

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

ACE_Timer_Node_T< TYPE > * ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::remove_first ( void ) [virtual]

Removes the earliest node from the queue and returns it.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 704 of file Timer_Hash_T.cpp.

{
  if (this->is_empty ())
    return 0;

  ACE_Timer_Node_T<TYPE> *temp =
    this->table_[this->earliest_position_]->remove_first ();

  this->find_new_earliest ();

  --this->size_;

  return temp;
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::reschedule ( ACE_Timer_Node_T< TYPE > * expired ) [private, virtual]

Reschedule an "interval" ACE_Timer_Node.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 403 of file Timer_Hash_T.cpp.

{
  ACE_TRACE ("ACE_Timer_Hash_T::reschedule");

  Hash_Token<TYPE> *h =
    reinterpret_cast<Hash_Token<TYPE> *> (
      const_cast<void *> (expired->get_act ()));

  // Don't use ACE_Utils::truncate_cast<> here.  A straight
  // static_cast<>  will provide more unique results when the number
  // of seconds is greater than std::numeric_limits<size_t>::max().
  size_t const secs_hash_input =
    static_cast<size_t> (expired->get_timer_value ().sec ());
  h->pos_ = secs_hash_input % this->table_size_;

  h->orig_id_ =
    this->table_[h->pos_]->schedule (expired->get_type (),
                                     h,
                                     expired->get_timer_value (),
                                     expired->get_interval ());
  ACE_ASSERT (h->orig_id_ != -1);

#if 0
  ACE_DEBUG ((LM_DEBUG, "Hash::reschedule() resets %d in slot %d where it's id is %d and token is %x\n",
              expired->get_timer_value ().msec (),
              h->pos_,
              h->orig_id_,
              h));
#endif

  // Since schedule() above will allocate a new node
  // then here schedule <expired> for deletion. Don't call
  // this->free_node() because that will invalidate <h>
  // and that's what user have as timer_id.
  ACE_Timer_Queue_T<TYPE,FUNCTOR,ACE_LOCK>::free_node (expired);

  if (this->table_[this->earliest_position_]->is_empty ()
      || this->table_[h->pos_]->earliest_time ()
      < this->table_[this->earliest_position_]->earliest_time ())
    this->earliest_position_ = h->pos_;
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::reset_interval	(	long	timer_id,
		const ACE_Time_Value &	interval
	)			`[virtual]`

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 514 of file Timer_Hash_T.cpp.

{
  ACE_TRACE ("ACE_Timer_Hash_T::reset_interval");

  // Make sure we are getting a valid <timer_id>, not an error
  // returned by <schedule>.
  if (timer_id == -1)
    return -1;

#if defined (ACE_WIN64)
  unsigned long const timer_offset =
    static_cast<unsigned long> (timer_id);

  ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, -1));

  Hash_Token<TYPE> * const h =
    reinterpret_cast<Hash_Token<TYPE> *> (this->pointer_base_ + timer_offset);
#else
  Hash_Token<TYPE> * const h =
    reinterpret_cast<Hash_Token<TYPE> *> (timer_id);

  // Grab the lock before accessing the table.  We don't need to do so
  // before this point since no members are accessed until now.
  ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, -1));
#endif /* ACE_WIN64 */

  return this->table_[h->pos_]->reset_interval (h->orig_id_,
                                                interval);
}

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET >

long ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::schedule_i	(	const TYPE &	type,
		const void *	act,
		const ACE_Time_Value &	future_time,
		const ACE_Time_Value &	interval
	)			`[private, virtual]`

Schedule type that will expire at future_time, which is specified in absolute time. If it expires then act is passed in as the value to the <functor>. If interval is != to ACE_Time_Value::zero then it is used to reschedule the type automatically, using relative time to the current <gettimeofday>. This method returns a <timer_id> that is a pointer to a token which stores information about the event. This <timer_id> can be used to cancel the timer before it expires. Returns -1 on failure.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK >.

Definition at line 451 of file Timer_Hash_T.cpp.

{
  ACE_TRACE ("ACE_Timer_Hash_T::schedule_i");

  // Don't use ACE_Utils::truncate_cast<> here.  A straight
  // static_cast<>  will provide more unique results when the number
  // of seconds is greater than std::numeric_limits<size_t>::max().
  size_t const secs_hash_input = static_cast<size_t> (future_time.sec ());
  size_t const position = secs_hash_input % this->table_size_;

  // Don't create Hash_Token directly. Instead we get one from Free_List
  // and then set it properly.
  Hash_Token<TYPE> *h = this->token_list_.remove ();
  h->set (act, position, 0, type);

  h->orig_id_ =
    this->table_[position]->schedule (type,
                                      h,
                                      future_time,
                                      interval);
  ACE_ASSERT (h->orig_id_ != -1);

#if 0
  ACE_DEBUG ((LM_DEBUG, "Hash::schedule() placing %d in slot %d where it's id is %d and token is %x\n",
              future_time.msec (),
              position,
              h->orig_id_,
              h));
#endif

  if (this->table_[this->earliest_position_]->is_empty ()
      || this->table_[position]->earliest_time ()
      < this->table_[this->earliest_position_]->earliest_time ())
    this->earliest_position_ = position;

  ++this->size_;

#if defined (ACE_WIN64)
  // This is a Win64 hack, necessary because of the original (bad) decision
  // to use a pointer as the timer ID. This class doesn't follow the usual
  // timer expiration rules (see comments in header file) and is probably
  // not used much. The dynamic allocation of Hash_Tokens without
  // recording them anywhere is a large problem for Win64 since the
  // size of a pointer is 64 bits, but a long is 32. Since this class
  // is not much used, I'm hacking this, at least for now. If it becomes
  // an issue, I'll look at it again then.
  intptr_t hi = reinterpret_cast<intptr_t> (h);
  if (this->pointer_base_ == 0)
    this->pointer_base_ = hi & 0xffffffff00000000;
  return static_cast<long> (hi & 0xffffffff);
#else
  return reinterpret_cast<long> (h);
#endif
}

Friends And Related Function Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

friend class ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > [friend]

Iterator is a friend.

Definition at line 170 of file Timer_Hash_T.h.

Member Data Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

size_t ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::earliest_position_ [private]

Index to the position with the earliest entry.

Definition at line 311 of file Timer_Hash_T.h.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

HASH_ITERATOR* ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::iterator_ [private]

Iterator used to expire timers.

Definition at line 314 of file Timer_Hash_T.h.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

size_t ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::size_ [private]

Keeps track of the size of the queue.

Definition at line 299 of file Timer_Hash_T.h.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

BUCKET** ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::table_ [private]

Table of BUCKETS.

Definition at line 302 of file Timer_Hash_T.h.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Timer_Hash_Upcall<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::table_functor_ [private]

Functor used for the table's timer queues.

Definition at line 308 of file Timer_Hash_T.h.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

size_t ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::table_size_ [private]

Keeps track of the size of table_.

Definition at line 305 of file Timer_Hash_T.h.

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>

ACE_Locked_Free_List<Hash_Token<TYPE>, ACE_Null_Mutex> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::token_list_ [private]

Hash_Token is usually allocated in schedule but its deallocation is problematic and token_list_ helps with this.

Definition at line 324 of file Timer_Hash_T.h.

The documentation for this class was generated from the following files:

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > Class Template Reference

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET> class ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET>
class ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >
