ACE_SSL_SOCK Class Reference

An abstract class that forms the basis for more specific classes, such as "ACE_SSL_SOCK_Acceptor" and "ACE_SSL_SOCK_Stream". Do not instantiate this class. More...

#include <SSL_SOCK.h>

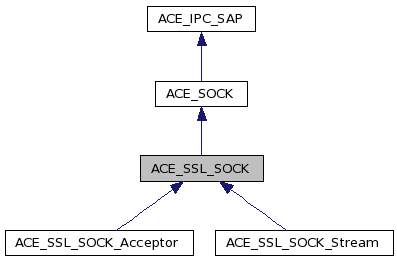

Inheritance diagram for ACE_SSL_SOCK:

Collaboration diagram for ACE_SSL_SOCK:

List of all members.

Public Member Functions
int	set_option (int level, int option, void *optval, int optlen) const
int	get_option (int level, int option, void *optval, int *optlen) const
int	enable (int value) const
int	disable (int value) const
void	set_handle (ACE_HANDLE)
ACE_HANDLE	get_handle (void) const
int	control (int cmd, void *arg) const
Protected Member Functions
	ACE_SSL_SOCK (void)
	~ACE_SSL_SOCK (void)
	Destructor.

---

Detailed Description

An abstract class that forms the basis for more specific classes, such as "ACE_SSL_SOCK_Acceptor" and "ACE_SSL_SOCK_Stream". Do not instantiate this class.

This class provides functions that are common to all of the ACE_SSL_SOCK_* classes. ACE_SSL_SOCK provides the ability to get and set socket options, get the local and remote addresses, and close the socket.

Definition at line 51 of file SSL_SOCK.h.

---

Constructor & Destructor Documentation

ACE_SSL_SOCK::ACE_SSL_SOCK

(

void

)

[protected]

Default constructor is private to prevent instances of this class from being defined.

ACE_SSL_SOCK::~ACE_SSL_SOCK

(

void

)

[protected]

Destructor.

Not a virtual destructor. Protected destructor to prevent operator delete() from being called through a base class ACE_SSL_SOCK pointer/reference.

Definition at line 24 of file SSL_SOCK.cpp.

{
  ACE_TRACE ("ACE_SSL_SOCK::~ACE_SSL_SOCK");
}

---

Member Function Documentation

int ACE_SSL_SOCK::control	(	int	cmd,
		void *	arg
	)			const

Override ACE_SOCK base class implementations with these SSL specific ones.

Reimplemented from ACE_IPC_SAP.

Definition at line 24 of file SSL_SOCK.inl.

{
  return ACE_OS::ioctl (this->get_handle (), cmd, arg);
}

int ACE_SSL_SOCK::disable

(

int

value

)

const

Override ACE_SOCK base class implementations with these SSL specific ones.

Reimplemented from ACE_IPC_SAP.

Definition at line 52 of file SSL_SOCK.cpp.

{
  ACE_TRACE("ACE_SSL_SOCK::disable");
  switch (value)
    {
#ifdef SIGURG
    case SIGURG:
    case ACE_SIGURG:
#endif  /* SIGURG */
    case SIGIO:
    case ACE_SIGIO:
    case ACE_CLOEXEC:
      ACE_NOTSUP_RETURN (-1);
    case ACE_NONBLOCK:
      return ACE_IPC_SAP::disable (value);
    default:
      return -1;
    }
}

int ACE_SSL_SOCK::enable

(

int

value

)

const

Override ACE_SOCK base class implementations with these SSL specific ones.

Reimplemented from ACE_IPC_SAP.

Definition at line 30 of file SSL_SOCK.cpp.

{
  ACE_TRACE ("ACE_SSL_SOCK::enable");

  switch (value)
    {
#ifdef SIGURG
    case SIGURG:
    case ACE_SIGURG:
#endif  /* SIGURG */
    case SIGIO:
    case ACE_SIGIO:
    case ACE_CLOEXEC:
      ACE_NOTSUP_RETURN (-1);
    case ACE_NONBLOCK:
      return ACE_IPC_SAP::enable (value);
    default:
      return -1;
    }
}

ACE_HANDLE ACE_SSL_SOCK::get_handle

(

void

)

const

Override ACE_SOCK base class implementations with these SSL specific ones.

Reimplemented from ACE_IPC_SAP.

Definition at line 16 of file SSL_SOCK.inl.

{
  // return this->ssl_ ? (ACE_HANDLE) ::SSL_get_fd (this->ssl_) : ACE_INVALID_HANDLE;
  return this->ACE_SOCK::get_handle ();
}

int ACE_SSL_SOCK::get_option	(	int	level,
		int	option,
		void *	optval,
		int *	optlen
	)			const

Override ACE_SOCK base class implementations with these SSL specific ones.

Reimplemented from ACE_SOCK.

Definition at line 52 of file SSL_SOCK.inl.

{
//  switch (option)
//    {
//     case SO_SNDBUF:
//       return ::BIO_get_write_buffer_size (this->io_bio_, *((int *) optval));
//     case SO_RCVCBUF:
//       return ::BIO_get_read_buffer_size (this->io_bio_, *((int *) optval));
//    default:
      return ACE_OS::getsockopt (this->get_handle (),
                                 level,
                                 option, (char *) optval,
                                 optlen);
//    }
}

void ACE_SSL_SOCK::set_handle

(

ACE_HANDLE

fd

)

Override ACE_SOCK base class implementations with these SSL specific ones.

Reimplemented from ACE_IPC_SAP.

Reimplemented in ACE_SSL_SOCK_Stream.

Definition at line 10 of file SSL_SOCK.inl.

{
  this->ACE_SOCK::set_handle (fd);
}

int ACE_SSL_SOCK::set_option	(	int	level,
		int	option,
		void *	optval,
		int	optlen
	)			const

Override ACE_SOCK base class implementations with these SSL specific ones.

Reimplemented from ACE_SOCK.

Definition at line 30 of file SSL_SOCK.inl.

{
//   switch (option)
//     {
//     case SO_SNDBUF:
//       return ::BIO_set_write_buffer_size (this->io_bio_, *((int *) optval));
//     case SO_RCVCBUF:
//       return ::BIO_set_read_buffer_size (this->io_bio_, *((int *) optval));
//     default:
      return ACE_OS::setsockopt (this->get_handle (),
                                 level,
                                 option, (char *) optval,
                                 optlen);
//    }
}

---

The documentation for this class was generated from the following files:

• SSL_SOCK.h
• SSL_SOCK.cpp
• SSL_SOCK.inl
