Defines the member functions for the ACE QoS enabled socket wrapper for UDP/IP multicast. More...

#include <SOCK_Dgram_Mcast_QoS.h>

Inheritance diagram for ACE_SOCK_Dgram_Mcast_QoS:

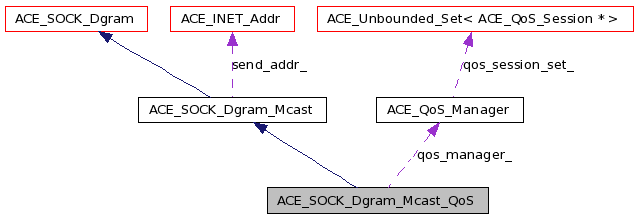

Collaboration diagram for ACE_SOCK_Dgram_Mcast_QoS:

Public Member Functions
	ACE_SOCK_Dgram_Mcast_QoS (options opts=DEFOPTS)
	Ctor, has same defaults as ACE_SOCK_Dgram_Mcast.
	~ACE_SOCK_Dgram_Mcast_QoS (void)
	Default dtor.
int	subscribe (const ACE_INET_Addr &mcast_addr, const ACE_QoS_Params &qos_params, int reuse_addr=1, const ACE_TCHAR net_if=0, int protocol_family=PF_INET, int protocol=0, ACE_Protocol_Info protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, ACE_QoS_Session *qos_session=0)
ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	send (const void buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
	Send an n byte buf to the datagram socket (uses <WSASentTo>).
ACE_QoS_Manager	qos_manager (void)
	Returns the QoS manager for this socket.
int	open (const ACE_INET_Addr &addr, const ACE_QoS_Params &qos_params, int protocol_family=PF_INET, int protocol=0, ACE_Protocol_Info *protocolinfo=0, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Private Member Functions
int	subscribe_ifs (const ACE_INET_Addr &mcast_addr, const ACE_QoS_Params &qos_params, const ACE_TCHAR net_if, int protocol_family, int protocol, int reuse_addr, ACE_Protocol_Info protocolinfo)
	Subscribe to the multicast interface using QoS-enabled semantics.
Private Attributes
ACE_QoS_Manager	qos_manager_
	Manages the QoS sessions that this socket subscribes to.

Detailed Description

Defines the member functions for the ACE QoS enabled socket wrapper for UDP/IP multicast.

Definition at line 33 of file SOCK_Dgram_Mcast_QoS.h.

Constructor & Destructor Documentation

ACE_SOCK_Dgram_Mcast_QoS::ACE_SOCK_Dgram_Mcast_QoS ( options opts = DEFOPTS )

Ctor, has same defaults as ACE_SOCK_Dgram_Mcast.

ACE_SOCK_Dgram_Mcast_QoS::~ACE_SOCK_Dgram_Mcast_QoS ( void )

Default dtor.

Definition at line 8 of file SOCK_Dgram_Mcast_QoS.inl.

{
}

Member Function Documentation

int ACE_SOCK_Dgram_Mcast_QoS::open	(	const ACE_INET_Addr &	addr,
		const ACE_QoS_Params &	qos_params,
		int	protocol_family = `PF_INET`,
		int	protocol = `0`,
		ACE_Protocol_Info *	protocolinfo = `0`,
		ACE_SOCK_GROUP	g = `0`,
		u_long	flags = `0`,
		int	reuse_addr = `0`
	)

Definition at line 39 of file SOCK_Dgram_Mcast_QoS.cpp.

{
  ACE_TRACE ("ACE_SOCK_Dgram_Mcast_QoS::open");

  ACE_UNUSED_ARG (qos_params);

  // Only perform the <open> initialization if we haven't been opened
  // earlier.
  if (this->get_handle () != ACE_INVALID_HANDLE)
    return 0;

  ACE_DEBUG ((LM_DEBUG,
              "Get Handle Returns Invalid Handle\n"));

  if (ACE_SOCK::open (SOCK_DGRAM,
                      protocol_family,
                      protocol,
                      protocolinfo,
                      g,
                      flags,
                      reuse_addr) == -1)
    return -1;

  return this->open_i (addr, 0, reuse_addr);
}

ACE_QoS_Manager ACE_SOCK_Dgram_Mcast_QoS::qos_manager ( void )

Returns the QoS manager for this socket.

Definition at line 52 of file SOCK_Dgram_Mcast_QoS.inl.

{
  return this->qos_manager_;
}

ssize_t ACE_SOCK_Dgram_Mcast_QoS::send	(	const iovec	buffers[],
		int	buffer_count,
		size_t &	number_of_bytes_sent,
		int	flags,
		const ACE_Addr &	addr,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func
	)			const

Send <buffer_count> worth of buffers to addr using overlapped I/O (uses <WSASentTo>). Returns 0 on success.

Reimplemented from ACE_SOCK_Dgram.

Definition at line 13 of file SOCK_Dgram_Mcast_QoS.inl.

{
  ACE_TRACE ("ACE_SOCK_Dgram_Mcast_QoS::send");

  return ACE_SOCK_Dgram::send (buffers,
                               buffer_count,
                               number_of_bytes_sent,
                               flags,
                               addr,
                               overlapped,
                               func);

}

ssize_t ACE_SOCK_Dgram_Mcast_QoS::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func
	)			const

Send an n byte buf to the datagram socket (uses <WSASentTo>).

Reimplemented from ACE_SOCK_Dgram.

Definition at line 34 of file SOCK_Dgram_Mcast_QoS.inl.

{
  ACE_TRACE ("ACE_SOCK_Dgram_Mcast_QoS::send");

  return ACE_SOCK_Dgram::send (buf,
                               n,
                               addr,
                               flags,
                               overlapped,
                               func);
}

int ACE_SOCK_Dgram_Mcast_QoS::subscribe	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_QoS_Params &	qos_params,
		int	reuse_addr = `1`,
		const ACE_TCHAR *	net_if = `0`,
		int	protocol_family = `PF_INET`,
		int	protocol = `0`,
		ACE_Protocol_Info *	protocolinfo = `0`,
		ACE_SOCK_GROUP	g = `0`,
		u_long	flags = `0`,
		ACE_QoS_Session *	qos_session = `0`
	)

This is a QoS-enabled method for joining a multicast group, which passes <qos_params> via <ACE_OS::join_leaf>. The network interface device driver is instructed to accept datagrams with <mcast_addr> multicast addresses. If the socket has already been opened, <subscribe> closes the socket and opens a new socket bound to the <mcast_addr>. The session object specifies the QoS session that the socket wants to subscribe to. A socket may subscribe to multiple QoS sessions by calling this method multiple times with different session objects.

The <net_if> interface is hardware specific, e.g., use "netstat -i" to find whether your interface is, such as "le0" or something else. If net_if == 0, <subscribe> uses the default mcast interface. Returns: -1 if the call fails.

Note that some platforms, such as pSoS, support only number, not names, for network interfaces. For these platforms, just give these numbers in alphanumeric form and <subscribe> will convert them into numbers via <ACE_OS::atoi>.

Definition at line 178 of file SOCK_Dgram_Mcast_QoS.cpp.

{
  ACE_TRACE ("ACE_SOCK_Dgram_Mcast_QoS::subscribe");

  if (this->open (mcast_addr,
                  qos_params,
                  protocol_family,
                  protocol,
                  protocolinfo,
                  g,
                  flags,
                  reuse_addr) == -1)
    return -1;

  // The following method call only applies to Win32 currently.
  int result = this->subscribe_ifs (mcast_addr,
                                    qos_params,
                                    net_if,
                                    protocol_family,
                                    protocol,
                                    reuse_addr,
                                    protocolinfo);
  // Check for the "short-circuit" return value of 1 (for NT).
  if (result != 0)
    return result;

  // Tell network device driver to read datagrams with a
  // <mcast_request_if_> IP interface.
  else
    {
      // Check if the mcast_addr passed into this method is the
      // same as the QoS session address.
      if (qos_session != 0 && mcast_addr == qos_session->dest_addr ())
        {
          // Subscribe to the QoS session.
          if (this->qos_manager_.join_qos_session (qos_session) == -1)
            ACE_ERROR_RETURN ((LM_ERROR,
                               ACE_TEXT ("Unable to join QoS Session\n")),
                              -1);
        }
      else
        {
          if (this->close () != 0)
            ACE_ERROR ((LM_ERROR,
                        ACE_TEXT ("Unable to close socket\n")));
            ACE_ERROR_RETURN ((LM_ERROR,
                               ACE_TEXT ("Dest Addr in the QoS Session does")
                               ACE_TEXT (" not match the address passed into")
                               ACE_TEXT (" subscribe\n")),
                              -1);
        }

      ip_mreq ret_mreq;
      this->make_multicast_ifaddr (&ret_mreq, mcast_addr, net_if);

      // XX This is windows stuff only. fredk
      if (ACE_OS::join_leaf (this->get_handle (),
                             reinterpret_cast<const sockaddr *> (&ret_mreq.IMR_MULTIADDR.s_addr),
                             sizeof ret_mreq.IMR_MULTIADDR.s_addr,
                             qos_params) == ACE_INVALID_HANDLE
          && errno != ENOTSUP)
        return -1;

      else
        if (qos_params.socket_qos () != 0 && qos_session != 0)
          qos_session->qos (*(qos_params.socket_qos ()));

      return 0;
    }
}

int ACE_SOCK_Dgram_Mcast_QoS::subscribe_ifs	(	const ACE_INET_Addr &	mcast_addr,
		const ACE_QoS_Params &	qos_params,
		const ACE_TCHAR *	net_if,
		int	protocol_family,
		int	protocol,
		int	reuse_addr,
		ACE_Protocol_Info *	protocolinfo
	)			`[private]`

Subscribe to the multicast interface using QoS-enabled semantics.

Definition at line 74 of file SOCK_Dgram_Mcast_QoS.cpp.

{
  ACE_TRACE ("ACE_SOCK_Dgram_Mcast_QoS::subscribe_ifs");
#if defined (ACE_WIN32)
  // Windows NT's winsock has trouble with multicast subscribes in the
  // presence of multiple network interfaces when the IP address is
  // given as INADDR_ANY.  It will pick the first interface and only
  // accept mcast there.  So, to work around this, cycle through all
  // of the interfaces known and subscribe to all the non-loopback
  // ones.
  //
  // Note that this only needs to be done on NT, but there's no way to
  // tell at this point if the code will be running on NT - only if it
  // is compiled for NT-only or for NT/95, and that doesn't really
  // help us.  It doesn't hurt to do this on Win95, it's just a little
  // slower than it normally would be.
  //
  // NOTE - <ACE_Sock_Connect::get_ip_interfaces> doesn't always get all
  // of the interfaces.  In particular, it may not get a PPP interface.  This
  // is a limitation of the way <ACE_Sock_Connect::get_ip_interfaces> works
  // with MSVC.  The reliable way of getting the interface list is
  // available only with MSVC 5.

  if (net_if == 0)
    {
      ACE_INET_Addr *if_addrs = 0;
      size_t if_cnt;

      if (ACE::get_ip_interfaces (if_cnt, if_addrs) != 0)
        return -1;

      size_t nr_subscribed = 0;

      if (if_cnt < 2)
        {
          if (this->subscribe (mcast_addr,
                               qos_params,
                               reuse_addr,
                               ACE_TEXT ("0.0.0.0"),
                               protocol_family,
                               protocol,
                               protocolinfo) == 0)
            ++nr_subscribed;
        }
      else
        // Iterate through all the interfaces, figure out which ones
        // offer multicast service, and subscribe to them.
        while (if_cnt > 0)
          {
            --if_cnt;

            // Convert to 0-based for indexing, next loop check.
            if (if_addrs[if_cnt].is_loopback())
              continue;
            if (this->subscribe (mcast_addr,
                                 qos_params,
                                 reuse_addr,
                                 ACE_TEXT_CHAR_TO_TCHAR
                                   (if_addrs[if_cnt].get_host_addr()),
                                 protocol_family,
                                 protocol,
                                 protocolinfo) == 0)
              ++nr_subscribed;
          }

      delete [] if_addrs;

      if (nr_subscribed == 0)
        {
          errno = ENODEV;
          return -1;
        }
      else
        // 1 indicates a "short-circuit" return.  This handles the
        // rather bizarre semantics of checking all the interfaces on
        // NT.
        return 1;
    }
#else
  ACE_UNUSED_ARG (mcast_addr);
  ACE_UNUSED_ARG (qos_params);
  ACE_UNUSED_ARG (protocol_family);
  ACE_UNUSED_ARG (protocol);
  ACE_UNUSED_ARG (reuse_addr);
  ACE_UNUSED_ARG (protocolinfo);
#endif /* ACE_WIN32 */
  // Otherwise, do it like everyone else...

  // Create multicast request.
  if (this->make_multicast_ifaddr (0,
                                   mcast_addr,
                                   net_if) == -1)
    return -1;
  else
    return 0;
}

Member Data Documentation

ACE_SOCK_Dgram_Mcast_QoS::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK_Dgram_Mcast.

Definition at line 106 of file SOCK_Dgram_Mcast_QoS.h.

ACE_QoS_Manager ACE_SOCK_Dgram_Mcast_QoS::qos_manager_ [private]

Manages the QoS sessions that this socket subscribes to.

Definition at line 131 of file SOCK_Dgram_Mcast_QoS.h.

The documentation for this class was generated from the following files:
