Implements a Red-Black Tree ADT, according to T. H. Corman, C. E. Leiserson, and R. L. Rivest, "Introduction to Algorithms" 1990, MIT, chapter 14. More...

#include <RB_Tree.h>

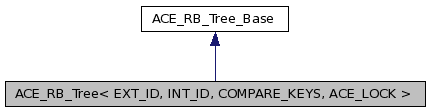

Inheritance diagram for ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >:

[legend]

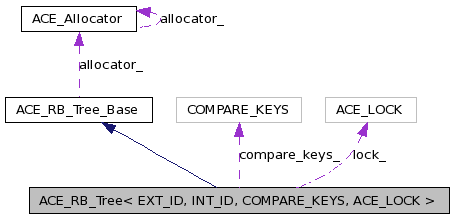

Collaboration diagram for ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >:

[legend]

List of all members.

Public Types
typedef EXT_ID	KEY
typedef INT_ID	VALUE
typedef ACE_LOCK	lock_type
typedef ACE_RB_Tree_Node < EXT_ID, INT_ID >	ENTRY
typedef ACE_RB_Tree_Iterator < EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	ITERATOR
typedef ACE_RB_Tree_Reverse_Iterator < EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	REVERSE_ITERATOR
typedef ACE_RB_Tree_Iterator < EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	iterator
typedef ACE_RB_Tree_Reverse_Iterator < EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	reverse_iterator
Public Member Functions
	ACE_RB_Tree (ACE_Allocator *alloc=0)
	Constructor.
	ACE_RB_Tree (const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &rbt)
	Copy constructor.
int	open (ACE_Allocator *alloc=0)
	Initialize an RB Tree.
int	close (void)
virtual	~ACE_RB_Tree (void)
	Destructor.
int	bind (const EXT_ID &item, const INT_ID &int_id)
int	bind (const EXT_ID &ext_id, const INT_ID &int_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	trybind (const EXT_ID &ext_id, INT_ID &int_id)
int	trybind (const EXT_ID &ext_id, INT_ID &int_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, INT_ID &old_int_id)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, INT_ID &old_int_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, EXT_ID &old_ext_id, INT_ID &old_int_id)
int	rebind (const EXT_ID &ext_id, const INT_ID &int_id, EXT_ID &old_ext_id, INT_ID &old_int_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	find (const EXT_ID &ext_id, INT_ID &int_id)
int	find (const EXT_ID &ext_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	unbind (const EXT_ID &ext_id)
int	unbind (const EXT_ID &ext_id, INT_ID &int_id)
int	unbind (ACE_RB_Tree_Node< EXT_ID, INT_ID > *entry)
size_t	current_size (void) const
	Returns the current number of nodes in the tree.
void	operator= (const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > &rbt)
	Assignment operator.
ACE_LOCK &	mutex (void)
void	dump (void) const
	Dump the state of an object.
ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	begin (void)
	Return forward iterator positioned at first node in tree.
ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	end (void)
	Return forward iterator positioned at last node in tree.
ACE_RB_Tree_Reverse_Iterator < EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	rbegin (void)
	Return reverse iterator positioned at last node in tree.
ACE_RB_Tree_Reverse_Iterator < EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >	rend (void)
	Return reverse iterator positioned at first node in tree.
int	test_invariant (void)
	Tests the red-black invariant(s) throughout the whole tree.
INT_ID *	find (const EXT_ID &k)
INT_ID *	insert (const EXT_ID &k, const INT_ID &t)
int	remove (const EXT_ID &k)
void	clear (void)
Protected Member Functions
	ACE_RB_Tree (void location, ACE_Allocator alloc)
	Reinitialize constructor.
int	test_invariant_recurse (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x, int &expected_black_height, int measured_black_height)
	Recursive function to test the red-black invariant(s) at all nodes in a subtree.
void	RB_rotate_right (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x)
	Method for right rotation of the tree about a given node.
void	RB_rotate_left (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x)
	Method for left rotation of the tree about a given node.
void	RB_delete_fixup (ACE_RB_Tree_Node< EXT_ID, INT_ID > x, ACE_RB_Tree_Node< EXT_ID, INT_ID > parent)
	Method for restoring Red-Black properties after deletion.
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	RB_tree_successor (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x) const
	Method to find the successor node of the given node in the tree.
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	RB_tree_predecessor (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x) const
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	RB_tree_minimum (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x) const
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	RB_tree_maximum (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x) const
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	find_node (const EXT_ID &k, ACE_RB_Tree_Base::RB_SearchResult &result)
void	RB_rebalance (ACE_RB_Tree_Node< EXT_ID, INT_ID > *x)
	Rebalance the tree after insertion of a node.
void	delete_children_i (ACE_RB_Tree_Node< EXT_ID, INT_ID > *parent)
int	close_i (void)
int	find_i (const EXT_ID &ext_id, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry, int find_exact=1)
INT_ID *	insert_i (const EXT_ID &k, const INT_ID &t)
int	insert_i (const EXT_ID &k, const INT_ID &t, ACE_RB_Tree_Node< EXT_ID, INT_ID > *&entry)
int	remove_i (const EXT_ID &k, INT_ID &i)
int	remove_i (ACE_RB_Tree_Node< EXT_ID, INT_ID > *z)
void	dump_i (ACE_RB_Tree_Node< EXT_ID, INT_ID > *node) const
	Recursive function to dump the state of an object.
void	dump_node_i (ACE_RB_Tree_Node< EXT_ID, INT_ID > &node) const
int	lessthan (const EXT_ID &k1, const EXT_ID &k2)
	Less than comparison function for keys, using comparison functor.
Private Attributes
ACE_LOCK	lock_
	Synchronization variable for the MT_SAFE ACE_RB_Tree.
ACE_RB_Tree_Node< EXT_ID, INT_ID > *	root_
	The root of the tree.
COMPARE_KEYS	compare_keys_
	Comparison functor for comparing nodes in the tree.
size_t	current_size_
	The current number of nodes in the tree.
Friends
class	ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >
class	ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >
class	ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >

Detailed Description

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>
class ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >

Implements a Red-Black Tree ADT, according to T. H. Corman, C. E. Leiserson, and R. L. Rivest, "Introduction to Algorithms" 1990, MIT, chapter 14.

A number of Changes have been made to this class template in order to conform to the ACE_Hash_Map_Manager_Ex interface. All previously supported public methods are still part of this class. However, these are marked as DEPRECATED and will be removed from this class in a future version of ACE. Please migrate your code to the appropriate public methods indicated in the method deprecation comments. This class uses an ACE_Allocator to allocate memory. The user can make this a persistent class by providing an ACE_Allocator with a persistable memory pool.

Requirements and Performance Characteristics

Internal Structure: Binary tree
Duplicates allowed? No
Random access allowed? No
Search speed: Log(n)
Insert/replace speed: Log(n)
Iterator still valid after change to container? Yes, except if the iterated-over element is removed.
Frees memory for removed elements? Yes
Items inserted by: Value
Requirements for contained type
1. Default constructor
2. Copy constructor
3. operator=
4. operator==
5. operator<

Definition at line 185 of file RB_Tree.h.

Member Typedef Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef ACE_RB_Tree_Node<EXT_ID, INT_ID> ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ENTRY

Definition at line 196 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef ACE_RB_Tree_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ITERATOR

Definition at line 199 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef ACE_RB_Tree_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::iterator

Definition at line 203 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef EXT_ID ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::KEY

Definition at line 193 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef ACE_LOCK ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::lock_type

Definition at line 195 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef ACE_RB_Tree_Reverse_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::reverse_iterator

Definition at line 204 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef ACE_RB_Tree_Reverse_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::REVERSE_ITERATOR

Definition at line 200 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

typedef INT_ID ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::VALUE

Definition at line 194 of file RB_Tree.h.

Constructor & Destructor Documentation

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree ( ACE_Allocator * alloc = 0 )

Constructor.

Definition at line 48 of file RB_Tree.cpp.

  : root_ (0),
    current_size_ (0)
{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::"
             "ACE_RB_Tree (ACE_Allocator *alloc)");
  allocator_ = alloc;
  if (this->open (alloc) == -1)
    ACE_ERROR ((LM_ERROR,
                ACE_TEXT ("ACE_RB_Tree::ACE_RB_Tree\n")));
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree ( const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > & rbt )

Copy constructor.

Definition at line 63 of file RB_Tree.cpp.

  : root_ (0),
    current_size_ (0)
{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::"
             "ACE_RB_Tree (const ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> &rbt)");
  ACE_WRITE_GUARD (ACE_LOCK, ace_mon, this->lock_);
  allocator_ = rbt.allocator_;

  // Make a deep copy of the passed tree.
  ACE_RB_Tree_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> iter(rbt);

  for (iter.first ();

       iter.is_done () == 0; iter.next ())
    insert_i (*(iter.key ()),
              *(iter.item ()));
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::~ACE_RB_Tree ( void ) [virtual]

Destructor.

Definition at line 99 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::~ACE_RB_Tree");

  // Use the locked public method, to be totally safe, as the class
  // can be used with an allocator and placement new.
  this->close ();
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::ACE_RB_Tree	(	void *	location,
		ACE_Allocator *	alloc
	)			`[protected]`

Reinitialize constructor.

This constructor is used to provide a valid vtable and allocator if the tree is reconstructed from shared memory. Constructor used by the derived class that has an allocator

Definition at line 83 of file RB_Tree.cpp.

{
  if (location != this)
    {
      this->root_ = 0;
      this->current_size_ = 0;
    }

  this->allocator_ = alloc;
}

Member Function Documentation

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::begin ( void )

Return forward iterator positioned at first node in tree.

Definition at line 594 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::begin");

  return ACE_RB_Tree_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> (*this);
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::bind	(	const EXT_ID &	item,
		const INT_ID &	int_id
	)

Associate ext_id with int_id. If ext_id is already in the tree then the <ACE_RB_Tree_Node> is not changed. Returns 0 if a new entry is bound successfully, returns 1 if an attempt is made to bind an existing entry, and returns -1 if failures occur.

Definition at line 176 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::bind (const EXT_ID &item, const INT_ID &int_id)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *entry;
  return this->insert_i (ext_id, int_id, entry);
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::bind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id,
		ACE_RB_Tree_Node< EXT_ID, INT_ID > *&	entry
	)

Same as a normal bind, except the tree entry is also passed back to the caller. The entry in this case will either be the newly created entry, or the existing one.

Definition at line 193 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::bind (const EXT_ID &ext_id, const INT_ID &int_id, "
             "ACE_RB_Tree_Node<EXT_ID, INT_ID> *&entry)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  return this->insert_i (ext_id, int_id, entry);
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::clear ( void )

Deprecated:: Destroys all nodes and sets the root pointer null.

Definition at line 707 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::clear");
  ACE_WRITE_GUARD (ACE_LOCK, ace_mon, this->lock_);

  this->close_i ();
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::close ( void )

Close down an RB_Tree and release dynamically allocated resources.

Definition at line 160 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::close");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  return this->close_i ();
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::close_i ( void ) [protected]

Close down an RB_Tree. this method should only be called with locks already held.

Definition at line 565 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::close_i");

  this->delete_children_i (this->root_);
  ACE_DES_FREE_TEMPLATE2 (this->root_,
                          this->allocator()->free,
                          ACE_RB_Tree_Node,
                          EXT_ID, INT_ID);
  this->current_size_ = 0;
  this->root_ = 0;
  return 0;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

size_t ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::current_size ( void ) const

Returns the current number of nodes in the tree.

Definition at line 719 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::current_size");
  return current_size_;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::delete_children_i ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * parent ) [protected]

Delete children (left and right) of the node. Must be called with lock held.

Definition at line 539 of file RB_Tree.cpp.

{
  if (parent)
    {
      this->delete_children_i (parent->left ());
      this->delete_children_i (parent->right ());
      ACE_DES_FREE_TEMPLATE2
        (parent->left (),
         this->allocator_->free,
         ACE_RB_Tree_Node,
         EXT_ID, INT_ID);
      ACE_DES_FREE_TEMPLATE2
        (parent->right (),
         this->allocator_->free,
         ACE_RB_Tree_Node,
         EXT_ID, INT_ID);
      parent->left (0);
      parent->right (0);
    }
  return;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::dump ( void ) const

Dump the state of an object.

Definition at line 575 of file RB_Tree.inl.

{
#if defined (ACE_HAS_DUMP)
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::dump");
  ACE_DEBUG ((LM_DEBUG, ACE_BEGIN_DUMP, this));
  ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("\ncurrent_size_ = %d\n"), this->current_size_));
  this->allocator_->dump ();
  this->lock_.dump ();
  ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("\nDumping nodes from root\n")));
  this->dump_i (this->root_);
  ACE_DEBUG ((LM_DEBUG, ACE_END_DUMP));
#endif /* ACE_HAS_DUMP */
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::dump_i ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * node ) const [protected]

Recursive function to dump the state of an object.

Definition at line 862 of file RB_Tree.cpp.

{
#if defined (ACE_HAS_DUMP)
  if (node)
    {
      dump_node_i (*node);

      ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("\ndown left\n")));
      this->dump_i (node->left ());
      ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("\nup left\n")));

      ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("\ndown right\n")));
      this->dump_i (node->right ());
      ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("\nup right\n")));
    }
  else
    {
      ACE_DEBUG ((LM_DEBUG,  ACE_TEXT ("\nNULL POINTER (BLACK)\n")));
    }
#else /* !ACE_HAS_DUMP */
  ACE_UNUSED_ARG (node);
#endif /* ACE_HAS_DUMP */
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::dump_node_i ( ACE_RB_Tree_Node< EXT_ID, INT_ID > & node ) const [protected]

Function to dump node contents. Does nothing in its basic form, but template specialization can be used to provide definitions for various EXT_ID and INT_ID types.

Function to dump node itself. Does not show parameterized node contents in its basic form, but template specialization can be used to provide definitions for various EXT_ID and INT_ID types.

Definition at line 892 of file RB_Tree.cpp.

{
#if defined (ACE_HAS_DUMP)
  const char * color_str = (node.color () == ACE_RB_Tree_Node_Base::RED)
                           ? "RED" : "BLACK";

  ACE_DEBUG ((LM_DEBUG,  ACE_TEXT (" color=[%s]\n"), color_str));
#else /* !ACE_HAS_DUMP */
  ACE_UNUSED_ARG (node);
#endif /* ACE_HAS_DUMP */
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::end ( void )

Return forward iterator positioned at last node in tree.

Definition at line 606 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::end");

  return ACE_RB_Tree_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> ();
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find	(	const EXT_ID &	ext_id,
		INT_ID &	int_id
	)

Locate ext_id and pass out parameter via int_id. If found, return 0, returns -1 if not found.

Definition at line 438 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::find (const EXT_ID &ext_id, INT_ID &int_id)");
  ACE_READ_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *entry = 0;

  int result = this->find_i (ext_id, entry);
  if (result == 0)
    {
      int_id = entry->item ();
    }

  return result;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

INT_ID * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find ( const EXT_ID & k )

Returns a pointer to the item corresponding to the given key, or 0 if it cannot find the key in the tree.

Deprecated:: signature will change to become int find (const EXT_ID &ext_id); which will return 0 if the ext_id is in the tree, otherwise -1.

Definition at line 643 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::find (const EXT_ID &k)");

  // The reinterpret cast is to ensure that when this deprecated
  // method is removed, and is replaced (as planned) by a find method
  // that takes the same argument signature but returns an int, that
  // the compiler will cough if this return macro is not changed to
  // just return an int (whose value will be -1).  Please leave this
  // as is.
  ACE_READ_GUARD_RETURN (ACE_LOCK,
                         ace_mon,
                         this->lock_,
                         reinterpret_cast<INT_ID*> (0L));

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *entry = 0;
  int result = this->find_i (k, entry);
  return (result == 0) ? &(entry->item ()) : 0;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find	(	const EXT_ID &	ext_id,
		ACE_RB_Tree_Node< EXT_ID, INT_ID > *&	entry
	)

Locate ext_id and pass out parameter via entry. If found, return 0, returns -1 if not found.

Definition at line 460 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::find (const EXT_ID &ext_id, ACE_RB_Tree_Node<EXT_ID, INT_ID> *&entry)");
  ACE_READ_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  return this->find_i (ext_id, entry);
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find_i	(	const EXT_ID &	ext_id,
		ACE_RB_Tree_Node< EXT_ID, INT_ID > *&	entry,
		int	find_exact = `1`
	)			`[protected]`

Retrieves a pointer to the item corresponding to the given key. If find_exact==1, find the exact match node, otherwise just find a match node Returns 0 for success, or -1 if it cannot find the key in the tree.

Definition at line 584 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::find_i");

  // Try to find a match.
  RB_SearchResult result = LEFT;
  ACE_RB_Tree_Node<EXT_ID, INT_ID> *current = find_node (k, result);

  if (current)
    {
      // Found a match
      if (!find_exact || result == EXACT)
        entry = current;  // Assign the entry for any match.
      return (result == EXACT ? 0 : -1);
    }
  else
    // The node is not there.
    return -1;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find_node	(	const EXT_ID &	k,
		ACE_RB_Tree_Base::RB_SearchResult &	result
	)			`[protected]`

Returns a pointer to a matching node if there is one, a pointer to the node under which to insert the item if the tree is not empty and there is no such match, or 0 if the tree is empty. It stores the result of the search in the result argument: LEFT if the node is to the left of the node to be inserted, RIGHT if the node is to the right of the node to be inserted, or EXACT if an exactly matching node already exists.

Definition at line 336 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::find_node");

  // Start at the root.
  ACE_RB_Tree_Node<EXT_ID, INT_ID> *current = root_;

  while (current)
    {
      // While there are more nodes to examine.
      if (this->lessthan (current->key (), k))
        {
          // If the search key is greater than the current node's key.
          if (current->right ())
            // If the right subtree is not empty, search to the right.
            current = current->right ();
          else
            {
              // If the right subtree is empty, we're done searching,
              // and are positioned to the left of the insertion point.
              result = LEFT;
              break;
            }
        }
      else if (this->lessthan (k, current->key ()))
        {
          // Else if the search key is less than the current node's key.
          if (current->left ())
            // If the left subtree is not empty, search to the left.
            current = current->left ();
          else
            {
              // If the left subtree is empty, we're done searching,
              // and are positioned to the right of the insertion point.
              result = RIGHT;
              break;
            }
        }
      else
        {
          // If the keys match exactly, we're done as well.
          result = EXACT;
          break;
        }
    }

  return current;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

INT_ID * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::insert	(	const EXT_ID &	k,
		const INT_ID &	t
	)

Inserts a *copy* of the key and the item into the tree: both the key type EXT_ID and the item type INT_ID must have well defined semantics for copy construction. The default implementation also requires that the key type support well defined < semantics. This method returns a pointer to the inserted item copy, or 0 if an error occurred.

Note:: If an identical key already exists in the tree, no new item is created, and the returned pointer addresses the existing item associated with the existing key.

Deprecated:

Definition at line 674 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::insert");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK,
                          ace_mon,
                          this->lock_,
                          reinterpret_cast<INT_ID*> (0L));

  return this->insert_i (k, t);
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

INT_ID * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::insert_i	(	const EXT_ID &	k,
		const INT_ID &	t
	)			`[protected]`

Inserts a *copy* of the key and the item into the tree: both the key type EXT_ID and the item type INT_ID must have well defined semantics for copy construction. The default implementation also requires that the key type support well defined < semantics. This method returns a pointer to the inserted item copy, or 0 if an error occurred.

Note:: If an identical key already exists in the tree, no new item is created, and the returned pointer addresses the existing item associated with the existing key.

Definition at line 615 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::insert_i (const EXT_ID &k, const INT_ID &t)");

  // Find the closest matching node, if there is one.
  RB_SearchResult result = LEFT;
  ACE_RB_Tree_Node<EXT_ID, INT_ID> *current = find_node (k, result);
  if (current)
    {
      // If the keys match, just return a pointer to the node's item.
      if (result == EXACT)
        return &current->item ();

      // Otherwise if we're to the left of the insertion point, insert
      // into the right subtree.
      else if (result == LEFT)
        {
          if (current->right ())
            {
              // If there is already a right subtree, complain.
              ACE_ERROR_RETURN ((LM_ERROR,
                                 ACE_TEXT ("%p\n"),
                                 ACE_TEXT ("\nright subtree already present in ")
                                 ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::insert_i\n")),
                                0);
            }
          else
            {
              // The right subtree is empty: insert new node there.
              ACE_RB_Tree_Node<EXT_ID, INT_ID> *tmp = 0;

              ACE_NEW_MALLOC_RETURN
                (tmp,
                 (reinterpret_cast<ACE_RB_Tree_Node<EXT_ID, INT_ID>*>
                   (this->allocator_->malloc (sizeof (*tmp)))),
                 (ACE_RB_Tree_Node<EXT_ID, INT_ID>) (k, t),
                 0);
              current->right (tmp);

              // If the node was successfully inserted, set its
              // parent, rebalance the tree, color the root black, and
              // return a pointer to the inserted item.
              INT_ID *item = &(current->right ()->item ());
              current->right ()->parent (current);
              RB_rebalance (current->right ());
              root_->color (ACE_RB_Tree_Node_Base::BLACK);
              ++current_size_;
              return item;
            }
        }
      // Otherwise, we're to the right of the insertion point, so
      // insert into the left subtree.
      else // (result == RIGHT)
        {
          if (current->left ())
            // If there is already a left subtree, complain.
            ACE_ERROR_RETURN ((LM_ERROR,
                               ACE_TEXT ("%p\n"),
                               ACE_TEXT ("\nleft subtree already present in ")
                               ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::insert_i\n")),
                              0);
          else
            {
              // The left subtree is empty: insert new node there.
              ACE_RB_Tree_Node<EXT_ID, INT_ID> *tmp = 0;
              ACE_NEW_MALLOC_RETURN
                (tmp,
                 (reinterpret_cast<ACE_RB_Tree_Node<EXT_ID, INT_ID>*>
                   (this->allocator_->malloc (sizeof (*tmp)))),
                 (ACE_RB_Tree_Node<EXT_ID, INT_ID>) (k, t),
                 0);
              current->left (tmp);

              // If the node was successfully inserted, set its
              // parent, rebalance the tree, color the root black, and
              // return a pointer to the inserted item.
              INT_ID *item = &current->left ()->item ();
              current->left ()->parent (current);
              RB_rebalance (current->left ());
              root_->color (ACE_RB_Tree_Node_Base::BLACK);
              ++current_size_;
              return item;
            }
        }
    }
  else
    {
      // The tree is empty: insert at the root and color the root
      // black.
      ACE_NEW_MALLOC_RETURN
        (this->root_,
         (reinterpret_cast<ACE_RB_Tree_Node<EXT_ID, INT_ID>*>
           (this->allocator_->malloc (sizeof (ACE_RB_Tree_Node<EXT_ID, INT_ID>)))),
         (ACE_RB_Tree_Node<EXT_ID, INT_ID>) (k, t),
         0);
      this->root_->color (ACE_RB_Tree_Node_Base::BLACK);
      ++current_size_;
      return &this->root_->item ();
    }
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::insert_i	(	const EXT_ID &	k,
		const INT_ID &	t,
		ACE_RB_Tree_Node< EXT_ID, INT_ID > *&	entry
	)			`[protected]`

Inserts a *copy* of the key and the item into the tree: both the key type EXT_ID and the item type INT_ID must have well defined semantics for copy construction. The default implementation also requires that the key type support well defined < semantics. This method passes back a pointer to the inserted (or existing) node, and the search status. If the node already exists, the method returns 1. If the node does not exist, and a new one is successfully created, and the method returns 0. If there was an error, the method returns -1.

Definition at line 727 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::insert_i (const EXT_ID &k, const INT_ID &t, "
             "ACE_RB_Tree_Node<EXT_ID, INT_ID> *&entry)");

  // Find the closest matching node, if there is one.
  RB_SearchResult result = LEFT;
  ACE_RB_Tree_Node<EXT_ID, INT_ID> *current = find_node (k, result);
  if (current)
    {
      // If the keys match, just return a pointer to the node's item.
      if (result == EXACT)
        {
          entry = current;
          return 1;
        }
      // Otherwise if we're to the left of the insertion
      // point, insert into the right subtree.
      else if (result == LEFT)
        {
          if (current->right ())
            {
              // If there is already a right subtree, complain.
              ACE_ERROR_RETURN ((LM_ERROR,
                                 ACE_TEXT ("%p\n"),
                                 ACE_TEXT ("\nright subtree already present in ")
                                 ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::insert_i\n")),
                                -1);
            }
          else
            {
              // The right subtree is empty: insert new node there.
              ACE_RB_Tree_Node<EXT_ID, INT_ID> *tmp = 0;
              ACE_NEW_MALLOC_RETURN
                (tmp,
                 (reinterpret_cast<ACE_RB_Tree_Node<EXT_ID, INT_ID>*>
                   (this->allocator_->malloc (sizeof (*tmp)))),
                 (ACE_RB_Tree_Node<EXT_ID, INT_ID>) (k, t),
                 -1);
              current->right (tmp);

              // If the node was successfully inserted, set its parent, rebalance
              // the tree, color the root black, and return a pointer to the
              // inserted item.
              entry = current->right ();
              current->right ()->parent (current);
              RB_rebalance (current->right ());
              this->root_->color (ACE_RB_Tree_Node_Base::BLACK);
              ++this->current_size_;
              return 0;
            }
        }
      // Otherwise, we're to the right of the insertion point, so
      // insert into the left subtree.
      else // (result == RIGHT)
        {
          if (current->left ())
            // If there is already a left subtree, complain.
            ACE_ERROR_RETURN ((LM_ERROR,
                               ACE_TEXT ("%p\n"),
                               ACE_TEXT ("\nleft subtree already present in ")
                               ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::insert_i\n")),
                              -1);
          else
            {
              // The left subtree is empty: insert new node there.
              ACE_RB_Tree_Node<EXT_ID, INT_ID> *tmp = 0;
              ACE_NEW_MALLOC_RETURN
                (tmp,
                 (reinterpret_cast<ACE_RB_Tree_Node<EXT_ID, INT_ID>*>
                   (this->allocator_->malloc (sizeof (*tmp)))),
                 (ACE_RB_Tree_Node<EXT_ID, INT_ID>) (k, t),
                 -1);
              current->left (tmp);
              // If the node was successfully inserted, set its
              // parent, rebalance the tree, color the root black, and
              // return a pointer to the inserted item.
              entry = current->left ();
              current->left ()->parent (current);
              RB_rebalance (current->left ());
              this->root_->color (ACE_RB_Tree_Node_Base::BLACK);
              ++this->current_size_;
              return 0;
            }
        }
    }
  else
    {
      // The tree is empty: insert at the root and color the root black.
      ACE_NEW_MALLOC_RETURN
        (this->root_,
         (reinterpret_cast<ACE_RB_Tree_Node<EXT_ID, INT_ID>*>
           (this->allocator_->malloc (sizeof (ACE_RB_Tree_Node<EXT_ID, INT_ID>)))),
         (ACE_RB_Tree_Node<EXT_ID, INT_ID>) (k, t),
         -1);
      this->root_->color (ACE_RB_Tree_Node_Base::BLACK);
      ++this->current_size_;
      entry = this->root_;
      return 0;
    }
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::lessthan	(	const EXT_ID &	k1,
		const EXT_ID &	k2
	)			`[protected]`

Less than comparison function for keys, using comparison functor.

Definition at line 138 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::lessthan");
  return this->compare_keys_ (k1, k2);
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_LOCK & ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::mutex ( void )

Returns a reference to the underlying <ACE_LOCK>. This makes it possible to acquire the lock explicitly, which can be useful in some cases if you instantiate the ACE_Atomic_Op with an ACE_Recursive_Mutex or ACE_Process_Mutex, or if you need to guard the state of an iterator.

Note:: The right name would be <lock>, but HP/C++ will choke on that!

Definition at line 564 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::mutex");
  return this->lock_;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::open ( ACE_Allocator * alloc = 0 )

Initialize an RB Tree.

Definition at line 135 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::open");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  // Calling this->close_i () ensures we release previously allocated
  // memory before allocating new memory.
  this->close_i ();

  // If we were passed an allocator use it,
  // otherwise use the default instance.

  if (alloc == 0)
    alloc = ACE_Allocator::instance ();

  this->allocator_ = alloc;

  return 0;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::operator= ( const ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > & rbt )

Assignment operator.

Definition at line 111 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::operator =");
  ACE_WRITE_GUARD (ACE_LOCK, ace_mon, this->lock_);

  if (this != &rbt)
    {
      // Clear out the existing tree.
      close_i ();

      // Make a deep copy of the passed tree.
      ACE_RB_Tree_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> iter(rbt);

      for (iter.first ();
           iter.is_done () == 0;
           iter.next ())
        insert_i (*(iter.key ()),
                  *(iter.item ()));

      // Use the same allocator as the rhs.
      allocator_ = rbt.allocator_;
    }
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_delete_fixup	(	ACE_RB_Tree_Node< EXT_ID, INT_ID > *	x,
		ACE_RB_Tree_Node< EXT_ID, INT_ID > *	parent
	)			`[protected]`

Method for restoring Red-Black properties after deletion.

Definition at line 226 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::RB_delete_fixup");

  while (x != this->root_
         && (!x
             || x->color () == ACE_RB_Tree_Node_Base::BLACK))
    {
      if (x == parent->left ())
        {
          ACE_RB_Tree_Node<EXT_ID, INT_ID> *w = parent->right ();
          if (w && w->color () == ACE_RB_Tree_Node_Base::RED)
            {
              w->color (ACE_RB_Tree_Node_Base::BLACK);
              parent->color (ACE_RB_Tree_Node_Base::RED);
              RB_rotate_left (parent);
              w = parent->right ();
            }
          // CLR pp. 263 says that nil nodes are implicitly colored BLACK
          if (w
              && (!w->left ()
                  || w->left ()->color () == ACE_RB_Tree_Node_Base::BLACK)
              && (!w->right ()
                  || w->right ()->color () == ACE_RB_Tree_Node_Base::BLACK))
            {
              w->color (ACE_RB_Tree_Node_Base::RED);
              x = parent;
              parent = x->parent ();
            }
          else
            {
              // CLR pp. 263 says that nil nodes are implicitly colored BLACK
              if (w
                  && (!w->right ()
                      || w->right ()->color () == ACE_RB_Tree_Node_Base::BLACK))
                {
                  if (w->left ())
                    w->left ()->color (ACE_RB_Tree_Node_Base::BLACK);
                  w->color (ACE_RB_Tree_Node_Base::RED);
                  RB_rotate_right (w);
                  w = parent->right ();
                }
              if (w)
                {
                  w->color (parent->color ());
                  if (w->right ())
                    w->right ()->color (ACE_RB_Tree_Node_Base::BLACK);
                }
              parent->color (ACE_RB_Tree_Node_Base::BLACK);
              RB_rotate_left (parent);
              x = root_;
            }
        }
      else
        {
          ACE_RB_Tree_Node<EXT_ID, INT_ID> *w = parent->left ();
          if (w && w->color () == ACE_RB_Tree_Node_Base::RED)
            {
              w->color (ACE_RB_Tree_Node_Base::BLACK);
              parent->color (ACE_RB_Tree_Node_Base::RED);
              RB_rotate_right (parent);
              w = parent->left ();
            }
          // CLR pp. 263 says that nil nodes are implicitly colored BLACK
          if (w
              && (!w->left ()
                  || w->left ()->color () == ACE_RB_Tree_Node_Base::BLACK)
              && (!w->right ()
                  || w->right ()->color () == ACE_RB_Tree_Node_Base::BLACK))
            {
              w->color (ACE_RB_Tree_Node_Base::RED);
              x = parent;
              parent = x->parent ();
            }
          else
            {
              // CLR pp. 263 says that nil nodes are implicitly colored BLACK
              if (w
                  && (!w->left ()
                      || w->left ()->color () == ACE_RB_Tree_Node_Base::BLACK))
                {
                  w->color (ACE_RB_Tree_Node_Base::RED);
                  if (w->right ())
                    w->right ()->color (ACE_RB_Tree_Node_Base::BLACK);
                  RB_rotate_left (w);
                  w = parent->left ();
                }
              if (w)
                {
                  w->color (parent->color ());
                  if (w->left ())
                    w->left ()->color (ACE_RB_Tree_Node_Base::BLACK);
                }
              parent->color (ACE_RB_Tree_Node_Base::BLACK);
              RB_rotate_right (parent);
              x = root_;
            }
        }
    }

  if (x)
    x->color (ACE_RB_Tree_Node_Base::BLACK);
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rebalance ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) [protected]

Rebalance the tree after insertion of a node.

Definition at line 388 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::RB_rebalance");

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *y = 0;

  while (x &&
         x->parent ()
         && x->parent ()->color () == ACE_RB_Tree_Node_Base::RED)
    {
      if (! x->parent ()->parent ())
        {
          // If we got here, something is drastically wrong!
          ACE_ERROR ((LM_ERROR,
                      ACE_TEXT ("%p\n"),
                      ACE_TEXT ("\nerror: parent's parent is null in ")
                      ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::RB_rebalance\n")));
          return;
        }

      if (x->parent () == x->parent ()->parent ()->left ())
        {
          y = x->parent ()->parent ()->right ();
          if (y && y->color () == ACE_RB_Tree_Node_Base::RED)
            {
              // Handle case 1 (see CLR book, pp. 269).
              x->parent ()->color (ACE_RB_Tree_Node_Base::BLACK);
              y->color (ACE_RB_Tree_Node_Base::BLACK);
              x->parent ()->parent ()->color (ACE_RB_Tree_Node_Base::RED);
              x = x->parent ()->parent ();
            }
          else
            {
              if (x == x->parent ()->right ())
                {
                  // Transform case 2 into case 3 (see CLR book, pp. 269).
                  x = x->parent ();
                  RB_rotate_left (x);
                }

              // Handle case 3 (see CLR book, pp. 269).
              x->parent ()->color (ACE_RB_Tree_Node_Base::BLACK);
              x->parent ()->parent ()->color (ACE_RB_Tree_Node_Base::RED);
              RB_rotate_right (x->parent ()->parent ());
            }
        }
      else
        {
          y = x->parent ()->parent ()->left ();
          if (y && y->color () == ACE_RB_Tree_Node_Base::RED)
            {
              // Handle case 1 (see CLR book, pp. 269).
              x->parent ()->color (ACE_RB_Tree_Node_Base::BLACK);
              y->color (ACE_RB_Tree_Node_Base::BLACK);
              x->parent ()->parent ()->color (ACE_RB_Tree_Node_Base::RED);
              x = x->parent ()->parent ();
            }
          else
            {
              if (x == x->parent ()->left ())
                {
                  // Transform case 2 into case 3 (see CLR book, pp. 269).
                  x = x->parent ();
                  RB_rotate_right (x);
                }

              // Handle case 3 (see CLR book, pp. 269).
              x->parent ()->color (ACE_RB_Tree_Node_Base::BLACK);
              x->parent ()->parent ()->color (ACE_RB_Tree_Node_Base::RED);
              RB_rotate_left (x->parent ()->parent ());
            }
        }
    }
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rotate_left ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) [protected]

Method for left rotation of the tree about a given node.

Definition at line 186 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::RB_rotate_left");

  if (! x)
    ACE_ERROR ((LM_ERROR,
                ACE_TEXT ("%p\n"),
                ACE_TEXT ("\nerror: x is a null pointer in ")
                ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::RB_rotate_left\n")));
  else if (! (x->right()))
    ACE_ERROR ((LM_ERROR,
                ACE_TEXT ("%p\n"),
                ACE_TEXT ("\nerror: x->right () is a null pointer ")
                ACE_TEXT ("in ACE_RB_Tree<EXT_ID, INT_ID>::RB_rotate_left\n")));
  else
    {
      ACE_RB_Tree_Node<EXT_ID, INT_ID> * y;
      y = x->right ();
      x->right (y->left ());
      if (y->left ())
        y->left ()->parent (x);
      y->parent (x->parent ());
      if (x->parent ())
        {
          if (x == x->parent ()->left ())
            x->parent ()->left (y);
          else
            x->parent ()->right (y);
        }
      else
        root_ = y;
      y->left (x);
      x->parent (y);
    }
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

void ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rotate_right ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) [protected]

Method for right rotation of the tree about a given node.

Definition at line 147 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::RB_rotate_right");

  if (!x)
    ACE_ERROR ((LM_ERROR,
                ACE_TEXT ("%p\n"),
                ACE_TEXT ("\nerror: x is a null pointer in ")
                ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::RB_rotate_right\n")));
  else if (! (x->left()))
    ACE_ERROR ((LM_ERROR,
                ACE_TEXT ("%p\n"),
                ACE_TEXT ("\nerror: x->left () is a null pointer in ")
                ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::RB_rotate_right\n")));
  else
    {
      ACE_RB_Tree_Node<EXT_ID, INT_ID> * y;
      y = x->left ();
      x->left (y->right ());
      if (y->right ())
        y->right ()->parent (x);
      y->parent (x->parent ());
      if (x->parent ())
        {
          if (x == x->parent ()->right ())
            x->parent ()->right (y);
          else
            x->parent ()->left (y);
        }
      else
        root_ = y;
      y->right (x);
      x->parent (y);
    }
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_maximum ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) const [protected]

Method to find the maximum node of the subtree rooted at the given node.

Definition at line 525 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::RB_tree_maximum");

  while ((x) && (x->right ()))
    x = x->right ();

  return x;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_minimum ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) const [protected]

Method to find the minimum node of the subtree rooted at the given node.

Definition at line 512 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::RB_tree_minimum");

  while ((x) && (x->left ()))
    x = x->left ();

  return x;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_predecessor ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) const [protected]

Method to find the predecessor node of the given node in the tree.

Definition at line 489 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::RB_tree_predecessor");
  if (x == 0)
    return 0;

  if (x->left ())
    return RB_tree_maximum (x->left ());

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *y = x->parent ();

  while ((y) && (x == y->left ()))
    {
      x = y;
      y = y->parent ();
    }

  return y;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_successor ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * x ) const [protected]

Method to find the successor node of the given node in the tree.

Definition at line 466 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::RB_tree_successor");

  if (x == 0)
    return 0;

  if (x->right ())
    return RB_tree_minimum (x->right ());

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *y = x->parent ();
  while ((y) && (x == y->right ()))
    {
      x = y;
      y = y->parent ();
    }

  return y;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rbegin ( void )

Return reverse iterator positioned at last node in tree.

Definition at line 618 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::rbegin");

  return ACE_RB_Tree_Reverse_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> (*this);
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id,
		INT_ID &	old_int_id
	)

Associate ext_id with int_id. If ext_id is not in the tree then behaves just like <bind>. Otherwise, store the old value of int_id into the "out" parameter and rebind the new parameters. Returns 0 if a new entry is bound successfully, returns 1 if an existing entry was rebound, and returns -1 if failures occur.

Definition at line 317 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::rebind (const EXT_ID &ext_id, "
             "const INT_ID &int_id, INT_ID &old_int_id)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *entry;
  int result = this->insert_i (ext_id, int_id, entry);

  if (result == 1)
    {
      old_int_id = entry->item ();
      entry->key () = ext_id;
      entry->item () = int_id;
    }

  return result;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id,
		ACE_RB_Tree_Node< EXT_ID, INT_ID > *&	entry
	)

Same as a normal rebind, except the tree entry is also passed back to the caller. The entry in this case will either be the newly created entry, or the existing one.

Definition at line 289 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::rebind (const EXT_ID &ext_id, const INT_ID &int_id, "
             "ACE_RB_Tree_Node<EXT_ID, INT_ID> *&entry)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  int result = this->insert_i (ext_id, int_id, entry);

  if (result == 1)
    {
      entry->key () = ext_id;
      entry->item () = int_id;
    }

  return result;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id,
		EXT_ID &	old_ext_id,
		INT_ID &	old_int_id
	)

Associate ext_id with int_id. If ext_id is not in the tree then behaves just like <bind>. Otherwise, store the old values of ext_id and int_id into the "out" parameters and rebind the new parameters. This is very useful if you need to have an atomic way of updating <ACE_RB_Tree_Nodes> and you also need full control over memory allocation. Returns 0 if a new entry is bound successfully, returns 1 if an existing entry was rebound, and returns -1 if failures occur.

Definition at line 378 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::rebind (const EXT_ID &ext_id, const INT_ID &int_id,"
             "EXT_ID &old_ext_id, INT_ID &old_int_id)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *entry;
  int result = this->insert_i (ext_id, int_id, entry);

  if (result == 1)
    {
      old_ext_id = entry->key ();
      old_int_id = entry->item ();
      entry->key () = ext_id;
      entry->item () = int_id;
    }

  return result;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id,
		INT_ID &	old_int_id,
		ACE_RB_Tree_Node< EXT_ID, INT_ID > *&	entry
	)

Same as a normal rebind, except the tree entry is also passed back to the caller. The entry in this case will either be the newly created entry, or the existing one.

Definition at line 345 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::rebind (const EXT_ID &ext_id, const INT_ID &int_id,"
             "INT_ID &old_int_id, ACE_RB_Tree_Node<EXT_ID, INT_ID> *&entry)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  int result = this->insert_i (ext_id, int_id, entry);

  if (result == 1)
    {
      old_int_id = entry->item ();
      entry->key () = ext_id;
      entry->item () = int_id;
    }

  return result;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id,
		EXT_ID &	old_ext_id,
		INT_ID &	old_int_id,
		ACE_RB_Tree_Node< EXT_ID, INT_ID > *&	entry
	)

Same as a normal rebind, except the tree entry is also passed back to the caller. The entry in this case will either be the newly created entry, or the existing one.

Definition at line 408 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::rebind (const EXT_ID &ext_id, const INT_ID &int_id, "
             "EXT_ID &old_ext_id, INT_ID &old_int_id, "
             "ACE_RB_Tree_Node<EXT_ID, INT_ID> *&entry)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  int result = this->insert_i (ext_id, int_id, entry);

  if (result == 1)
    {
      old_ext_id = entry->key ();
      old_int_id = entry->item ();
      entry->key () = ext_id;
      entry->item () = int_id;
    }

  return result;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind	(	const EXT_ID &	ext_id,
		const INT_ID &	int_id
	)

Reassociate ext_id with int_id. If ext_id is not in the tree then behaves just like <bind>. Returns 0 if a new entry is bound successfully, returns 1 if an existing entry was rebound, and returns -1 if failures occur.

Definition at line 264 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::rebind (const EXT_ID &ext_id, const INT_ID &int_id)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *entry;
  int result = this->insert_i (ext_id, int_id, entry);

  if (result == 1)
    {
      entry->key () = ext_id;
      entry->item () = int_id;
    }

  return result;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove ( const EXT_ID & k )

Removes the item associated with the given key from the tree and destroys it. Returns 1 if it found the item and successfully destroyed it, 0 if it did not find the item, or -1 if an error occurred.

Deprecated:

Definition at line 693 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::remove");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  INT_ID i;
  return this->remove_i (k, i);
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove_i	(	const EXT_ID &	k,
		INT_ID &	i
	)			`[protected]`

Removes the item associated with the given key from the tree and destroys it. Returns 1 if it found the item and successfully destroyed it, 0 if it did not find the item, or -1 if an error occurred. Returns the stored internal id in the second argument.

Definition at line 838 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::remove_i (const EXT_ID &k, INT_ID &i)");

  // Find a matching node, if there is one.
  ACE_RB_Tree_Node<EXT_ID, INT_ID> *z;
  RB_SearchResult result = LEFT;
  z = find_node (k, result);

  // If there is a matching node: remove and destroy it.
  if (z && result == EXACT)
    {
      // Return the internal id stored in the deleted node.
      i = z->item ();
      return -1 == this->remove_i (z) ? -1 : 1;
    }

  // No matching node was found: return 0.
  return 0;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove_i ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * z ) [protected]

Removes the item associated with the given key from the tree and destroys it.

Definition at line 991 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::remove_i (ACE_RB_Tree_Node<EXT_ID, INT_ID> *z)");

  // Delete the node and reorganize the tree to satisfy the Red-Black
  // properties.

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *x;
  ACE_RB_Tree_Node<EXT_ID, INT_ID> *y;
  ACE_RB_Tree_Node<EXT_ID, INT_ID> *parent;

  if (z->left () && z->right ())
    y = RB_tree_successor (z);
  else
    y = z;

  if (!y)
    return -1;

  if (y->left ())
    x = y->left ();
  else
    x = y->right ();

  parent = y->parent ();
  if (x)
    {
      x->parent (parent);
    }

  if (parent)
    {
      if (y == parent->left ())
        parent->left (x);
      else
        parent->right (x);
    }
  else
    this->root_ = x;

  if (y != z)
    {
      // Replace node z with node y, since y's pointer may well be
      // held externally, and be linked with y's key and item.
      // We will end up deleting the old unlinked, node z.

      ACE_RB_Tree_Node<EXT_ID, INT_ID> *zParent = z->parent ();
      ACE_RB_Tree_Node<EXT_ID, INT_ID> *zLeftChild = z->left ();
      ACE_RB_Tree_Node<EXT_ID, INT_ID> *zRightChild = z->right ();

      if (zParent)
        {
          if (z == zParent->left ())
            {
              zParent->left (y);
            }
          else
            {
              zParent->right (y);
            }
        }
      else
        {
          this->root_ = y;
        }
      y->parent (zParent);

      if (zLeftChild)
        {
          zLeftChild->parent (y);
        }
      y->left (zLeftChild);

      if (zRightChild)
        {
          zRightChild->parent (y);
        }
      y->right (zRightChild);

      if (parent == z)
        {
          parent = y;
        }

      ACE_RB_Tree_Node_Base::RB_Tree_Node_Color yColor = y->color ();
      y->color (z->color ());
      z->color (yColor);

      //Reassign the y pointer to z because the node that y points to will be
      //deleted
      y = z;
    }

  // CLR pp. 263 says that nil nodes are implicitly colored BLACK
  if (!y || y->color () == ACE_RB_Tree_Node_Base::BLACK)
    RB_delete_fixup (x, parent);

  y->parent (0);
  y->right (0);
  y->left (0);
  ACE_DES_FREE_TEMPLATE2 (y,
                          this->allocator_->free,
                          ACE_RB_Tree_Node,
                          EXT_ID, INT_ID);
  --this->current_size_;

  return 0;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rend ( void )

Return reverse iterator positioned at first node in tree.

Definition at line 630 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::rend");

  return ACE_RB_Tree_Reverse_Iterator<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK> ();
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::test_invariant ( void )

Tests the red-black invariant(s) throughout the whole tree.

Recursively tests the invariant red-black properties at each node of the tree. Returns 0 if invariant holds, else -1. This method is computationally expensive, and should only be called for testing purposes, and not in code that depends on the algorithmic complexity bounds provided by the other methods.

Definition at line 907 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::test_invariant");
  ACE_READ_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  // Recurse from the root, starting with the measured black height at
  // 0, and the expected black height at -1, which will cause the
  // count from first measured path to a leaf to be used as the
  // expected one from that point onward (the key is to check
  // consistency).
  int expected_black_height = -1;
  if (this->test_invariant_recurse (this->root_, expected_black_height, 0) == 0)
    {
      ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("invariant holds\n")));
      return 0;
    }

  return -1;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::test_invariant_recurse	(	ACE_RB_Tree_Node< EXT_ID, INT_ID > *	x,
		int &	expected_black_height,
		int	measured_black_height
	)			`[protected]`

Recursive function to test the red-black invariant(s) at all nodes in a subtree.

Recursively tests the invariant red-black properties at each node of the tree. Returns 0 if invariant holds, else -1.

Definition at line 930 of file RB_Tree.cpp.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::test_invariant_recurse");

  if (!x)
    {
      // Count each leaf (zero pointer) as a black node (per CLR algorithm description).
      ++measured_black_height;

      if (expected_black_height == -1)
        {
          expected_black_height = measured_black_height;
        }
      else if (expected_black_height != measured_black_height)
        {
          ACE_ERROR_RETURN ((LM_ERROR,
                             ACE_TEXT ("\nexpected_black_height = %d but ")
                             ACE_TEXT ("\nmeasured_black_height = %d in ")
                             ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::test_invariant_recurse\n"),
                             expected_black_height, measured_black_height),
                            -1);
        }

      return 0;
    }

  // Check the invariant that a red node cannot have a red child.
  if (x->color () == ACE_RB_Tree_Node_Base::RED)
    {
      if (x->left () && x->left ()->color () == ACE_RB_Tree_Node_Base::RED)
        {
          ACE_ERROR_RETURN ((LM_ERROR,
                             ACE_TEXT ("%p\n"),
                             ACE_TEXT ("\nRED parent has RED left child in ")
                             ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::test_invariant_recurse\n")),
                            -1);
        }

      if (x->right () && x->right ()->color () == ACE_RB_Tree_Node_Base::RED)
        {
          ACE_ERROR_RETURN ((LM_ERROR,
                             ACE_TEXT ("%p\n"),
                             ACE_TEXT ("\nRED parent has RED right child in ")
                             ACE_TEXT ("ACE_RB_Tree<EXT_ID, INT_ID>::test_invariant_recurse\n")),
                            -1);
        }
    }
  else
    {
      // Count each black node traversed.
      ++measured_black_height;
    }

  return (test_invariant_recurse (x->left (), expected_black_height, measured_black_height) == 0)
          ? test_invariant_recurse (x->right (), expected_black_height, measured_black_height)
          : -1;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::trybind	(	const EXT_ID &	ext_id,
		INT_ID &	int_id,
		ACE_RB_Tree_Node< EXT_ID, INT_ID > *&	entry
	)

Same as a normal trybind, except the tree entry is also passed back to the caller. The entry in this case will either be the newly created entry, or the existing one.

Definition at line 237 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::trybind (const EXT_ID &ext_id, INT_ID &int_id, "
             "ACE_RB_Tree_Node<EXT_ID, INT_ID> *&entry)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  int result = this->insert_i (ext_id, int_id, entry);

  if (result == 1)
    {
      int_id = entry->item ();
    }


  return result;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::trybind	(	const EXT_ID &	ext_id,
		INT_ID &	int_id
	)

Associate ext_id with int_id if and only if ext_id is not in the tree. If ext_id is already in the tree then the int_id parameter is assigned the existing value in the tree. Returns 0 if a new entry is bound successfully, returns 1 if an attempt is made to bind an existing entry, and returns -1 if failures occur.

Definition at line 213 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::trybind (const EXT_ID &ext_id, INT_ID &int_id)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  ACE_RB_Tree_Node<EXT_ID, INT_ID> *entry;
  int result = this->insert_i (ext_id, int_id, entry);

  if (result == 1)
    {
      int_id = entry->item ();
    }

  return result;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::unbind	(	const EXT_ID &	ext_id,
		INT_ID &	int_id
	)

Break any association of ext_id. Returns the value of int_id in case the caller needs to deallocate memory.

Definition at line 511 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree::unbind (const EXT_ID &ext_id, INT_ID &int_id)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  int result = this->remove_i (ext_id, int_id);

  // Remap the return codes from the internal method: this
  // is maintained this way in support of deprecated methods,
  // and will be cleaned up when these methods are removed.
  switch (result)
    {
      case 1:
        // If the node was found and deleted, return success.
        return 0;
      case 0:
        // If nothing was found, set errno and break.
        errno = ENOENT;
        break;
      case -1:
        // If an error happened, just break.
        break;
    }

  // Return an error if we didn't already return success.
  return -1;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::unbind ( const EXT_ID & ext_id )

Unbind (remove) the ext_id from the tree. Don't return the int_id to the caller (this is useful for collections where the int_ids are *not* dynamically allocated...)

Definition at line 476 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::unbind (const EXT_ID &ext_id)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  INT_ID int_id;
  int result = this->remove_i (ext_id, int_id);

  // Remap the return codes from the internal method: this
  // is maintained this way in support of deprecated methods,
  // and will be cleaned up when these methods are removed.
  switch (result)
    {
      case 1:
        // If the node was found and deleted, return success.
        return 0;
      case 0:
        // If nothing was found, set errno and break.
        errno = ENOENT;
        break;
      case -1:
        // If an error happened, just break.
        break;
    }

  // Return an error if we didn't already return success.
  return -1;
}

template<class EXT_ID , class INT_ID , class COMPARE_KEYS , class ACE_LOCK >

int ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::unbind ( ACE_RB_Tree_Node< EXT_ID, INT_ID > * entry )

Remove entry from tree. This method should be used with *extreme* caution, and only for optimization purposes. The node being passed in had better have been allocated by the tree that is unbinding it.

Definition at line 546 of file RB_Tree.inl.

{
  ACE_TRACE ("ACE_RB_Tree<EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK>::unbind (ACE_RB_Tree_Node<EXT_ID, INT_ID> *entry)");
  ACE_WRITE_GUARD_RETURN (ACE_LOCK, ace_mon, this->lock_, -1);

  return this->remove_i (entry);
}

Friends And Related Function Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

friend class ACE_RB_Tree_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > [friend]

Definition at line 190 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

friend class ACE_RB_Tree_Iterator_Base< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > [friend]

Definition at line 189 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

friend class ACE_RB_Tree_Reverse_Iterator< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > [friend]

Definition at line 191 of file RB_Tree.h.

Member Data Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

COMPARE_KEYS ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::compare_keys_ [private]

Comparison functor for comparing nodes in the tree.

Definition at line 580 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

size_t ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::current_size_ [private]

The current number of nodes in the tree.

Definition at line 583 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_LOCK ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::lock_ [private]

Synchronization variable for the MT_SAFE ACE_RB_Tree.

Definition at line 574 of file RB_Tree.h.

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>

ACE_RB_Tree_Node<EXT_ID, INT_ID>* ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::root_ [private]

The root of the tree.

Definition at line 577 of file RB_Tree.h.

The documentation for this class was generated from the following files:

ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK > Class Template Reference

Public Types

Public Member Functions

Protected Member Functions

Private Attributes

Friends

Detailed Description

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK> class ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

template<class EXT_ID, class INT_ID, class COMPARE_KEYS, class ACE_LOCK>
class ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >
