Abstract base class for UNIX FIFOs. More...

#include <FIFO.h>

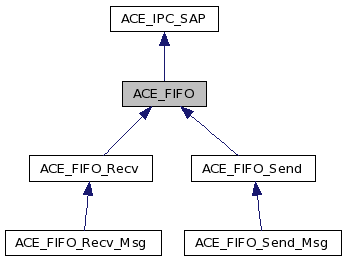

Inheritance diagram for ACE_FIFO:

Collaboration diagram for ACE_FIFO:

Public Member Functions
int	open (const ACE_TCHAR *rendezvous, int flags, mode_t perms, LPSECURITY_ATTRIBUTES sa=0)
int	close (void)
	Close down the ACE_FIFO without removing the rendezvous point.
int	remove (void)
int	get_local_addr (const ACE_TCHAR *&rendezvous) const
	Return the local address of this endpoint.
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Member Functions
	ACE_FIFO (void)
	Default constructor.
	ACE_FIFO (const ACE_TCHAR *rendezvous, int flags, mode_t perms, LPSECURITY_ATTRIBUTES sa=0)
Private Attributes
ACE_TCHAR	rendezvous_ [MAXPATHLEN+1]
	Rendezvous point in the file system.

Detailed Description

Abstract base class for UNIX FIFOs.

UNIX FIFOs are also known Named Pipes, which are totally unrelated to Win32 Named Pipes. If you want to use a local IPC mechanism that will be portable to both UNIX and Win32, take a look at the <ACE_SPIPE_*> classes.

Definition at line 39 of file FIFO.h.

Constructor & Destructor Documentation

ACE_FIFO::ACE_FIFO ( void ) [protected]

Default constructor.

Definition at line 59 of file FIFO.cpp.

{
//  ACE_TRACE ("ACE_FIFO::ACE_FIFO");
}

ACE_FIFO::ACE_FIFO	(	const ACE_TCHAR *	rendezvous,
		int	flags,
		mode_t	perms,
		LPSECURITY_ATTRIBUTES	sa = `0`
	)			`[protected]`

Open up the named pipe on the <rendezvous> in accordance with the flags.

Definition at line 49 of file FIFO.cpp.

{
  ACE_TRACE ("ACE_FIFO::ACE_FIFO");
  if (this->open (fifo_name, flags, perms, sa) == -1)
    ACE_ERROR ((LM_ERROR,  ACE_TEXT ("%p\n"),  ACE_TEXT ("ACE_FIFO")));
}

Member Function Documentation

int ACE_FIFO::close ( void )

Close down the ACE_FIFO without removing the rendezvous point.

Reimplemented in ACE_FIFO_Recv.

Definition at line 65 of file FIFO.cpp.

{
  ACE_TRACE ("ACE_FIFO::close");
  int result = 0;

  if (this->get_handle () != ACE_INVALID_HANDLE)
    {
      result = ACE_OS::close (this->get_handle ());
      this->set_handle (ACE_INVALID_HANDLE);
    }
 return result;
}

void ACE_FIFO::dump ( void ) const

Dump the state of an object.

Reimplemented from ACE_IPC_SAP.

Reimplemented in ACE_FIFO_Recv, ACE_FIFO_Recv_Msg, ACE_FIFO_Send, and ACE_FIFO_Send_Msg.

Definition at line 22 of file FIFO.cpp.

{
#if defined (ACE_HAS_DUMP)
  ACE_TRACE ("ACE_FIFO::dump");

  ACE_DEBUG ((LM_DEBUG, ACE_BEGIN_DUMP, this));
  ACE_DEBUG ((LM_DEBUG, ACE_TEXT ("rendezvous_ = %s"), this->rendezvous_));
  ACE_DEBUG ((LM_DEBUG, ACE_END_DUMP));
#endif /* ACE_HAS_DUMP */
}

int ACE_FIFO::get_local_addr ( const ACE_TCHAR *& rendezvous ) const [inline]

Return the local address of this endpoint.

Definition at line 10 of file FIFO.inl.

{
  ACE_TRACE ("ACE_FIFO::get_local_addr");
  r = this->rendezvous_;
  return 0;
}

int ACE_FIFO::open	(	const ACE_TCHAR *	rendezvous,
		int	flags,
		mode_t	perms,
		LPSECURITY_ATTRIBUTES	sa = `0`
	)

Open up the named pipe on the <rendezvous> in accordance with the flags.

Reimplemented in ACE_FIFO_Send, and ACE_FIFO_Send_Msg.

Definition at line 34 of file FIFO.cpp.

{
  ACE_TRACE ("ACE_FIFO::open");
  ACE_OS::strsncpy (this->rendezvous_, r, MAXPATHLEN);

  if ((flags & O_CREAT) != 0
      && ACE_OS::mkfifo (this->rendezvous_, perms) == -1
      && !(errno == EEXIST))
    return -1;

  this->set_handle (ACE_OS::open (this->rendezvous_, flags, 0, sa));
  return this->get_handle () == ACE_INVALID_HANDLE ? -1 : 0;
}

int ACE_FIFO::remove ( void ) [inline]

Close down the ACE_FIFO and remove the rendezvous point from the file system.

Definition at line 18 of file FIFO.inl.

{
  ACE_TRACE ("ACE_FIFO::remove");
  int const result = this->close ();
  return ACE_OS::unlink (this->rendezvous_) == -1 || result == -1 ? -1 : 0;
}
