ACE_Based_Pointer< CONCRETE > Class Template Reference

A smart proxy that keeps track of the relative offset of a "pointer" from its base address. More...

#include <Based_Pointer_T.h>

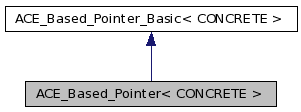

Inheritance diagram for ACE_Based_Pointer< CONCRETE >:

Collaboration diagram for ACE_Based_Pointer< CONCRETE >:

List of all members.

Public Member Functions
	ACE_Based_Pointer (void)
	ACE_Based_Pointer (CONCRETE *initial)
	ACE_Based_Pointer (const void *base_addr, int dummy)
	ACE_Based_Pointer (const ACE_Based_Pointer< CONCRETE > &)
	Copy constructor (not implemented yet).
void	operator= (const ACE_Based_Pointer< CONCRETE > &)
	Assignment operator.
void	operator= (CONCRETE *from)
	Pseudo-assignment operator.
CONCRETE *	operator-> (void)
	The C++ "delegation operator".

---

Detailed Description

template<class CONCRETE>
class ACE_Based_Pointer< CONCRETE >

A smart proxy that keeps track of the relative offset of a "pointer" from its base address.

This class makes it possible to transparently use "pointers" in shared memory as easily as programming with pointers to local memory by overloading the C++ delegation operator ->().

Definition at line 159 of file Based_Pointer_T.h.

---

Constructor & Destructor Documentation

template<class CONCRETE >

ACE_Based_Pointer< CONCRETE >::ACE_Based_Pointer

(

void

)

Constructor. See constructor for ACE_Based_Pointer_Basic for details.

Definition at line 19 of file Based_Pointer_T.cpp.

{
  ACE_TRACE ("ACE_Based_Pointer<CONCRETE>::ACE_Based_Pointer");
}

template<class CONCRETE >

ACE_Based_Pointer< CONCRETE >::ACE_Based_Pointer

(

CONCRETE *

initial

)

Initialize this object using the <initial> pointer. See constructor for ACE_Based_Pointer_Basic for details.

Definition at line 40 of file Based_Pointer_T.cpp.

  : ACE_Based_Pointer_Basic<CONCRETE> (initial)
{
  ACE_TRACE ("ACE_Based_Pointer_Basic<CONCRETE>::ACE_Based_Pointer_Basic");
}

template<class CONCRETE >

ACE_Based_Pointer< CONCRETE >::ACE_Based_Pointer	(	const void *	base_addr,
		int	dummy
	)

Initialize this object with known base_addr. dummy is a dummy value used to resolve overload ambiguity and it otherwise ignored.

Definition at line 47 of file Based_Pointer_T.cpp.

  : ACE_Based_Pointer_Basic<CONCRETE> (base_addr, 0)
{
  ACE_TRACE ("ACE_Based_Pointer_Basic<CONCRETE>::ACE_Based_Pointer_Basic");
}

template<class CONCRETE >

ACE_Based_Pointer< CONCRETE >::ACE_Based_Pointer

(

const ACE_Based_Pointer< CONCRETE > &

rhs

)

Copy constructor (not implemented yet).

Definition at line 112 of file Based_Pointer_T.cpp.

  : ACE_Based_Pointer_Basic<CONCRETE> (rhs)
{
  ACE_TRACE ("ACE_Based_Pointer<CONCRETE>::ACE_Based_Pointer");
  ACE_ASSERT (0); // not implemented.
}

---

Member Function Documentation

template<class CONCRETE >

CONCRETE * ACE_Based_Pointer< CONCRETE >::operator->

(

void

)

[inline]

The C++ "delegation operator".

Definition at line 11 of file Based_Pointer_T.inl.

{
  ACE_TRACE ("ACE_Based_Pointer<CONCRETE>::operator->");
  return reinterpret_cast<CONCRETE *> (ACE_COMPUTE_BASED_POINTER (this));
}

template<class CONCRETE >

void ACE_Based_Pointer< CONCRETE >::operator=

(

const ACE_Based_Pointer< CONCRETE > &

rhs

)

[inline]

Assignment operator.

Definition at line 133 of file Based_Pointer_T.inl.

{
  ACE_TRACE ("ACE_Based_Pointer<CONCRETE>::operator=");
  *this = rhs.addr ();
}

template<class CONCRETE >

void ACE_Based_Pointer< CONCRETE >::operator=

(

CONCRETE *

from

)

[inline]

Pseudo-assignment operator.

Reimplemented from ACE_Based_Pointer_Basic< CONCRETE >.

Definition at line 30 of file Based_Pointer_T.inl.

{
  ACE_TRACE ("ACE_Based_Pointer<CONCRETE>::operator =");
  if (rhs == 0)
    // Store a value of <target_> that indicate "NULL" pointer.
    this->target_ = -1;
  else
    this->target_ = ((char *) rhs
                     - ((char *) this - this->base_offset_));
}

---

The documentation for this class was generated from the following files:

• Based_Pointer_T.h
• Based_Pointer_T.cpp
• Based_Pointer_T.inl
