TAO_DII_Asynch_Reply_Dispatcher Class Reference

Reply dispatcher for DII asynch requests. More...

#include <DII_Reply_Dispatcher.h>

Inheritance diagram for TAO_DII_Asynch_Reply_Dispatcher:

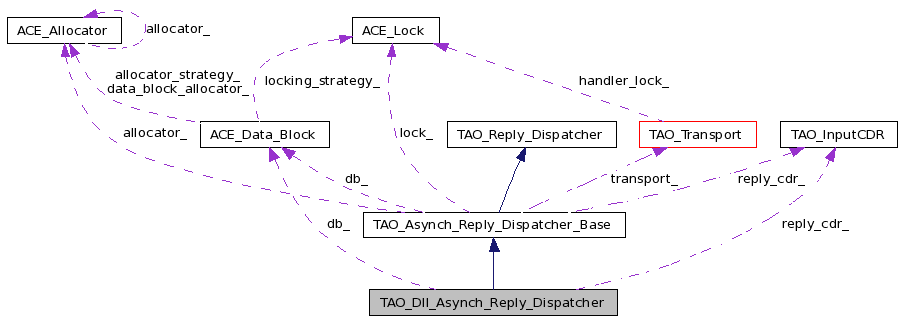

[legend]Collaboration diagram for TAO_DII_Asynch_Reply_Dispatcher:

[legend]List of all members.

Public Member Functions
	TAO_DII_Asynch_Reply_Dispatcher (const Messaging::ReplyHandler_ptr callback, TAO_ORB_Core *orb_core)
virtual	~TAO_DII_Asynch_Reply_Dispatcher (void)
virtual int	dispatch_reply (TAO_Pluggable_Reply_Params &param)
	The Reply_Dispatcher methods.
virtual void	connection_closed (void)
Private Attributes
char	buf_ [ACE_CDR::DEFAULT_BUFSIZE]
	The buffer that is used to initialise the data block.
ACE_Data_Block	db_
TAO_InputCDR	reply_cdr_
	CDR stream for reading the input.
const Messaging::ReplyHandler_ptr	callback_
	Where the reply needs to go.

---

Detailed Description

Reply dispatcher for DII asynch requests.

Definition at line 83 of file DII_Reply_Dispatcher.h.

---

Constructor & Destructor Documentation

TAO_DII_Asynch_Reply_Dispatcher::TAO_DII_Asynch_Reply_Dispatcher	(	const Messaging::ReplyHandler_ptr	callback,
		TAO_ORB_Core *	orb_core
	)

Definition at line 128 of file DII_Reply_Dispatcher.cpp.

  : TAO_Asynch_Reply_Dispatcher_Base (orb_core),
    db_ (sizeof buf_,
         ACE_Message_Block::MB_DATA,
         this->buf_,
         orb_core->input_cdr_buffer_allocator (),
         orb_core->locking_strategy (),
         ACE_Message_Block::DONT_DELETE,
         orb_core->input_cdr_dblock_allocator ()),
    reply_cdr_ (&db_,
                ACE_Message_Block::DONT_DELETE,
                TAO_ENCAP_BYTE_ORDER,
                TAO_DEF_GIOP_MAJOR,
                TAO_DEF_GIOP_MINOR,
                orb_core),
    callback_ (callback)
{
}

TAO_DII_Asynch_Reply_Dispatcher::~TAO_DII_Asynch_Reply_Dispatcher

(

void

)

[virtual]

Definition at line 149 of file DII_Reply_Dispatcher.cpp.

References callback_, and CORBA::release().

{
  // this was handed to us by the caller.
  CORBA::release(callback_);
}

---

Member Function Documentation

void TAO_DII_Asynch_Reply_Dispatcher::connection_closed

(

void

)

[virtual]

Implements TAO_Asynch_Reply_Dispatcher_Base.

Definition at line 211 of file DII_Reply_Dispatcher.cpp.

References CORBA::Exception::_tao_print_exception(), CORBA::Request::_tao_reply_stub(), CORBA::COMPLETED_MAYBE, SYSTEM_EXCEPTION, and TAO_debug_level.

{
  try
    {
      // Generate a fake exception....
      CORBA::COMM_FAILURE comm_failure (0,
                                        CORBA::COMPLETED_MAYBE);

      TAO_OutputCDR out_cdr;

      comm_failure._tao_encode (out_cdr);

      // Turn into an output CDR
      TAO_InputCDR cdr (out_cdr);
      CORBA::Request::_tao_reply_stub (
          this->reply_cdr_,
          this->callback_,
          GIOP::SYSTEM_EXCEPTION);
    }
  catch (const CORBA::Exception& ex)
    {
      if (TAO_debug_level >= 4)
        {
          ex._tao_print_exception (
            "DII_Asynch_Reply_Dispacher::connection_closed");
        }
    }

  (void) this->decr_refcount ();
}

int TAO_DII_Asynch_Reply_Dispatcher::dispatch_reply

(

TAO_Pluggable_Reply_Params &

param

)

[virtual]

The Reply_Dispatcher methods.

Implements TAO_Asynch_Reply_Dispatcher_Base.

Definition at line 156 of file DII_Reply_Dispatcher.cpp.

References CORBA::Exception::_tao_print_exception(), CORBA::Request::_tao_reply_stub(), ACE_BIT_DISABLED, ACE_DEBUG, ACE_TEXT, ACE_InputCDR::clone_from(), ACE_Message_Block::DONT_DELETE, ACE_Data_Block::flags(), TAO_Pluggable_Reply_Params::input_cdr_, LM_DEBUG, TAO_Pluggable_Reply_Params_Base::locate_reply_status(), TAO_Reply_Dispatcher::locate_reply_status_, ACE_Data_Block::release(), reply_cdr_, TAO_Asynch_Reply_Dispatcher_Base::reply_service_info_, TAO_Pluggable_Reply_Params_Base::reply_status(), TAO_Reply_Dispatcher::reply_status_, TAO_Pluggable_Reply_Params_Base::svc_ctx_, and TAO_debug_level.

{
  this->reply_status_ = params.reply_status ();
  this->locate_reply_status_ = params.locate_reply_status ();

  // Transfer the <params.input_cdr_>'s content to this->reply_cdr_
  ACE_Data_Block *db =
    this->reply_cdr_.clone_from (*params.input_cdr_);

  // See whether we need to delete the data block by checking the
  // flags. We cannot be happy that we initally allocated the
  // datablocks of the stack. If this method is called twice, as is in
  // some cases where the same invocation object is used to make two
  // invocations like forwarding, the release becomes essential.
  if (ACE_BIT_DISABLED (db->flags (),
                        ACE_Message_Block::DONT_DELETE))
    db->release ();

  // Steal the buffer, that way we don't do any unnecesary copies of
  // this data.
  CORBA::ULong max = params.svc_ctx_.maximum ();
  CORBA::ULong len = params.svc_ctx_.length ();
  IOP::ServiceContext* context_list = params.svc_ctx_.get_buffer (1);
  this->reply_service_info_.replace (max, len, context_list, 1);

  if (TAO_debug_level >= 4)
    {
      ACE_DEBUG ((LM_DEBUG,
                  ACE_TEXT ("(%P | %t):")
                  ACE_TEXT ("TAO_DII_Asynch_Reply_Dispatcher::dispatch_reply: status = %d\n"),
                  this->reply_status_));
    }

  try
    {
      // Call the handler with the reply data.
      CORBA::Request::_tao_reply_stub (this->reply_cdr_,
                                       this->callback_,
                                       this->reply_status_);
    }
  catch (const CORBA::Exception& ex)
    {
      if (TAO_debug_level >= 4)
        {
          ex._tao_print_exception ("Exception during reply handler");
        }
    }
  // This was dynamically allocated. Now the job is done.
  (void) this->decr_refcount ();

  return 1;
}

---

Member Data Documentation

char TAO_DII_Asynch_Reply_Dispatcher::buf_[ACE_CDR::DEFAULT_BUFSIZE] [private]

The buffer that is used to initialise the data block.

Reimplemented from TAO_Asynch_Reply_Dispatcher_Base.

Definition at line 99 of file DII_Reply_Dispatcher.h.

const Messaging::ReplyHandler_ptr TAO_DII_Asynch_Reply_Dispatcher::callback_ [private]

Where the reply needs to go.

Definition at line 109 of file DII_Reply_Dispatcher.h.

Referenced by ~TAO_DII_Asynch_Reply_Dispatcher().

ACE_Data_Block TAO_DII_Asynch_Reply_Dispatcher::db_ [private]

Datablock that is created on the stack to initialise the CDR stream underneath.

Reimplemented from TAO_Asynch_Reply_Dispatcher_Base.

Definition at line 103 of file DII_Reply_Dispatcher.h.

TAO_InputCDR TAO_DII_Asynch_Reply_Dispatcher::reply_cdr_ [private]

CDR stream for reading the input.

Reimplemented from TAO_Asynch_Reply_Dispatcher_Base.

Definition at line 106 of file DII_Reply_Dispatcher.h.

Referenced by dispatch_reply().

---

The documentation for this class was generated from the following files:

• DII_Reply_Dispatcher.h
• DII_Reply_Dispatcher.cpp

---
