CORBA::ServerRequest Class Reference

Class representing the CORBA ServerRequest pseudo-object. More...

#include <Server_Request.h>

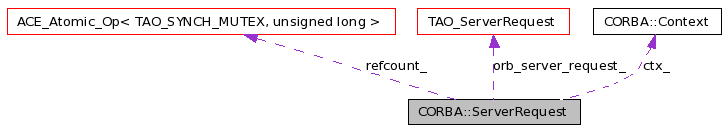

Collaboration diagram for CORBA::ServerRequest:

[legend]List of all members.

Public Types
typedef CORBA::ServerRequest_ptr	_ptr_type
	Useful for template programming.
typedef CORBA::ServerRequest_var	_var_type
typedef CORBA::ServerRequest_out	_out_type
Public Member Functions
	ServerRequest (TAO_ServerRequest &orb_server_request)
	Constructor.
	~ServerRequest (void)
	Destructor.
void	arguments (CORBA::NVList_ptr &list)
void	set_result (const CORBA::Any &value)
void	set_exception (const CORBA::Any &value)
void	dsi_marshal (void)
	Marshal outgoing parameters.
CORBA::Context_ptr	ctx (void) const
	Accessor for the Context member.
void	ctx (CORBA::Context_ptr)
	Mutator for the Context member.
const char *	operation (void) const
	Get the operation name.
CORBA::ULong	_incr_refcnt (void)
CORBA::ULong	_decr_refcnt (void)
void	_tao_lazy_evaluation (bool lazy_evaluation)
	Set the lazy evaluation flag.
int	_tao_incoming_byte_order (void) const
	Get the byte order of the incoming CDR stream.
void	_tao_reply_byte_order (int byte_order)
	Set the byte order of the outgoing CDR stream.
TAO_ServerRequest &	_tao_server_request (void)
	Return a reference to the underlying TAO_ServerRequest object.
void	gateway_exception_reply (ACE_CString &raw_exception)
Static Public Member Functions
static ServerRequest_ptr	_duplicate (ServerRequest_ptr)
static ServerRequest_ptr	_nil (void)
Private Attributes
bool	lazy_evaluation_
	If zero then the NVList is evaluated ASAP.
CORBA::Context_ptr	ctx_
	Context associated with this request.
CORBA::NVList_ptr	params_
	Incoming parameters.
CORBA::Any_ptr	retval_
	Return value.
CORBA::Any_ptr	exception_
	Any exception which might be raised.
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_
	Reference counting.
TAO_ServerRequest &	orb_server_request_
	Request from the ORB.
bool	sent_gateway_exception_
	Have we sent a user exception obtained from a gateway?

---

Detailed Description

Class representing the CORBA ServerRequest pseudo-object.

Instantiated by the POA for DSI requests and passed up to the application. Contains a reference to the instance of TAO_ServerRequest that is passed up to the POA from the ORB.

Definition at line 66 of file Server_Request.h.

---

Member Typedef Documentation

typedef CORBA::ServerRequest_out CORBA::ServerRequest::_out_type

Definition at line 142 of file Server_Request.h.

typedef CORBA::ServerRequest_ptr CORBA::ServerRequest::_ptr_type

Useful for template programming.

Definition at line 140 of file Server_Request.h.

typedef CORBA::ServerRequest_var CORBA::ServerRequest::_var_type

Definition at line 141 of file Server_Request.h.

---

Constructor & Destructor Documentation

CORBA::ServerRequest::ServerRequest

(

TAO_ServerRequest &

orb_server_request

)

Constructor.

Definition at line 47 of file Server_Request.cpp.

References TAO_ServerRequest::is_dsi(), and orb_server_request_.

  : lazy_evaluation_ (0),
    ctx_ (CORBA::Context::_nil ()),
    params_ (CORBA::NVList::_nil ()),
    retval_ (0),
    exception_ (0),
    refcount_ (1),
    orb_server_request_ (orb_server_request),
    sent_gateway_exception_ (false)
{
  this->orb_server_request_.is_dsi ();
}

CORBA::ServerRequest::~ServerRequest

(

void

)

Destructor.

Definition at line 60 of file Server_Request.cpp.

References exception_, params_, release(), and retval_.

{
  if (this->params_ != 0)
    {
      ::CORBA::release (this->params_);
    }

  delete this->retval_;
  delete this->exception_;
}

---

Member Function Documentation

CORBA::ULong CORBA::ServerRequest::_decr_refcnt

(

void

)

Definition at line 37 of file Server_Request.cpp.

References refcount_.

Referenced by TAO_Dynamic_Adapter_Impl::server_request_release().

{
  CORBA::ULong const new_count = --this->refcount_;

  if (new_count == 0)
    delete this;

  return new_count;
}

ACE_INLINE CORBA::ServerRequest_ptr CORBA::ServerRequest::_duplicate

(

ServerRequest_ptr

)

[static]

Definition at line 27 of file Server_Request.inl.

References _incr_refcnt().

{
  if (x != 0)
    {
      x->_incr_refcnt ();
    }

  return x;
}

TAO_BEGIN_VERSIONED_NAMESPACE_DECL CORBA::ULong CORBA::ServerRequest::_incr_refcnt

(

void

)

Definition at line 31 of file Server_Request.cpp.

References refcount_.

Referenced by _duplicate().

{
  return ++this->refcount_;
}

ACE_INLINE CORBA::ServerRequest_ptr CORBA::ServerRequest::_nil

(

void

)

[static]

Definition at line 38 of file Server_Request.inl.

{
  return static_cast <CORBA::ServerRequest_ptr>(0);
}

ACE_INLINE int CORBA::ServerRequest::_tao_incoming_byte_order

(

void

)

const

Get the byte order of the incoming CDR stream.

Definition at line 68 of file Server_Request.inl.

References ACE_InputCDR::byte_order(), TAO_ServerRequest::incoming(), and orb_server_request_.

{
  return this->orb_server_request_.incoming ()->byte_order ();
}

ACE_INLINE void CORBA::ServerRequest::_tao_lazy_evaluation

(

bool

lazy_evaluation

)

Set the lazy evaluation flag.

Definition at line 62 of file Server_Request.inl.

References lazy_evaluation_.

{
  this->lazy_evaluation_ = lazy_evaluation;
}

ACE_INLINE void CORBA::ServerRequest::_tao_reply_byte_order

(

int

byte_order

)

Set the byte order of the outgoing CDR stream.

Definition at line 74 of file Server_Request.inl.

References orb_server_request_, TAO_ServerRequest::outgoing(), and ACE_OutputCDR::reset_byte_order().

{
  this->orb_server_request_.outgoing ()->reset_byte_order (byte_order);
}

ACE_INLINE TAO_ServerRequest & CORBA::ServerRequest::_tao_server_request

(

void

)

Return a reference to the underlying TAO_ServerRequest object.

Definition at line 81 of file Server_Request.inl.

References orb_server_request_.

{
  return this->orb_server_request_;
}

void CORBA::ServerRequest::arguments

(

CORBA::NVList_ptr &

list

)

Implementation uses this to provide the ORB with the operation's parameter list ... on return, their values are available; the list fed in has typecodes and (perhap) memory assigned.

Definition at line 74 of file Server_Request.cpp.

References TAO_Operation_Details::cac(), CORBA::COMPLETED_NO, TAO_ServerRequest::dsi_nvlist_align(), lazy_evaluation_, CORBA::OMGVMCID, TAO_ServerRequest::operation_details(), orb_server_request_, and params_.

{
  // arguments() must be called before either of these.
  if (this->params_ != 0 || this->exception_ != 0)
    {
      throw ::CORBA::BAD_INV_ORDER (CORBA::OMGVMCID | 7, CORBA::COMPLETED_NO);
    }

  // In a collocated situation there will not be an incoming CDR stream
  // in which case we can get the arguments from the
  // operation_details using the 'collocated argument converter'.
  if (this->orb_server_request_.collocated ())
  {
    this->params_ = list;

    if (this->orb_server_request_.operation_details ()->cac () != 0)
      {
        TAO_OutputCDR output;
        this->orb_server_request_.operation_details ()->cac (
                )->dsi_convert_request (this->orb_server_request_,
                                        output);

        TAO_InputCDR input(output);
        this->params_->_tao_decode (input, CORBA::ARG_IN | CORBA::ARG_INOUT);
      }
  }
  else
  {
    // Save params for later use when marshaling the reply.
    this->params_ = list;

    this->params_->_tao_incoming_cdr (*this->orb_server_request_.incoming (),
                                      CORBA::ARG_IN | CORBA::ARG_INOUT,
                                      this->lazy_evaluation_);

    // Pass this alignment back to the TAO_ServerRequest.
    this->orb_server_request_.dsi_nvlist_align (
                                  this->params_->_tao_target_alignment ());
  }
}

ACE_INLINE void CORBA::ServerRequest::ctx

(

CORBA::Context_ptr

)

Mutator for the Context member.

Definition at line 50 of file Server_Request.inl.

References ctx(), and ctx_.

{
  this->ctx_ = ctx;
}

ACE_INLINE CORBA::Context_ptr CORBA::ServerRequest::ctx

(

void

)

const

Accessor for the Context member.

Definition at line 44 of file Server_Request.inl.

References ctx_.

Referenced by ctx().

{
  return this->ctx_;
}

void CORBA::ServerRequest::dsi_marshal

(

void

)

Marshal outgoing parameters.

Definition at line 166 of file Server_Request.cpp.

References TAO_ServerRequest::argument_flag(), TAO_Operation_Details::cac(), exception_, TAO_ServerRequest::init_reply(), NO_EXCEPTION, TAO_ServerRequest::operation_details(), orb_server_request_, params_, retval_, TAO_ServerRequest::tao_send_reply(), and USER_EXCEPTION.

Referenced by TAO_DynamicImplementation::_dispatch().

{
  // There was a user exception, no need to marshal any parameters.
  if (this->sent_gateway_exception_)
    {
      return;
    }

  // In a collocated situation there is no outgoing CDR stream.
  // So, in case of an exception we just raise the UnknownUserException
  // and for a regular reply we use the 'collocated argument converter'.
  if (this->orb_server_request_.collocated ())
  {
    if (this->orb_server_request_.reply_status () == GIOP::USER_EXCEPTION)
      {
        throw CORBA::UnknownUserException (*this->exception_);
      }
    else if (this->orb_server_request_.operation_details ()->cac () != 0)
      {
        TAO_OutputCDR output;
        // marshal the return value if any
        if (this->retval_ != 0)
          {
            this->retval_->impl ()->marshal_value (output);
          }

        // marshal the "inout" and "out" parameters.
        if (this->params_ != 0)
          {
            this->params_->_tao_encode (
                              output,
                              CORBA::ARG_INOUT | CORBA::ARG_OUT);
          }

        TAO_InputCDR input (output);
        // set reply parameters
        this->orb_server_request_.operation_details ()->cac (
                )->dsi_convert_reply (this->orb_server_request_,
                                      input);
      }
  }
  else
  {
    if (this->orb_server_request_.reply_status () == GIOP::NO_EXCEPTION)
      {
        // In DSI, we can't rely on the skeleton to do this.
        if (this->retval_ == 0 && this->params_ == 0)
          {
          this->orb_server_request_.argument_flag (false);
          }

        this->orb_server_request_.init_reply ();

        // Send the return value, if any.
        if (this->retval_ != 0)
          {
            this->retval_->impl ()->marshal_value (
                                        *this->orb_server_request_.outgoing ());
          }

        // Send the "inout" and "out" parameters.
        if (this->params_ != 0)
          {
            this->params_->_tao_encode (
                              *this->orb_server_request_.outgoing (),
                              CORBA::ARG_INOUT | CORBA::ARG_OUT);
          }
      }
    else
      {
      // This defaults to true, but just to be safe...
      this->orb_server_request_.argument_flag (true);

        // Write the reply header to the ORB request's outgoing CDR stream.
        this->orb_server_request_.init_reply ();

        this->exception_->impl ()->marshal_value (
                                      *this->orb_server_request_.outgoing ());
      }
  }

  this->orb_server_request_.tao_send_reply ();
}

void CORBA::ServerRequest::gateway_exception_reply

(

ACE_CString &

raw_exception

)

Returns a user exception through a TAO gateway without knowing its type.

Definition at line 251 of file Server_Request.cpp.

References TAO_ServerRequest::argument_flag(), ACE_String_Base< CHAR >::fast_rep(), TAO_ServerRequest::init_reply(), ACE_String_Base< CHAR >::length(), ACE_CDR::MAX_ALIGNMENT, orb_server_request_, TAO_ServerRequest::outgoing(), TAO_ServerRequest::reply_status(), sent_gateway_exception_, TAO_ServerRequest::tao_send_reply(), USER_EXCEPTION, and ACE_OutputCDR::write_octet_array().

{
  // This defaults to 1, but just to be safe...
  this->orb_server_request_.argument_flag (true);

  // This reply path handles only user exceptions.
  this->orb_server_request_.reply_status (GIOP::USER_EXCEPTION);

  this->orb_server_request_.init_reply ();

  // We know nothing about this exception, so we marshal it as a block
  // of bytes. The outgoing stream's byte order has already been matched
  // to the original source of the reply.
  this->orb_server_request_.outgoing ()->write_octet_array (
      reinterpret_cast<const CORBA::Octet *> (raw_exception.fast_rep ()),
      static_cast<CORBA::ULong> (raw_exception.length () + ACE_CDR::MAX_ALIGNMENT)
    );

  // This will prevent the marshaling of any parameters into this reply.
  this->sent_gateway_exception_ = true;

  this->orb_server_request_.tao_send_reply ();
}

ACE_INLINE const char * CORBA::ServerRequest::operation

(

void

)

const

Get the operation name.

Definition at line 56 of file Server_Request.inl.

References TAO_ServerRequest::operation(), and orb_server_request_.

{
  return this->orb_server_request_.operation ();
}

void CORBA::ServerRequest::set_exception

(

const CORBA::Any &

value

)

Implementation uses this to provide the exception value which is the only result of this particular invocation.

XXX Implementation should be able to assume response has been sent when this returns, and reclaim memory it allocated.

Definition at line 143 of file Server_Request.cpp.

References ACE_NEW_THROW_EX, CORBA::COMPLETED_MAYBE, CORBA::OMGVMCID, orb_server_request_, TAO_ServerRequest::reply_status(), CORBA::tk_except, and USER_EXCEPTION.

{
  CORBA::TypeCode_var tc = value.type ();

  CORBA::TCKind const kind = tc->kind ();

  // set_exception() can be called at any time, but the Any arg MUST
  // contain an exception.
  if (kind != CORBA::tk_except)
    {
      throw ::CORBA::BAD_PARAM (CORBA::OMGVMCID | 21, CORBA::COMPLETED_MAYBE);
    }

  ACE_NEW_THROW_EX (this->exception_,
                    CORBA::Any (value),
                    CORBA::NO_MEMORY ());

  this->orb_server_request_.reply_status (GIOP::USER_EXCEPTION);
}

void CORBA::ServerRequest::set_result

(

const CORBA::Any &

value

)

Implementation uses this to provide the operation result ... illegal if exception() was called or params() was not called.

XXX Implementation should be able to assume response has been sent when this returns, and reclaim memory it allocated.

Definition at line 119 of file Server_Request.cpp.

References ACE_NEW_THROW_EX, CORBA::COMPLETED_NO, and CORBA::OMGVMCID.

{
  // Setting a result when another result already exists or if an exception
  // exists or before the args have been processeed is an error.
  if (this->retval_ != 0 || this->exception_ != 0 || this->params_ == 0)
    {
      throw ::CORBA::BAD_INV_ORDER (CORBA::OMGVMCID | 8, CORBA::COMPLETED_NO);
    }

  ACE_NEW_THROW_EX (this->retval_,
                    CORBA::Any (value),
                    CORBA::NO_MEMORY ());
}

---

Member Data Documentation

CORBA::Context_ptr CORBA::ServerRequest::ctx_ [private]

Context associated with this request.

Definition at line 149 of file Server_Request.h.

Referenced by ctx().

CORBA::Any_ptr CORBA::ServerRequest::exception_ [private]

Any exception which might be raised.

Definition at line 158 of file Server_Request.h.

Referenced by dsi_marshal(), and ~ServerRequest().

bool CORBA::ServerRequest::lazy_evaluation_ [private]

If zero then the NVList is evaluated ASAP.

Definition at line 146 of file Server_Request.h.

Referenced by _tao_lazy_evaluation(), and arguments().

TAO_ServerRequest& CORBA::ServerRequest::orb_server_request_ [private]

Request from the ORB.

Definition at line 164 of file Server_Request.h.

Referenced by _tao_incoming_byte_order(), _tao_reply_byte_order(), _tao_server_request(), arguments(), dsi_marshal(), gateway_exception_reply(), operation(), ServerRequest(), and set_exception().

CORBA::NVList_ptr CORBA::ServerRequest::params_ [private]

Incoming parameters.

Definition at line 152 of file Server_Request.h.

Referenced by arguments(), dsi_marshal(), and ~ServerRequest().

ACE_Atomic_Op<TAO_SYNCH_MUTEX, unsigned long> CORBA::ServerRequest::refcount_ [private]

Reference counting.

Definition at line 161 of file Server_Request.h.

Referenced by _decr_refcnt(), and _incr_refcnt().

CORBA::Any_ptr CORBA::ServerRequest::retval_ [private]

Return value.

Definition at line 155 of file Server_Request.h.

Referenced by dsi_marshal(), and ~ServerRequest().

bool CORBA::ServerRequest::sent_gateway_exception_ [private]

Have we sent a user exception obtained from a gateway?

Definition at line 167 of file Server_Request.h.

Referenced by gateway_exception_reply().

---

The documentation for this class was generated from the following files:

• Server_Request.h
• Server_Request.cpp
• Server_Request.inl

---
