TAO_Trading_Loader Class Reference

#include <Trading_Loader.h>

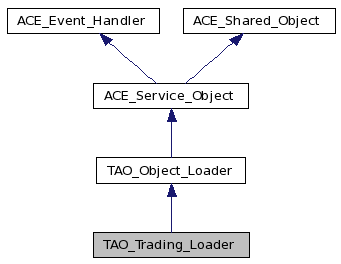

Inheritance diagram for TAO_Trading_Loader:

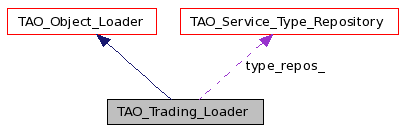

[legend]Collaboration diagram for TAO_Trading_Loader:

[legend]List of all members.

Public Member Functions
	TAO_Trading_Loader (void)
	~TAO_Trading_Loader (void)
virtual int	init (int argc, ACE_TCHAR *argv[])
virtual int	fini (void)
int	run (void)
CORBA::Object_ptr	create_object (CORBA::ORB_ptr orb, int argc, ACE_TCHAR *argv[])
Protected Member Functions
int	init_multicast_server (void)
int	bootstrap_to_federation (void)
int	parse_args (int &argc, ACE_TCHAR *argv[])
Protected Attributes
TAO_ORB_Manager	orb_manager_
auto_ptr< TAO_Trader_Factory::TAO_TRADER >	trader_
TAO_Service_Type_Repository	type_repos_
CORBA::String_var	ior_
CORBA::Boolean	federate_
FILE *	ior_output_file_
CORBA::String_var	name_
TAO_IOR_Multicast	ior_multicast_
CORBA::Boolean	bootstrapper_
CORBA::Boolean	dumpior_
Private Member Functions
	TAO_Trading_Loader (const TAO_Trading_Loader &)
TAO_Trading_Loader &	operator= (const TAO_Trading_Loader &)

---

Detailed Description

Definition at line 34 of file Trading_Loader.h.

---

Constructor & Destructor Documentation

TAO_Trading_Loader::TAO_Trading_Loader

(

void

)

Definition at line 31 of file Trading_Loader.cpp.

References ACE_DEBUG, ACE_TEXT(), ACE_INET_Addr::get_host_addr(), ACE_INET_Addr::get_host_name(), ACE_OS::getpid(), LM_DEBUG, MAXHOSTNAMELEN, ACE_OS::sprintf(), ACE_OS::strchr(), ACE_OS::strcpy(), and CORBA::string_alloc().

  : federate_ (0),
    ior_output_file_ (0),
    bootstrapper_ (0)
{
  char *trader_name = CORBA::string_alloc (MAXHOSTNAMELEN + 10);

  if (trader_name != 0)
    {
      // The trader name is the concatenation of the local host name
      // and the server's process id.
      char host_name[MAXHOSTNAMELEN + 1];
      ACE_INET_Addr localhost ((u_short) 0);
      if (localhost.get_host_name (host_name, sizeof (host_name)) != 0)
        {
          const char *tmp = localhost.get_host_addr ();
          if (tmp == 0)
            ACE_DEBUG ((LM_DEBUG,
                        ACE_TEXT ("\n\nTAO Trading Service (%P|%t) ")
                        ACE_TEXT ("TAO_Trading_Loader ")
                        ACE_TEXT ("- %p\n\n"),
                        ACE_TEXT ("cannot determine hostname")));
          else
            ACE_OS::strcpy (host_name, tmp);
        }

      ACE_OS::sprintf (trader_name,
                       "%s_%ld",
                       host_name,
                       static_cast<long> (ACE_OS::getpid ()));

      for (char *dot = 0;
           (dot = ACE_OS::strchr (trader_name, '.')) != 0;
           *dot = '_')
        continue;

      ACE_DEBUG ((LM_DEBUG,
                  "*** Trading Service %s initializing.\n",
                  trader_name));

      this->name_ = trader_name;
    }
}

TAO_Trading_Loader::~TAO_Trading_Loader

(

void

)

Definition at line 75 of file Trading_Loader.cpp.

{
  // Destructor
}

TAO_Trading_Loader::TAO_Trading_Loader

(

const TAO_Trading_Loader &

)

[private]

---

Member Function Documentation

int TAO_Trading_Loader::bootstrap_to_federation

(

void

)

[protected]

Definition at line 263 of file Trading_Loader.cpp.

References ACE_DEBUG, ACE_ERROR_RETURN, CosTrading::always, TAO_Pseudo_Var_T< T >::in(), CORBA::is_nil(), TAO_Trading_Components_i::link_if(), LM_DEBUG, LM_ERROR, TAO_Trading_Components_i::lookup_if(), orb_manager_, ACE_OS::strcmp(), and trader_.

Referenced by create_object().

{
  // If all traders follow this strategy, it creates a complete graph
  // of all known traders on a multicast network.
  CORBA::ORB_var orb =
    this->orb_manager_.orb ();

  ACE_DEBUG ((LM_DEBUG,
              "*** Bootstrapping to another Trading Service.\n"));
  CORBA::Object_var trading_obj =
    orb->resolve_initial_references ("TradingService");

  if (CORBA::is_nil (trading_obj.in ()))
    ACE_ERROR_RETURN ((LM_ERROR,
                       "We're all alone. "
                       "Unable to link to other traders.\n"),
                      -1);

  ACE_DEBUG ((LM_DEBUG,
              "*** Narrowing the lookup interface.\n"));
  CosTrading::Lookup_var lookup_if =
    CosTrading::Lookup::_narrow (trading_obj.in ());

  ACE_DEBUG ((LM_DEBUG,
              "*** Obtaining the link interface.\n"));
  CosTrading::Link_var link_if =
    lookup_if->link_if ();

  TAO_Trading_Components_i &trd_comp =
    this->trader_->trading_components ();
  CosTrading::Lookup_ptr our_lookup =
    trd_comp.lookup_if ();
  CosTrading::Link_ptr our_link =
    trd_comp.link_if ();

  ACE_DEBUG ((LM_DEBUG,
              "*** Linking found trader to self.\n"));
  link_if->add_link (this->name_.in (),
                     our_lookup,
                     CosTrading::always,
                     CosTrading::always);

  ACE_DEBUG ((LM_DEBUG,
              "*** Linking self to found trader.\n"));
  our_link->add_link ("Bootstrap",
                      lookup_if.in (),
                      CosTrading::always,
                      CosTrading::always);

  ACE_DEBUG ((LM_DEBUG,
              "*** Retrieving list of known linked traders.\n"));
  CosTrading::LinkNameSeq_var link_name_seq =
    link_if->list_links ();

  ACE_DEBUG ((LM_DEBUG,
              "*** Linking self to all linked traders.\n"));
  for (CORBA::ULong i = link_name_seq->length () - 1;
       i > 0;
       i--)
    {
      // Avoid linking to ourselves.
      if (ACE_OS::strcmp (static_cast<const char *> (link_name_seq[i]),
                          this->name_.in ()) != 0)
        {
          ACE_DEBUG ((LM_DEBUG,
                      "*** Getting info for link %s.\n",
                      static_cast<const char *> (link_name_seq[i])));
          CosTrading::Link::LinkInfo_var link_info =
            link_if->describe_link (link_name_seq[i]);

          CosTrading::Lookup_ptr remote_lookup;
          remote_lookup = link_info->target.in ();

          ACE_DEBUG ((LM_DEBUG,
                      "*** Retrieving its link interface.\n"));
          CosTrading::Link_var remote_link =
            remote_lookup->link_if ();

          ACE_DEBUG ((LM_DEBUG,
                      "*** Creating a link to me from it.\n"));
          remote_link->add_link (this->name_.in (),
                                 our_lookup,
                                 CosTrading::always,
                                 CosTrading::always);

          ACE_DEBUG ((LM_DEBUG,
                      "*** Creating a link to it from me.\n"));
          our_link->add_link (link_name_seq[i],
                              remote_lookup,
                              CosTrading::always,
                              CosTrading::always);
        }
    }

  return 0;
}

CORBA::Object_ptr TAO_Trading_Loader::create_object	(	CORBA::ORB_ptr	orb,
		int	argc,
		ACE_TCHAR *	argv[]
	)			[virtual]

Implements TAO_Object_Loader.

Definition at line 184 of file Trading_Loader.cpp.

References CORBA::ORB::_duplicate(), CORBA::Object::_nil(), ACE_ERROR, bootstrap_to_federation(), TAO_Trader_Factory::create_trader(), ACE_OS::fclose(), ACE_OS::fprintf(), TAO_Pseudo_Var_T< T >::in(), init_multicast_server(), ior_, CORBA::is_nil(), LM_ERROR, TAO_Trading_Components_i::lookup_if(), orb_manager_, trader_, and TAO_Support_Attributes_i::type_repos().

Referenced by init().

{
  // Duplicate the ORB
  CORBA::ORB_var orb = CORBA::ORB::_duplicate (orb_ptr);

  // Activating the poa manager
  this->orb_manager_.activate_poa_manager ();

  // Create a Trader Object and set its Service Type Repository.
  auto_ptr<TAO_Trader_Factory::TAO_TRADER> auto_trader (TAO_Trader_Factory::create_trader (argc, argv));

  this->trader_ = auto_trader;

  TAO_Support_Attributes_i &sup_attr =
    this->trader_->support_attributes ();

  TAO_Trading_Components_i &trd_comp =
    this->trader_->trading_components ();

  sup_attr.type_repos (this->type_repos_._this ());

  // The Spec says: return a reference to the Lookup interface from
  // the resolve_initial_references method.
  CosTrading::Lookup_ptr lookup =
    trd_comp.lookup_if ();

  this->ior_ =
    orb->object_to_string (lookup);

  // Parse the args
  if (this->parse_args (argc, argv) == -1)
    return CORBA::Object::_nil ();

  // Dump the ior to a file.
  if (this->ior_output_file_ != 0)
    {
      ACE_OS::fprintf (this->ior_output_file_,
                       "%s",
                       this->ior_.in ());
      ACE_OS::fclose (this->ior_output_file_);
    }

  CORBA::Object_var table_object =
    orb->resolve_initial_references ("IORTable");

  IORTable::Table_var adapter =
    IORTable::Table::_narrow (table_object.in ());

  if (CORBA::is_nil (adapter.in ()))
    {
      ACE_ERROR ((LM_ERROR, "Nil IORTable\n"));
    }
  else
    {
      adapter->bind ("TradingService",
                     this->ior_.in ());
    }

  if (this->federate_)
    {
      // Only become a multicast server if we're the only trader
      // on the multicast network.
      // @@ Could do other things. For example, every timeout
      // period try to federate again, but let's not hardcode that
      // policy.
      int rc = this->bootstrap_to_federation ();

      if (rc == -1)
        this->init_multicast_server ();
    }
  else
    this->init_multicast_server ();

  return CORBA::Object::_nil ();
}

int TAO_Trading_Loader::fini

(

void

)

[virtual]

Reimplemented from ACE_Shared_Object.

Definition at line 109 of file Trading_Loader.cpp.

References CORBA::Exception::_tao_print_exception(), ACE_DEBUG, and LM_DEBUG.

{
  try
    {
      if (this->trader_.get () != 0)
        {
          TAO_Trading_Components_i& trd_comp
            = this->trader_->trading_components ();
          CosTrading::Link_ptr our_link =
            trd_comp.link_if ();

          CosTrading::LinkNameSeq_var link_name_seq =
            our_link->list_links ();

          ACE_DEBUG ((LM_DEBUG,
                      "*** Unlinking from federated traders.\n"));

          for (CORBA::ULong j = 0;
               j != link_name_seq->length ();
               ++j)
            {
              CORBA::ULong i =
                link_name_seq->length () - j - 1;

              ACE_DEBUG ((LM_DEBUG,
                          "*** Describing the next link.\n"));
              CosTrading::Link::LinkInfo_var link_info =
                our_link->describe_link (link_name_seq[i]);

              ACE_DEBUG ((LM_DEBUG,
                          "*** Removing link to %s.\n",
                          static_cast<const char *> (link_name_seq[i])));
              our_link->remove_link (link_name_seq[i]);

              CosTrading::Lookup_ptr remote_lookup;
              remote_lookup =
                link_info->target.in ();

              ACE_DEBUG ((LM_DEBUG,
                          "*** Retrieving its link interface.\n"));
              CosTrading::Link_var remote_link =
                remote_lookup->link_if ();

              ACE_DEBUG ((LM_DEBUG,
                          "*** Removing its link to us.\n"));

              if (this->bootstrapper_)
                {
                  remote_link->remove_link ("Bootstrap");
                }
              else
                {
                  remote_link->remove_link (this->name_.in ());
                }
            }
        }
    }
  catch (const CORBA::Exception& ex)
    {
      ex._tao_print_exception ("Trading Service shutting down");
    }

  return 0;
}

int TAO_Trading_Loader::init	(	int	argc,
		ACE_TCHAR *	argv[]
	)			[virtual]

Reimplemented from ACE_Shared_Object.

Definition at line 81 of file Trading_Loader.cpp.

References create_object(), ACE_Argv_Type_Converter::get_argc(), ACE_Argv_Type_Converter::get_ASCII_argv(), ACE_Argv_Type_Converter::get_TCHAR_argv(), TAO_Pseudo_Var_T< T >::in(), and orb_manager_.

{
  try
    {
      // Copy command line parameter.
      ACE_Argv_Type_Converter command_line(argc, argv);

      // Initialize the ORB Manager
      this->orb_manager_.init (command_line.get_argc(),
                               command_line.get_ASCII_argv());

      CORBA::ORB_var orb =
        this->orb_manager_.orb ();

      // Initializes and sets up the Trading Service
      CORBA::Object_var object =
        this->create_object (orb.in (), command_line.get_argc(), command_line.get_TCHAR_argv());

    }
  catch (const CORBA::Exception&)
    {
      //    @@ Should we log this???
      return -1;
    }
  return 0;
}

int TAO_Trading_Loader::init_multicast_server

(

void

)

[protected]

Definition at line 361 of file Trading_Loader.cpp.

References ACE_DEBUG, ACE_DEFAULT_MULTICAST_ADDR, ACE_ERROR_RETURN, ACE_OS::atoi(), bootstrapper_, ACE_String_Base< CHAR >::c_str(), ACE_OS::getenv(), ACE_String_Base< CHAR >::length(), LM_DEBUG, LM_ERROR, TAO::MCAST_TRADINGSERVICE, TAO_ORB_Core::orb_params(), TAO_ORB_Core::reactor(), ACE_Event_Handler::reactor(), ACE_Event_Handler::READ_MASK, ACE_Reactor::register_handler(), TAO_ORB_Parameters::service_port(), TAO_DEFAULT_TRADING_SERVER_REQUEST_PORT, TAO_ORB_Core_instance(), and TAO_SERVICEID_TRADINGSERVICE.

Referenced by create_object().

{
#if defined (ACE_HAS_IP_MULTICAST)
  // Get reactor instance from TAO.
  ACE_Reactor *reactor = TAO_ORB_Core_instance ()->reactor ();

  // See if the -ORBMulticastDiscoveryEndpoint option was specified.
  ACE_CString mde (TAO_ORB_Core_instance ()->orb_params ()
                   ->mcast_discovery_endpoint ());

  // First, see if the user has given us a multicast port number for
  // the name service on the command-line;
  u_short port =
    TAO_ORB_Core_instance ()->orb_params ()->service_port (TAO::MCAST_TRADINGSERVICE);

  if (port == 0)
    {
      const char *port_number =
        ACE_OS::getenv ("TradingServicePort");

      if (port_number != 0)
        port = static_cast<u_short> (ACE_OS::atoi (port_number));
      else
        port = TAO_DEFAULT_TRADING_SERVER_REQUEST_PORT;
    }

  // Instantiate a server that will receive requests for an ior
  if (mde.length () != 0)
    {
      if (this->ior_multicast_.init ((char *) this->ior_.in (),
                                     mde.c_str (),
                                     TAO_SERVICEID_TRADINGSERVICE) == -1)
        return -1;
    }
  else
    {
      if (this->ior_multicast_.init ((char *) this->ior_.in (),
                                     port,
                                     ACE_DEFAULT_MULTICAST_ADDR,
                                     TAO_SERVICEID_TRADINGSERVICE) == -1)
        ACE_ERROR_RETURN ((LM_ERROR,
                           "Failed to init IOR multicast.\n"),
                          -1);
    }

  // Register event handler for the ior multicast.
  if (reactor->register_handler (&this->ior_multicast_,
                                 ACE_Event_Handler::READ_MASK) == -1)
    ACE_DEBUG ((LM_DEBUG,
                "cannot register Event handler\n"));
  else
    ACE_DEBUG ((LM_DEBUG,
                "The multicast server setup is done.\n"));

  // Other trader instances will bootstrap to us.
  this->bootstrapper_ = 1;

#endif /* ACE_HAS_IP_MULTICAST */
  return 0;
}

TAO_Trading_Loader& TAO_Trading_Loader::operator=

(

const TAO_Trading_Loader &

)

[private]

int TAO_Trading_Loader::parse_args	(	int &	argc,
		ACE_TCHAR *	argv[]
	)			[protected]

Definition at line 424 of file Trading_Loader.cpp.

References ACE_ERROR_RETURN, ACE_STDOUT, ACE_TEXT(), ACE_Arg_Shifter_T< CHAR_TYPE >::consume_arg(), ACE_OS::fdopen(), federate_, ACE_OS::fopen(), ACE_Arg_Shifter_T< CHAR_TYPE >::get_current(), ACE_Arg_Shifter_T< CHAR_TYPE >::ignore_arg(), ior_output_file_, ACE_Arg_Shifter_T< CHAR_TYPE >::is_anything_left(), ACE_Arg_Shifter_T< CHAR_TYPE >::is_parameter_next(), LM_ERROR, and ACE_OS::strcmp().

{
  ACE_Arg_Shifter arg_shifter (argc, argv);

  while (arg_shifter.is_anything_left ())
    {
      const ACE_TCHAR *current_arg = arg_shifter.get_current ();

      if (ACE_OS::strcmp (current_arg,
                          ACE_TEXT("-TSfederate")) == 0)
        {
          arg_shifter.consume_arg ();
          this->federate_ = 1;
        }
      if (ACE_OS::strcmp (current_arg,
                          ACE_TEXT("-TSdumpior")) == 0)
        {
          arg_shifter.consume_arg ();
          if (arg_shifter.is_parameter_next ())
            {
              const ACE_TCHAR *file_name =
                arg_shifter.get_current ();
              this->ior_output_file_ =
                ACE_OS::fopen (file_name, ACE_TEXT("w"));

              if (this->ior_output_file_ == 0)
                ACE_ERROR_RETURN ((LM_ERROR,
                                   "Unable to open %s for writing: %p\n",
                                   file_name), -1);
              arg_shifter.consume_arg ();
            }
          else
            this->ior_output_file_ =
              ACE_OS::fdopen (ACE_STDOUT,
                              ACE_TEXT("w"));
        }

      else
        arg_shifter.ignore_arg ();
    }

  return 0;
}

int TAO_Trading_Loader::run

(

void

)

Definition at line 175 of file Trading_Loader.cpp.

References orb_manager_.

{
  int return_value =
    this->orb_manager_.run ();

  return return_value;
}

---

Member Data Documentation

CORBA::Boolean TAO_Trading_Loader::bootstrapper_ [protected]

Definition at line 98 of file Trading_Loader.h.

Referenced by init_multicast_server().

CORBA::Boolean TAO_Trading_Loader::dumpior_ [protected]

Definition at line 101 of file Trading_Loader.h.

CORBA::Boolean TAO_Trading_Loader::federate_ [protected]

Definition at line 85 of file Trading_Loader.h.

Referenced by parse_args().

CORBA::String_var TAO_Trading_Loader::ior_ [protected]

Definition at line 82 of file Trading_Loader.h.

Referenced by create_object().

TAO_IOR_Multicast TAO_Trading_Loader::ior_multicast_ [protected]

Definition at line 94 of file Trading_Loader.h.

FILE* TAO_Trading_Loader::ior_output_file_ [protected]

Definition at line 88 of file Trading_Loader.h.

Referenced by parse_args().

CORBA::String_var TAO_Trading_Loader::name_ [protected]

Definition at line 91 of file Trading_Loader.h.

TAO_ORB_Manager TAO_Trading_Loader::orb_manager_ [protected]

Definition at line 73 of file Trading_Loader.h.

Referenced by bootstrap_to_federation(), create_object(), init(), and run().

auto_ptr<TAO_Trader_Factory::TAO_TRADER> TAO_Trading_Loader::trader_ [protected]

Definition at line 76 of file Trading_Loader.h.

Referenced by bootstrap_to_federation(), and create_object().

TAO_Service_Type_Repository TAO_Trading_Loader::type_repos_ [protected]

Definition at line 79 of file Trading_Loader.h.

---

The documentation for this class was generated from the following files:

• Trading_Loader.h
• Trading_Loader.cpp

---
