TAO_MCastConfigIf Class Reference

#include <AVStreams_i.h>

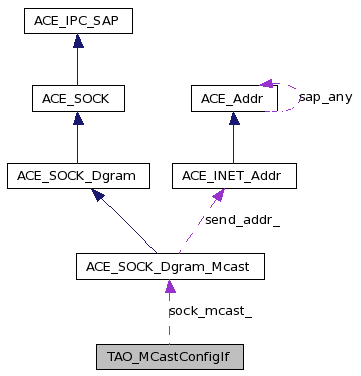

Collaboration diagram for TAO_MCastConfigIf:


Public Types
	VDEV = 0
	FLOWENDPOINT = 1
enum	Peer_Interface { VDEV = 0, FLOWENDPOINT = 1 }
Public Member Functions
	TAO_MCastConfigIf (void)
	Default constructor.
	~TAO_MCastConfigIf (void)
	Dtor.
virtual CORBA::Boolean	set_peer (CORBA::Object_ptr peer, AVStreams::streamQoS &the_qos, const AVStreams::flowSpec &the_spec)
virtual void	configure (const CosPropertyService::Property &a_configuration)
virtual void	set_initial_configuration (const CosPropertyService::Properties &initial)
virtual void	set_format (const char flowName, const char format_name)
virtual void	set_dev_params (const char *flowName, const CosPropertyService::Properties &new_params)
Protected Member Functions
int	in_flowSpec (const AVStreams::flowSpec &flow_spec, const char *flow_name)
	checks whether the flowname is in the flow_spec.
Protected Attributes
ACE_SOCK_Dgram_Mcast	sock_mcast_
	Multicast socket.
CosPropertyService::Properties	initial_configuration_
	Initial configuration to be distributed to all B parties when they join.
ACE_DLList< Peer_Info >	peer_list_
ACE_DLList_Iterator< Peer_Info >	peer_list_iterator_
Classes
struct	Peer_Info

Detailed Description

Definition at line 283 of file AVStreams_i.h.

Member Enumeration Documentation

enum TAO_MCastConfigIf::Peer_Interface

Enumerator:

VDEV
FLOWENDPOINT

Definition at line 289 of file AVStreams_i.h.

00289 {VDEV = 0, FLOWENDPOINT=1};

Constructor & Destructor Documentation

TAO_MCastConfigIf::TAO_MCastConfigIf ( void )

Default constructor.

Definition at line 1297 of file AVStreams_i.cpp.

01298   :peer_list_iterator_ (peer_list_)
01299 {
01300 }

TAO_MCastConfigIf::~TAO_MCastConfigIf ( void )

Dtor.

Definition at line 1302 of file AVStreams_i.cpp.

01303 {
01304   //no-op
01305 }

Member Function Documentation

void TAO_MCastConfigIf::configure ( const CosPropertyService::Property & a_configuration ) [virtual]

Definition at line 1334 of file AVStreams_i.cpp.

References CORBA::Exception::_tao_print_exception(), TAO_MCastConfigIf::Peer_Info::peer_, and peer_list_iterator_.

01335 {
01336   Peer_Info *info;
01337   try
01338     {
01339       for (this->peer_list_iterator_.first ();
01340            (info = this->peer_list_iterator_.next ()) != 0;
01341            this->peer_list_iterator_.advance ())
01342         {
01343           info->peer_->configure (a_configuration);
01344         }
01345     }
01346   catch (const CORBA::Exception& ex)
01347     {
01348       ex._tao_print_exception (
01349         "TAO_MCastConfigIf::set_configure");
01350       return;
01351     }
01352 }

int TAO_MCastConfigIf::in_flowSpec	(	const AVStreams::flowSpec &	flow_spec,
		const char *	flow_name
	)			`[protected]`

checks whether the flowname is in the flow_spec.

Definition at line 1414 of file AVStreams_i.cpp.

References ACE_OS::strlen(), and ACE_OS::strncmp().

01415 {
01416   size_t len = ACE_OS::strlen (flow_name);
01417   for (CORBA::ULong i = 0; i < flow_spec.length (); i++)
01418     if (ACE_OS::strncmp (flow_spec[i], flow_name, len) == 0)
01419       {
01420         return 1;
01421       }
01422   return 0;
01423 }

void TAO_MCastConfigIf::set_dev_params	(	const char *	flowName,
		const CosPropertyService::Properties &	new_params
	)			`[virtual]`

Definition at line 1388 of file AVStreams_i.cpp.

References CORBA::Exception::_tao_print_exception(), TAO_MCastConfigIf::Peer_Info::flow_spec_, TAO_MCastConfigIf::Peer_Info::peer_, and peer_list_iterator_.

01390 {
01391   Peer_Info *info;
01392   try
01393     {
01394
01395       for (this->peer_list_iterator_.first ();
01396            (info = this->peer_list_iterator_.next ()) != 0;
01397            this->peer_list_iterator_.advance ())
01398         {
01399           if (this->in_flowSpec (info->flow_spec_, flowName))
01400             {
01401               info->peer_->set_dev_params (flowName, new_params);
01402             }
01403         }
01404     }
01405   catch (const CORBA::Exception& ex)
01406     {
01407       ex._tao_print_exception (
01408         "TAO_MCastConfigIf::set_dev_params");
01409       return;
01410     }
01411 }

void TAO_MCastConfigIf::set_format	(	const char *	flowName,
		const char *	format_name
	)			`[virtual]`

Definition at line 1363 of file AVStreams_i.cpp.

References CORBA::Exception::_tao_print_exception(), TAO_MCastConfigIf::Peer_Info::flow_spec_, TAO_MCastConfigIf::Peer_Info::peer_, and peer_list_iterator_.

01365 {
01366   Peer_Info *info;
01367   try
01368     {
01369       for (this->peer_list_iterator_.first ();
01370            (info = this->peer_list_iterator_.next ()) != 0;
01371            this->peer_list_iterator_.advance ())
01372         {
01373           if (this->in_flowSpec (info->flow_spec_, flowName))
01374             {
01375               info->peer_->set_format (flowName, format_name);
01376             }
01377         }
01378     }
01379   catch (const CORBA::Exception& ex)
01380     {
01381       ex._tao_print_exception ("TAO_MCastConfigIf::set_format");
01382       return;
01383     }
01384 }

void TAO_MCastConfigIf::set_initial_configuration ( const CosPropertyService::Properties & initial ) [virtual]

Definition at line 1356 of file AVStreams_i.cpp.

References initial_configuration_.

01357 {
01358   this->initial_configuration_ = initial;
01359 }

CORBA::Boolean TAO_MCastConfigIf::set_peer	(	CORBA::Object_ptr	peer,
		AVStreams::streamQoS &	the_qos,
		const AVStreams::flowSpec &	the_spec
	)			`[virtual]`

Definition at line 1309 of file AVStreams_i.cpp.

References CORBA::Exception::_tao_print_exception(), ACE_NEW_RETURN, TAO_MCastConfigIf::Peer_Info::flow_spec_, TAO_MCastConfigIf::Peer_Info::peer_, peer_list_, and TAO_MCastConfigIf::Peer_Info::qos_.

Referenced by TAO_StreamCtrl::bind_devs().

01312 {
01313   try
01314     {
01315       Peer_Info *info;
01316       ACE_NEW_RETURN (info,
01317                       Peer_Info,
01318                       0);
01319       info->peer_ = AVStreams::VDev::_narrow (peer);
01320       info->qos_ = qos;
01321       info->flow_spec_ = flow_spec;
01322       this->peer_list_.insert_tail (info);
01323     }
01324   catch (const CORBA::Exception& ex)
01325     {
01326       ex._tao_print_exception ("TAO_MCastConfigIf::set_peer");
01327       return 0;
01328     }
01329   return 1;
01330 }
