TAO_AV_UDP_MCast_Flow_Handler Class Reference

Flow Handler for data sent over multicast sockets. More...

#include <MCast.h>

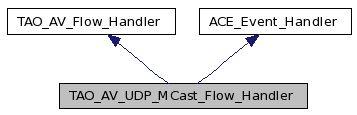

Inheritance diagram for TAO_AV_UDP_MCast_Flow_Handler:

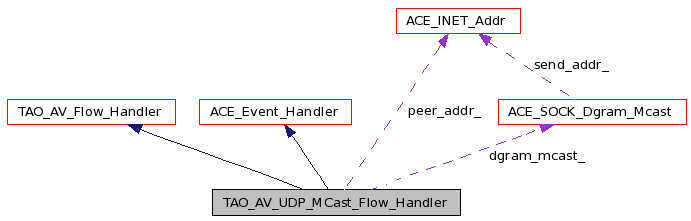

[legend]Collaboration diagram for TAO_AV_UDP_MCast_Flow_Handler:

[legend]List of all members.

Public Member Functions
	TAO_AV_UDP_MCast_Flow_Handler (void)
virtual	~TAO_AV_UDP_MCast_Flow_Handler (void)
virtual ACE_HANDLE	get_handle (void) const
virtual int	handle_input (ACE_HANDLE fd)
virtual int	handle_timeout (const ACE_Time_Value &tv, const void *arg=0)
ACE_SOCK_Dgram_Mcast *	get_mcast_socket (void) const
virtual ACE_Event_Handler *	event_handler (void)
	get the underlying event handler. To be overridden by the derived clases.
void	set_peer_addr (ACE_INET_Addr *peer_addr)
Protected Attributes
ACE_INET_Addr *	peer_addr_
ACE_SOCK_Dgram_Mcast *	dgram_mcast_

---

Detailed Description

Flow Handler for data sent over multicast sockets.

Definition at line 90 of file MCast.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_AV_UDP_MCast_Flow_Handler::TAO_AV_UDP_MCast_Flow_Handler

(

void

)

Ctor Dtor

Definition at line 17 of file MCast.cpp.

References ACE_NEW, dgram_mcast_, and TAO_AV_Flow_Handler::transport_.

{
  ACE_NEW (transport_,
           TAO_AV_UDP_MCast_Transport (this));
  ACE_NEW (dgram_mcast_,
           ACE_SOCK_Dgram_Mcast);
}

TAO_AV_UDP_MCast_Flow_Handler::~TAO_AV_UDP_MCast_Flow_Handler

(

void

)

[virtual]

Definition at line 25 of file MCast.cpp.

References dgram_mcast_, and TAO_AV_Flow_Handler::transport_.

{
  delete this->transport_;
  delete this->dgram_mcast_;
}

---

Member Function Documentation

virtual ACE_Event_Handler* TAO_AV_UDP_MCast_Flow_Handler::event_handler

(

void

)

[inline, virtual]

get the underlying event handler. To be overridden by the derived clases.

Implements TAO_AV_Flow_Handler.

Definition at line 103 of file MCast.h.

{ return this; }

ACE_HANDLE TAO_AV_UDP_MCast_Flow_Handler::get_handle

(

void

)

const [virtual]

Reimplemented from ACE_Event_Handler.

Definition at line 47 of file MCast.cpp.

References ACE_DEBUG, ACE_IPC_SAP::get_handle(), get_mcast_socket(), LM_DEBUG, and TAO_debug_level.

{
  if (TAO_debug_level > 0) ACE_DEBUG ((LM_DEBUG,"TAO_AV_UDP_MCast_Flow_Handler::get_handle "));
  return this->get_mcast_socket ()->get_handle () ;
}

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_SOCK_Dgram_Mcast * TAO_AV_UDP_MCast_Flow_Handler::get_mcast_socket

(

void

)

const

Definition at line 12 of file MCast.inl.

References dgram_mcast_.

Referenced by get_handle(), TAO_AV_UDP_MCast_Transport::get_local_addr(), TAO_AV_UDP_MCast_Transport::recv(), TAO_AV_UDP_MCast_Transport::send(), and TAO_AV_UDP_Connection_Setup::setup().

{
  return this->dgram_mcast_;
}

int TAO_AV_UDP_MCast_Flow_Handler::handle_input

(

ACE_HANDLE

fd

)

[virtual]

Reimplemented from ACE_Event_Handler.

Definition at line 33 of file MCast.cpp.

References TAO_AV_Protocol_Object::handle_input(), and TAO_AV_Flow_Handler::protocol_object_.

{
  return this->protocol_object_->handle_input ();
//  return 0;
}

int TAO_AV_UDP_MCast_Flow_Handler::handle_timeout	(	const ACE_Time_Value &	tv,
		const void *	arg = 0
	)			[virtual]

Reimplemented from ACE_Event_Handler.

Definition at line 40 of file MCast.cpp.

References TAO_AV_Flow_Handler::handle_timeout().

{
  return TAO_AV_Flow_Handler::handle_timeout (tv,arg);
}

void TAO_AV_UDP_MCast_Flow_Handler::set_peer_addr

(

ACE_INET_Addr *

peer_addr

)

Definition at line 54 of file MCast.cpp.

References peer_addr_.

Referenced by TAO_AV_UDP_Connection_Setup::setup().

{
  this->peer_addr_ = peer_addr;
}

---

Member Data Documentation

ACE_SOCK_Dgram_Mcast* TAO_AV_UDP_MCast_Flow_Handler::dgram_mcast_ [protected]

Definition at line 107 of file MCast.h.

Referenced by get_mcast_socket(), TAO_AV_UDP_MCast_Flow_Handler(), and ~TAO_AV_UDP_MCast_Flow_Handler().

ACE_INET_Addr* TAO_AV_UDP_MCast_Flow_Handler::peer_addr_ [protected]

Definition at line 106 of file MCast.h.

Referenced by set_peer_addr().

---

The documentation for this class was generated from the following files:

• MCast.h
• MCast.cpp
• MCast.inl

---
