ACEXML_Element_Tree_List_Node Class Reference

An abstract base class for describing a node list in a DTD child element definition. More...

#include <parser/debug_validator/Element_Tree.h>

Inheritance diagram for ACEXML_Element_Tree_List_Node:

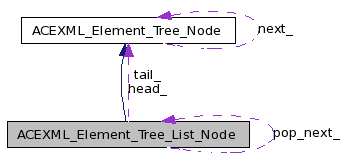

[legend]Collaboration diagram for ACEXML_Element_Tree_List_Node:


Public Types
	SEQUENCE
	CHOICE
enum	LIST_TYPE { SEQUENCE, CHOICE }
Public Member Functions
	ACEXML_Element_Tree_List_Node (void)
	Default constructor.
virtual	~ACEXML_Element_Tree_List_Node (void)
	Destructor.
int	insert (ACEXML_Element_Tree_Node *node)
	Insert a new ACEXML_Element_Tree_Node into the list.
LIST_TYPE	get (void)
	Get/set the type of list.
int	set (LIST_TYPE type)
virtual void	dump ()
	Displaying the content.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
Protected Attributes
LIST_TYPE	type_
ACEXML_Element_Tree_Node *	head_
ACEXML_Element_Tree_Node *	tail_
ACEXML_Element_Tree_List_Node *	pop_next_
Friends
class	ACEXML_Element_Tree_List_Stack

Detailed Description

An abstract base class for describing a node list in a DTD child element definition.

See also:: ACEXML_Element_Tree_Node, ACEXML_Element_Tree_Name_Node

Definition at line 91 of file Element_Tree.h.

Member Enumeration Documentation

enum ACEXML_Element_Tree_List_Node::LIST_TYPE

Enumerator:

SEQUENCE
CHOICE

Definition at line 97 of file Element_Tree.h.

00097                {
00098     SEQUENCE,
00099     CHOICE
00100   } LIST_TYPE;

Constructor & Destructor Documentation

ACEXML_INLINE ACEXML_Element_Tree_List_Node::ACEXML_Element_Tree_List_Node ( void )

Default constructor.

Definition at line 36 of file Element_Tree.inl.

00037   : type_ (SEQUENCE),
00038     head_ (0),
00039     tail_ (0),
00040     pop_next_ (0)
00041 {
00042 }

ACEXML_Element_Tree_List_Node::~ACEXML_Element_Tree_List_Node ( void ) [virtual]

Destructor.

Definition at line 24 of file Element_Tree.cpp.

00025 {
00026   delete this->head_;
00027 }

Member Function Documentation

void ACEXML_Element_Tree_List_Node::dump ( ) [virtual]

Displaying the content.

Implements ACEXML_Element_Tree_Node.

Definition at line 45 of file Element_Tree.cpp.

References ACE_TEXT, ACEXML_Element_Tree_Node::dump(), head_, ACEXML_Element_Tree_Node::next(), SEQUENCE, and type_.

00046 {
00047   ACEXML_Element_Tree_Node *ptr = this->head_;
00048   const ACEXML_Char *separator = (this->type_ == SEQUENCE) ? ACE_TEXT(" , ") : ACE_TEXT(" | ");
00049
00050   cout << "(";
00051
00052   if (ptr != 0)
00053     {
00054       ptr->dump ();
00055       ptr = ptr->next ();
00056
00057       while (ptr != 0)
00058         {
00059           cout << separator;
00060           ptr->dump ();
00061           ptr->next ();
00062         }
00063     }
00064
00065   cout << ")";
00066 }

ACEXML_INLINE ACEXML_Element_Tree_List_Node::LIST_TYPE ACEXML_Element_Tree_List_Node::get ( void )

Get/set the type of list.

Definition at line 45 of file Element_Tree.inl.

References type_.

00046 {
00047   return this->type_;
00048 }

int ACEXML_Element_Tree_List_Node::insert ( ACEXML_Element_Tree_Node * node )

Insert a new ACEXML_Element_Tree_Node into the list.

Definition at line 30 of file Element_Tree.cpp.

References head_, ACEXML_Element_Tree_Node::next(), and tail_.

Referenced by ACEXML_Debug_Element_Builder::insertElement(), ACEXML_Debug_Element_Builder::insertMixedElement(), and ACEXML_Debug_Element_Builder::startChildGroup().

00031 {
00032   if (this->head_ == 0)
00033     {
00034       this->tail_ = this->head_ = node;
00035     }
00036   else
00037     {
00038       this->tail_->next (node);
00039       this->tail_ = node;
00040     }
00041   return 0;
00042 }

ACEXML_INLINE int ACEXML_Element_Tree_List_Node::set ( LIST_TYPE type )

Definition at line 51 of file Element_Tree.inl.

References type_.

Referenced by ACEXML_Debug_Element_Builder::setChoice(), and ACEXML_Debug_Element_Builder::setSequence().

00052 {
00053   this->type_ = type;
00054   return 0;
00055 }

Friends And Related Function Documentation

friend class ACEXML_Element_Tree_List_Stack [friend]

Definition at line 95 of file Element_Tree.h.

Member Data Documentation

ACEXML_Element_Tree_List_Node::ACE_ALLOC_HOOK_DECLARE

Reimplemented from ACEXML_Element_Tree_Node.

Definition at line 117 of file Element_Tree.h.

ACEXML_Element_Tree_Node* ACEXML_Element_Tree_List_Node::head_ [protected]

Definition at line 121 of file Element_Tree.h.

Referenced by dump(), and insert().

ACEXML_Element_Tree_List_Node* ACEXML_Element_Tree_List_Node::pop_next_ [protected]

Definition at line 125 of file Element_Tree.h.

Referenced by ACEXML_Element_Tree_List_Stack::pop(), and ACEXML_Element_Tree_List_Stack::push().

ACEXML_Element_Tree_Node* ACEXML_Element_Tree_List_Node::tail_ [protected]

Definition at line 123 of file Element_Tree.h.

Referenced by insert().

LIST_TYPE ACEXML_Element_Tree_List_Node::type_ [protected]

Definition at line 119 of file Element_Tree.h.

Referenced by dump(), get(), and set().

The documentation for this class was generated from the following files:

Generated on Tue Feb 2 17:37:15 2010 for ACEXML by

1.4.7
