#include <RB_Tree.h>

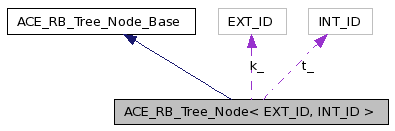

Inheritance diagram for ACE_RB_Tree_Node< EXT_ID, INT_ID >:
Public Member Functions | |
ACE_RB_Tree_Node (const EXT_ID &k, const INT_ID &t) | |
Constructor. | |
~ACE_RB_Tree_Node (void) | |
Destructor. | |
EXT_ID & | key (void) |
Key accessor. | |
INT_ID & | item (void) |
Item accessor. | |
void | color (RB_Tree_Node_Color c) |
Set color of the node. | |
RB_Tree_Node_Color | color (void) |
Get color of the node. | |
ACE_RB_Tree_Node< EXT_ID, INT_ID > * | parent (void) |
Accessor for node's parent pointer. | |
void | parent (ACE_RB_Tree_Node< EXT_ID, INT_ID > *p) |
Mutator for node's parent pointer. | |
ACE_RB_Tree_Node< EXT_ID, INT_ID > * | left (void) |
Accessor for node's left child pointer. | |
void | left (ACE_RB_Tree_Node< EXT_ID, INT_ID > *l) |
Mutator for node's left child pointer. | |
ACE_RB_Tree_Node< EXT_ID, INT_ID > * | right (void) |
Accessor for node's right child pointer. | |
void | right (ACE_RB_Tree_Node< EXT_ID, INT_ID > *r) |
Mutator for node's right child pointer. | |
Private Attributes | |
EXT_ID | k_ |
The key. | |
INT_ID | t_ |
The item. | |
RB_Tree_Node_Color | color_ |
Color of the node. | |
ACE_RB_Tree_Node< EXT_ID, INT_ID > * | parent_ |
Pointer to node's parent. | |
ACE_RB_Tree_Node< EXT_ID, INT_ID > * | left_ |
Pointer to node's left child. | |
ACE_RB_Tree_Node< EXT_ID, INT_ID > * | right_ |
Pointer to node's right child. |
Definition at line 54 of file RB_Tree.h.
ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_RB_Tree_Node< EXT_ID, INT_ID >::ACE_RB_Tree_Node | ( | const EXT_ID & | k, | |
const INT_ID & | t | |||
) |
Constructor.
Definition at line 25 of file RB_Tree.cpp.
References ACE_TRACE.
00026 : k_ (k), 00027 t_ (t), 00028 color_ (RED), 00029 parent_ (0), 00030 left_ (0), 00031 right_ (0) 00032 { 00033 ACE_TRACE ("ACE_RB_Tree_Node<EXT_ID, INT_ID>::ACE_RB_Tree_Node (const EXT_ID &k, const INT_ID &t)"); 00034 }
ACE_RB_Tree_Node< EXT_ID, INT_ID >::~ACE_RB_Tree_Node | ( | void | ) |
Destructor.
Definition at line 40 of file RB_Tree.cpp.
References ACE_TRACE.
00041 { 00042 ACE_TRACE ("ACE_RB_Tree_Node<EXT_ID, INT_ID>::~ACE_RB_Tree_Node"); 00043 }
ACE_INLINE ACE_RB_Tree_Node_Base::RB_Tree_Node_Color ACE_RB_Tree_Node< EXT_ID, INT_ID >::color | ( | void | ) |
Get color of the node.
Definition at line 52 of file RB_Tree.inl.
References ACE_TRACE, and ACE_RB_Tree_Node< EXT_ID, INT_ID >::color_.
00053 { 00054 ACE_TRACE ("ACE_RB_Tree_Node<EXT_ID, INT_ID>::color accessor"); 00055 return color_; 00056 }
void ACE_RB_Tree_Node< EXT_ID, INT_ID >::color | ( | RB_Tree_Node_Color | c | ) |
Set color of the node.
Referenced by ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::dump_node_i(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_delete_fixup(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rebalance(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove_i(), and ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::test_invariant_recurse().
ACE_INLINE INT_ID & ACE_RB_Tree_Node< EXT_ID, INT_ID >::item | ( | void | ) |
Item accessor.
Definition at line 30 of file RB_Tree.inl.
References ACE_TRACE, and ACE_RB_Tree_Node< EXT_ID, INT_ID >::t_.
Referenced by ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::insert_i(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove_i(), and ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::trybind().
ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE EXT_ID & ACE_RB_Tree_Node< EXT_ID, INT_ID >::key | ( | void | ) |
Key accessor.
Definition at line 19 of file RB_Tree.inl.
References ACE_TRACE, and ACE_RB_Tree_Node< EXT_ID, INT_ID >::k_.
Referenced by ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find_node(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::rebind(), and ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove_i().
ACE_INLINE void ACE_RB_Tree_Node< EXT_ID, INT_ID >::left | ( | ACE_RB_Tree_Node< EXT_ID, INT_ID > * | l | ) |
Mutator for node's left child pointer.
Definition at line 97 of file RB_Tree.inl.
References ACE_TRACE, and ACE_RB_Tree_Node< EXT_ID, INT_ID >::left_.
00098 { 00099 ACE_TRACE ("ACE_RB_Tree_Node<EXT_ID, INT_ID>::left mutator"); 00100 left_ = l; 00101 }
ACE_INLINE ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree_Node< EXT_ID, INT_ID >::left | ( | void | ) |
Accessor for node's left child pointer.
Definition at line 86 of file RB_Tree.inl.
References ACE_TRACE, and ACE_RB_Tree_Node< EXT_ID, INT_ID >::left_.
Referenced by ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::delete_children_i(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find_node(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::insert_i(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_delete_fixup(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rotate_left(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rotate_right(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_minimum(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_predecessor(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove_i(), and ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::test_invariant_recurse().
00087 { 00088 ACE_TRACE ("ACE_RB_Tree_Node<EXT_ID, INT_ID>::left accessor"); 00089 return left_; 00090 }
ACE_INLINE void ACE_RB_Tree_Node< EXT_ID, INT_ID >::parent | ( | ACE_RB_Tree_Node< EXT_ID, INT_ID > * | p | ) |
Mutator for node's parent pointer.
Definition at line 74 of file RB_Tree.inl.
References ACE_TRACE, and ACE_RB_Tree_Node< EXT_ID, INT_ID >::parent_.
00075 { 00076 ACE_TRACE ("ACE_RB_Tree_Node<EXT_ID, INT_ID>::parent mutator"); 00077 parent_ = p; 00078 }
ACE_INLINE ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree_Node< EXT_ID, INT_ID >::parent | ( | void | ) |
Accessor for node's parent pointer.
Definition at line 63 of file RB_Tree.inl.
References ACE_TRACE, and ACE_RB_Tree_Node< EXT_ID, INT_ID >::parent_.
Referenced by ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_delete_fixup(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rebalance(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rotate_left(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rotate_right(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_predecessor(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_successor(), and ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove_i().
00064 { 00065 ACE_TRACE ("ACE_RB_Tree_Node<EXT_ID, INT_ID>::parent accessor"); 00066 return parent_; 00067 }
ACE_INLINE void ACE_RB_Tree_Node< EXT_ID, INT_ID >::right | ( | ACE_RB_Tree_Node< EXT_ID, INT_ID > * | r | ) |
Mutator for node's right child pointer.
Definition at line 119 of file RB_Tree.inl.
References ACE_TRACE, and ACE_RB_Tree_Node< EXT_ID, INT_ID >::right_.
00120 { 00121 ACE_TRACE ("ACE_RB_Tree_Node<EXT_ID, INT_ID>::right mutator"); 00122 right_ = r; 00123 }
ACE_INLINE ACE_RB_Tree_Node< EXT_ID, INT_ID > * ACE_RB_Tree_Node< EXT_ID, INT_ID >::right | ( | void | ) |
Accessor for node's right child pointer.
Definition at line 108 of file RB_Tree.inl.
References ACE_TRACE, and ACE_RB_Tree_Node< EXT_ID, INT_ID >::right_.
Referenced by ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::delete_children_i(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::find_node(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::insert_i(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_delete_fixup(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rotate_left(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_rotate_right(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_maximum(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::RB_tree_successor(), ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::remove_i(), and ACE_RB_Tree< EXT_ID, INT_ID, COMPARE_KEYS, ACE_LOCK >::test_invariant_recurse().
00109 { 00110 ACE_TRACE ("ACE_RB_Tree_Node<EXT_ID, INT_ID>::right accessor"); 00111 return right_; 00112 }
RB_Tree_Node_Color ACE_RB_Tree_Node< EXT_ID, INT_ID >::color_ [private] |
Color of the node.
Definition at line 104 of file RB_Tree.h.
Referenced by ACE_RB_Tree_Node< EXT_ID, INT_ID >::color().
EXT_ID ACE_RB_Tree_Node< EXT_ID, INT_ID >::k_ [private] |
The key.
Definition at line 98 of file RB_Tree.h.
Referenced by ACE_RB_Tree_Node< EXT_ID, INT_ID >::key().
ACE_RB_Tree_Node<EXT_ID, INT_ID>* ACE_RB_Tree_Node< EXT_ID, INT_ID >::left_ [private] |
Pointer to node's left child.
Definition at line 110 of file RB_Tree.h.
Referenced by ACE_RB_Tree_Node< EXT_ID, INT_ID >::left().
ACE_RB_Tree_Node<EXT_ID, INT_ID>* ACE_RB_Tree_Node< EXT_ID, INT_ID >::parent_ [private] |
Pointer to node's parent.
Definition at line 107 of file RB_Tree.h.
Referenced by ACE_RB_Tree_Node< EXT_ID, INT_ID >::parent().
ACE_RB_Tree_Node<EXT_ID, INT_ID>* ACE_RB_Tree_Node< EXT_ID, INT_ID >::right_ [private] |
Pointer to node's right child.
Definition at line 113 of file RB_Tree.h.
Referenced by ACE_RB_Tree_Node< EXT_ID, INT_ID >::right().
INT_ID ACE_RB_Tree_Node< EXT_ID, INT_ID >::t_ [private] |
The item.
Definition at line 101 of file RB_Tree.h.
Referenced by ACE_RB_Tree_Node< EXT_ID, INT_ID >::item().
