ACE_Locked_Free_List< T, ACE_LOCK > Class Template Reference

Implements a free list. More...

#include <Free_List.h>

Inheritance diagram for ACE_Locked_Free_List< T, ACE_LOCK >:

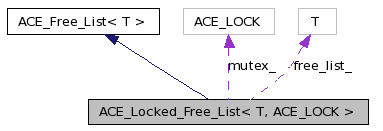

[legend]Collaboration diagram for ACE_Locked_Free_List< T, ACE_LOCK >:

[legend]List of all members.

Public Member Functions
	ACE_Locked_Free_List (int mode=ACE_FREE_LIST_WITH_POOL, size_t prealloc=ACE_DEFAULT_FREE_LIST_PREALLOC, size_t lwm=ACE_DEFAULT_FREE_LIST_LWM, size_t hwm=ACE_DEFAULT_FREE_LIST_HWM, size_t inc=ACE_DEFAULT_FREE_LIST_INC)
virtual	~ACE_Locked_Free_List (void)
	Destructor - removes all the elements from the free_list.
virtual void	add (T *element)
virtual T *	remove (void)
virtual size_t	size (void)
	Returns the current size of the free list.
virtual void	resize (size_t newsize)
	Resizes the free list to newsize.
Protected Member Functions
virtual void	alloc (size_t n)
	Allocates n extra nodes for the freelist.
virtual void	dealloc (size_t n)
	Removes and frees n nodes from the freelist.
Protected Attributes
int	mode_
T *	free_list_
	Pointer to the first node in the freelist.
size_t	lwm_
	Low water mark.
size_t	hwm_
	High water mark.
size_t	inc_
	Increment value.
size_t	size_
	Keeps track of the size of the list.
ACE_LOCK	mutex_
	Synchronization variable for ACE_Timer_Queue.
Private Member Functions
	ACE_Locked_Free_List (const ACE_Locked_Free_List< T, ACE_LOCK > &)
void	operator= (const ACE_Locked_Free_List< T, ACE_LOCK > &)

---

Detailed Description

template<class T, class ACE_LOCK>
class ACE_Locked_Free_List< T, ACE_LOCK >

Implements a free list.

This class maintains a free list of nodes of type T. It depends on the type T having a <get_next> and <set_next> method. It maintains a mutex so the freelist can be used in a multithreaded program .

Definition at line 69 of file Free_List.h.

---

Constructor & Destructor Documentation

template<class T, class ACE_LOCK>

ACE_Locked_Free_List< T, ACE_LOCK >::ACE_Locked_Free_List	(	int	mode = ACE_FREE_LIST_WITH_POOL,
		size_t	prealloc = ACE_DEFAULT_FREE_LIST_PREALLOC,
		size_t	lwm = ACE_DEFAULT_FREE_LIST_LWM,
		size_t	hwm = ACE_DEFAULT_FREE_LIST_HWM,
		size_t	inc = ACE_DEFAULT_FREE_LIST_INC
	)

Constructor takes a mode (i.e., ACE_FREE_LIST_WITH_POOL or ACE_PURE_FREE_LIST), a count of the number of nodes to <prealloc>, a low and high water mark (<lwm> and <hwm>) that indicate when to allocate more nodes, an increment value (<inc>) that indicates how many nodes to allocate when the list must grow.

Definition at line 25 of file Free_List.cpp.

References ACE_Locked_Free_List< T, ACE_LOCK >::alloc().

  : mode_ (mode),
    free_list_ (0),
    lwm_ (lwm),
    hwm_ (hwm),
    inc_ (inc),
    size_ (0)
{
  this->alloc (prealloc);
}

template<class T, class ACE_LOCK>

ACE_Locked_Free_List< T, ACE_LOCK >::~ACE_Locked_Free_List

(

void

)

[virtual]

Destructor - removes all the elements from the free_list.

Definition at line 43 of file Free_List.cpp.

References ACE_PURE_FREE_LIST, and ACE_Locked_Free_List< T, ACE_LOCK >::free_list_.

{
  if (this->mode_ != ACE_PURE_FREE_LIST)
    while (this->free_list_ != 0)
      {
        T *temp = this->free_list_;
        this->free_list_ = this->free_list_->get_next ();
        delete temp;
      }
}

template<class T, class ACE_LOCK>

ACE_Locked_Free_List< T, ACE_LOCK >::ACE_Locked_Free_List

(

const ACE_Locked_Free_List< T, ACE_LOCK > &

)

[private]

---

Member Function Documentation

template<class T, class ACE_LOCK>

void ACE_Locked_Free_List< T, ACE_LOCK >::add

(

T *

element

)

[virtual]

Inserts an element onto the free list (if it isn't past the high water mark).

Implements ACE_Free_List< T >.

Definition at line 59 of file Free_List.cpp.

References ACE_GUARD, ACE_PURE_FREE_LIST, ACE_Locked_Free_List< T, ACE_LOCK >::free_list_, and ACE_Locked_Free_List< T, ACE_LOCK >::size_.

Referenced by ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::cancel(), ACE_Dynamic_Cached_Allocator< ACE_LOCK >::free(), ACE_Cached_Allocator< T, ACE_LOCK >::free(), ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::free_node(), and ACE_Thread_Manager::remove_thr().

{
  ACE_MT (ACE_GUARD (ACE_LOCK, ace_mon, this->mutex_));

  // Check to see that we not at the high water mark.
  if (this->mode_ == ACE_PURE_FREE_LIST
      || this->size_ < this->hwm_)
    {
      element->set_next (this->free_list_);
      this->free_list_ = element;
      this->size_++;
    }
  else
    delete element;
}

template<class T, class ACE_LOCK>

void ACE_Locked_Free_List< T, ACE_LOCK >::alloc

(

size_t

n

)

[protected, virtual]

Allocates n extra nodes for the freelist.

Definition at line 134 of file Free_List.cpp.

References ACE_NEW, ACE_Locked_Free_List< T, ACE_LOCK >::free_list_, and ACE_Locked_Free_List< T, ACE_LOCK >::size_.

Referenced by ACE_Locked_Free_List< T, ACE_LOCK >::ACE_Locked_Free_List(), ACE_Locked_Free_List< T, ACE_LOCK >::remove(), and ACE_Locked_Free_List< T, ACE_LOCK >::resize().

{
  for (; n > 0; n--)
    {
      T *temp = 0;
      ACE_NEW (temp, T);
      temp->set_next (this->free_list_);
      this->free_list_ = temp;
      this->size_++;
    }
}

template<class T, class ACE_LOCK>

void ACE_Locked_Free_List< T, ACE_LOCK >::dealloc

(

size_t

n

)

[protected, virtual]

Removes and frees n nodes from the freelist.

Definition at line 149 of file Free_List.cpp.

References ACE_Locked_Free_List< T, ACE_LOCK >::free_list_, and ACE_Locked_Free_List< T, ACE_LOCK >::size_.

Referenced by ACE_Locked_Free_List< T, ACE_LOCK >::resize().

{
  for (; this->free_list_ != 0 && n > 0;
       n--)
    {
      T *temp = this->free_list_;
      this->free_list_ = this->free_list_->get_next ();
      delete temp;
      this->size_--;
    }
}

template<class T, class ACE_LOCK>

void ACE_Locked_Free_List< T, ACE_LOCK >::operator=

(

const ACE_Locked_Free_List< T, ACE_LOCK > &

)

[private]

template<class T, class ACE_LOCK>

T * ACE_Locked_Free_List< T, ACE_LOCK >::remove

(

void

)

[virtual]

Takes a element off the freelist and returns it. It creates <inc> new elements if the size is at or below the low water mark.

Implements ACE_Free_List< T >.

Definition at line 80 of file Free_List.cpp.

References ACE_GUARD_RETURN, ACE_PURE_FREE_LIST, ACE_Locked_Free_List< T, ACE_LOCK >::alloc(), ACE_Locked_Free_List< T, ACE_LOCK >::free_list_, and ACE_Locked_Free_List< T, ACE_LOCK >::size_.

Referenced by ACE_Dynamic_Cached_Allocator< ACE_LOCK >::calloc(), ACE_Cached_Allocator< T, ACE_LOCK >::calloc(), ACE_Dynamic_Cached_Allocator< ACE_LOCK >::malloc(), ACE_Cached_Allocator< T, ACE_LOCK >::malloc(), and ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET >::schedule_i().

{
  ACE_MT (ACE_GUARD_RETURN (ACE_LOCK, ace_mon, this->mutex_, 0));

  // If we are at the low water mark, add some nodes
  if (this->mode_ != ACE_PURE_FREE_LIST && this->size_ <= this->lwm_)
    this->alloc (this->inc_);

  // Remove a node
  T *temp = this->free_list_;

  if (temp != 0)
    {
      this->free_list_ = this->free_list_->get_next ();
      this->size_--;
    }

  return temp;
}

template<class T, class ACE_LOCK>

void ACE_Locked_Free_List< T, ACE_LOCK >::resize

(

size_t

newsize

)

[virtual]

Resizes the free list to newsize.

Implements ACE_Free_List< T >.

Definition at line 112 of file Free_List.cpp.

References ACE_GUARD, ACE_PURE_FREE_LIST, ACE_Locked_Free_List< T, ACE_LOCK >::alloc(), ACE_Locked_Free_List< T, ACE_LOCK >::dealloc(), and ACE_Locked_Free_List< T, ACE_LOCK >::size_.

{
  ACE_MT (ACE_GUARD (ACE_LOCK, ace_mon, this->mutex_));

  // Check if we are allowed to resize
  if (this->mode_ != ACE_PURE_FREE_LIST)
    {
      // Check to see if we grow or shrink
      if (newsize < this->size_)
        {
          this->dealloc (this->size_ - newsize);
        }
      else
        {
          this->alloc (newsize - this->size_);
        }
    }
}

template<class T, class ACE_LOCK>

size_t ACE_Locked_Free_List< T, ACE_LOCK >::size

(

void

)

[virtual]

Returns the current size of the free list.

Implements ACE_Free_List< T >.

Definition at line 104 of file Free_List.cpp.

References ACE_Locked_Free_List< T, ACE_LOCK >::size_.

Referenced by ACE_Dynamic_Cached_Allocator< ACE_LOCK >::pool_depth(), and ACE_Cached_Allocator< T, ACE_LOCK >::pool_depth().

{
  return this->size_;
}

---

Member Data Documentation

template<class T, class ACE_LOCK>

T* ACE_Locked_Free_List< T, ACE_LOCK >::free_list_ [protected]

Pointer to the first node in the freelist.

Definition at line 116 of file Free_List.h.

Referenced by ACE_Locked_Free_List< T, ACE_LOCK >::add(), ACE_Locked_Free_List< T, ACE_LOCK >::alloc(), ACE_Locked_Free_List< T, ACE_LOCK >::dealloc(), ACE_Locked_Free_List< T, ACE_LOCK >::remove(), and ACE_Locked_Free_List< T, ACE_LOCK >::~ACE_Locked_Free_List().

template<class T, class ACE_LOCK>

size_t ACE_Locked_Free_List< T, ACE_LOCK >::hwm_ [protected]

High water mark.

Definition at line 122 of file Free_List.h.

template<class T, class ACE_LOCK>

size_t ACE_Locked_Free_List< T, ACE_LOCK >::inc_ [protected]

Increment value.

Definition at line 125 of file Free_List.h.

template<class T, class ACE_LOCK>

size_t ACE_Locked_Free_List< T, ACE_LOCK >::lwm_ [protected]

Low water mark.

Definition at line 119 of file Free_List.h.

template<class T, class ACE_LOCK>

int ACE_Locked_Free_List< T, ACE_LOCK >::mode_ [protected]

Free list operation mode, either ACE_FREE_LIST_WITH_POOL or ACE_PURE_FREE_LIST.

Definition at line 113 of file Free_List.h.

template<class T, class ACE_LOCK>

ACE_LOCK ACE_Locked_Free_List< T, ACE_LOCK >::mutex_ [protected]

Synchronization variable for ACE_Timer_Queue.

Definition at line 131 of file Free_List.h.

template<class T, class ACE_LOCK>

size_t ACE_Locked_Free_List< T, ACE_LOCK >::size_ [protected]

Keeps track of the size of the list.

Definition at line 128 of file Free_List.h.

Referenced by ACE_Locked_Free_List< T, ACE_LOCK >::add(), ACE_Locked_Free_List< T, ACE_LOCK >::alloc(), ACE_Locked_Free_List< T, ACE_LOCK >::dealloc(), ACE_Locked_Free_List< T, ACE_LOCK >::remove(), ACE_Locked_Free_List< T, ACE_LOCK >::resize(), and ACE_Locked_Free_List< T, ACE_LOCK >::size().

---

The documentation for this class was generated from the following files:

• Free_List.h
• Free_List.cpp

---
