ACE_Lock_Adapter< ACE_LOCKING_MECHANISM > Class Template Reference

This is an adapter that allows applications to transparently combine the <ACE_Lock> abstract base class (which contains pure virtual methods) with any of the other concrete ACE synchronization classes (e.g., ACE_Mutex, ACE_Semaphore, ACE_RW_Mutex, etc.). More...

#include <Lock_Adapter_T.h>

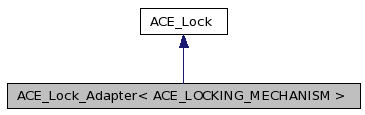

Inheritance diagram for ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >:

Inheritance graph
[legend]
Collaboration diagram for ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_LOCKING_MECHANISM ACE_LOCK

Public Member Functions

 ACE_Lock_Adapter (ACE_LOCKING_MECHANISM &lock)
 Constructor. All locking requests will be forwarded to <lock>.
 ACE_Lock_Adapter (void)
virtual ~ACE_Lock_Adapter (void)
virtual int acquire (void)
 Block the thread until the lock is acquired.
virtual int tryacquire (void)
 Conditionally acquire the lock (i.e., won't block).
virtual int release (void)
 Release the lock.
virtual int acquire_read (void)
virtual int acquire_write (void)
virtual int tryacquire_read (void)
virtual int tryacquire_write (void)
virtual int tryacquire_write_upgrade (void)
virtual int remove (void)
 Explicitly destroy the lock.

Private Attributes

ACE_LOCKING_MECHANISM * lock_
 The concrete locking mechanism that all the methods delegate to.
bool delete_lock_

Detailed Description

template<class ACE_LOCKING_MECHANISM>
class ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >

This is an adapter that allows applications to transparently combine the <ACE_Lock> abstract base class (which contains pure virtual methods) with any of the other concrete ACE synchronization classes (e.g., ACE_Mutex, ACE_Semaphore, ACE_RW_Mutex, etc.).

This class uses a form of the Adapter pattern.

Definition at line 39 of file Lock_Adapter_T.h.

Member Typedef Documentation

template<class ACE_LOCKING_MECHANISM>
typedef ACE_LOCKING_MECHANISM ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::ACE_LOCK

Definition at line 42 of file Lock_Adapter_T.h.

Constructor & Destructor Documentation

template<class ACE_LOCKING_MECHANISM>
ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::ACE_Lock_Adapter ( ACE_LOCKING_MECHANISM &  lock  )

Constructor. All locking requests will be forwarded to <lock>.

Definition at line 9 of file Lock_Adapter_T.inl.

00011   : lock_ (&lock),
00012     delete_lock_ (false)
00013 {
00014 }

template<class ACE_LOCKING_MECHANISM>
ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::ACE_Lock_Adapter ( void   )

Constructor. Since no lock is provided by the user, one will be created internally.

Definition at line 22 of file Lock_Adapter_T.cpp.

References ACE_NEW.

00023   : lock_ (0),
00024     delete_lock_ (true)
00025 {
00026   ACE_NEW (this->lock_,
00027            ACE_LOCKING_MECHANISM);
00028 }

template<class ACE_LOCKING_MECHANISM>
ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::~ACE_Lock_Adapter ( void   )  [virtual]

Destructor. If <lock_> was not passed in by the user, it will be deleted.

Definition at line 31 of file Lock_Adapter_T.cpp.

References ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_.

00032 {
00033   if (this->delete_lock_)
00034     delete this->lock_;
00035 }

Member Function Documentation

template<class ACE_LOCKING_MECHANISM>
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire ( void   )  [virtual]

Block the thread until the lock is acquired.

Implements ACE_Lock.

Definition at line 46 of file Lock_Adapter_T.cpp.

References ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_.

00047 {
00048   return this->lock_->acquire ();
00049 }

template<class ACE_LOCKING_MECHANISM>
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire_read ( void   )  [virtual]

Block until the thread acquires a read lock. If the locking mechanism doesn't support read locks then this just calls <acquire>.

Implements ACE_Lock.

Definition at line 72 of file Lock_Adapter_T.cpp.

References ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_.

00073 {
00074   return this->lock_->acquire_read ();
00075 }

template<class ACE_LOCKING_MECHANISM>
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire_write ( void   )  [virtual]

Block until the thread acquires a write lock. If the locking mechanism doesn't support read locks then this just calls <acquire>.

Implements ACE_Lock.

Definition at line 82 of file Lock_Adapter_T.cpp.

References ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_.

00083 {
00084   return this->lock_->acquire_write ();
00085 }

template<class ACE_LOCKING_MECHANISM>
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::release ( void   )  [virtual]

Release the lock.

Implements ACE_Lock.

Definition at line 62 of file Lock_Adapter_T.cpp.

References ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_.

00063 {
00064   return this->lock_->release ();
00065 }

template<class ACE_LOCKING_MECHANISM>
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::remove ( void   )  [virtual]

Explicitly destroy the lock.

Implements ACE_Lock.

Definition at line 39 of file Lock_Adapter_T.cpp.

References ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_.

00040 {
00041   return this->lock_->remove ();
00042 }

template<class ACE_LOCKING_MECHANISM>
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire ( void   )  [virtual]

Conditionally acquire the lock (i.e., won't block).

Implements ACE_Lock.

Definition at line 54 of file Lock_Adapter_T.cpp.

References ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_.

00055 {
00056   return this->lock_->tryacquire ();
00057 }

template<class ACE_LOCKING_MECHANISM>
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_read ( void   )  [virtual]

Conditionally acquire a read lock. If the locking mechanism doesn't support read locks then this just calls <acquire>.

Implements ACE_Lock.

Definition at line 91 of file Lock_Adapter_T.cpp.

References ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_.

00092 {
00093   return this->lock_->tryacquire_read ();
00094 }

template<class ACE_LOCKING_MECHANISM>
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_write ( void   )  [virtual]

Conditionally acquire a write lock. If the locking mechanism doesn't support read locks then this just calls <acquire>.

Implements ACE_Lock.

Definition at line 100 of file Lock_Adapter_T.cpp.

References ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_.

00101 {
00102   return this->lock_->tryacquire_write ();
00103 }

template<class ACE_LOCKING_MECHANISM>
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_write_upgrade ( void   )  [virtual]

Conditionally try to upgrade a lock held for read to a write lock. If the locking mechanism doesn't support read locks then this just calls <acquire>. Returns 0 on success, -1 on failure.

Implements ACE_Lock.

Definition at line 110 of file Lock_Adapter_T.cpp.

References ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_.

00111 {
00112   return this->lock_->tryacquire_write_upgrade ();
00113 }

Member Data Documentation

template<class ACE_LOCKING_MECHANISM>
bool ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::delete_lock_ [private]

This flag keep track of whether we are responsible for deleting the lock

Definition at line 105 of file Lock_Adapter_T.h.

template<class ACE_LOCKING_MECHANISM>
ACE_LOCKING_MECHANISM* ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_ [private]

The concrete locking mechanism that all the methods delegate to.

Definition at line 101 of file Lock_Adapter_T.h.

Referenced by ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire(), ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire_read(), ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire_write(), ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::release(), ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::remove(), ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire(), ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_read(), ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_write(), ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_write_upgrade(), and ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::~ACE_Lock_Adapter().

The documentation for this class was generated from the following files:
