ACE_Command_Callback< RECEIVER, ACTION > Class Template Reference

Defines a class template that allows us to invoke a GOF command style callback to an object without knowing anything about the object except its type. More...

#include <Functor_T.h>

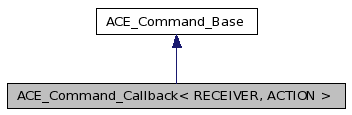

Inheritance diagram for ACE_Command_Callback< RECEIVER, ACTION >:

[legend]Collaboration diagram for ACE_Command_Callback< RECEIVER, ACTION >:

[legend]List of all members.

Public Member Functions
	ACE_Command_Callback (RECEIVER &recvr, ACTION action)
virtual	~ACE_Command_Callback (void)
	Virtual destructor.
virtual int	execute (void *arg=0)
	Invokes the method <action_> from the object <receiver_>.
Private Attributes
RECEIVER &	receiver_
	Object where the method resides.
ACTION	action_
	Method that is going to be invoked.

---

Detailed Description

template<class RECEIVER, class ACTION>
class ACE_Command_Callback< RECEIVER, ACTION >

Defines a class template that allows us to invoke a GOF command style callback to an object without knowing anything about the object except its type.

This class declares an interface to execute operations, binding a RECEIVER object with an ACTION. The RECEIVER knows how to implement the operation. A class can invoke operations without knowing anything about it, or how it was implemented.

Definition at line 60 of file Functor_T.h.

---

Constructor & Destructor Documentation

template<class RECEIVER, class ACTION>

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Command_Callback< RECEIVER, ACTION >::ACE_Command_Callback	(	RECEIVER &	recvr,
		ACTION	action
	)

Constructor: sets the <receiver_> of the Command to recvr, and the <action_> of the Command to <action>.

Definition at line 27 of file Functor_T.cpp.

  : receiver_ (recvr),
    action_ (action)
{
}

template<class RECEIVER, class ACTION>

ACE_Command_Callback< RECEIVER, ACTION >::~ACE_Command_Callback

(

void

)

[virtual]

Virtual destructor.

Definition at line 35 of file Functor_T.cpp.

{
}

---

Member Function Documentation

template<class RECEIVER, class ACTION>

int ACE_Command_Callback< RECEIVER, ACTION >::execute

(

void *

arg = 0

)

[virtual]

Invokes the method <action_> from the object <receiver_>.

Implements ACE_Command_Base.

Definition at line 42 of file Functor_T.cpp.

References ACE_Command_Callback< RECEIVER, ACTION >::action_, and ACE_Command_Callback< RECEIVER, ACTION >::receiver_.

{
  return (receiver_.*action_) (arg);
}

---

Member Data Documentation

template<class RECEIVER, class ACTION>

ACTION ACE_Command_Callback< RECEIVER, ACTION >::action_ [private]

Method that is going to be invoked.

Definition at line 78 of file Functor_T.h.

Referenced by ACE_Command_Callback< RECEIVER, ACTION >::execute().

template<class RECEIVER, class ACTION>

RECEIVER& ACE_Command_Callback< RECEIVER, ACTION >::receiver_ [private]

Object where the method resides.

Definition at line 75 of file Functor_T.h.

Referenced by ACE_Command_Callback< RECEIVER, ACTION >::execute().

---

The documentation for this class was generated from the following files:

• Functor_T.h
• Functor_T.cpp

---
