#include <ESF_Proxy_Admin.h>

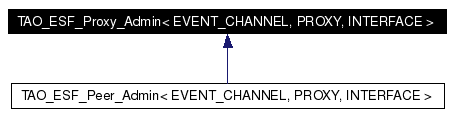

Inheritance diagram for TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >:
Public Member Functions | |
| TAO_ESF_Proxy_Admin (EVENT_CHANNEL *ec) | |
| Constructor, allocate the internal collection. | |
| virtual | ~TAO_ESF_Proxy_Admin (void) |
| Cleanup internal resources, destroy the internal collection. | |
| void | for_each (TAO_ESF_Worker< PROXY > *worker) |
| Iterate over its internal collection. | |
| virtual INTERFACE * | obtain (void) |
| Create a new PROXY and activate it. | |
| virtual void | shutdown (void) |
| virtual void | connected (PROXY *proxy) |
| virtual void | reconnected (PROXY *proxy) |
| virtual void | disconnected (PROXY *proxy) |
Protected Attributes | |
| EVENT_CHANNEL * | event_channel_ |
| The Event Channel we belong to. | |
Private Types | |
| typedef TAO_ESF_Proxy_Collection< PROXY > | Collection |
| Shorthand for the Proxy collection. | |
Private Attributes | |
| Collection * | collection_ |
| The proxy collection object. | |
The EVENT_CHANNEL interface must implement:
* /// create a new proxy * void create_proxy (PROXY*&); * * /// destroy a proxy * void destroy_proxy (PROXY*); * * /// create a proxy collection * void create_proxy_collection (TAO_ESF_Proxy_Collection<PROXY>*&); * * /// destroy a proxy collection * void destroy_proxy_collection (TAO_ESF_Proxy_Collection<PROXY>*&); *
In addition to the requirements imposed by TAO_ESF_Proxy_Collection<>, the PROXY interface must define:
* /// The T_ptr for the IDL interface implemented by the PROXY. * typename .... _ptr_type; * * /// The T_var for the IDL interface implemented by the PROXY. * typename .... _var_type; * * /// activate the proxy and return the object reference * PROXY::_ptr_type * PROXY::activate (void) throw (); *
Definition at line 65 of file ESF_Proxy_Admin.h.
|
|||||
|
Shorthand for the Proxy collection.
Definition at line 121 of file ESF_Proxy_Admin.h. |
|
||||||||||
|
Constructor, allocate the internal collection.
Definition at line 16 of file ESF_Proxy_Admin.cpp. References TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::event_channel_.
00017 : event_channel_ (ec) 00018 { 00019 this->event_channel_->create_proxy_collection (this->collection_); 00020 } |
|
||||||||||
|
Cleanup internal resources, destroy the internal collection.
Definition at line 24 of file ESF_Proxy_Admin.cpp. References TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::event_channel_.
00025 {
00026 this->event_channel_->destroy_proxy_collection (this->collection_);
00027 }
|
|
||||||||||
|
A has connected, this is invoked when the proxy's client has invoked the connect_xxx_yyy() method. The default implementation is a no-op. Definition at line 61 of file ESF_Proxy_Admin.cpp.
00062 {
00063 }
|
|
||||||||||
|
A has been disconnected. The default implementation removes the object from the collection and deactivates the proxy. Definition at line 74 of file ESF_Proxy_Admin.cpp.
00075 {
00076 proxy->deactivate ();
00077 // Cannot happen, just following the discipline.
00078
00079 try
00080 {
00081 this->collection_->disconnected (proxy);
00082 }
00083 catch (const CORBA::Exception&)
00084 {
00085 // @@ In the future the collections may raise exceptions to
00086 // report errors (such as out of memory or things like that).
00087 // We must decide how is that info going to be used, and how
00088 // would we propagate the exception to the application.
00089 // For example: the CosEC has no exceptions for "out of
00090 // resources" or something similar, and i've never seen a spec
00091 // that has an exception for "could not acquire a mutex".
00092 }
00093 }
|
|
||||||||||
|
Iterate over its internal collection.
Definition at line 9 of file ESF_Proxy_Admin.inl. Referenced by TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::peer_connected(), TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::peer_disconnected(), and TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::peer_reconnected().
00010 {
00011 this->collection_->for_each (worker);
00012 }
|
|
||||||||||
|
Create a new PROXY and activate it.
Definition at line 31 of file ESF_Proxy_Admin.cpp. References TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::event_channel_.
00032 {
00033 PROXY* proxy;
00034 this->event_channel_->create_proxy (proxy);
00035
00036 TAO_ESF_RefCountedRef<PROXY> holder (proxy);
00037
00038 typename PROXY::_ptr_type r;
00039 proxy->activate (r);
00040
00041 typename PROXY::_var_type result = r;
00042
00043 this->collection_->connected (proxy);
00044
00045 return result._retn ();
00046 }
|
|
||||||||||
|
A has reconnected, i.e. its client has invoked the connect_xxx_yyy() method, but the proxy was connected already. The default implementation delegates on the collection method Definition at line 67 of file ESF_Proxy_Admin.cpp.
00068 {
00069 this->collection_->reconnected (proxy);
00070 }
|
|
||||||||||
|
The Event Channel that owns this Admin object is going down. Invoke on all the proxies, cleanup the collection and prepare to terminate. Definition at line 49 of file ESF_Proxy_Admin.cpp.
00050 {
00051 TAO_ESF_Shutdown_Proxy<PROXY> worker;
00052
00053 this->collection_->for_each (&worker);
00054 // Cannot happen, just following the discipline.
00055
00056 this->collection_->shutdown ();
00057 }
|
|
|||||
|
The proxy collection object.
Definition at line 124 of file ESF_Proxy_Admin.h. |
|
|||||
|
The Event Channel we belong to.
Definition at line 117 of file ESF_Proxy_Admin.h. Referenced by TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::obtain(), TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::TAO_ESF_Proxy_Admin(), and TAO_ESF_Proxy_Admin< EVENT_CHANNEL, PROXY, INTERFACE >::~TAO_ESF_Proxy_Admin(). |
