TAO_Notify_Constraint_Visitor Class Reference

#include <Notify_Constraint_Visitors.h>

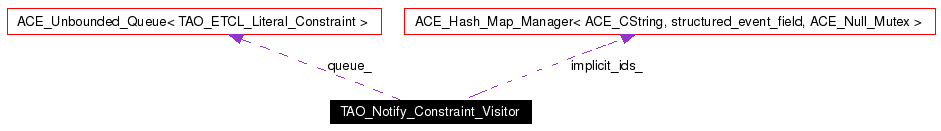

Collaboration diagram for TAO_Notify_Constraint_Visitor:

[legend]List of all members.

Public Member Functions
	TAO_Notify_Constraint_Visitor (void)
	Constructor.
int	bind_structured_event (const CosNotification::StructuredEvent &s_event)
	Put the event data into our hash map.
CORBA::Boolean	evaluate_constraint (TAO_ETCL_Constraint *root)
int	visit_literal (TAO_ETCL_Literal_Constraint *)
int	visit_identifier (TAO_ETCL_Identifier *)
int	visit_union_value (TAO_ETCL_Union_Value *)
int	visit_union_pos (TAO_ETCL_Union_Pos *)
int	visit_component_pos (TAO_ETCL_Component_Pos *)
int	visit_component_assoc (TAO_ETCL_Component_Assoc *)
int	visit_component_array (TAO_ETCL_Component_Array *)
int	visit_special (TAO_ETCL_Special *)
int	visit_component (TAO_ETCL_Component *)
int	visit_dot (TAO_ETCL_Dot *)
int	visit_eval (TAO_ETCL_Eval *)
int	visit_default (TAO_ETCL_Default *)
int	visit_exist (TAO_ETCL_Exist *)
int	visit_unary_expr (TAO_ETCL_Unary_Expr *)
int	visit_binary_expr (TAO_ETCL_Binary_Expr *)
int	visit_preference (TAO_ETCL_Preference *)
Protected Types
enum	structured_event_field {   FILTERABLE_DATA, HEADER, FIXED_HEADER, EVENT_TYPE,   DOMAIN_NAME, TYPE_NAME, EVENT_NAME, VARIABLE_HEADER,   REMAINDER_OF_BODY, EMPTY }
Protected Member Functions
int	visit_or (TAO_ETCL_Binary_Expr *)
int	visit_and (TAO_ETCL_Binary_Expr *)
int	visit_twiddle (TAO_ETCL_Binary_Expr *)
int	visit_in (TAO_ETCL_Binary_Expr *)
int	visit_binary_op (TAO_ETCL_Binary_Expr *binary_expr, int op_type)
CORBA::Boolean	sequence_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)
CORBA::Boolean	array_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)
CORBA::Boolean	struct_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)
CORBA::Boolean	union_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)
CORBA::Boolean	any_does_contain (const CORBA::Any *any, TAO_ETCL_Literal_Constraint &item)
CORBA::Boolean	simple_type_match (int expr_type, CORBA::TCKind tc_kind)
Protected Attributes
structured_event_field	implicit_id_
	Storage for the type of implicit id the component has (if any).
ACE_Hash_Map_Manager< ACE_CString, structured_event_field, ACE_Null_Mutex >	implicit_ids_
ACE_Hash_Map_Manager< ACE_CString, CORBA::Any, ACE_Null_Mutex >	filterable_data_
	Used to lookup names and values in the event's 'filterable_data' field.
ACE_Hash_Map_Manager< ACE_CString, CORBA::Any, ACE_Null_Mutex >	variable_header_
	Used to lookup names and values in the event's 'variable_header' field.
CORBA::String_var	domain_name_
CORBA::String_var	type_name_
CORBA::String_var	event_name_
CORBA::Any	remainder_of_body_
	Storage for the structured_event's 'remainder_of_body' field.
ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >	queue_
	The result of a non_boolean operation.
CORBA::Any_var	current_value_
CORBA::String_var	current_name_
Static Protected Attributes
const size_t	implicit_ids_size_ = 27
const size_t	filterable_data_size_ = 31
const size_t	variable_header_size_ = 31

---

Member Enumeration Documentation

enum TAO_Notify_Constraint_Visitor::structured_event_field [protected]

Enumeration values: FILTERABLE_DATA  HEADER  FIXED_HEADER  EVENT_TYPE  DOMAIN_NAME  TYPE_NAME  EVENT_NAME  VARIABLE_HEADER  REMAINDER_OF_BODY  EMPTY  Definition at line 99 of file Notify_Constraint_Visitors.h. { FILTERABLE_DATA, HEADER, FIXED_HEADER, EVENT_TYPE, DOMAIN_NAME, TYPE_NAME, EVENT_NAME, VARIABLE_HEADER, REMAINDER_OF_BODY, EMPTY };

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Constraint_Visitor::TAO_Notify_Constraint_Visitor (  void   )

Constructor. Definition at line 20 of file Notify_Constraint_Visitors.cpp. References ACE_CString, ACE_Hash_Map_Manager_Ex< ACE_CString, structured_event_field, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >::bind(), DOMAIN_NAME, EVENT_NAME, EVENT_TYPE, FILTERABLE_DATA, FIXED_HEADER, HEADER, implicit_ids_, REMAINDER_OF_BODY, TYPE_NAME, and VARIABLE_HEADER. : implicit_id_ (TAO_Notify_Constraint_Visitor::EMPTY), implicit_ids_(implicit_ids_size_), filterable_data_(filterable_data_size_), variable_header_(variable_header_size_) { (void) this->implicit_ids_.bind (ACE_CString ("filterable_data", 0, false), FILTERABLE_DATA); (void) this->implicit_ids_.bind (ACE_CString ("header", 0, false), HEADER); (void) this->implicit_ids_.bind (ACE_CString ("remainder_of_body", 0, false), REMAINDER_OF_BODY); (void) this->implicit_ids_.bind (ACE_CString ("fixed_header", 0, false), FIXED_HEADER); (void) this->implicit_ids_.bind (ACE_CString ("variable_header", 0, false), VARIABLE_HEADER); (void) this->implicit_ids_.bind (ACE_CString ("event_name", 0, false), EVENT_NAME); (void) this->implicit_ids_.bind (ACE_CString ("event_type", 0, false), EVENT_TYPE); (void) this->implicit_ids_.bind (ACE_CString ("domain_name", 0, false), DOMAIN_NAME); (void) this->implicit_ids_.bind (ACE_CString ("type_name", 0, false), TYPE_NAME); }

---

Member Function Documentation

CORBA::Boolean TAO_Notify_Constraint_Visitor::any_does_contain (  const CORBA::Any *  any, TAO_ETCL_Literal_Constraint &  item )  [protected]

Definition at line 1332 of file Notify_Constraint_Visitors.cpp. Referenced by visit_in(). { const CORBA::Any *result = 0; *any >>= result; TAO_ETCL_Literal_Constraint element (const_cast<CORBA::Any *>(result)); return item == element; }

CORBA::Boolean TAO_Notify_Constraint_Visitor::array_does_contain (  const CORBA::Any *  any, TAO_ETCL_Literal_Constraint &  item )  [protected]

Definition at line 1213 of file Notify_Constraint_Visitors.cpp. References simple_type_match(). Referenced by visit_in(). { try { CORBA::TypeCode_var type = any->type (); CORBA::TCKind kind = TAO_DynAnyFactory::unalias (type.in ()); // The literal and the array elements must be // of the same simple type. CORBA::Boolean match = this->simple_type_match (item.expr_type (), kind); if (match == 0) return 0; TAO_DynArray_i dyn_array; dyn_array.init (*any); DynamicAny::AnySeq_var any_seq = dyn_array.get_elements (); CORBA::ULong length = any_seq->length (); for (CORBA::ULong i = 0; i < length; ++i) { TAO_ETCL_Literal_Constraint element (&any_seq[i]); if (item == element) return 1; } } catch (const CORBA::Exception&) { return 0; } return 0; }

int TAO_Notify_Constraint_Visitor::bind_structured_event (  const CosNotification::StructuredEvent &  s_event  )

Put the event data into our hash map. Definition at line 65 of file Notify_Constraint_Visitors.cpp. References ACE_CString, domain_name_, event_name_, CosNotification::StructuredEvent::filterable_data, filterable_data_, CosNotification::StructuredEvent::header, CosNotification::StructuredEvent::remainder_of_body, remainder_of_body_, CORBA::string_dup(), type_name_, and variable_header_. Referenced by TAO_Notify_ETCL_Filter::match_structured(). { // The two sequences contained in a structured event are // copied into hash tables so iteration is done only once. CORBA::ULong length = s_event.filterable_data.length (); CORBA::ULong index = 0; for (index = 0; index < length; ++index) { ACE_CString name_str (s_event.filterable_data[index].name, 0, false); int status = this->filterable_data_.bind ( name_str, s_event.filterable_data[index].value ); if (status != 0) return -1; } length = s_event.header.variable_header.length (); for (index = 0; index < length; ++index) { ACE_CString name_str (s_event.header.variable_header[index].name, 0, false); int status = this->variable_header_.bind ( name_str, s_event.header.variable_header[index].value ); if (status != 0) return -1; } this->domain_name_ = CORBA::string_dup (s_event.header.fixed_header.event_type.domain_name); this->type_name_ = CORBA::string_dup (s_event.header.fixed_header.event_type.type_name); this->event_name_ = CORBA::string_dup (s_event.header.fixed_header.event_name); this->remainder_of_body_ = s_event.remainder_of_body; return 0; }

CORBA::Boolean TAO_Notify_Constraint_Visitor::evaluate_constraint (  TAO_ETCL_Constraint *  root  )

Returns 1 if the event satisfies the constraint represented by the the expression tree rooted at , 0 if it doesn't. If an error occurs during the process, the traversal automatically fails. Definition at line 118 of file Notify_Constraint_Visitors.cpp. References ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::dequeue_head(), ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::is_empty(), and ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::reset(). Referenced by TAO_Notify_Constraint_Interpreter::evaluate(). { CORBA::Boolean result = 0; this->queue_.reset (); // Evaluate the constraint in root_; if (root != 0) { if ((root->accept (this) == 0) && (! this->queue_.is_empty ())) { TAO_ETCL_Literal_Constraint top; this->queue_.dequeue_head (top); result = (CORBA::Boolean) top; } } // If a property couldn't be evaluated we must return 0. return result; }

CORBA::Boolean TAO_Notify_Constraint_Visitor::sequence_does_contain (  const CORBA::Any *  any, TAO_ETCL_Literal_Constraint &  item )  [protected]

Definition at line 1167 of file Notify_Constraint_Visitors.cpp. References simple_type_match(). Referenced by visit_in(). { try { CORBA::TypeCode_var type = any->type (); CORBA::TypeCode_var base_type = TAO_DynAnyFactory::strip_alias (type.in ()); CORBA::TypeCode_var content_type = base_type->content_type (); CORBA::TCKind kind = TAO_DynAnyFactory::unalias (content_type.in()); // The literal and the array elements must be // of the same simple type. CORBA::Boolean match = this->simple_type_match (item.expr_type (), kind); if (match == 0) return 0; TAO_DynSequence_i dyn_seq; dyn_seq.init (*any); DynamicAny::AnySeq_var any_seq = dyn_seq.get_elements (); CORBA::ULong length = any_seq->length (); for (CORBA::ULong i = 0; i < length; ++i) { TAO_ETCL_Literal_Constraint element (&any_seq[i]); if (item == element) return 1; } } catch (const CORBA::Exception&) { return 0; } return 0; }

CORBA::Boolean TAO_Notify_Constraint_Visitor::simple_type_match (  int  expr_type, CORBA::TCKind  tc_kind )  [protected]

Definition at line 1346 of file Notify_Constraint_Visitors.cpp. Referenced by array_does_contain(), sequence_does_contain(), struct_does_contain(), and union_does_contain(). { switch (expr_type) { case TAO_ETCL_STRING: if (tc_kind != CORBA::tk_string) return 0; break; case TAO_ETCL_DOUBLE: if (tc_kind != CORBA::tk_double && tc_kind != CORBA::tk_float) return 0; break; case TAO_ETCL_INTEGER: case TAO_ETCL_SIGNED: if (tc_kind != CORBA::tk_short && tc_kind != CORBA::tk_long && tc_kind != CORBA::tk_longlong) return 0; break; case TAO_ETCL_UNSIGNED: if (tc_kind != CORBA::tk_ushort && tc_kind != CORBA::tk_ulong && tc_kind != CORBA::tk_ulonglong) return 0; break; case TAO_ETCL_BOOLEAN: if (tc_kind != CORBA::tk_boolean) return 0; break; default: return 0; } return 1; }

CORBA::Boolean TAO_Notify_Constraint_Visitor::struct_does_contain (  const CORBA::Any *  any, TAO_ETCL_Literal_Constraint &  item )  [protected]

Definition at line 1254 of file Notify_Constraint_Visitors.cpp. References simple_type_match(). Referenced by visit_in(). { try { TAO_DynStruct_i dyn_struct; dyn_struct.init (*any); DynamicAny::NameValuePairSeq_var members = dyn_struct.get_members (); CORBA::ULong length = members->length (); CORBA::TypeCode_var tc; CORBA::TCKind kind; for (CORBA::ULong i = 0; i < length; ++i) { tc = members[i].value.type (); kind = TAO_DynAnyFactory::unalias (tc.in ()); // The literal and the struct member must be // of the same simple type. CORBA::Boolean match = this->simple_type_match (item.expr_type (), kind); if (match == 0) continue; TAO_ETCL_Literal_Constraint element (&members[i].value); if (item == element) return 1; } } catch (const CORBA::Exception&) { return 0; } return 0; }

CORBA::Boolean TAO_Notify_Constraint_Visitor::union_does_contain (  const CORBA::Any *  any, TAO_ETCL_Literal_Constraint &  item )  [protected]

Definition at line 1297 of file Notify_Constraint_Visitors.cpp. References simple_type_match(). Referenced by visit_in(). { try { TAO_DynUnion_i dyn_union; dyn_union.init (*any); DynamicAny::DynAny_var cc = dyn_union.current_component (); CORBA::Any_var member = cc->to_any (); CORBA::TypeCode_var tc = member->type (); CORBA::TCKind kind = TAO_DynAnyFactory::unalias (tc.in ()); // The literal and the union member must be // of the same simple type. CORBA::Boolean match = this->simple_type_match (item.expr_type (), kind); if (match == 0) return 0; TAO_ETCL_Literal_Constraint element (&member.inout ()); return (item == element); } catch (const CORBA::Exception&) { return 0; } }

int TAO_Notify_Constraint_Visitor::visit_and (  TAO_ETCL_Binary_Expr *   )  [protected]

Definition at line 951 of file Notify_Constraint_Visitors.cpp. References ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::dequeue_head(), and ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(). Referenced by visit_binary_expr(). { int return_value = -1; CORBA::Boolean result = 0; TAO_ETCL_Constraint *lhs = binary->lhs (); if (lhs->accept (this) == 0) { TAO_ETCL_Literal_Constraint lhs_result; this->queue_.dequeue_head (lhs_result); result = (CORBA::Boolean) lhs_result; // Short-circuiting AND. if (result == 1) { TAO_ETCL_Constraint *rhs = binary->rhs (); if (rhs->accept (this) == 0) { TAO_ETCL_Literal_Constraint rhs_result; this->queue_.dequeue_head (rhs_result); result = (CORBA::Boolean) rhs_result; return_value = 0; } } else return_value = 0; } if (return_value == 0) this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); return return_value; }

int TAO_Notify_Constraint_Visitor::visit_binary_expr (  TAO_ETCL_Binary_Expr *   )

Definition at line 879 of file Notify_Constraint_Visitors.cpp. References visit_and(), visit_binary_op(), visit_in(), visit_or(), and visit_twiddle(). { int bin_op_type = binary_expr->type (); switch (bin_op_type) { case TAO_ETCL_OR: return this->visit_or (binary_expr); case TAO_ETCL_AND: return this->visit_and (binary_expr); case TAO_ETCL_LT: case TAO_ETCL_LE: case TAO_ETCL_GT: case TAO_ETCL_GE: case TAO_ETCL_EQ: case TAO_ETCL_NE: case TAO_ETCL_PLUS: case TAO_ETCL_MINUS: case TAO_ETCL_MULT: case TAO_ETCL_DIV: return this->visit_binary_op (binary_expr, bin_op_type); case TAO_ETCL_TWIDDLE: return this->visit_twiddle (binary_expr); case TAO_ETCL_IN: return this->visit_in (binary_expr); default: return -1; } }

int TAO_Notify_Constraint_Visitor::visit_binary_op (  TAO_ETCL_Binary_Expr *  binary_expr, int  op_type )  [protected]

Definition at line 987 of file Notify_Constraint_Visitors.cpp. References ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::dequeue_head(), and ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(). Referenced by visit_binary_expr(). { int return_value = -1; TAO_ETCL_Constraint *lhs = binary->lhs (); CORBA::Boolean result = 0; // Perform an operation on the results of evaluating the left and // right branches of this subtree. if (lhs->accept (this) == 0) { TAO_ETCL_Literal_Constraint left_operand; this->queue_.dequeue_head (left_operand); TAO_ETCL_Constraint *rhs = binary->rhs (); if (rhs->accept (this) == 0) { TAO_ETCL_Literal_Constraint right_operand; this->queue_.dequeue_head (right_operand); return_value = 0; switch (op_type) { case TAO_ETCL_LT: result = left_operand < right_operand; this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); break; case TAO_ETCL_LE: result = left_operand <= right_operand; this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); break; case TAO_ETCL_GT: result = left_operand > right_operand; this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); break; case TAO_ETCL_GE: result = left_operand >= right_operand; this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); break; case TAO_ETCL_EQ: result = left_operand == right_operand; this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); break; case TAO_ETCL_NE: result = left_operand != right_operand; this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); break; case TAO_ETCL_PLUS: this->queue_.enqueue_head (left_operand + right_operand); break; case TAO_ETCL_MINUS: this->queue_.enqueue_head (left_operand - right_operand); break; case TAO_ETCL_MULT: this->queue_.enqueue_head (left_operand * right_operand); break; case TAO_ETCL_DIV: this->queue_.enqueue_head (left_operand / right_operand); break; default: return_value = -1; } } } return return_value; }

int TAO_Notify_Constraint_Visitor::visit_component (  TAO_ETCL_Component *   )

Definition at line 624 of file Notify_Constraint_Visitors.cpp. References ACE_CString, ACE_NEW_RETURN, current_value_, ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::dequeue_head(), DOMAIN_NAME, EMPTY, ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(), EVENT_NAME, ACE_Hash_Map_Manager_Ex< ACE_CString, structured_event_field, ACE_Hash< ACE_CString >, ACE_Equal_To< ACE_CString >, ACE_Null_Mutex >::find(), implicit_id_, implicit_ids_, REMAINDER_OF_BODY, and TYPE_NAME. { TAO_ETCL_Constraint *nested = component->component (); TAO_ETCL_Identifier *identifier = component->identifier (); ACE_CString component_name (identifier->value (), 0, false); CORBA::Any *any_ptr = 0; if (this->implicit_ids_.find (component_name, this->implicit_id_) != 0) this->implicit_id_ = TAO_Notify_Constraint_Visitor::EMPTY; // If this component has no sub-component, only an identifier, then // we just visit the identifier, which puts a literal on the queue // to be handled upon returning from this method call. If there is // a sub-component, we store the literal's value in our member _var // for possible examination at a more nested level, and visit the // sub-component. If the identifier matches one of the nested field // names in CosNotification::StructuredEvent, we just visit the // nested component, if any. if (this->implicit_id_ == TAO_Notify_Constraint_Visitor::EMPTY) { if (nested == 0) { // If this is the end of the line, we put the component name // into current_value_ so visit_exist can use it. ACE_NEW_RETURN (any_ptr, CORBA::Any, -1); (*any_ptr) <<= component_name.c_str (); this->current_value_ = any_ptr; return identifier->accept (this); } else { int result = identifier->accept (this); if (result != 0) return result; TAO_ETCL_Literal_Constraint id; this->queue_.dequeue_head (id); ACE_NEW_RETURN (any_ptr, CORBA::Any (), -1); any_ptr->replace (id); any_ptr->impl ()->_add_ref (); this->current_value_ = any_ptr; } } if (nested != 0) return nested->accept (this); else { switch (this->implicit_id_) { case TYPE_NAME: { TAO_ETCL_Literal_Constraint tn (this->type_name_.in ()); this->queue_.enqueue_head (tn); return 0; } case EVENT_NAME: { TAO_ETCL_Literal_Constraint en (this->event_name_.in ()); this->queue_.enqueue_head (en); return 0; } case DOMAIN_NAME: { TAO_ETCL_Literal_Constraint dn (this->domain_name_.in ()); this->queue_.enqueue_head (dn); return 0; } case REMAINDER_OF_BODY: { TAO_ETCL_Literal_Constraint rob (&this->remainder_of_body_); this->queue_.enqueue_head (rob); return 0; } // The above cases are the leaves of the // CosNotification::StructuredEvent "tree". Anything else and we // should have a nested component. otherwise, it's an error. default: return -1; } } }

int TAO_Notify_Constraint_Visitor::visit_component_array (  TAO_ETCL_Component_Array *   )

Definition at line 466 of file Notify_Constraint_Visitors.cpp. References current_value_, and ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(). { try { // If we are here (from visit_component) the Any containing the // component as found in filterable_data_ will be in // current_value_. CORBA::TypeCode_var tc = this->current_value_->type (); CORBA::TCKind kind = TAO_DynAnyFactory::unalias (tc.in ()); DynamicAny::DynAny_var member; CORBA::Boolean success = 0; CORBA::ULong slot = (CORBA::ULong) *array->integer (); switch (kind) { case CORBA::tk_array: { TAO_DynEnum_i dyn_array; dyn_array.init (this->current_value_.in ()); success = dyn_array.seek (slot); if (success == 0) return -1; member = dyn_array.current_component (); break; } case CORBA::tk_sequence: { TAO_DynStruct_i dyn_sequence; dyn_sequence.init (this->current_value_.in ()); success = dyn_sequence.seek (slot); if (success == 0) return -1; member = dyn_sequence.current_component (); break; } // Enums and sequences are the only two cases handled // by Component_Array. default: return -1; } CORBA::Any_var value = member->to_any (); TAO_ETCL_Constraint *comp = array->component (); if (comp == 0) { TAO_ETCL_Literal_Constraint result (value.ptr ()); this->queue_.enqueue_head (result); return 0; } else { this->current_value_ = value._retn (); return comp->accept (this); } } catch (const CORBA::Exception&) { return -1; } }

int TAO_Notify_Constraint_Visitor::visit_component_assoc (  TAO_ETCL_Component_Assoc *   )

Definition at line 410 of file Notify_Constraint_Visitors.cpp. References ACE_CString, ACE_NEW_RETURN, current_value_, ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(), FILTERABLE_DATA, filterable_data_, implicit_id_, VARIABLE_HEADER, and variable_header_. { CORBA::Any any; ACE_CString name (assoc->identifier ()->value (), 0, false); switch (this->implicit_id_) { case FILTERABLE_DATA: if (this->filterable_data_.find (name, any) != 0 || any.impl() == 0) return -1; break; case VARIABLE_HEADER: if (this->variable_header_.find (name, any) != 0 || any.impl() == 0) return -1; break; // Only the sequence members of CosNotification::StructuredEvent // can be treated as associative arrays. default: return -1; } TAO_ETCL_Constraint *comp = assoc->component (); CORBA::Any *any_ptr = 0; if (comp == 0) { TAO_ETCL_Literal_Constraint result (&any); this->queue_.enqueue_head (result); // If we're at the end of the line, put the name into // current_value_ so visit_exist can use it. ACE_NEW_RETURN (any_ptr, CORBA::Any, -1); (*any_ptr) <<= name.c_str (); this->current_value_ = any_ptr; return 0; } else { ACE_NEW_RETURN (any_ptr, CORBA::Any (any), -1); this->current_value_ = any_ptr; return comp->accept (this); } }

int TAO_Notify_Constraint_Visitor::visit_component_pos (  TAO_ETCL_Component_Pos *   )

Definition at line 333 of file Notify_Constraint_Visitors.cpp. References current_value_, and ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(). { try { // If we are here (from visit_component) the Any containing the // component as found in filterable_data_ will be in current_value_. CORBA::TypeCode_var tc = this->current_value_->type (); CORBA::TCKind kind = TAO_DynAnyFactory::unalias (tc.in ()); DynamicAny::DynAny_var member; CORBA::Boolean success = 0; CORBA::ULong slot = (CORBA::ULong) *pos->integer (); switch (kind) { case CORBA::tk_enum: { TAO_DynEnum_i dyn_enum; dyn_enum.init (this->current_value_.in ()); success = dyn_enum.seek (slot); if (success == 0) return -1; member = dyn_enum.current_component (); break; } case CORBA::tk_struct: { TAO_DynStruct_i dyn_struct; dyn_struct.init (this->current_value_.in ()); success = dyn_struct.seek (slot); if (success == 0) return -1; member = dyn_struct.current_component (); break; } // @@@ (JP) I think enums and structs are the only two cases // handled by Component_Pos, since arrays and sequences are // handled by Component_Array, and unions are handled by // Union_Pos. default: return -1; } CORBA::Any_var value = member->to_any (); TAO_ETCL_Constraint *comp = pos->component (); if (comp == 0) { TAO_ETCL_Literal_Constraint result (value.ptr ()); this->queue_.enqueue_head (result); return 0; } else { this->current_value_ = value._retn (); return comp->accept (this); } } catch (const CORBA::Exception&) { return -1; } }

int TAO_Notify_Constraint_Visitor::visit_default (  TAO_ETCL_Default *   )

Definition at line 733 of file Notify_Constraint_Visitors.cpp. References current_value_, ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::dequeue_head(), and ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(). { TAO_ETCL_Constraint *comp = def->component (); if (comp == 0) return -1; if (comp->accept (this) != 0) return -1; try { CORBA::TypeCode_var tc = this->current_value_->type (); // If the current member is not a union, this call will throw // BadKind and the catch block will return -1. CORBA::Long default_index = tc->default_index (); // No default index. if (default_index == -1) { TAO_ETCL_Literal_Constraint result ((CORBA::Boolean) 0); this->queue_.enqueue_head (result); return 0; } // Okay, there's a default index, but is it active? TAO_ETCL_Literal_Constraint disc; this->queue_.dequeue_head (disc); TAO_ETCL_Literal_Constraint default_index_value (default_index); return (disc == default_index_value); } catch (const CORBA::Exception&) { return -1; } }

int TAO_Notify_Constraint_Visitor::visit_dot (  TAO_ETCL_Dot *   )

Definition at line 717 of file Notify_Constraint_Visitors.cpp. { // If we are here, we know we're headed for a more nested // level, so we just visit it, there's nothing else in this // constraint. return dot->component ()->accept (this); }

int TAO_Notify_Constraint_Visitor::visit_eval (  TAO_ETCL_Eval *   )

Definition at line 726 of file Notify_Constraint_Visitors.cpp. { // Nothing to do but visit the contained component. return eval->component ()->accept (this); }

int TAO_Notify_Constraint_Visitor::visit_exist (  TAO_ETCL_Exist *   )

Definition at line 773 of file Notify_Constraint_Visitors.cpp. References ACE_CString, current_value_, DOMAIN_NAME, domain_name_, EMPTY, ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(), EVENT_NAME, event_name_, FILTERABLE_DATA, filterable_data_, implicit_id_, TYPE_NAME, type_name_, VARIABLE_HEADER, and variable_header_. { TAO_ETCL_Constraint *component = exist->component (); if (component->accept (this) == 0) { const char *value = 0; CORBA::Boolean result = 0; // For the two cases below, we don't want the item at the top of // the queue, because it's the result of a hash table // lookup. For an existence test, we want the key value, which // is stored in the current_value_ member. if (this->implicit_id_ == FILTERABLE_DATA || this->implicit_id_ == VARIABLE_HEADER) { this->current_value_ >>= value; } // If the implicit id is empty, then we must default // it to the filterable data and set up the value pointer else if (this->implicit_id_ == EMPTY) { TAO_ETCL_Identifier* ident = dynamic_cast<TAO_ETCL_Identifier*> (component); if (ident != 0) { this->implicit_id_ = FILTERABLE_DATA; value = ident->value (); } } switch (this->implicit_id_) { case FILTERABLE_DATA: result = (this->filterable_data_.find (ACE_CString (value, 0, false)) == 0); break; case VARIABLE_HEADER: result = (this->variable_header_.find (ACE_CString (value, 0, false)) == 0); break; case TYPE_NAME: result = (this->type_name_.in () != 0); break; case EVENT_NAME: result = (this->event_name_.in () != 0); break; case DOMAIN_NAME: result = (this->domain_name_.in () != 0); break; // Anything other than the above cases is an error. default: return -1; } this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); return 0; } return -1; }

int TAO_Notify_Constraint_Visitor::visit_identifier (  TAO_ETCL_Identifier *   )

Definition at line 151 of file Notify_Constraint_Visitors.cpp. References ACE_CString, ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(), and filterable_data_. { int return_value = -1; const char *name = ident->value (); ACE_CString key (name, 0, false); CORBA::Any any; if (this->filterable_data_.find (key, any) == 0) { if (any.impl() != 0) { this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (&any)); return_value = 0; } } return return_value; }

int TAO_Notify_Constraint_Visitor::visit_in (  TAO_ETCL_Binary_Expr *   )  [protected]

Definition at line 1084 of file Notify_Constraint_Visitors.cpp. References any_does_contain(), array_does_contain(), ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::dequeue_head(), ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(), sequence_does_contain(), struct_does_contain(), and union_does_contain(). Referenced by visit_binary_expr(). { int return_value = -1; TAO_ETCL_Constraint *lhs = binary->lhs (); // Determine if the left operand is contained in the right. if (lhs->accept (this) == 0) { TAO_ETCL_Literal_Constraint left; this->queue_.dequeue_head (left); TAO_ETCL_Constraint *rhs = binary->rhs (); if (rhs->accept (this) == 0) { TAO_ETCL_Literal_Constraint bag; this->queue_.dequeue_head (bag); if (bag.expr_type () == TAO_ETCL_COMPONENT) { CORBA::Any_var component = new CORBA::Any (); component->replace (bag); component->impl ()->_add_ref (); CORBA::TCKind kind = CORBA::tk_null; try { CORBA::TypeCode_var tc = component->type (); kind = TAO_DynAnyFactory::unalias (tc.in ()); } catch (const CORBA::Exception&) { return return_value; } CORBA::Boolean result = 0; switch (kind) { case CORBA::tk_sequence: result = this->sequence_does_contain (&component.in (), left); break; case CORBA::tk_array: result = this->array_does_contain (&component.in (), left); break; case CORBA::tk_struct: result = this->struct_does_contain (&component.in (), left); break; case CORBA::tk_union: result = this->union_does_contain (&component.in (), left); break; case CORBA::tk_any: result = this->any_does_contain (&component.in (), left); break; default: return return_value; } this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); return_value = 0; } } } return return_value; }

int TAO_Notify_Constraint_Visitor::visit_literal (  TAO_ETCL_Literal_Constraint *   )

Definition at line 142 of file Notify_Constraint_Visitors.cpp. References ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(). { this->queue_.enqueue_head (*literal); return 0; }

int TAO_Notify_Constraint_Visitor::visit_or (  TAO_ETCL_Binary_Expr *   )  [protected]

Definition at line 913 of file Notify_Constraint_Visitors.cpp. References ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::dequeue_head(), and ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(). Referenced by visit_binary_expr(). { int return_value = -1; CORBA::Boolean result = 0; TAO_ETCL_Constraint *lhs = binary->lhs (); if (lhs->accept (this) == 0) { TAO_ETCL_Literal_Constraint lhs_result; this->queue_.dequeue_head (lhs_result); result = (CORBA::Boolean) lhs_result; // Short-circuiting OR. if (result == 0) { TAO_ETCL_Constraint *rhs = binary->rhs (); if (rhs->accept (this) == 0) { TAO_ETCL_Literal_Constraint rhs_result; this->queue_.dequeue_head (rhs_result); result = (CORBA::Boolean) rhs_result; return_value = 0; } } else return_value = 0; } if (return_value == 0) this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); return return_value; }

int TAO_Notify_Constraint_Visitor::visit_preference (  TAO_ETCL_Preference *   )

Definition at line 1157 of file Notify_Constraint_Visitors.cpp. { // According to OMG 00-06-20 section 2.4.1, the Notification Service // does not use the preference operators. The method must be here // because it is called by the ETCL node, which may be used by other // CORBA services that do use the preference operators. return -1; }

int TAO_Notify_Constraint_Visitor::visit_special (  TAO_ETCL_Special *   )

Definition at line 540 of file Notify_Constraint_Visitors.cpp. References current_value_, and ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(). { try { CORBA::TypeCode_var tc = this->current_value_->type (); tc = TAO_DynAnyFactory::strip_alias (tc.in ()); CORBA::TCKind kind = tc->kind (); switch (special->type ()) { case TAO_ETCL_LENGTH: { CORBA::ULong length; switch (kind) { case CORBA::tk_sequence: { TAO_DynSequence_i dyn_seq; dyn_seq.init (current_value_.in()); DynamicAny::AnySeq_var any_seq = dyn_seq.get_elements (); length = any_seq->length (); } break; case CORBA::tk_array: { length = tc->length (); } break; default: return -1; } TAO_ETCL_Literal_Constraint lit (length); this->queue_.enqueue_head (lit); return 0; } case TAO_ETCL_DISCRIMINANT: { // If the TCKind is not a union, the call to init() will // raise an exception, and the catch block will return -1; TAO_DynUnion_i dyn_union; dyn_union.init (this->current_value_.in ()); DynamicAny::DynAny_var disc = dyn_union.get_discriminator (); CORBA::Any_var disc_any = disc->to_any (); TAO_ETCL_Literal_Constraint lit (disc_any.ptr ()); this->queue_.enqueue_head (lit); return 0; } case TAO_ETCL_TYPE_ID: { const char *name = tc->name (); TAO_ETCL_Literal_Constraint lit (name); this->queue_.enqueue_head (lit); return 0; } case TAO_ETCL_REPOS_ID: { const char *id = tc->id (); TAO_ETCL_Literal_Constraint lit (id); this->queue_.enqueue_head (lit); return 0; } default: return -1; } } catch (const CORBA::Exception&) { return -1; } }

int TAO_Notify_Constraint_Visitor::visit_twiddle (  TAO_ETCL_Binary_Expr *   )  [protected]

Definition at line 1056 of file Notify_Constraint_Visitors.cpp. References ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::dequeue_head(), ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(), and ACE_OS::strstr(). Referenced by visit_binary_expr(). { int return_value = -1; TAO_ETCL_Constraint *lhs = binary->lhs (); // Determine if the left operand is a substring of the right. if (lhs->accept (this) == 0) { TAO_ETCL_Literal_Constraint left; this->queue_.dequeue_head (left); TAO_ETCL_Constraint *rhs = binary->rhs (); if (rhs->accept (this) == 0) { TAO_ETCL_Literal_Constraint right; this->queue_.dequeue_head (right); CORBA::Boolean result = (ACE_OS::strstr ((const char *) right, (const char *) left) != 0); this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); return_value = 0; } } return return_value; }

int TAO_Notify_Constraint_Visitor::visit_unary_expr (  TAO_ETCL_Unary_Expr *   )

Definition at line 838 of file Notify_Constraint_Visitors.cpp. References ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::dequeue_head(), and ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(). { TAO_ETCL_Constraint *subexpr = unary_expr->subexpr (); if (subexpr->accept (this) == 0) { TAO_ETCL_Literal_Constraint subexpr_result; CORBA::Boolean result = 0; int op_type = unary_expr->type (); switch (op_type) { case TAO_ETCL_NOT: this->queue_.dequeue_head (subexpr_result); result = ! (CORBA::Boolean) subexpr_result; this->queue_.enqueue_head (TAO_ETCL_Literal_Constraint (result)); return 0; case TAO_ETCL_MINUS: // The leading '-' was parsed separately, so we have to pull // the literal constraint off the queue, apply the class' own // unary minus operator, and put it back. this->queue_.dequeue_head (subexpr_result); this->queue_.enqueue_head (-subexpr_result); return 0; case TAO_ETCL_PLUS: // Leave the literal constraint on the queue. The leading // '+' was just syntactic sugar - no action is necessary. return 0; default: // The parser should never construct a TAO_ETCL_Unary_Constraint // behind any operators except the above three. return -1; } } return -1; }

int TAO_Notify_Constraint_Visitor::visit_union_pos (  TAO_ETCL_Union_Pos *   )

Definition at line 195 of file Notify_Constraint_Visitors.cpp. References ACE_NEW_RETURN, current_value_, ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::dequeue_head(), ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(), ACE_OS::strcmp(), and ACE_OutputCDR::write_ulong(). { try { if (union_pos->union_value ()->accept (this) == 0) { TAO_ETCL_Literal_Constraint disc_val; this->queue_.dequeue_head (disc_val); TAO_DynUnion_i dyn_union; dyn_union.init (this->current_value_.in ()); CORBA::TypeCode_var tc = this->current_value_->type (); switch (disc_val.expr_type ()) { case TAO_ETCL_INTEGER: case TAO_ETCL_SIGNED: case TAO_ETCL_UNSIGNED: { CORBA::Any disc_any; CORBA::TypeCode_var disc_tc = tc->discriminator_type (); CORBA::TCKind disc_kind = TAO_DynAnyFactory::unalias (disc_tc.in ()); switch (disc_kind) { case CORBA::tk_boolean: disc_any <<= CORBA::Any::from_boolean ((CORBA::Boolean) disc_val); break; case CORBA::tk_short: disc_any <<= (CORBA::Short) ((CORBA::Long) disc_val); break; case CORBA::tk_ushort: disc_any <<= (CORBA::UShort) ((CORBA::ULong) disc_val); break; case CORBA::tk_long: disc_any <<= (CORBA::Long) disc_val; break; case CORBA::tk_ulong: disc_any <<= (CORBA::ULong) disc_val; break; case CORBA::tk_enum: { TAO_OutputCDR cdr; cdr.write_ulong ((CORBA::ULong) disc_val); TAO_InputCDR in_cdr (cdr); TAO::Unknown_IDL_Type *unk = 0; ACE_NEW_RETURN (unk, TAO::Unknown_IDL_Type (disc_tc.in (), in_cdr), -1); disc_any.replace (unk); break; } // @@@ (JP) I don't think ETCL handles 64-bit // integers at this point, and I also think that // chars and/or wchars will just come out in the // constraint as (w)strings of length 1. case CORBA::tk_longlong: case CORBA::tk_ulonglong: case CORBA::tk_char: case CORBA::tk_wchar: default: return -1; } DynamicAny::DynAny_var dyn_any = TAO::MakeDynAnyUtils::make_dyn_any_t<const CORBA::Any &> ( disc_tc.in (), disc_any); dyn_union.set_discriminator (dyn_any.in ()); DynamicAny::DynAny_var u_member = dyn_union.member (); this->current_value_ = u_member->to_any (); break; } case TAO_ETCL_STRING: { const char *name = (const char *) disc_val; CORBA::ULong count = tc->member_count (); const char *member_name = 0; CORBA::ULong i = 0; for (i = 0; i < count; ++i) { member_name = tc->member_name (i); if (ACE_OS::strcmp (name, member_name) == 0) break; } // If there's no match, member_label will throw // CORBA::TypeCode::Bounds and the catch block will // return -1; this->current_value_ = tc->member_label (i); break; } // The TAO_ETCL_Union_Value that was put on the queue // shouldn't have any other type. default: return -1; } TAO_ETCL_Constraint *nested = union_pos->component (); // If there's no nested component, then we just want the // union member value on the queue. Otherwise, we want // the member value in current_value_ while we visit // the nested component. if (nested == 0) { TAO_ETCL_Literal_Constraint lit (this->current_value_.ptr ()); this->queue_.enqueue_head (lit); return 0; } else return nested->accept (this); } else return -1; } catch (const CORBA::Exception&) { return -1; } }

int TAO_Notify_Constraint_Visitor::visit_union_value (  TAO_ETCL_Union_Value *   )

Definition at line 172 of file Notify_Constraint_Visitors.cpp. References ACE_Unbounded_Queue< TAO_ETCL_Literal_Constraint >::enqueue_head(). { switch (union_value->sign ()) { case 0: this->queue_.enqueue_head (*union_value->string ()); break; case -1: this->queue_.enqueue_head (-(*union_value->integer ())); break; case 1: this->queue_.enqueue_head (*union_value->integer ()); break; default: return -1; } return 0; }

---

Member Data Documentation

CORBA::String_var TAO_Notify_Constraint_Visitor::current_name_ [protected]

Holder for a string name in the event fields fixed_header, variable_header, or filterable_data. Definition at line 162 of file Notify_Constraint_Visitors.h.

CORBA::Any_var TAO_Notify_Constraint_Visitor::current_value_ [protected]

Holder for a value found in the event fields filterable_data, variable_header or remainder_of_body. Definition at line 158 of file Notify_Constraint_Visitors.h. Referenced by visit_component(), visit_component_array(), visit_component_assoc(), visit_component_pos(), visit_default(), visit_exist(), visit_special(), and visit_union_pos().

CORBA::String_var TAO_Notify_Constraint_Visitor::domain_name_ [protected]

Storage for string names under the structured event's 'fixed_header' field. Definition at line 146 of file Notify_Constraint_Visitors.h. Referenced by bind_structured_event(), and visit_exist().

CORBA::String_var TAO_Notify_Constraint_Visitor::event_name_ [protected]

Definition at line 148 of file Notify_Constraint_Visitors.h. Referenced by bind_structured_event(), and visit_exist().

ACE_Hash_Map_Manager<ACE_CString, CORBA::Any, ACE_Null_Mutex> TAO_Notify_Constraint_Visitor::filterable_data_ [protected]

Used to lookup names and values in the event's 'filterable_data' field. Definition at line 134 of file Notify_Constraint_Visitors.h. Referenced by bind_structured_event(), visit_component_assoc(), visit_exist(), and visit_identifier().

const size_t TAO_Notify_Constraint_Visitor::filterable_data_size_ = 31 [static, protected]

Size of filterable_data_ hash map. TODO: define inline once VC6 support is deprecated. Definition at line 1384 of file Notify_Constraint_Visitors.cpp.

structured_event_field TAO_Notify_Constraint_Visitor::implicit_id_ [protected]

Storage for the type of implicit id the component has (if any). Definition at line 114 of file Notify_Constraint_Visitors.h. Referenced by visit_component(), visit_component_assoc(), and visit_exist().

ACE_Hash_Map_Manager<ACE_CString, structured_event_field, ACE_Null_Mutex> TAO_Notify_Constraint_Visitor::implicit_ids_ [protected]

Lookup table for the implicit ids, to avoid string comparisons in derived visitors. Definition at line 126 of file Notify_Constraint_Visitors.h. Referenced by TAO_Notify_Constraint_Visitor(), and visit_component().

const size_t TAO_Notify_Constraint_Visitor::implicit_ids_size_ = 27 [static, protected]

Size of implicit_ids_ hash map. Note: A fixed set of 9 keys are stored in this map. In the absence of a minimal perfect hash, ACE's default hash_pjw() and a hash size of 27 ensures each element is hashed to a unique bucket. TODO: define inline once VC6 support is deprecated. Definition at line 1383 of file Notify_Constraint_Visitors.cpp.

ACE_Unbounded_Queue<TAO_ETCL_Literal_Constraint> TAO_Notify_Constraint_Visitor::queue_ [protected]

The result of a non_boolean operation. Definition at line 154 of file Notify_Constraint_Visitors.h.

CORBA::Any TAO_Notify_Constraint_Visitor::remainder_of_body_ [protected]

Storage for the structured_event's 'remainder_of_body' field. Definition at line 151 of file Notify_Constraint_Visitors.h. Referenced by bind_structured_event().

CORBA::String_var TAO_Notify_Constraint_Visitor::type_name_ [protected]

Definition at line 147 of file Notify_Constraint_Visitors.h. Referenced by bind_structured_event(), and visit_exist().

ACE_Hash_Map_Manager<ACE_CString, CORBA::Any, ACE_Null_Mutex> TAO_Notify_Constraint_Visitor::variable_header_ [protected]

Used to lookup names and values in the event's 'variable_header' field. Definition at line 142 of file Notify_Constraint_Visitors.h. Referenced by bind_structured_event(), visit_component_assoc(), and visit_exist().

const size_t TAO_Notify_Constraint_Visitor::variable_header_size_ = 31 [static, protected]

Size of variable_header_ hash map. TODO: define inline once VC6 support is deprecated. Definition at line 1385 of file Notify_Constraint_Visitors.cpp.

---

The documentation for this class was generated from the following files:

• Notify_Constraint_Visitors.h
• Notify_Constraint_Visitors.cpp

---
