TAO_CEC_ProxyPullConsumer Class Reference

ProxyPullConsumer. More...

#include <CEC_ProxyPullConsumer.h>

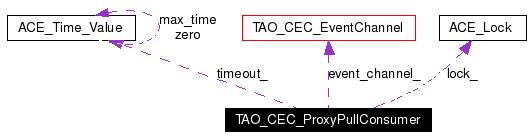

Collaboration diagram for TAO_CEC_ProxyPullConsumer:

Collaboration graph
[legend]
List of all members.

Public Types

typedef CosEventChannelAdmin::ProxyPullConsumer_ptr _ptr_type
typedef CosEventChannelAdmin::ProxyPullConsumer_var _var_type

Public Member Functions

 TAO_CEC_ProxyPullConsumer (TAO_CEC_EventChannel *event_channel, const ACE_Time_Value &timeout)
 constructor...

virtual ~TAO_CEC_ProxyPullConsumer (void)
 destructor...

virtual void activate (CosEventChannelAdmin::ProxyPullConsumer_ptr &activated_proxy)
 Activate in the POA.

virtual void deactivate (void)
 Deactivate from the POA.

CORBA::Boolean is_connected (void) const
 Return 0 if no supplier is connected...

CosEventComm::PullSupplier_ptr supplier (void) const
CORBA::Any * try_pull_from_supplier (CORBA::Boolean_out has_event)
 Pulls from the supplier, verifies that it is connected.

CORBA::Any * pull_from_supplier (void)
CORBA::Boolean supplier_non_existent (CORBA::Boolean_out disconnected)
virtual void shutdown (void)
 The event channel is shutting down.

CORBA::ULong _incr_refcnt (void)
 Increment and decrement the reference count.

CORBA::ULong _decr_refcnt (void)
virtual void connect_pull_supplier (CosEventComm::PullSupplier_ptr pull_supplier)
virtual void disconnect_pull_consumer (void)
virtual PortableServer::POA_ptr _default_POA (void)
virtual void _add_ref (void)
virtual void _remove_ref (void)

Protected Member Functions

void supplier (CosEventComm::PullSupplier_ptr supplier)
void supplier_i (CosEventComm::PullSupplier_ptr supplier)
CORBA::Boolean is_connected_i (void) const
 The private version (without locking) of is_connected().

void cleanup_i (void)
 Release the supplier.

CosEventComm::PullSupplier_ptr apply_policy (CosEventComm::PullSupplier_ptr s)

Private Attributes

TAO_CEC_EventChannel * event_channel_
 The supplier admin, used for activation and memory managment.

ACE_Time_Value timeout_
ACE_Lock * lock_
 The locking strategy.

CORBA::ULong refcount_
 The reference count.

CosEventComm::PullSupplier_var supplier_
CosEventComm::PullSupplier_var nopolicy_supplier_
 The supplier without any policies applied.

PortableServer::POA_var default_POA_
 Store the default POA.

Detailed Description

ProxyPullConsumer.

Implement the CosEventChannelAdmin::ProxyPullConsumer interface, remember that this class is used to communicate with a PullSupplier, so, in effect, this is the ambassador for a supplier inside the event channel. = MEMORY MANAGMENT The object commits suicide when disconnect_pull_consumer() is called.

Definition at line 46 of file CEC_ProxyPullConsumer.h.

Member Typedef Documentation

typedef CosEventChannelAdmin::ProxyPullConsumer_ptr TAO_CEC_ProxyPullConsumer::_ptr_type


Definition at line 49 of file CEC_ProxyPullConsumer.h.

typedef CosEventChannelAdmin::ProxyPullConsumer_var TAO_CEC_ProxyPullConsumer::_var_type


Definition at line 50 of file CEC_ProxyPullConsumer.h.

Constructor & Destructor Documentation

TAO_CEC_ProxyPullConsumer::TAO_CEC_ProxyPullConsumer (  TAO_CEC_EventChannel *  event_channel,
const ACE_Time_Value &  timeout
)


constructor...

Definition at line 24 of file CEC_ProxyPullConsumer.cpp.

References TAO_CEC_EventChannel::consumer_poa(), TAO_CEC_EventChannel::create_consumer_lock(), and TAO_CEC_EventChannel::get_servant_retry_map().

00026   : event_channel_ (ec),
00027     timeout_ (timeout),
00028     refcount_ (1)
00029 {
00030   this->lock_ =
00031     this->event_channel_->create_consumer_lock ();
00032
00033   this->default_POA_ =
00034     this->event_channel_->consumer_poa ();
00035
00036   this->event_channel_->get_servant_retry_map ().bind (this, 0);
00037 }

TAO_CEC_ProxyPullConsumer::~TAO_CEC_ProxyPullConsumer (  void   )  [virtual]


destructor...

Definition at line 39 of file CEC_ProxyPullConsumer.cpp.

References TAO_CEC_EventChannel::destroy_consumer_lock(), and TAO_CEC_EventChannel::get_servant_retry_map().

00040 {
00041   this->event_channel_->get_servant_retry_map ().unbind (this);
00042   this->event_channel_->destroy_consumer_lock (this->lock_);
00043 }

Member Function Documentation

void TAO_CEC_ProxyPullConsumer::_add_ref (  void   )  [virtual]


Definition at line 374 of file CEC_ProxyPullConsumer.cpp.

References _incr_refcnt().

00375 {
00376   this->_incr_refcnt ();
00377 }

CORBA::ULong TAO_CEC_ProxyPullConsumer::_decr_refcnt (  void   )


Definition at line 243 of file CEC_ProxyPullConsumer.cpp.

References ACE_GUARD_RETURN, and TAO_CEC_EventChannel::destroy_proxy().

Referenced by _remove_ref().

00244 {
00245   {
00246     ACE_GUARD_RETURN (ACE_Lock, ace_mon, *this->lock_, 0);
00247     this->refcount_--;
00248     if (this->refcount_ != 0)
00249       return this->refcount_;
00250   }
00251
00252   // Notify the event channel
00253   this->event_channel_->destroy_proxy (this);
00254   return 0;
00255 }

PortableServer::POA_ptr TAO_CEC_ProxyPullConsumer::_default_POA (  void   )  [virtual]


Definition at line 368 of file CEC_ProxyPullConsumer.cpp.

Referenced by deactivate().

00369 {
00370   return PortableServer::POA::_duplicate (this->default_POA_.in ());
00371 }

CORBA::ULong TAO_CEC_ProxyPullConsumer::_incr_refcnt (  void   )


Increment and decrement the reference count.

Definition at line 236 of file CEC_ProxyPullConsumer.cpp.

References ACE_GUARD_RETURN.

Referenced by _add_ref().

00237 {
00238   ACE_GUARD_RETURN (ACE_Lock, ace_mon, *this->lock_, 0);
00239   return this->refcount_++;
00240 }

void TAO_CEC_ProxyPullConsumer::_remove_ref (  void   )  [virtual]


Definition at line 380 of file CEC_ProxyPullConsumer.cpp.

References _decr_refcnt().

00381 {
00382   this->_decr_refcnt ();
00383 }

void TAO_CEC_ProxyPullConsumer::activate (  CosEventChannelAdmin::ProxyPullConsumer_ptr &  activated_proxy  )  [virtual]


Activate in the POA.

Definition at line 46 of file CEC_ProxyPullConsumer.cpp.

00048 {
00049   CosEventChannelAdmin::ProxyPullConsumer_var result;
00050   try
00051     {
00052       result = this->_this ();
00053     }
00054   catch (const CORBA::Exception&)
00055     {
00056       result = CosEventChannelAdmin::ProxyPullConsumer::_nil ();
00057     }
00058   activated_proxy = result._retn ();
00059 }

CosEventComm::PullSupplier_ptr TAO_CEC_ProxyPullConsumer::apply_policy (  CosEventComm::PullSupplier_ptr  s  )  [protected]


Assigns the parameter to both supplier_ and nopolicy_supplier_, and applies policies (when appropriate) to supplier_.

Definition at line 305 of file CEC_ProxyPullConsumer.cpp.

References nopolicy_supplier_.

Referenced by connect_pull_supplier().

00306 {
00307   this->nopolicy_supplier_ = CosEventComm::PullSupplier::_duplicate (pre);
00308 #if defined (TAO_HAS_CORBA_MESSAGING) && TAO_HAS_CORBA_MESSAGING != 0
00309   CosEventComm::PullSupplier_var post =
00310     CosEventComm::PullSupplier::_duplicate (pre);
00311   if (this->timeout_ > ACE_Time_Value::zero)
00312     {
00313       CORBA::PolicyList policy_list;
00314       policy_list.length (1);
00315       policy_list[0] = this->event_channel_->
00316         create_roundtrip_timeout_policy (this->timeout_);
00317
00318       CORBA::Object_var post_obj = pre->_set_policy_overrides
00319         (policy_list, CORBA::ADD_OVERRIDE);
00320       post = CosEventComm::PullSupplier::_narrow (post_obj.in ());
00321
00322       policy_list[0]->destroy ();
00323       policy_list.length (0);
00324     }
00325   return post._retn ();
00326 #else
00327   return CosEventComm::PullSupplier::_duplicate (pre);
00328 #endif /* TAO_HAS_CORBA_MESSAGING */
00329 }

void TAO_CEC_ProxyPullConsumer::cleanup_i (  void   )  [protected]


Release the supplier.

Definition at line 229 of file CEC_ProxyPullConsumer.cpp.

References supplier_.

Referenced by connect_pull_supplier(), and disconnect_pull_consumer().

00230 {
00231   this->supplier_ =
00232     CosEventComm::PullSupplier::_nil ();
00233 }

void TAO_CEC_ProxyPullConsumer::connect_pull_supplier (  CosEventComm::PullSupplier_ptr  pull_supplier  )  [virtual]


Definition at line 258 of file CEC_ProxyPullConsumer.cpp.

References ACE_GUARD_THROW_EX, apply_policy(), cleanup_i(), TAO_CEC_EventChannel::connected(), TAO_CEC_EventChannel::disconnected(), is_connected_i(), CORBA::is_nil(), supplier_, TAO_CEC_EventChannel::supplier_reconnect(), and TAO_CEC_Unlock.

00260 {
00261   // Nil PullSuppliers are illegal
00262   if (CORBA::is_nil (pull_supplier))
00263     throw CORBA::BAD_PARAM ();
00264
00265   {
00266     ACE_GUARD_THROW_EX (
00267         ACE_Lock, ace_mon, *this->lock_,
00268         CORBA::INTERNAL ());
00269     // @@ CosEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR ());
00270
00271     if (this->is_connected_i ())
00272       {
00273         if (this->event_channel_->supplier_reconnect () == 0)
00274           throw CosEventChannelAdmin::AlreadyConnected ();
00275
00276         // Re-connections are allowed, go ahead and disconnect the
00277         // consumer...
00278         this->cleanup_i ();
00279
00280         // @@ Please read the comments in CEC_ProxyPullSupplier about
00281         //     possible race conditions in this area...
00282         TAO_CEC_Unlock reverse_lock (*this->lock_);
00283
00284         {
00285           ACE_GUARD_THROW_EX (
00286               TAO_CEC_Unlock, ace_mon, reverse_lock,
00287               CORBA::INTERNAL ());
00288           // @@ CosEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR ());
00289
00290           this->event_channel_->disconnected (this);
00291         }
00292
00293         // What if a second thread connected us after this?
00294         if (this->is_connected_i ())
00295           return;
00296       }
00297     this->supplier_ = apply_policy (pull_supplier);
00298   }
00299
00300   // Notify the event channel...
00301   this->event_channel_->connected (this);
00302 }

void TAO_CEC_ProxyPullConsumer::deactivate (  void   )  [virtual]


Deactivate from the POA.

Definition at line 62 of file CEC_ProxyPullConsumer.cpp.

References _default_POA().

Referenced by shutdown().

00063 {
00064   try
00065     {
00066       PortableServer::POA_var poa =
00067         this->_default_POA ();
00068       PortableServer::ObjectId_var id =
00069         poa->servant_to_id (this);
00070       poa->deactivate_object (id.in ());
00071     }
00072   catch (const CORBA::Exception&)
00073     {
00074       // Exceptions here should not be propagated.  They usually
00075       // indicate that an object is beign disconnected twice, or some
00076       // race condition, but not a fault that the user needs to know
00077       // about.
00078     }
00079 }

void TAO_CEC_ProxyPullConsumer::disconnect_pull_consumer (  void   )  [virtual]


Definition at line 332 of file CEC_ProxyPullConsumer.cpp.

References ACE_GUARD_THROW_EX, cleanup_i(), TAO_CEC_EventChannel::disconnect_callbacks(), TAO_CEC_EventChannel::disconnected(), is_connected_i(), supplier(), and supplier_.

Referenced by TAO_CEC_Reactive_SupplierControl::supplier_not_exist(), and TAO_CEC_Reactive_SupplierControl::system_exception().

00333 {
00334   CosEventComm::PullSupplier_var supplier;
00335
00336   {
00337     ACE_GUARD_THROW_EX (
00338         ACE_Lock, ace_mon, *this->lock_,
00339         CORBA::INTERNAL ());
00340     // @@ CosEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR ());
00341
00342     if (this->is_connected_i () == 0)
00343       throw CORBA::BAD_INV_ORDER (); // @@ add user exception?
00344
00345     supplier = this->supplier_._retn ();
00346
00347     this->cleanup_i ();
00348   }
00349
00350   // Notify the event channel...
00351   this->event_channel_->disconnected (this);
00352
00353   if (this->event_channel_->disconnect_callbacks ())
00354     {
00355       try
00356         {
00357           supplier->disconnect_pull_supplier ();
00358         }
00359       catch (const CORBA::Exception&)
00360         {
00361           // Ignore exceptions, we must isolate other clients from
00362           // failures on this one.
00363         }
00364     }
00365 }

ACE_INLINE CORBA::Boolean TAO_CEC_ProxyPullConsumer::is_connected (  void   )  const


Return 0 if no supplier is connected...

Definition at line 14 of file CEC_ProxyPullConsumer.inl.

References ACE_GUARD_RETURN, and is_connected_i().

00015 {
00016   ACE_GUARD_RETURN (ACE_Lock, ace_mon, *this->lock_, 0);
00017
00018   return this->is_connected_i ();
00019 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE CORBA::Boolean TAO_CEC_ProxyPullConsumer::is_connected_i (  void   )  const [protected]


The private version (without locking) of is_connected().

Definition at line 8 of file CEC_ProxyPullConsumer.inl.

References CORBA::is_nil().

Referenced by connect_pull_supplier(), disconnect_pull_consumer(), is_connected(), pull_from_supplier(), supplier_non_existent(), and try_pull_from_supplier().

00009 {
00010   return !CORBA::is_nil (this->supplier_.in ());
00011 }

CORBA::Any * TAO_CEC_ProxyPullConsumer::pull_from_supplier (  void   )


Definition at line 136 of file CEC_ProxyPullConsumer.cpp.

References ACE_GUARD_THROW_EX, is_connected_i(), and supplier().

00137 {
00138   CosEventComm::PullSupplier_var supplier;
00139   {
00140     ACE_GUARD_THROW_EX (
00141             ACE_Lock, ace_mon, *this->lock_,
00142             CORBA::INTERNAL ());
00143     // @@ CosEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR ());
00144
00145     if (this->is_connected_i () == 0)
00146       return 0; // ACE_THROW (CosEventComm::Disconnected ());????
00147
00148     supplier =
00149       CosEventComm::PullSupplier::_duplicate (this->supplier_.in ());
00150
00151     // The refcount cannot be zero, because we have at least two
00152     // references,
00153   }
00154
00155   CORBA::Any_var any;
00156   try
00157     {
00158       any = supplier->pull ();
00159     }
00160   catch (const CORBA::Exception&)
00161     {
00162       // @@ This is where the policies for misbehaving suppliers
00163       //    should kick in.... for the moment just ignore them.
00164     }
00165   return any._retn ();
00166 }

void TAO_CEC_ProxyPullConsumer::shutdown (  void   )  [virtual]


The event channel is shutting down.

Definition at line 199 of file CEC_ProxyPullConsumer.cpp.

References ACE_GUARD_THROW_EX, deactivate(), CORBA::is_nil(), supplier(), and supplier_.

00200 {
00201   CosEventComm::PullSupplier_var supplier;
00202
00203   {
00204     ACE_GUARD_THROW_EX (
00205         ACE_Lock, ace_mon, *this->lock_,
00206         CORBA::INTERNAL ());
00207     // @@ CosEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR ());
00208
00209     supplier = this->supplier_._retn ();
00210   }
00211
00212   this->deactivate ();
00213
00214   if (CORBA::is_nil (supplier.in ()))
00215     return;
00216
00217   try
00218     {
00219       supplier->disconnect_pull_supplier ();
00220     }
00221   catch (const CORBA::Exception&)
00222     {
00223       // Ignore exceptions, we must isolate other clients from
00224       // failures on this one.
00225     }
00226 }

ACE_INLINE void TAO_CEC_ProxyPullConsumer::supplier (  CosEventComm::PullSupplier_ptr  supplier  )  [protected]


Set the supplier, used by some implementations to change the policies used when invoking operations on the supplier.

Definition at line 35 of file CEC_ProxyPullConsumer.inl.

References ACE_GUARD, and supplier_i().

00036 {
00037   ACE_GUARD (ACE_Lock, ace_mon, *this->lock_);
00038
00039   this->supplier_i (supplier);
00040 }

ACE_INLINE CosEventComm::PullSupplier_ptr TAO_CEC_ProxyPullConsumer::supplier (  void   )  const


Return the consumer object reference. It returns nil() if it has not connected yet.

Definition at line 22 of file CEC_ProxyPullConsumer.inl.

References ACE_GUARD_RETURN.

Referenced by disconnect_pull_consumer(), pull_from_supplier(), shutdown(), supplier_non_existent(), and try_pull_from_supplier().

00023 {
00024   ACE_GUARD_RETURN (ACE_Lock, ace_mon, *this->lock_, 0);
00025   return CosEventComm::PullSupplier::_duplicate (this->supplier_.in ());
00026 }

ACE_INLINE void TAO_CEC_ProxyPullConsumer::supplier_i (  CosEventComm::PullSupplier_ptr  supplier  )  [protected]


Definition at line 29 of file CEC_ProxyPullConsumer.inl.

References supplier_.

Referenced by supplier().

00030 {
00031   this->supplier_ = supplier;
00032 }

CORBA::Boolean TAO_CEC_ProxyPullConsumer::supplier_non_existent (  CORBA::Boolean_out  disconnected  )


Invoke the _non_existent() pseudo-operation on the supplier. If it is disconnected then it returns true and sets the flag.

Definition at line 169 of file CEC_ProxyPullConsumer.cpp.

References CORBA::Object::_duplicate(), ACE_GUARD_THROW_EX, is_connected_i(), CORBA::is_nil(), and supplier().

Referenced by TAO_CEC_Ping_Pull_Supplier::work().

00171 {
00172   CORBA::Object_var supplier;
00173   {
00174     ACE_GUARD_THROW_EX (
00175         ACE_Lock, ace_mon, *this->lock_,
00176         CORBA::INTERNAL ());
00177
00178     disconnected = 0;
00179     if (this->is_connected_i () == 0)
00180       {
00181         disconnected = 1;
00182         return 0;
00183       }
00184     if (CORBA::is_nil (this->nopolicy_supplier_.in ()))
00185       {
00186         return 0;
00187       }
00188     supplier = CORBA::Object::_duplicate (this->nopolicy_supplier_.in ());
00189   }
00190
00191 #if (TAO_HAS_MINIMUM_CORBA == 0)
00192   return supplier->_non_existent ();
00193 #else
00194   return 0;
00195 #endif /* TAO_HAS_MINIMUM_CORBA */
00196 }

CORBA::Any * TAO_CEC_ProxyPullConsumer::try_pull_from_supplier (  CORBA::Boolean_out  has_event  )


Pulls from the supplier, verifies that it is connected.

Definition at line 87 of file CEC_ProxyPullConsumer.cpp.

References ACE_GUARD_THROW_EX, is_connected_i(), TAO_CEC_SupplierControl::successful_transmission(), supplier(), TAO_CEC_EventChannel::supplier_control(), TAO_CEC_SupplierControl::supplier_not_exist(), and TAO_CEC_SupplierControl::system_exception().

Referenced by TAO_CEC_Pull_Event::work().

00089 {
00090   has_event = 0;
00091   CosEventComm::PullSupplier_var supplier;
00092   {
00093     ACE_GUARD_THROW_EX (
00094             ACE_Lock, ace_mon, *this->lock_,
00095             CORBA::INTERNAL ());
00096     // @@ CosEventChannelAdmin::EventChannel::SYNCHRONIZATION_ERROR ());
00097
00098     if (this->is_connected_i () == 0)
00099       return 0; // ACE_THROW (CosEventComm::Disconnected ());????
00100
00101     supplier =
00102       CosEventComm::PullSupplier::_duplicate (this->supplier_.in ());
00103
00104     // The refcount cannot be zero, because we have at least two
00105     // references,
00106   }
00107
00108   CORBA::Any_var any;
00109   TAO_CEC_SupplierControl *control =
00110                  this->event_channel_->supplier_control ();
00111
00112   try
00113     {
00114       any = supplier->try_pull (has_event);
00115
00116       // Inform the control that we got something from the supplier
00117       control->successful_transmission(this);
00118     }
00119   catch (const CORBA::OBJECT_NOT_EXIST&)
00120     {
00121       control->supplier_not_exist (this);
00122     }
00123   catch (CORBA::SystemException& sysex)
00124     {
00125       control->system_exception (this,
00126                                  sysex);
00127     }
00128   catch (const CORBA::Exception&)
00129     {
00130       // @@ Should not happen
00131     }
00132   return any._retn ();
00133 }

Member Data Documentation

PortableServer::POA_var TAO_CEC_ProxyPullConsumer::default_POA_ [private]


Store the default POA.

Definition at line 138 of file CEC_ProxyPullConsumer.h.

TAO_CEC_EventChannel* TAO_CEC_ProxyPullConsumer::event_channel_ [private]


The supplier admin, used for activation and memory managment.

Definition at line 120 of file CEC_ProxyPullConsumer.h.

ACE_Lock* TAO_CEC_ProxyPullConsumer::lock_ [private]


The locking strategy.

Definition at line 125 of file CEC_ProxyPullConsumer.h.

CosEventComm::PullSupplier_var TAO_CEC_ProxyPullConsumer::nopolicy_supplier_ [private]


The supplier without any policies applied.

Definition at line 135 of file CEC_ProxyPullConsumer.h.

Referenced by apply_policy().

CORBA::ULong TAO_CEC_ProxyPullConsumer::refcount_ [private]


The reference count.

Definition at line 128 of file CEC_ProxyPullConsumer.h.

CosEventComm::PullSupplier_var TAO_CEC_ProxyPullConsumer::supplier_ [private]


The supplier -- use apply_policy() instead of assigning directly to supplier_. This will keep supplier_ and nopolicy_supplier_ in sync.

Definition at line 132 of file CEC_ProxyPullConsumer.h.

Referenced by cleanup_i(), connect_pull_supplier(), disconnect_pull_consumer(), shutdown(), and supplier_i().

ACE_Time_Value TAO_CEC_ProxyPullConsumer::timeout_ [private]


Definition at line 122 of file CEC_ProxyPullConsumer.h.

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 15:37:47 2008 for TAO_CosEvent by doxygen 1.3.6
