TAO::TypeCode::Struct_Field< StringType, TypeCodeType > Struct Template Reference

Name/type pair for fields of an OMG IDL defined structure or exception. More...

#include <TypeCode_Struct_Field.h>

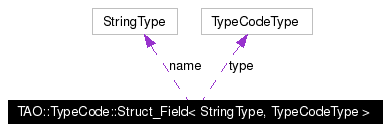

Collaboration diagram for TAO::TypeCode::Struct_Field< StringType, TypeCodeType >:

[legend]List of all members.

Public Attributes
StringType	name
	The name of the field.
TypeCodeType	type
	The CORBA::TypeCode of the field.

---

Detailed Description

template<typename StringType, typename TypeCodeType>
struct TAO::TypeCode::Struct_Field< StringType, TypeCodeType >

Name/type pair for fields of an OMG IDL defined structure or exception.

A Struct_Field contains the corresponding name and pointer to the CORBA::TypeCode for a given OMG IDL defined type. For example, the fields in following OMG IDL structure:

   struct Foo
   {
     long   the_number;
     string the_string;
   };

would be represented using the following statically instantiated TAO::TypeCode::Struct_Field array:

   TAO::TypeCode::Struct_Field<char const *> _tao_fields_Foo[] =
     {
       { "the_number", &CORBA::_tc_long },
       { "the_string", &CORBA::_tc_string },
     };

The template parameter STRING_TYPE is either char const * or CORBA::String_var. The latter is only used when creating CORBA::tk_struct or CORBA::tk_except TypeCodes dynamically, such as through the TypeCodeFactory.

Definition at line 74 of file TypeCode_Struct_Field.h.

---

Member Data Documentation

template<typename StringType, typename TypeCodeType> StringType TAO::TypeCode::Struct_Field< StringType, TypeCodeType >::name

The name of the field. Definition at line 77 of file TypeCode_Struct_Field.h. Referenced by TAO::TypeCode::Struct< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::equal_i(), and TAO::TypeCode::Struct< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::tao_marshal().

template<typename StringType, typename TypeCodeType> TypeCodeType TAO::TypeCode::Struct_Field< StringType, TypeCodeType >::type

The CORBA::TypeCode of the field. Definition at line 80 of file TypeCode_Struct_Field.h. Referenced by TAO::TypeCode::Struct< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::equal_i(), and TAO::TypeCode::Struct< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >::tao_marshal().

---

The documentation for this struct was generated from the following file:

• TypeCode_Struct_Field.h

---
