TAO_Unknown_Profile Class Reference

A TAO_Profile class to handle foreign profiles. More...

#include <Profile.h>

Inheritance diagram for TAO_Unknown_Profile:

Inheritance graph
[legend]

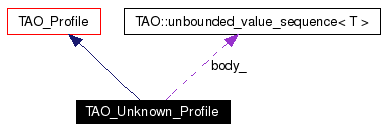

Collaboration diagram for TAO_Unknown_Profile:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Unknown_Profile (CORBA::ULong tag, TAO_ORB_Core *orb_core)
 Create the profile.

virtual void parse_string (const char *string)
virtual char object_key_delimiter (void) const
 The object key delimiter.

virtual char * to_string (void)
virtual int decode (TAO_InputCDR &cdr)
 Initialize this object using the given CDR octet string.

virtual int encode (TAO_OutputCDR &stream) const
 Encode this profile in a stream, i.e. marshal it.

virtual int encode_endpoints (void)
virtual TAO::ObjectKey * _key (void) const
virtual TAO_Endpoint * endpoint (void)
virtual CORBA::ULong endpoint_count (void) const
 Return how many endpoints this profile contains.

virtual CORBA::ULong hash (CORBA::ULong max)
 Return a hash value for this object.

virtual int decode_profile (TAO_InputCDR &cdr)
 Decode the protocol specific profile details.

virtual int decode_endpoints (void)

Protected Member Functions

virtual CORBA::Boolean do_is_equivalent (const TAO_Profile *other_profile)
 Profile equivalence template method invoked on subclasses.

virtual TAO_Service_Callbacks::Profile_Equivalence is_equivalent_hook (const TAO_Profile *other_profile)
 Allow services to apply their own definition of "equivalence.".


Private Member Functions

virtual void create_profile_body (TAO_OutputCDR &encap) const
 Creates an encapsulation of the ProfileBody struct in the cdr.

virtual void parse_string_i (const char *string)
 Protocol specific implementation of parse_string ().


Private Attributes

TAO_opaque body_

Detailed Description

A TAO_Profile class to handle foreign profiles.

The CORBA spec implies that ORBs must be prepared to save and pass around profiles for protocols it does not recognize. It is not mandatory to *use* those profiles but they shouldn't be dropped. This class stores the information required to marshal and demarshal an unknown profile, but simply returns an error if any of the TAO internal methods are invoked.

Definition at line 424 of file Profile.h.

Constructor & Destructor Documentation

TAO_Unknown_Profile::TAO_Unknown_Profile (  CORBA::ULong  tag,
TAO_ORB_Core *  orb_core
)


Create the profile.

Definition at line 805 of file Profile.cpp.

References TAO_DEF_GIOP_MAJOR, and TAO_DEF_GIOP_MINOR.

00807   : TAO_Profile (tag,
00808                  orb_core,
00809                  TAO_GIOP_Message_Version (TAO_DEF_GIOP_MAJOR,
00810                                            TAO_DEF_GIOP_MINOR))
00811 {
00812 }

Member Function Documentation

TAO::ObjectKey * TAO_Unknown_Profile::_key (  void   )  const [virtual]


Obtain the object key, return 0 if the profile cannot be parsed. The memory is owned by the caller!

Reimplemented from TAO_Profile.

Definition at line 888 of file Profile.cpp.

00889 {
00890   return 0;
00891 }

void TAO_Unknown_Profile::create_profile_body (  TAO_OutputCDR &  encap  )  const [private, virtual]


Creates an encapsulation of the ProfileBody struct in the cdr.

Implements TAO_Profile.

Definition at line 921 of file Profile.cpp.

00922 {
00923   // No idea about the profile body! Just return
00924   return;
00925 }

int TAO_Unknown_Profile::decode (  TAO_InputCDR &  cdr  )  [virtual]


Initialize this object using the given CDR octet string.

Reimplemented from TAO_Profile.

Definition at line 852 of file Profile.cpp.

References body_.

00853 {
00854   if ((cdr >> this->body_) == 0)
00855     {
00856       return -1;
00857     }
00858
00859   return 0;
00860 }

int TAO_Unknown_Profile::decode_endpoints (  void   )  [virtual]


Helper for decode(). Decodes endpoints from a tagged component. Decode only if RTCORBA is enabled. Furthermore, we may not find TAO_TAG_ENDPOINTS component, e.g., if we are talking to nonRT version of TAO or some other ORB. This is not an error, and we must proceed. Return 0 on success and -1 on failure.

Implements TAO_Profile.

Definition at line 869 of file Profile.cpp.

00870 {
00871   return 0;
00872 }

int TAO_Unknown_Profile::decode_profile (  TAO_InputCDR &  cdr  )  [virtual]


Decode the protocol specific profile details.

Implements TAO_Profile.

Definition at line 863 of file Profile.cpp.

00864 {
00865   return 0;
00866 }

CORBA::Boolean TAO_Unknown_Profile::do_is_equivalent (  const TAO_Profile *  other_profile  )  [protected, virtual]


Profile equivalence template method invoked on subclasses.

TAO_Profile subclasses must implement this template method so that they can apply their own definition of profile equivalence.

Implements TAO_Profile.

Definition at line 894 of file Profile.cpp.

References body_.

00895 {
00896   const TAO_Unknown_Profile * op =
00897     dynamic_cast <const TAO_Unknown_Profile *> (other_profile);
00898
00899   return (CORBA::Boolean) (op == 0 ? 0 : this->body_ == op->body_);
00900 }

int TAO_Unknown_Profile::encode (  TAO_OutputCDR &  stream  )  const [virtual]


Encode this profile in a stream, i.e. marshal it.

Reimplemented from TAO_Profile.

Definition at line 875 of file Profile.cpp.

References body_, and ACE_OutputCDR::write_ulong().

00876 {
00877   stream.write_ulong (this->tag ());
00878   return (stream << this->body_);
00879 }

int TAO_Unknown_Profile::encode_endpoints (  void   )  [virtual]


Encodes this profile's endpoints into a tagged component. This is done only if RTCORBA is enabled, since currently this is the only case when we have more than one endpoint per profile.

Implements TAO_Profile.

Definition at line 882 of file Profile.cpp.

00883 {
00884   return 0;
00885 }

TAO_Endpoint * TAO_Unknown_Profile::endpoint (  void   )  [virtual]


Return a pointer to this profile's endpoint. If the profile contains more than one endpoint, i.e., a list, the method returns the head of the list.

Implements TAO_Profile.

Definition at line 815 of file Profile.cpp.

00816 {
00817   return 0;
00818 }

CORBA::ULong TAO_Unknown_Profile::endpoint_count (  void   )  const [virtual]


Return how many endpoints this profile contains.

Implements TAO_Profile.

Definition at line 821 of file Profile.cpp.

00822 {
00823   return 0;
00824 }

CORBA::ULong TAO_Unknown_Profile::hash (  CORBA::ULong  max  )  [virtual]


Return a hash value for this object.

Implements TAO_Profile.

Definition at line 912 of file Profile.cpp.

References body_, ACE::hash_pjw(), and TAO::unbounded_value_sequence< T >::length().

00914 {
00915   return (ACE::hash_pjw (reinterpret_cast <const char*>
00916                                           (this->body_.get_buffer ()),
00917                          this->body_.length ()) % max);
00918 }

TAO_Service_Callbacks::Profile_Equivalence TAO_Unknown_Profile::is_equivalent_hook (  const TAO_Profile *  other_profile  )  [protected, virtual]


Allow services to apply their own definition of "equivalence.".

This method differs from the do_is_equivalent() template method in that it has a default implementation that may or not be applicable to all TAO_Profile subclasses.

Reimplemented from TAO_Profile.

Definition at line 903 of file Profile.cpp.

00904 {
00905   // Override the default implementation since we don't need the
00906   // additional checks it performs.
00907
00908   return TAO_Service_Callbacks::DONT_KNOW;
00909 }

char TAO_Unknown_Profile::object_key_delimiter (  void   )  const [virtual]


The object key delimiter.

Implements TAO_Profile.

Definition at line 839 of file Profile.cpp.

00840 {
00841   return 0;
00842 }

void TAO_Unknown_Profile::parse_string (  const char *  string  )  [virtual]


Initialize this object using the given input string. Supports URL style of object references

Reimplemented from TAO_Profile.

Definition at line 827 of file Profile.cpp.

00828 {
00829   // @@ THROW something????
00830 }

void TAO_Unknown_Profile::parse_string_i (  const char *  string  )  [private, virtual]


Protocol specific implementation of parse_string ().

Implements TAO_Profile.

Definition at line 833 of file Profile.cpp.

00834 {
00835   // @@ THROW something????
00836 }

char * TAO_Unknown_Profile::to_string (  void   )  [virtual]


Return a string representation for this profile. Client must deallocate memory. Only one endpoint is included into the string.

Implements TAO_Profile.

Definition at line 845 of file Profile.cpp.

00846 {
00847   // @@ THROW something?
00848   return 0;
00849 }

Member Data Documentation

TAO_opaque TAO_Unknown_Profile::body_ [private]


Definition at line 458 of file Profile.h.

Referenced by decode(), do_is_equivalent(), encode(), and hash().

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 13:16:56 2008 for TAO by doxygen 1.3.6
