TAO_Singleton_Manager Class Reference

Manager for TAO library services and singleton cleanup. More...

#include <TAO_Singleton_Manager.h>

Inheritance diagram for TAO_Singleton_Manager:

Inheritance graph
[legend]

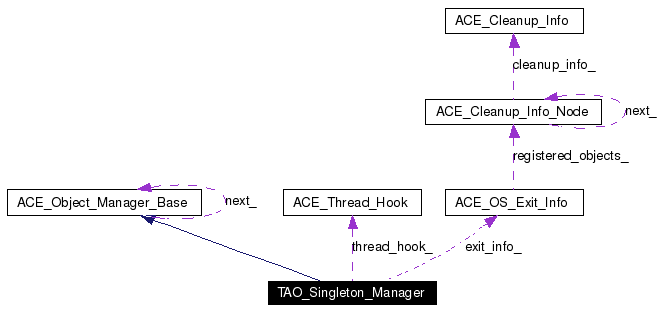

Collaboration diagram for TAO_Singleton_Manager:

Collaboration graph
[legend]
List of all members.

Public Member Functions

virtual int init (void)
 Explicitly initialize.

int init (int register_with_object_manager)
virtual int fini (void)
 Explicitly destroy.


Static Public Member Functions

int starting_up (void)
int shutting_down (void)
sigset_t * default_mask (void)
ACE_Thread_Hook * thread_hook (void)
 Returns the current thread hook for the process.

ACE_Thread_Hook * thread_hook (ACE_Thread_Hook *new_thread_hook)
 Returns the existing thread hook and assign a new_thread_hook.

TAO_Singleton_Manager * instance (void)
 Accessor to singleton instance.

int at_exit (ACE_Cleanup *object, void *param=0)
int at_exit (void *object, ACE_CLEANUP_FUNC cleanup_hook, void *param)

Protected Member Functions

 TAO_Singleton_Manager (void)
 ~TAO_Singleton_Manager (void)

Private Member Functions

int at_exit_i (void *object, ACE_CLEANUP_FUNC cleanup_hook, void *param)
 TAO_Singleton_Manager (const TAO_Singleton_Manager &)
TAO_Singleton_Manager & operator= (const TAO_Singleton_Manager &)

Private Attributes

sigset_t * default_mask_
 Default signal set used, for example, in ACE_Sig_Guard.

ACE_Thread_Hook * thread_hook_
 Thread hook that's used by this process.

ACE_OS_Exit_Info exit_info_
 For at_exit support.

int registered_with_object_manager_

Detailed Description

Manager for TAO library services and singleton cleanup.

The TAO_Singleton_Manager is basically simplified version of the ACE_Object_Manager. It is designed specifically to manage singletons created by TAO. For example, singleton instances created by TAO will be automatically registered with the singleton instance of this Singleton Manager.

This class is necessary to ensure that TAO-specific singletons are isolated to TAO itself, not ACE, for example. The idea is that destruction of the instance of the TAO_Singleton_Manager triggers destruction of all objects/services registered with it.

Definition at line 50 of file TAO_Singleton_Manager.h.

Constructor & Destructor Documentation

TAO_Singleton_Manager::TAO_Singleton_Manager (  void   )  [protected]


TAO_Singleton_Manager::~TAO_Singleton_Manager (  void   )  [protected]


Definition at line 73 of file TAO_Singleton_Manager.cpp.

References fini().

00074 {
00075   this->dynamically_allocated_ = 0;   // Don't delete this again in fini()
00076   (void) this->fini ();
00077 }

TAO_Singleton_Manager::TAO_Singleton_Manager (  const TAO_Singleton_Manager &   )  [private]


Member Function Documentation

ACE_INLINE int TAO_Singleton_Manager::at_exit (  void *  object,
ACE_CLEANUP_FUNC  cleanup_hook,
void *  param
)  [static]


cleanup_hook points to a (global, or static member) function that is called for the object or array when it to be destroyed. It may perform any necessary cleanup specific for that object or its class. param is passed as the second parameter to the cleanup_hook function; the first parameter is the object (or array) to be destroyed. cleanup_hook, for example, may delete the object (or array). For OS's that do not have processes, this function is the same as . Returns 0 on success. On failure, returns -1 and sets errno to: EAGAIN if shutting down, ENOMEM if insufficient virtual memory, or EEXIST if the object (or array) had already been registered.

Definition at line 20 of file TAO_Singleton_Manager.inl.

References at_exit_i(), and instance().

00023 {
00024   return TAO_Singleton_Manager::instance ()->at_exit_i (
00025     object,
00026     cleanup_hook,
00027     param);
00028 }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE int TAO_Singleton_Manager::at_exit (  ACE_Cleanup *  object,
void *  param = 0
)  [static]


The object is deleted via the ace_cleanup_destroyer. If you need more flexiblity, see the other at_exit method below. For OS's that do not have processes, cleanup takes place at the end of main. Returns 0 on success. On failure, returns -1 and sets errno to: EAGAIN if shutting down, ENOMEM if insufficient virtual memory, or EEXIST if the object (or array) had already been registered.

Definition at line 9 of file TAO_Singleton_Manager.inl.

References ACE_CLEANUP_DESTROYER_NAME(), ACE_CLEANUP_FUNC, at_exit_i(), and instance().

Referenced by TAO_TSS_Singleton< TYPE, ACE_LOCK >::instance(), and TAO_Singleton< TYPE, ACE_LOCK >::instance().

00011 {
00012   return TAO_Singleton_Manager::instance ()->at_exit_i (
00013     object,
00014     (ACE_CLEANUP_FUNC) ACE_CLEANUP_DESTROYER_NAME,
00015     param);
00016 }

int TAO_Singleton_Manager::at_exit_i (  void *  object,
ACE_CLEANUP_FUNC  cleanup_hook,
void *  param
)  [private]


Register an object or array for deletion at program termination. See description of static version above for return values.

Definition at line 288 of file TAO_Singleton_Manager.cpp.

References ACE_GUARD_RETURN, ACE_OS_Exit_Info::at_exit_i(), ACE_OS_Exit_Info::find(), ACE_Object_Manager_Base::shutting_down_i(), TAO_SYNCH_RECURSIVE_MUTEX, and the_instance.

Referenced by at_exit().

00291 {
00292   ACE_MT (ACE_GUARD_RETURN (TAO_SYNCH_RECURSIVE_MUTEX,
00293                             ace_mon,
00294                             *the_instance->internal_lock_,
00295                             -1));
00296
00297   if (this->shutting_down_i ())
00298     {
00299       errno = EAGAIN;
00300       return -1;
00301     }
00302
00303   if (this->exit_info_.find (object))
00304     {
00305       // The object has already been registered.
00306       errno = EEXIST;
00307       return -1;
00308     }
00309
00310   return this->exit_info_.at_exit_i (object, cleanup_hook, param);
00311 }

sigset_t * TAO_Singleton_Manager::default_mask (  void   )  [static]


Accesses a default signal set used, for example, in ACE_Sig_Guard methods.

Definition at line 80 of file TAO_Singleton_Manager.cpp.

References default_mask_, and instance().

00081 {
00082   return TAO_Singleton_Manager::instance ()->default_mask_;
00083 }

int TAO_Singleton_Manager::fini (  void   )  [virtual]


Explicitly destroy.

Implements ACE_Object_Manager_Base.

Definition at line 208 of file TAO_Singleton_Manager.cpp.

References ACE_OS_Exit_Info::call_hooks(), ACE_Object_Manager_Base::fini(), ACE_Object_Manager_Base::shutting_down_i(), and the_instance.

Referenced by ~TAO_Singleton_Manager().

00209 {
00210   if (the_instance == 0  ||  this->shutting_down_i ())
00211     // Too late.  Or, maybe too early.  Either fini () has already
00212     // been called, or init () was never called.
00213     return this->object_manager_state_ == OBJ_MAN_SHUT_DOWN  ?  1  :  -1;
00214
00215   // No mutex here.  Only the main thread should destroy the singleton
00216   // TAO_Singleton_Manager instance.
00217
00218   // Indicate that the TAO_Singleton_Manager instance is being shut
00219   // down.  This object manager should be the last one to be shut
00220   // down.
00221   this->object_manager_state_ = OBJ_MAN_SHUTTING_DOWN;
00222
00223   // If another Object_Manager has registered for termination, do it.
00224   if (this->next_)
00225     {
00226       this->next_->fini ();
00227       this->next_ = 0;  // Protect against recursive calls.
00228     }
00229
00230   // Call all registered cleanup hooks, in reverse order of
00231   // registration.
00232   this->exit_info_.call_hooks ();
00233
00234 //   // Only clean up preallocated objects when the singleton Instance is being
00235 //   // destroyed.
00236 //   if (this == the_instance)
00237 //     {
00238 // #if ! defined (ACE_HAS_STATIC_PREALLOCATION)
00239 //       // Cleanup the dynamically preallocated objects.
00240 // # if defined (ACE_MT_SAFE) && (ACE_MT_SAFE != 0)
00241 //       // @@ No MT-specific preallocated objects yet.
00242 // # endif  /* ACE_MT_SAFE */
00243 //       // @@ No preallocated objects yet.
00244 // #endif  /* ! ACE_HAS_STATIC_PREALLOCATION */
00245 //     }
00246
00247   delete this-> default_mask_;
00248   this->default_mask_ = 0;
00249
00250 #if defined (ACE_MT_SAFE) && (ACE_MT_SAFE != 0)
00251   delete this->internal_lock_;
00252   this->internal_lock_ = 0;
00253 #endif /* ACE_MT_SAFE */
00254
00255   // Indicate that this TAO_Singleton_Manager instance has been shut down.
00256   this->object_manager_state_ = OBJ_MAN_SHUT_DOWN;
00257
00258   if (this == the_instance)
00259     the_instance = 0;
00260
00261   if (this->dynamically_allocated_)
00262     {
00263       delete this;
00264     }
00265
00266   return 0;
00267 }

int TAO_Singleton_Manager::init (  int  register_with_object_manager  )


Explicitly initialize the TAO_Singleton_Manager, in addition to explicitly registering (or not registering) with the ACE_Object_Manager.

Definition at line 142 of file TAO_Singleton_Manager.cpp.

References ACE_CLEANUP_FUNC, ACE_NEW_RETURN, ACE_Object_Manager::at_exit(), registered_with_object_manager_, ACE_OS::sigfillset(), ACE_Object_Manager_Base::starting_up_i(), and the_instance.

00143 {
00144   if (this->starting_up_i ())
00145     {
00146       // First, indicate that this TAO_Singleton_Manager instance is being
00147       // initialized.
00148       this->object_manager_state_ = OBJ_MAN_INITIALIZING;
00149
00150       if (this == the_instance)
00151         {
00152 # if defined (ACE_MT_SAFE) && (ACE_MT_SAFE != 0)
00153           // @@ No MT-specific pre-allocated objects.
00154 # endif /* ACE_MT_SAFE */
00155         }
00156
00157       ACE_NEW_RETURN (this->default_mask_, sigset_t, -1);
00158       ACE_OS::sigfillset (this->default_mask_);
00159
00160       // Finally, indicate that the TAO_Singleton_Manager instance has
00161       // been initialized.
00162       this->object_manager_state_ = OBJ_MAN_INITIALIZED;
00163
00164       return 0;
00165     }
00166
00167   // @@ This strange looking code is what provides the "register on
00168   //    explicit call to init()" semantics.  This was needed since the
00169   //    TAO_Singleton_Manager constructor invokes init().
00170   //    Unfortunately, I couldn't get rid of that init() call without
00171   //    breaking things.  The fact things broke needs to be
00172   //    investigated further.
00173   if (this->registered_with_object_manager_ != -1
00174       && register_with_object_manager != this->registered_with_object_manager_)
00175     {
00176       // An attempt was made to register the TAO_Singleton_Manager
00177       // with a manager of a different type from the one it is
00178       // currently registered with.  This indicates a problem with the
00179       // caller's logic.
00180
00181       errno = EINVAL;
00182       return -1;
00183     }
00184
00185   if (this->registered_with_object_manager_ == -1)
00186     {
00187       if (register_with_object_manager == 1
00188           && ACE_Object_Manager::at_exit (
00189                this,
00190                (ACE_CLEANUP_FUNC) TAO_SINGLETON_MANAGER_CLEANUP_DESTROYER_NAME,
00191                0) != 0)
00192         return -1;
00193
00194       this->registered_with_object_manager_ =
00195         register_with_object_manager;
00196     }
00197
00198   // Had already initialized.
00199   return 1;
00200 }

int TAO_Singleton_Manager::init (  void   )  [virtual]


Explicitly initialize.

Implements ACE_Object_Manager_Base.

Definition at line 127 of file TAO_Singleton_Manager.cpp.

References registered_with_object_manager_.

Referenced by CORBA::ORB_init(), and PortableInterceptor::register_orb_initializer().

00128 {
00129   if (this->registered_with_object_manager_ == -1)
00130     {
00131       // Register the TAO_Singleton_Manager with the
00132       // ACE_Object_Manager.
00133       int register_with_object_manager = 1;
00134
00135       return this->init (register_with_object_manager);
00136     }
00137
00138   return 1;  // Already initialized.
00139 }

TAO_Singleton_Manager * TAO_Singleton_Manager::instance (  void   )  [static]


Accessor to singleton instance.

Definition at line 101 of file TAO_Singleton_Manager.cpp.

References ACE_ASSERT, ACE_NEW_RETURN, ACE_Object_Manager_Base::dynamically_allocated_, and the_instance.

Referenced by at_exit(), default_mask(), CORBA::ORB_init(), PortableInterceptor::register_orb_initializer(), and thread_hook().

00102 {
00103   // This function should be called during construction of static
00104   // instances, or before any other threads have been created in the
00105   // process.  So, it's not thread safe.
00106
00107   if (the_instance == 0)
00108     {
00109       TAO_Singleton_Manager *instance_pointer = 0;
00110
00111       ACE_NEW_RETURN (instance_pointer,
00112                       TAO_Singleton_Manager,
00113                       0);
00114       ACE_ASSERT (instance_pointer == the_instance);
00115
00116       instance_pointer->dynamically_allocated_ = 1;
00117
00118       return instance_pointer;
00119     }
00120   else
00121     {
00122       return the_instance;
00123     }
00124 }

TAO_Singleton_Manager& TAO_Singleton_Manager::operator= (  const TAO_Singleton_Manager &   )  [private]


int TAO_Singleton_Manager::shutting_down (  void   )  [static]


Returns 1 after the TAO_Singleton_Manager has been destroyed. See ACE_Object_Manager::shutting_down for more information.

Definition at line 279 of file TAO_Singleton_Manager.cpp.

References ACE_Object_Manager_Base::shutting_down_i(), and the_instance.

Referenced by TAO_TSS_Singleton< TYPE, ACE_LOCK >::instance(), and TAO_Singleton< TYPE, ACE_LOCK >::instance().

00280 {
00281   return
00282     the_instance
00283     ? the_instance->shutting_down_i ()
00284     : 1;
00285 }

int TAO_Singleton_Manager::starting_up (  void   )  [static]


Returns 1 before the TAO_Singleton_Manager has been constructed. See ACE_Object_Manager::starting_up for more information.

Definition at line 270 of file TAO_Singleton_Manager.cpp.

References ACE_Object_Manager_Base::starting_up_i(), and the_instance.

Referenced by TAO_TSS_Singleton< TYPE, ACE_LOCK >::instance(), and TAO_Singleton< TYPE, ACE_LOCK >::instance().

00271 {
00272   return
00273     the_instance
00274     ? the_instance->starting_up_i ()
00275     : 1;
00276 }

ACE_Thread_Hook * TAO_Singleton_Manager::thread_hook (  ACE_Thread_Hook *  new_thread_hook  )  [static]


Returns the existing thread hook and assign a new_thread_hook.

Definition at line 92 of file TAO_Singleton_Manager.cpp.

References instance(), and thread_hook_.

00093 {
00094   TAO_Singleton_Manager *tao_om = TAO_Singleton_Manager::instance ();
00095   ACE_Thread_Hook *old_hook = tao_om->thread_hook_;
00096   tao_om->thread_hook_ = new_thread_hook;
00097   return old_hook;
00098 }

ACE_Thread_Hook * TAO_Singleton_Manager::thread_hook (  void   )  [static]


Returns the current thread hook for the process.

Definition at line 86 of file TAO_Singleton_Manager.cpp.

References instance(), and thread_hook_.

00087 {
00088   return TAO_Singleton_Manager::instance ()->thread_hook_;
00089 }

Member Data Documentation

sigset_t* TAO_Singleton_Manager::default_mask_ [private]


Default signal set used, for example, in ACE_Sig_Guard.

Definition at line 144 of file TAO_Singleton_Manager.h.

Referenced by default_mask().

ACE_OS_Exit_Info TAO_Singleton_Manager::exit_info_ [private]


For at_exit support.

Definition at line 150 of file TAO_Singleton_Manager.h.

int TAO_Singleton_Manager::registered_with_object_manager_ [private]


Indicates if TAO_Singleton_Manager is registered with the ACE_Object_Manager.

Definition at line 154 of file TAO_Singleton_Manager.h.

Referenced by init().

ACE_Thread_Hook* TAO_Singleton_Manager::thread_hook_ [private]


Thread hook that's used by this process.

Definition at line 147 of file TAO_Singleton_Manager.h.

Referenced by thread_hook().

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 13:16:21 2008 for TAO by doxygen 1.3.6
