TAO_Protocol_Factory Class Reference

#include <Protocol_Factory.h>

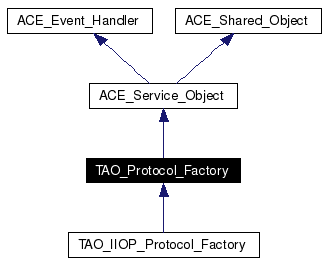

Inheritance diagram for TAO_Protocol_Factory:

Inheritance graph
[legend]

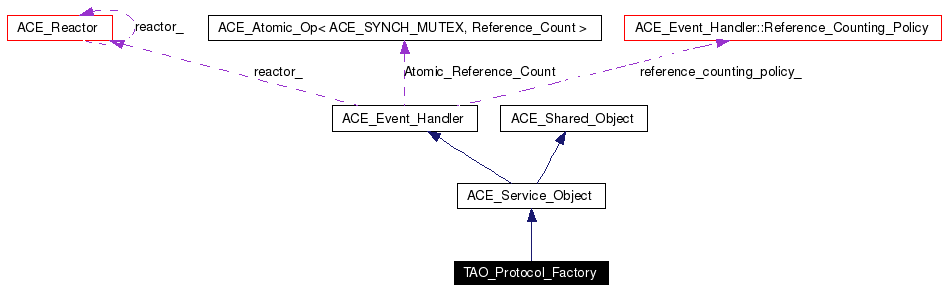

Collaboration diagram for TAO_Protocol_Factory:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_Protocol_Factory (CORBA::ULong tag)
virtual ~TAO_Protocol_Factory (void)
virtual int init (int argc, ACE_TCHAR *argv[])=0
 Initialization hook.

CORBA::ULong tag (void) const
virtual int match_prefix (const ACE_CString &prefix)=0
 Verify prefix is a match.

virtual const char * prefix (void) const=0
 Returns the prefix used by the protocol.

virtual char options_delimiter (void) const=0
virtual TAO_Acceptor * make_acceptor (void)=0
 Create an acceptor.

virtual TAO_Connector * make_connector (void)=0
 Create a connector.

virtual int requires_explicit_endpoint (void) const=0

Private Attributes

CORBA::ULong const  tag_
 IOP protocol tag.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Protocol_Factory::TAO_Protocol_Factory (  CORBA::ULong  tag  )


Definition at line 11 of file Protocol_Factory.cpp.

00012   : tag_ (tag)
00013 {
00014 }

TAO_Protocol_Factory::~TAO_Protocol_Factory (  void   )  [virtual]


Definition at line 16 of file Protocol_Factory.cpp.

00017 {
00018 }

Member Function Documentation

virtual int TAO_Protocol_Factory::init (  int  argc,
ACE_TCHAR *  argv[]
)  [pure virtual]


Initialization hook.

Reimplemented from ACE_Shared_Object.

Implemented in TAO_IIOP_Protocol_Factory.

virtual TAO_Acceptor* TAO_Protocol_Factory::make_acceptor (  void   )  [pure virtual]


Create an acceptor.

Implemented in TAO_IIOP_Protocol_Factory.

virtual TAO_Connector* TAO_Protocol_Factory::make_connector (  void   )  [pure virtual]


Create a connector.

Implemented in TAO_IIOP_Protocol_Factory.

virtual int TAO_Protocol_Factory::match_prefix (  const ACE_CString &  prefix  )  [pure virtual]


Verify prefix is a match.

Implemented in TAO_IIOP_Protocol_Factory.

virtual char TAO_Protocol_Factory::options_delimiter (  void   )  const [pure virtual]


Return the character used to mark where an endpoint ends and where its options begin.

Implemented in TAO_IIOP_Protocol_Factory.

Referenced by TAO_Acceptor_Registry::extract_endpoint_options().

virtual const char* TAO_Protocol_Factory::prefix (  void   )  const [pure virtual]


Returns the prefix used by the protocol.

Implemented in TAO_IIOP_Protocol_Factory.

virtual int TAO_Protocol_Factory::requires_explicit_endpoint (  void   )  const [pure virtual]


Some protocols should not create a default endpoint unless the user specifies a -ORBEndpoint option. For example, local IPC (aka UNIX domain sockets) is unable to remove the rendesvouz point if the server crashes. For those protocols it is better to create the endpoint only if the user requests one.

Implemented in TAO_IIOP_Protocol_Factory.

CORBA::ULong TAO_Protocol_Factory::tag (  void   )  const


The protocol tag, each concrete class will have a specific tag value.

Definition at line 21 of file Protocol_Factory.cpp.

00022 {
00023   return this->tag_;
00024 }

Member Data Documentation

CORBA::ULong const TAO_Protocol_Factory::tag_ [private]


IOP protocol tag.

Definition at line 76 of file Protocol_Factory.h.

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 13:16:02 2008 for TAO by doxygen 1.3.6
