TAO_Default_Endpoint_Selector_Factory Class Reference

Factory for initializing and obtaining appropriate . More...

#include <Default_Endpoint_Selector_Factory.h>

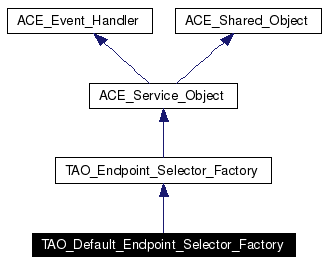

Inheritance diagram for TAO_Default_Endpoint_Selector_Factory:

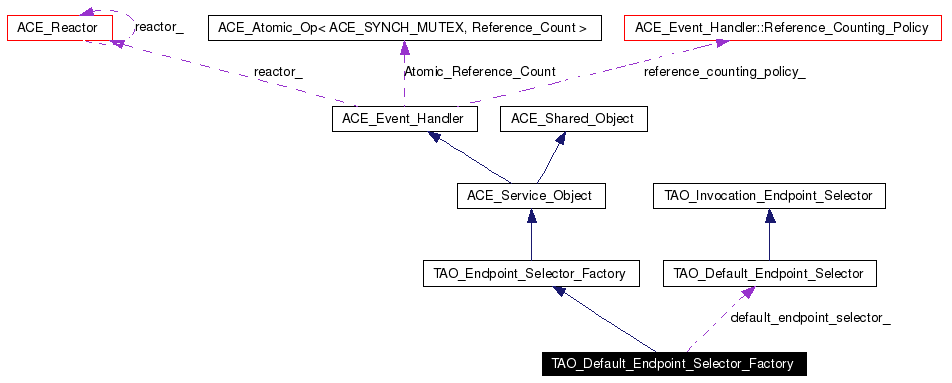

[legend]Collaboration diagram for TAO_Default_Endpoint_Selector_Factory:

[legend]List of all members.

Public Member Functions
	TAO_Default_Endpoint_Selector_Factory (void)
	Constructor.
virtual	~TAO_Default_Endpoint_Selector_Factory (void)
	Destructor.
virtual TAO_Invocation_Endpoint_Selector *	get_selector (void)
Protected Attributes
TAO_Default_Endpoint_Selector *const	default_endpoint_selector_
Private Member Functions
	TAO_Default_Endpoint_Selector_Factory (TAO_Default_Endpoint_Selector_Factory const &)
void	operator= (TAO_Default_Endpoint_Selector_Factory const &)

---

Detailed Description

Factory for initializing and obtaining appropriate .

Used by Invocation classes to intialize its endpoint selection strategy and state based on the effective policies. Endpoint selection strategies are stateless objects - all the state they need is contained by Invocation in . Thus, rather than allocating an endpoint selection strategy object for each Invocation, the factory simply returns the appropriate one from the set preallocated in the ORB_Core. One endpoint selection strategy object can be used by many invocations concurrently.

Definition at line 52 of file Default_Endpoint_Selector_Factory.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Default_Endpoint_Selector_Factory::TAO_Default_Endpoint_Selector_Factory (  void   )

Constructor. Definition at line 16 of file Default_Endpoint_Selector_Factory.cpp. : default_endpoint_selector_ (new TAO_Default_Endpoint_Selector) { }

TAO_Default_Endpoint_Selector_Factory::~TAO_Default_Endpoint_Selector_Factory (  void   )  [virtual]

Destructor. Definition at line 22 of file Default_Endpoint_Selector_Factory.cpp. References default_endpoint_selector_. { delete this->default_endpoint_selector_; }

TAO_Default_Endpoint_Selector_Factory::TAO_Default_Endpoint_Selector_Factory (  TAO_Default_Endpoint_Selector_Factory const &   )  [private]

---

Member Function Documentation

TAO_Invocation_Endpoint_Selector * TAO_Default_Endpoint_Selector_Factory::get_selector (  void   )  [virtual]

Get an Invocation's endpoint selection strategy and initialize the endpoint selection state instance. Implements TAO_Endpoint_Selector_Factory. Definition at line 29 of file Default_Endpoint_Selector_Factory.cpp. References default_endpoint_selector_. { // Trivial endpoint selector. Just return the default selector. return this->default_endpoint_selector_; }

void TAO_Default_Endpoint_Selector_Factory::operator= (  TAO_Default_Endpoint_Selector_Factory const &   )  [private]

---

Member Data Documentation

TAO_Default_Endpoint_Selector* const TAO_Default_Endpoint_Selector_Factory::default_endpoint_selector_ [protected]

The possible endpoint selector strategies that can be returned by this factory Definition at line 77 of file Default_Endpoint_Selector_Factory.h. Referenced by get_selector(), and ~TAO_Default_Endpoint_Selector_Factory().

---

The documentation for this class was generated from the following files:

• Default_Endpoint_Selector_Factory.h
• Default_Endpoint_Selector_Factory.cpp

---
