ACE_Utils::UUID Class Reference

#include <UUID.h>

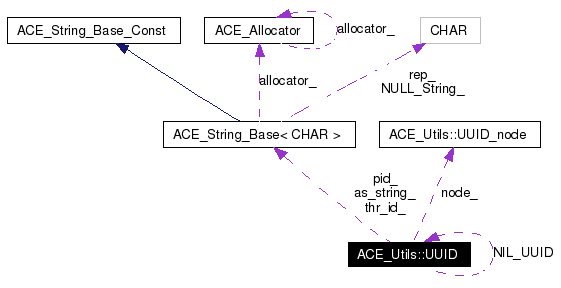

Collaboration diagram for ACE_Utils::UUID:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 UUID (void)
 Constructor.

 UUID (const ACE_CString &uuidString)
 Construct a UUID from a string representation of an UUID.

 UUID (const UUID &right)
 ~UUID (void)
ACE_UINT32 timeLow (void) const
 Data Members for Class Attributes.

void timeLow (ACE_UINT32)
ACE_UINT16 timeMid (void) const
void timeMid (ACE_UINT16)
ACE_UINT16 timeHiAndVersion (void) const
void timeHiAndVersion (ACE_UINT16)
u_char clockSeqHiAndReserved (void) const
void clockSeqHiAndReserved (u_char)
u_char clockSeqLow (void) const
void clockSeqLow (u_char)
UUID_node * node (void) const
void node (UUID_node *)
ACE_CString * thr_id (void)
void thr_id (char *)
ACE_CString * pid (void)
void pid (char *)
const ACE_CString * to_string (void)
 Returns a string representation of the UUID.

void from_string (const ACE_CString &uuid_string)
 Set the value using a string.

bool operator== (const UUID &right) const
 Equality Operations.

bool operator!= (const UUID &right) const

Static Public Attributes

UUID NIL_UUID

Private Member Functions

void from_string_i (const ACE_CString &uuidString)
 Relational Operations.

UUID & operator= (const UUID &)

Private Attributes

ACE_UINT32 timeLow_
 Data Members for Class Attributes.

ACE_UINT16 timeMid_
ACE_UINT16 timeHiAndVersion_
u_char clockSeqHiAndReserved_
u_char clockSeqLow_
UUID_node * node_
bool node_release_
ACE_CString thr_id_
ACE_CString pid_
ACE_CString * as_string_

Constructor & Destructor Documentation

ACE_Utils::UUID::UUID (  void   )


Constructor.

Construct a nil UUID. Such a UUID has every one of it's data elements set to zero.

Definition at line 55 of file UUID.cpp.

References ACE_NEW.

00056     : timeLow_ (0),
00057       timeMid_ (0),
00058       timeHiAndVersion_ (0),
00059       clockSeqHiAndReserved_ (0),
00060       clockSeqLow_ (0),
00061       node_ (0),
00062       node_release_ (true),
00063       as_string_ (0)
00064   {
00065     ACE_NEW (node_,
00066              UUID_node);
00067   }

ACE_Utils::UUID::UUID (  const ACE_CString &  uuidString  )


Construct a UUID from a string representation of an UUID.

Definition at line 70 of file UUID.cpp.

References ACE_CString, ACE_NEW, and from_string_i().

00071     : timeLow_ (0),
00072       timeMid_ (0),
00073       timeHiAndVersion_ (0),
00074       clockSeqHiAndReserved_ (0),
00075       clockSeqLow_ (0),
00076       node_ (0),
00077       node_release_ (true),
00078       as_string_ (0)
00079   {
00080     ACE_NEW (node_,
00081              UUID_node);
00082
00083     this->from_string_i (uuid_string);
00084   }

ACE_Utils::UUID::UUID (  const UUID &  right  )


Definition at line 86 of file UUID.cpp.

References ACE_NEW, and node_.

00087     : timeLow_ (right.timeLow_),
00088       timeMid_ (right.timeMid_),
00089       timeHiAndVersion_ (right.timeHiAndVersion_),
00090       clockSeqHiAndReserved_ (right.clockSeqHiAndReserved_),
00091       clockSeqLow_ (right.clockSeqLow_),
00092       as_string_ (0)
00093   {
00094     ACE_NEW (node_,
00095              UUID_node (*right.node_));
00096   }

ACE_Utils::UUID::~UUID (  void   )


Definition at line 98 of file UUID.cpp.

References as_string_, and node_release_.

00099   {
00100     if (node_release_)
00101       delete node_;
00102
00103     if (as_string_ != 0)
00104       delete as_string_;
00105   }

Member Function Documentation

ACE_INLINE void ACE_Utils::UUID::clockSeqHiAndReserved (  u_char   )


Definition at line 54 of file UUID.inl.

References clockSeqHiAndReserved_.

00055   {
00056     this->clockSeqHiAndReserved_ = clockSeqHiAndReserved;
00057   }

ACE_INLINE u_char ACE_Utils::UUID::clockSeqHiAndReserved (  void   )  const


Definition at line 48 of file UUID.inl.

References clockSeqHiAndReserved_.

Referenced by from_string_i(), ACE_Utils::UUID_Generator::generateUUID(), and operator==().

00049   {
00050     return this->clockSeqHiAndReserved_;
00051   }

ACE_INLINE void ACE_Utils::UUID::clockSeqLow (  u_char   )


Definition at line 66 of file UUID.inl.

References clockSeqLow_.

00067   {
00068     this->clockSeqLow_ = clockSeqLow;
00069   }

ACE_INLINE u_char ACE_Utils::UUID::clockSeqLow (  void   )  const


Definition at line 60 of file UUID.inl.

References clockSeqLow_.

Referenced by from_string_i(), ACE_Utils::UUID_Generator::generateUUID(), and operator==().

00061   {
00062     return this->clockSeqLow_;
00063   }

ACE_INLINE void ACE_Utils::UUID::from_string (  const ACE_CString &  uuid_string  )


Set the value using a string.

Definition at line 112 of file UUID.inl.

References ACE_CString, and from_string_i().

00113   {
00114     this->from_string_i (uuidString);
00115   }

void ACE_Utils::UUID::from_string_i (  const ACE_CString &  uuid_string  )  [private]


Relational Operations.

Special case for the nil UUID.

Support versions 1, 3, and 4 only

Definition at line 184 of file UUID.cpp.

References ACE_ASSERT, ACE_CString, ACE_DEBUG, ACE_ERROR, ACE_String_Base< CHAR >::c_str(), clockSeqHiAndReserved(), clockSeqHiAndReserved_, clockSeqLow(), clockSeqLow_, ACE_String_Base< CHAR >::find(), ACE_String_Base< CHAR >::length(), LM_DEBUG, LM_ERROR, NIL_UUID, ACE_Utils::UUID_node::nodeID(), ACE_Utils::UUID_node::NodeID, ssize_t, ACE_String_Base< CHAR >::substr(), timeHiAndVersion(), timeHiAndVersion_, timeLow(), timeLow_, timeMid(), timeMid_, and to_string().

Referenced by from_string(), and UUID().

00185   {
00186     if (uuid_string.length() < NIL_UUID.to_string ()->length ())
00187       {
00188         ACE_ERROR ((LM_ERROR,
00189                     "%N ACE_UUID::from_string_i - "
00190                     "IllegalArgument(incorrect string length)\n"));
00191         return;
00192       }
00193
00194     /// Special case for the nil UUID.
00195     if (uuid_string == *NIL_UUID.to_string ())
00196       {
00197         bool copy_constructor_not_supported = false;
00198         ACE_ASSERT (copy_constructor_not_supported);
00199         //*this = NIL_UUID;
00200         ACE_UNUSED_ARG (copy_constructor_not_supported);
00201         return;
00202       }
00203
00204     unsigned int timeLow;
00205     unsigned int timeMid;
00206     unsigned int timeHiAndVersion;
00207     unsigned int clockSeqHiAndReserved;
00208     unsigned int clockSeqLow;
00209     unsigned int node [UUID_node::NODE_ID_SIZE];
00210     char thr_pid_buf [BUFSIZ];
00211
00212     if (uuid_string.length() == NIL_UUID.to_string()->length())
00213       {
00214         // This might seem quite strange this being in ACE, but it
00215         // seems to be a bit difficult to write a facade for ::sscanf
00216         // because some compilers dont support vsscanf, including
00217         // MSVC. It appears that most platforms support sscanf though
00218         // so we need to use it directly.
00219         const int nScanned =
00220 #if defined (ACE_HAS_TR24731_2005_CRT)
00221           sscanf_s (
00222 #else
00223           ::sscanf(
00224 #endif
00225                    uuid_string.c_str(),
00226                    "%8x-%4x-%4x-%2x%2x-%2x%2x%2x%2x%2x%2x",
00227                    &timeLow,
00228                    &timeMid,
00229                    &timeHiAndVersion,
00230                    &clockSeqHiAndReserved,
00231                    &clockSeqLow,
00232                    &node[0],
00233                    &node[1],
00234                    &node[2],
00235                    &node[3],
00236                    &node[4],
00237                    &node[5]
00238                    );
00239
00240         if (nScanned != 11)
00241           {
00242             ACE_DEBUG ((LM_DEBUG,
00243                         "UUID::from_string_i - "
00244                         "IllegalArgument(invalid string representation)\n"));
00245             return;
00246           }
00247       }
00248     else
00249       {
00250         const int nScanned =
00251 #if defined (ACE_HAS_TR24731_2005_CRT)
00252           sscanf_s (uuid_string.c_str(),
00253                     "%8x-%4x-%4x-%2x%2x-%2x%2x%2x%2x%2x%2x-%s",
00254                     &timeLow,
00255                     &timeMid,
00256                     &timeHiAndVersion,
00257                     &clockSeqHiAndReserved,
00258                     &clockSeqLow,
00259                     &node[0],
00260                     &node[1],
00261                     &node[2],
00262                     &node[3],
00263                     &node[4],
00264                     &node[5],
00265                     thr_pid_buf,
00266                     BUFSIZ
00267                     );
00268 #else
00269           ::sscanf (uuid_string.c_str(),
00270                     "%8x-%4x-%4x-%2x%2x-%2x%2x%2x%2x%2x%2x-%s",
00271                     &timeLow,
00272                     &timeMid,
00273                     &timeHiAndVersion,
00274                     &clockSeqHiAndReserved,
00275                     &clockSeqLow,
00276                     &node[0],
00277                     &node[1],
00278                     &node[2],
00279                     &node[3],
00280                     &node[4],
00281                     &node[5],
00282                     thr_pid_buf
00283                     );
00284 #endif /* ACE_HAS_TR24731_2005_CRT */
00285
00286         if (nScanned != 12)
00287           {
00288             ACE_DEBUG ((LM_DEBUG,
00289                         "ACE_UUID::from_string_i - "
00290                         "IllegalArgument(invalid string representation)\n"));
00291             return;
00292           }
00293       }
00294
00295     this->timeLow_ = static_cast<ACE_UINT32> (timeLow);
00296     this->timeMid_ = static_cast<ACE_UINT16> (timeMid);
00297     this->timeHiAndVersion_ = static_cast<ACE_UINT16> (timeHiAndVersion);
00298     this->clockSeqHiAndReserved_ = static_cast<u_char> (clockSeqHiAndReserved);
00299     this->clockSeqLow_ = static_cast<u_char> (clockSeqLow);
00300
00301     UUID_node::NodeID nodeID;
00302     for (int i = 0; i < UUID_node::NODE_ID_SIZE; ++i)
00303       nodeID [i] = static_cast<u_char> (node[i]);
00304
00305     this->node_->nodeID (nodeID);
00306
00307     // Support varient 10- only
00308     if ((this->clockSeqHiAndReserved_ & 0xc0) != 0x80 && (this->clockSeqHiAndReserved_ & 0xc0) != 0xc0)
00309       {
00310         ACE_DEBUG ((LM_DEBUG,
00311                     "ACE_UUID::from_string_i - "
00312                     "IllegalArgument(unsupported variant)\n"));
00313         return;
00314       }
00315
00316     /// Support versions 1, 3, and 4 only
00317     ACE_UINT16 V1 = this->timeHiAndVersion_;
00318
00319     if ((V1 & 0xF000) != 0x1000 &&
00320         (V1 & 0xF000) != 0x3000 &&
00321       (V1 & 0xF000) != 0x4000)
00322       {
00323         ACE_DEBUG ((LM_DEBUG,
00324                     "ACE_UUID::from_string_i - "
00325                     "IllegalArgument(unsupported version)\n"));
00326         return;
00327       }
00328     if ((this->clockSeqHiAndReserved_ & 0xc0) == 0xc0)
00329       {
00330         if (uuid_string.length() == NIL_UUID.to_string()->length())
00331           {
00332             ACE_DEBUG ((LM_DEBUG,
00333                       "ACE_UUID::from_string_i - "
00334                         "IllegalArgument (Missing Thread and Process Id)\n"));
00335             return;
00336           }
00337         ACE_CString thr_pid_str (thr_pid_buf);
00338         ssize_t pos = static_cast<ssize_t> (thr_pid_str.find ('-'));
00339         if (pos == -1)
00340           ACE_DEBUG ((LM_DEBUG,
00341                       "ACE_UUID::from_string_i - "
00342                       "IllegalArgument (Thread and Process Id format incorrect)\n"));
00343
00344         this->thr_id_ = thr_pid_str.substr (0, pos);
00345       this->pid_ = thr_pid_str.substr (pos+1, thr_pid_str.length ()-pos-1);
00346       }
00347   }

ACE_INLINE void ACE_Utils::UUID::node (  UUID_node *   )


Definition at line 78 of file UUID.inl.

References node_release_.

00079   {
00080     if (node_release_)
00081       delete node_;
00082
00083     this->node_ = node;
00084     node_release_ = false;
00085   }

ACE_INLINE UUID_node * ACE_Utils::UUID::node (  void   )  const


Definition at line 72 of file UUID.inl.

Referenced by ACE_Utils::UUID_Generator::generateUUID(), and operator==().

00073   {
00074     return this->node_;
00075   }

ACE_INLINE bool ACE_Utils::UUID::operator!= (  const UUID &  right  )  const


Definition at line 134 of file UUID.inl.

00135   {
00136     return !(*this == right);
00137   }

UUID& ACE_Utils::UUID::operator= (  const UUID &   )  [private]


ACE_INLINE bool ACE_Utils::UUID::operator== (  const UUID &  right  )  const


Equality Operations.

Definition at line 118 of file UUID.inl.

References clockSeqHiAndReserved(), clockSeqHiAndReserved_, clockSeqLow(), clockSeqLow_, node(), timeHiAndVersion(), timeHiAndVersion_, timeLow(), timeLow_, timeMid(), and timeMid_.

00119   {
00120     if ((this->timeLow_ != right.timeLow ()) ||
00121         (this->timeMid_ != right.timeMid ()) ||
00122         (this->timeHiAndVersion_ != right.timeHiAndVersion ()) ||
00123         (this->clockSeqHiAndReserved_ != right.clockSeqHiAndReserved ()) ||
00124         (this->clockSeqLow_ != right.clockSeqLow ()) ||
00125         (*this->node_ != *right.node ()))
00126       {
00127         return false;
00128       }
00129
00130       return true;
00131   }

ACE_INLINE void ACE_Utils::UUID::pid (  char *   )


Definition at line 106 of file UUID.inl.

00107   {
00108     this->pid_ = pid;
00109   }

ACE_INLINE ACE_CString * ACE_Utils::UUID::pid (  void   )


Definition at line 100 of file UUID.inl.

Referenced by ACE_Utils::UUID_Generator::generateUUID().

00101   {
00102     return &this->pid_;
00103   }

ACE_INLINE void ACE_Utils::UUID::thr_id (  char *   )


Definition at line 94 of file UUID.inl.

00095   {
00096     this->thr_id_ = thr_id;
00097   }

ACE_INLINE ACE_CString * ACE_Utils::UUID::thr_id (  void   )


Definition at line 88 of file UUID.inl.

Referenced by ACE_Utils::UUID_Generator::generateUUID().

00089   {
00090     return &this->thr_id_;
00091   }

ACE_INLINE void ACE_Utils::UUID::timeHiAndVersion (  ACE_UINT16   )


Definition at line 42 of file UUID.inl.

References timeHiAndVersion_.

00043   {
00044     this->timeHiAndVersion_ = timeHiAndVersion;
00045   }

ACE_INLINE ACE_UINT16 ACE_Utils::UUID::timeHiAndVersion (  void   )  const


Definition at line 36 of file UUID.inl.

References timeHiAndVersion_.

Referenced by from_string_i(), ACE_Utils::UUID_Generator::generateUUID(), and operator==().

00037   {
00038     return this->timeHiAndVersion_;
00039   }

ACE_INLINE void ACE_Utils::UUID::timeLow (  ACE_UINT32   )


Definition at line 18 of file UUID.inl.

References timeLow_.

00019   {
00020     this->timeLow_ = timelow;
00021   }

ACE_INLINE ACE_UINT32 ACE_Utils::UUID::timeLow (  void   )  const


Data Members for Class Attributes.

Definition at line 12 of file UUID.inl.

References timeLow_.

Referenced by from_string_i(), ACE_Utils::UUID_Generator::generateUUID(), and operator==().

00013   {
00014     return this->timeLow_;
00015   }

ACE_INLINE void ACE_Utils::UUID::timeMid (  ACE_UINT16   )


Definition at line 30 of file UUID.inl.

References timeMid_.

00031   {
00032     this->timeMid_ = time_mid;
00033   }

ACE_INLINE ACE_UINT16 ACE_Utils::UUID::timeMid (  void   )  const


Definition at line 24 of file UUID.inl.

References timeMid_.

Referenced by from_string_i(), ACE_Utils::UUID_Generator::generateUUID(), and operator==().

00025   {
00026     return this->timeMid_;
00027   }

const ACE_CString * ACE_Utils::UUID::to_string (  void   )


Returns a string representation of the UUID.

Only compute the string representation once.

Definition at line 108 of file UUID.cpp.

References ACE_CString, ACE_NEW_NORETURN, ACE_NEW_RETURN, as_string_, ACE_String_Base< CHAR >::c_str(), ACE_String_Base< CHAR >::length(), ACE_Utils::UUID_node::nodeID(), and ACE_OS::sprintf().

Referenced by from_string_i().

00109   {
00110     /// Only compute the string representation once.
00111     if (as_string_ == 0)
00112       {
00113         // Get a buffer exactly the correct size. Use the nil UUID as a
00114         // gauge.  Don't forget the trailing nul.
00115         size_t UUID_STRING_LENGTH = 36 + thr_id_.length () + pid_.length ();
00116         char *buf = 0;
00117
00118         if ((thr_id_.length () != 0) && (pid_.length () != 0))
00119           {
00120             UUID_STRING_LENGTH += 2; //for '-'
00121             ACE_NEW_RETURN (buf,
00122                             char[UUID_STRING_LENGTH + 1],
00123                             0);
00124
00125             ACE_OS::sprintf(buf,
00126                             "%8.8x-%4.4x-%4.4x-%2.2x%2.2x-%2.2x%2.2x%2.2x%2.2x%2.2x%2.2x-%s-%s",
00127                             this->timeLow_,
00128                             this->timeMid_,
00129                             this->timeHiAndVersion_,
00130                             this->clockSeqHiAndReserved_,
00131                             this->clockSeqLow_,
00132                             (this->node_->nodeID ()) [0],
00133                             (this->node_->nodeID ()) [1],
00134                             (this->node_->nodeID ()) [2],
00135                             (this->node_->nodeID ()) [3],
00136                             (this->node_->nodeID ()) [4],
00137                             (this->node_->nodeID ()) [5],
00138                             thr_id_.c_str (),
00139                             pid_.c_str ()
00140                             );
00141           }
00142         else
00143           {
00144             ACE_NEW_RETURN (buf,
00145                             char[UUID_STRING_LENGTH + 1],
00146                             0);
00147
00148             ACE_OS::sprintf (buf,
00149                              "%8.8x-%4.4x-%4.4x-%2.2x%2.2x-%2.2x%2.2x%2.2x%2.2x%2.2x%2.2x",
00150                              this->timeLow_,
00151                              this->timeMid_,
00152                              this->timeHiAndVersion_,
00153                              this->clockSeqHiAndReserved_,
00154                              this->clockSeqLow_,
00155                              (this->node_->nodeID ()) [0],
00156                              (this->node_->nodeID ()) [1],
00157                              (this->node_->nodeID ()) [2],
00158                              (this->node_->nodeID ()) [3],
00159                              (this->node_->nodeID ()) [4],
00160                              (this->node_->nodeID ()) [5]
00161                              );
00162           }
00163
00164         // We allocated 'buf' above dynamically, so we shouldn't use
00165         // ACE_NEW_RETURN here to avoid a possible memory leak.
00166         ACE_NEW_NORETURN (this->as_string_,
00167                           ACE_CString (buf, UUID_STRING_LENGTH));
00168
00169         // we first free the dynamically allocated 'buf'.
00170         delete [] buf;
00171
00172         // then we test that ACE_NEW succeded for 'as_string_'
00173         // if not, we return 0 (NULL) to indicate failure.
00174         if( this->as_string_ == 0 )
00175         {
00176            return 0;
00177         }
00178       }
00179
00180     return as_string_;
00181   }

Member Data Documentation

ACE_CString* ACE_Utils::UUID::as_string_ [private]


The string representation of the UUID. This is created and updated only on demand.

Definition at line 152 of file UUID.h.

Referenced by to_string(), and ~UUID().

u_char ACE_Utils::UUID::clockSeqHiAndReserved_ [private]


Definition at line 143 of file UUID.h.

Referenced by clockSeqHiAndReserved(), from_string_i(), and operator==().

u_char ACE_Utils::UUID::clockSeqLow_ [private]


Definition at line 144 of file UUID.h.

Referenced by clockSeqLow(), from_string_i(), and operator==().

UUID ACE_Utils::UUID::NIL_UUID [static]


Definition at line 51 of file UUID.cpp.

Referenced by from_string_i().

UUID_node* ACE_Utils::UUID::node_ [private]


Definition at line 145 of file UUID.h.

Referenced by UUID().

bool ACE_Utils::UUID::node_release_ [private]


Definition at line 146 of file UUID.h.

Referenced by node(), and ~UUID().

ACE_CString ACE_Utils::UUID::pid_ [private]


Definition at line 148 of file UUID.h.

ACE_CString ACE_Utils::UUID::thr_id_ [private]


Definition at line 147 of file UUID.h.

ACE_UINT16 ACE_Utils::UUID::timeHiAndVersion_ [private]


Definition at line 142 of file UUID.h.

Referenced by from_string_i(), operator==(), and timeHiAndVersion().

ACE_UINT32 ACE_Utils::UUID::timeLow_ [private]


Data Members for Class Attributes.

Definition at line 140 of file UUID.h.

Referenced by from_string_i(), operator==(), and timeLow().

ACE_UINT16 ACE_Utils::UUID::timeMid_ [private]


Definition at line 141 of file UUID.h.

Referenced by from_string_i(), operator==(), and timeMid().

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 12:59:50 2008 for ACE by doxygen 1.3.6
