ACE_TLI_Acceptor Class Reference

Defines the member functions for ACE_TLI_Acceptor abstraction. More...

#include <TLI_Acceptor.h>

Inheritance diagram for ACE_TLI_Acceptor:

Inheritance graph
[legend]

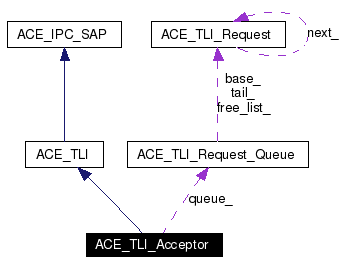

Collaboration diagram for ACE_TLI_Acceptor:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_INET_Addr PEER_ADDR
typedef ACE_TLI_Stream PEER_STREAM

Public Member Functions

 ACE_TLI_Acceptor (void)
 Default constructor.

 ACE_TLI_Acceptor (const ACE_Addr &remote_sap, int reuse_addr=0, int oflag=O_RDWR, struct t_info *info=0, int backlog=ACE_DEFAULT_BACKLOG, const char device[]=ACE_TLI_TCP_DEVICE)
 Initiate a passive mode socket.

ACE_HANDLE open (const ACE_Addr &remote_sap, int reuse_addr=0, int oflag=O_RDWR, struct t_info *info=0, int backlog=ACE_DEFAULT_BACKLOG, const char device[]=ACE_TLI_TCP_DEVICE)
 Initiate a passive mode socket.

int close (void)
 Close down the acceptor and release resources.

int accept (ACE_TLI_Stream &new_tli_sap, ACE_Addr *remote_addr=0, ACE_Time_Value *timeout=0, int restart=1, int reset_new_handle=0, int rwflag=1, netbuf *udata=0, netbuf *opt=0)
void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Private Member Functions

int handle_async_event (int restart, int rwflag)
 Handle TLI accept insanity...


Private Attributes

const char * device_
 Network "device" we are using.

int backlog_
 Number of connections to queue.

int rwflag_
 Are we using "tirdwr" mod?

ACE_TLI_Request_Queue * queue_
 Used for queueing up pending requests.

t_discon * disp_
 Used for handling disconnects.


Friends

class ACE_Request_Queue

Detailed Description

Defines the member functions for ACE_TLI_Acceptor abstraction.

This class implements the algorithm described in Steve Rago's book on System V UNIX network programming. It basically makes TLI look like the C++ SOCK_SAP socket wrappers with respect to establishing passive-mode listener endpoints.

Definition at line 45 of file TLI_Acceptor.h.

Member Typedef Documentation

typedef ACE_INET_Addr ACE_TLI_Acceptor::PEER_ADDR


Definition at line 90 of file TLI_Acceptor.h.

typedef ACE_TLI_Stream ACE_TLI_Acceptor::PEER_STREAM


Definition at line 91 of file TLI_Acceptor.h.

Constructor & Destructor Documentation

ACE_TLI_Acceptor::ACE_TLI_Acceptor (  void   )


Default constructor.

Definition at line 113 of file TLI_Acceptor.cpp.

References ACE_TRACE.

00114   : queue_ (0)
00115 {
00116   ACE_TRACE ("ACE_TLI_Acceptor::ACE_TLI_Acceptor");
00117 }

ACE_TLI_Acceptor::ACE_TLI_Acceptor (  const ACE_Addr &  remote_sap,
int  reuse_addr = 0,
int  oflag = O_RDWR,
struct t_info *  info = 0,
int  backlog = ACE_DEFAULT_BACKLOG,
const char  device[] = ACE_TLI_TCP_DEVICE
)


Initiate a passive mode socket.

Definition at line 389 of file TLI_Acceptor.cpp.

References ACE_ERROR, ACE_TEXT, ACE_TRACE, LM_ERROR, and open().

00395 {
00396   ACE_TRACE ("ACE_TLI_Acceptor::ACE_TLI_Acceptor");
00397   if (this->open (remote_sap,
00398                   reuse_addr,
00399                   oflag,
00400                   info,
00401                   back,
00402                   dev) == ACE_INVALID_HANDLE)
00403     ACE_ERROR ((LM_ERROR,
00404                 ACE_TEXT ("%p\n"),
00405                 ACE_TEXT ("ACE_TLI_Acceptor::ACE_TLI_Acceptor")));
00406 }

Member Function Documentation

int ACE_TLI_Acceptor::accept (  ACE_TLI_Stream &  new_tli_sap,
ACE_Addr *  remote_addr = 0,
ACE_Time_Value *  timeout = 0,
int  restart = 1,
int  reset_new_handle = 0,
int  rwflag = 1,
netbuf *  udata = 0,
netbuf *  opt = 0
)


Accept a new data transfer connection. A timeout of 0 means block forever, a timeout of {0, 0} means poll. == 1 means "restart if interrupted."

Definition at line 456 of file TLI_Acceptor.cpp.

References ACE_TRACE, ACE_TLI_Request_Queue::alloc(), ACE_TLI_Request::callp_, ACE_TLI_Request_Queue::dequeue(), device_, EWOULDBLOCK, ACE_TLI_Request_Queue::free(), ACE_IPC_SAP::get_handle(), ACE_TLI_Request::handle_, handle_async_event(), ACE::handle_timed_accept(), ACE_TLI_Request_Queue::is_empty(), ACE_OS::memcpy(), open_new_endpoint(), ACE_Addr::set_addr(), ACE_IPC_SAP::set_handle(), ACE_TLI_Stream::set_rwflag(), ACE_OS::t_accept(), ACE_OS::t_close(), and ACE_OS::t_listen().

00464 {
00465   ACE_TRACE ("ACE_TLI_Acceptor::accept");
00466   ACE_UNUSED_ARG (reset_new_handle);
00467
00468   ACE_TLI_Request *req = 0;
00469   int res = 0;
00470   if (timeout != 0
00471       && ACE::handle_timed_accept (this->get_handle (),
00472                                    timeout,
00473                                    restart) == -1)
00474     return -1;
00475   else if (this->queue_->is_empty ())
00476     {
00477       req = this->queue_->alloc ();
00478
00479       do
00480         res = ACE_OS::t_listen (this->get_handle (),
00481                                     req->callp_);
00482       while (res == -1
00483              && restart
00484              && errno == EINTR);
00485
00486       if (res != -1)
00487       {
00488         req->handle_ = open_new_endpoint (this->get_handle (),
00489                                           this->device_,
00490                                           req->callp_,
00491                                           rwf
00492 #if defined (ACE_WIN32)
00493                                           , remote_addr
00494 #endif /* ACE_WIN32 */
00495                                           );
00496         if (req->handle_ == ACE_INVALID_HANDLE)
00497           res = -1;
00498         else
00499           res = 0;
00500       }
00501     }
00502   else
00503     res = this->queue_->dequeue (req);
00504
00505   if (udata != 0)
00506     ACE_OS::memcpy ((void *) &req->callp_->udata,
00507                     (void *) udata,
00508                     sizeof *udata);
00509   if (opt != 0)
00510     ACE_OS::memcpy ((void *) &req->callp_->opt,
00511                     (void *) opt,
00512                     sizeof *opt);
00513
00514   while (res != -1)
00515     {
00516       res = ACE_OS::t_accept (this->get_handle (),
00517                               req->handle_,
00518                               req->callp_);
00519       if (res != -1)
00520         break; // Got one!
00521       else if (t_errno == TLOOK)
00522         res = this->handle_async_event (restart, rwf);
00523       else if (restart && t_errno == TSYSERR && errno == EINTR)
00524         res = 0;
00525     }
00526
00527   if (res == -1)
00528     {
00529       if (errno != EWOULDBLOCK)
00530         {
00531           new_tli_sap.set_handle (ACE_INVALID_HANDLE);
00532           if (req->handle_ != ACE_INVALID_HANDLE)
00533             ACE_OS::t_close (req->handle_);
00534         }
00535     }
00536   else
00537     {
00538       new_tli_sap.set_handle (req->handle_);
00539
00540       if (remote_addr != 0)
00541         remote_addr->set_addr ((void *) req->callp_->addr.buf,
00542                                req->callp_->addr.len);
00543     }
00544
00545   req->handle_ = ACE_INVALID_HANDLE;
00546   this->queue_->free (req);
00547   new_tli_sap.set_rwflag (rwf);
00548   return new_tli_sap.get_handle () == ACE_INVALID_HANDLE ? -1 : 0;
00549 }

int ACE_TLI_Acceptor::close (  void   )


Close down the acceptor and release resources.

Reimplemented from ACE_TLI.

Definition at line 409 of file TLI_Acceptor.cpp.

References ACE_MALLOC_T, ACE_TRACE, ACE_TLI::close(), ACE_TLI_Request_Queue::close(), device_, disp_, ACE_OS::free(), and ACE_OS::t_free().

Referenced by open().

00410 {
00411   ACE_TRACE ("ACE_TLI_Acceptor::close");
00412   if (this->device_ != 0)
00413     {
00414       if (this->queue_ != 0)
00415         {
00416           this->queue_->close ();
00417           delete this->queue_;
00418         }
00419
00420       ACE_OS::t_free ((char *) this->disp_, T_DIS);
00421       ACE_OS::free (ACE_MALLOC_T (this->device_));
00422       this->disp_ = 0;
00423       this->device_ = 0;
00424       return this->ACE_TLI::close ();
00425     }
00426   return 0;
00427 }

void ACE_TLI_Acceptor::dump (  void   )  const


Dump the state of an object.

Reimplemented from ACE_TLI.

Definition at line 106 of file TLI_Acceptor.cpp.

References ACE_TRACE.

00107 {
00108 #if defined (ACE_HAS_DUMP)
00109   ACE_TRACE ("ACE_TLI_Acceptor::dump");
00110 #endif /* ACE_HAS_DUMP */
00111 }

int ACE_TLI_Acceptor::handle_async_event (  int  restart,
int  rwflag
)  [private]


Handle TLI accept insanity...

Definition at line 433 of file TLI_Acceptor.cpp.

References ACE_TRACE, ACE_TLI_Request_Queue::enqueue(), ACE_TLI::look(), ACE_TLI::rcvdis(), and ACE_TLI_Request_Queue::remove().

Referenced by accept().

00434 {
00435   ACE_TRACE ("ACE_TLI_Acceptor::handle_async_event");
00436   int event = this->look ();
00437
00438   switch (event)
00439     {
00440     case T_DISCONNECT:
00441       this->rcvdis (this->disp_);
00442       this->queue_->remove (this->disp_->sequence);
00443       break;
00444     case T_LISTEN:
00445       this->queue_->enqueue (this->device_,
00446                              restart,
00447                              rwf);
00448       break;
00449     default:
00450       return -1;
00451     }
00452   return 0;
00453 }

ACE_HANDLE ACE_TLI_Acceptor::open (  const ACE_Addr &  remote_sap,
int  reuse_addr = 0,
int  oflag = O_RDWR,
struct t_info *  info = 0,
int  backlog = ACE_DEFAULT_BACKLOG,
const char  device[] = ACE_TLI_TCP_DEVICE
)


Initiate a passive mode socket.

Definition at line 309 of file TLI_Acceptor.cpp.

References ACE_ALLOCATOR_RETURN, ACE_NEW_RETURN, ACE_TRACE, backlog_, close(), disp_, ACE_Addr::get_addr(), ACE_IPC_SAP::get_handle(), ACE_Addr::get_size(), ACE_TLI_Request_Queue::open(), ACE_TLI::open(), ACE_TLI::set_option(), SO_REUSEADDR, SOL_SOCKET, ACE_OS::t_alloc(), ACE_OS::t_bind(), and t_bind().

Referenced by ACE_TLI_Acceptor().

00315 {
00316   ACE_TRACE ("ACE_TLI_Acceptor::open");
00317   ACE_HANDLE res = 0;
00318   int one = 1;
00319
00320   this->disp_ = 0;
00321
00322   ACE_ALLOCATOR_RETURN (this->device_,
00323                         ACE_OS::strdup (dev),
00324                         ACE_INVALID_HANDLE);
00325   if (this->ACE_TLI::open (dev,
00326                            oflag,
00327                            info) == ACE_INVALID_HANDLE)
00328     res = ACE_INVALID_HANDLE;
00329 #if !defined (ACE_HAS_FORE_ATM_XTI)
00330   // Reusing the address causes problems with FORE's API. The issue
00331   // may be that t_optmgmt isn't fully supported by FORE. t_errno is
00332   // TBADOPT after the t_optmgmt call so maybe options are configured
00333   // differently for XTI than for TLI (at least for FORE's
00334   // implementation - XTI is supposed to be a superset of TLI).
00335   else if (reuse_addr
00336            && this->set_option (SOL_SOCKET,
00337                                 SO_REUSEADDR,
00338                                 &one,
00339                                 sizeof one) == -1)
00340     res = ACE_INVALID_HANDLE;
00341 #endif /* ACE_HAS_FORE_ATM_XTI */
00342   else if ((this->disp_ =
00343             (struct t_discon *) ACE_OS::t_alloc (this->get_handle (),
00344                                                  T_DIS,
00345                                                  T_ALL)) == 0)
00346     res = ACE_INVALID_HANDLE;
00347   else
00348     {
00349       struct t_bind req;
00350
00351 #if defined (ACE_HAS_FORE_ATM_XTI)
00352       // Not sure why but FORE's t_bind call won't work if t_bind.qlen
00353       // != 1 Adjust the backlog accordingly.
00354       this->backlog_ = 1;
00355       req.qlen = 1;
00356 #else
00357       this->backlog_ = qlen;
00358       req.qlen = qlen;
00359 #endif /* ACE_HAS_FORE_ATM_XTI */
00360       req.addr.maxlen = remote_sap.get_size ();
00361
00362       if (remote_sap == ACE_Addr::sap_any)
00363         // Note that if addr.len == 0 then ACE_TLI selects the port
00364         // number.
00365         req.addr.len = 0;
00366       else
00367         {
00368           req.addr.buf = (char *) remote_sap.get_addr ();
00369           req.addr.len = remote_sap.get_size ();
00370         }
00371
00372       res = (ACE_HANDLE) ACE_OS::t_bind (this->get_handle (),
00373                                          &req,
00374                                          0);
00375       if (res != ACE_INVALID_HANDLE)
00376         {
00377           ACE_NEW_RETURN (this->queue_,
00378                           ACE_TLI_Request_Queue,
00379                           ACE_INVALID_HANDLE);
00380           res = this->queue_->open (this->get_handle (),
00381                                     this->backlog_);
00382         }
00383     }
00384   if (res == ACE_INVALID_HANDLE)
00385     this->close ();
00386   return this->get_handle ();
00387 }

Friends And Related Function Documentation

friend class ACE_Request_Queue [friend]


Definition at line 48 of file TLI_Acceptor.h.

Member Data Documentation

ACE_TLI_Acceptor::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Reimplemented from ACE_TLI.

Definition at line 97 of file TLI_Acceptor.h.

int ACE_TLI_Acceptor::backlog_ [private]


Number of connections to queue.

Definition at line 104 of file TLI_Acceptor.h.

Referenced by open().

const char* ACE_TLI_Acceptor::device_ [private]


Network "device" we are using.

Definition at line 101 of file TLI_Acceptor.h.

Referenced by accept(), and close().

struct t_discon* ACE_TLI_Acceptor::disp_ [private]


Used for handling disconnects.

Definition at line 116 of file TLI_Acceptor.h.

Referenced by close(), and open().

ACE_TLI_Request_Queue* ACE_TLI_Acceptor::queue_ [private]


Used for queueing up pending requests.

Definition at line 113 of file TLI_Acceptor.h.

int ACE_TLI_Acceptor::rwflag_ [private]


Are we using "tirdwr" mod?

Definition at line 107 of file TLI_Acceptor.h.

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 12:59:03 2008 for ACE by doxygen 1.3.6
