ACE_Shared_Memory_MM Class Reference

Shared memory wrapper based on MMAP. More...

#include <Shared_Memory_MM.h>

Inheritance diagram for ACE_Shared_Memory_MM:

Inheritance graph
[legend]

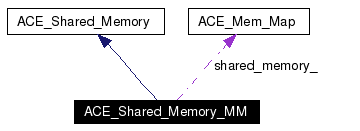

Collaboration diagram for ACE_Shared_Memory_MM:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Shared_Memory_MM (void)
 Default constructor.

 ACE_Shared_Memory_MM (ACE_HANDLE handle, size_t length=static_cast< size_t >(-1), int prot=PROT_RDWR, int share=ACE_MAP_PRIVATE, char *addr=0, ACE_OFF_T pos=0)
 Constructor.

 ACE_Shared_Memory_MM (const ACE_TCHAR *file_name, size_t length=static_cast< size_t >(-1), int flags=O_RDWR|O_CREAT, int mode=ACE_DEFAULT_FILE_PERMS, int prot=PROT_RDWR, int share=ACE_MAP_SHARED, char *addr=0, ACE_OFF_T pos=0)
 Constructor.

int open (ACE_HANDLE handle, size_t length=static_cast< size_t >(-1), int prot=PROT_RDWR, int share=ACE_MAP_PRIVATE, char *addr=0, ACE_OFF_T pos=0)
 Open method.

int open (const ACE_TCHAR *file_name, size_t length=static_cast< size_t >(-1), int flags=O_RDWR|O_CREAT, int mode=ACE_DEFAULT_FILE_PERMS, int prot=PROT_RDWR, int share=ACE_MAP_SHARED, char *addr=0, ACE_OFF_T pos=0)
 Open method.

const ACE_TCHAR * filename (void) const
 Return the name of file that is mapped (if any).

virtual int close (void)
 Close down the shared memory segment.

virtual int remove (void)
 Remove the shared memory segment and the underlying file.

virtual void * malloc (size_t size=0)
 Create a new chuck of memory containing size bytes.

virtual int free (void *p)
virtual size_t get_segment_size (void) const
 Return the size of the shared memory segment.

virtual ACE_HANDLE get_id (void) const
 Return the ID of the shared memory segment (i.e., an ACE_HANDLE).

void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Private Attributes

ACE_Mem_Map shared_memory_
 This version is implemented with memory-mapped files.

Detailed Description

Shared memory wrapper based on MMAP.

This class provides a very simple-minded shared memory manager. We strongly recommend that you do NOT use this class. Instead, please use ACE_Malloc, which has much more powerful capabilities.

Definition at line 37 of file Shared_Memory_MM.h.

Constructor & Destructor Documentation

ACE_Shared_Memory_MM::ACE_Shared_Memory_MM (  void   )


Default constructor.

Definition at line 55 of file Shared_Memory_MM.cpp.

References ACE_TRACE.

00056 {
00057   ACE_TRACE ("ACE_Shared_Memory_MM::ACE_Shared_Memory_MM");
00058 }

ACE_Shared_Memory_MM::ACE_Shared_Memory_MM (  ACE_HANDLE  handle,
size_t  length = static_cast< size_t >(-1),
int  prot = PROT_RDWR,
int  share = ACE_MAP_PRIVATE,
char *  addr = 0,
ACE_OFF_T  pos = 0
)


Constructor.

Definition at line 28 of file Shared_Memory_MM.cpp.

References ACE_OFF_T, and ACE_TRACE.

00034   : shared_memory_ (handle, length, prot, share, addr, pos)
00035 {
00036   ACE_TRACE ("ACE_Shared_Memory_MM::ACE_Shared_Memory_MM");
00037 }

ACE_Shared_Memory_MM::ACE_Shared_Memory_MM (  const ACE_TCHAR *  file_name,
size_t  length = static_cast< size_t >(-1),
int  flags = O_RDWR|O_CREAT,
int  mode = ACE_DEFAULT_FILE_PERMS,
int  prot = PROT_RDWR,
int  share = ACE_MAP_SHARED,
char *  addr = 0,
ACE_OFF_T  pos = 0
)


Constructor.

Definition at line 39 of file Shared_Memory_MM.cpp.

References ACE_OFF_T, ACE_TCHAR, and ACE_TRACE.

00047   : shared_memory_ (file_name, len, flags, mode,
00048                     prot, share, addr, pos)
00049 {
00050   ACE_TRACE ("ACE_Shared_Memory_MM::ACE_Shared_Memory_MM");
00051 }

Member Function Documentation

int ACE_Shared_Memory_MM::close (  void   )  [virtual]


Close down the shared memory segment.

Implements ACE_Shared_Memory.

Definition at line 82 of file Shared_Memory_MM.cpp.

References ACE_TRACE, shared_memory_, and ACE_Mem_Map::unmap().

00083 {
00084   ACE_TRACE ("ACE_Shared_Memory_MM::close");
00085   return shared_memory_.unmap ();
00086 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL void ACE_Shared_Memory_MM::dump (  void   )  const


Dump the state of an object.

Definition at line 19 of file Shared_Memory_MM.cpp.

References ACE_TRACE.

00020 {
00021 #if defined (ACE_HAS_DUMP)
00022   ACE_TRACE ("ACE_Shared_Memory_MM::dump");
00023 #endif /* ACE_HAS_DUMP */
00024 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE const ACE_TCHAR * ACE_Shared_Memory_MM::filename (  void   )  const


Return the name of file that is mapped (if any).

Definition at line 10 of file Shared_Memory_MM.inl.

References ACE_Mem_Map::filename(), and shared_memory_.

00011 {
00012   return this->shared_memory_.filename ();
00013 }

int ACE_Shared_Memory_MM::free (  void *  p  )  [virtual]


Free a chuck of memory allocated by <ACE_Shared_Memory_MM::malloc>.

Implements ACE_Shared_Memory.

Definition at line 105 of file Shared_Memory_MM.cpp.

References ACE_TRACE.

00106 {
00107   ACE_TRACE ("ACE_Shared_Memory_MM::free");
00108   return p != 0;
00109 }

ACE_HANDLE ACE_Shared_Memory_MM::get_id (  void   )  const [virtual]


Return the ID of the shared memory segment (i.e., an ACE_HANDLE).

Implements ACE_Shared_Memory.

Definition at line 98 of file Shared_Memory_MM.cpp.

References ACE_TRACE, ACE_Mem_Map::handle(), and shared_memory_.

00099 {
00100   ACE_TRACE ("ACE_Shared_Memory_MM::get_id");
00101   return this->shared_memory_.handle ();
00102 }

size_t ACE_Shared_Memory_MM::get_segment_size (  void   )  const [virtual]


Return the size of the shared memory segment.

Implements ACE_Shared_Memory.

Definition at line 63 of file Shared_Memory_MM.cpp.

References ACE_TRACE, shared_memory_, and ACE_Mem_Map::size().

00064 {
00065   ACE_TRACE ("ACE_Shared_Memory_MM::get_segment_size");
00066   // This cast is legit since the original length in open() is an int.
00067   return this->shared_memory_.size ();
00068 }

void * ACE_Shared_Memory_MM::malloc (  size_t  size = 0  )  [virtual]


Create a new chuck of memory containing size bytes.

Implements ACE_Shared_Memory.

Definition at line 89 of file Shared_Memory_MM.cpp.

References ACE_TRACE, and shared_memory_.

00090 {
00091   ACE_TRACE ("ACE_Shared_Memory_MM::malloc");
00092   void *addr = 0;
00093
00094   return this->shared_memory_ (addr) == -1 ? 0 : addr;
00095 }

ACE_INLINE int ACE_Shared_Memory_MM::open (  const ACE_TCHAR *  file_name,
size_t  length = static_cast< size_t >(-1),
int  flags = O_RDWR|O_CREAT,
int  mode = ACE_DEFAULT_FILE_PERMS,
int  prot = PROT_RDWR,
int  share = ACE_MAP_SHARED,
char *  addr = 0,
ACE_OFF_T  pos = 0
)


Open method.

Definition at line 28 of file Shared_Memory_MM.inl.

References ACE_OFF_T, ACE_TCHAR, ACE_TRACE, ACE_Mem_Map::map(), and shared_memory_.

00036 {
00037   ACE_TRACE ("ACE_Shared_Memory_MM::open");
00038   return shared_memory_.map (file_name, len, flags, mode,
00039                              prot, share, addr, pos);
00040 }

ACE_INLINE int ACE_Shared_Memory_MM::open (  ACE_HANDLE  handle,
size_t  length = static_cast< size_t >(-1),
int  prot = PROT_RDWR,
int  share = ACE_MAP_PRIVATE,
char *  addr = 0,
ACE_OFF_T  pos = 0
)


Open method.

Definition at line 16 of file Shared_Memory_MM.inl.

References ACE_OFF_T, ACE_TRACE, ACE_Mem_Map::map(), and shared_memory_.

00022 {
00023   ACE_TRACE ("ACE_Shared_Memory_MM::open");
00024   return shared_memory_.map (handle, length, prot, share, addr, pos);
00025 }

int ACE_Shared_Memory_MM::remove (  void   )  [virtual]


Remove the shared memory segment and the underlying file.

Implements ACE_Shared_Memory.

Definition at line 73 of file Shared_Memory_MM.cpp.

References ACE_TRACE, ACE_Mem_Map::remove(), and shared_memory_.

00074 {
00075   ACE_TRACE ("ACE_Shared_Memory_MM::remove");
00076   return shared_memory_.remove ();
00077 }

Member Data Documentation

ACE_Shared_Memory_MM::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Definition at line 106 of file Shared_Memory_MM.h.

ACE_Mem_Map ACE_Shared_Memory_MM::shared_memory_ [private]


This version is implemented with memory-mapped files.

Definition at line 110 of file Shared_Memory_MM.h.

Referenced by close(), filename(), get_id(), get_segment_size(), malloc(), open(), and remove().

The documentation for this class was generated from the following files:
