ACE_Registry_ImpExp Class Reference

Configuration object that imports/exports data to a file formatted using the Win32 Registry file export format. This format looks like [Section] "key"="String Data" "key"=dword: numeric data in hexidecimal format "key"=hex: binary data. More...

#include <Configuration_Import_Export.h>

Inheritance diagram for ACE_Registry_ImpExp:

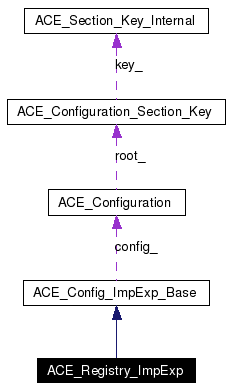

[legend]Collaboration diagram for ACE_Registry_ImpExp:

[legend]List of all members.

Public Member Functions
	ACE_Registry_ImpExp (ACE_Configuration &)
	Construction.
virtual	~ACE_Registry_ImpExp (void)
	Destruction.
virtual int	import_config (const ACE_TCHAR *filename)
virtual int	export_config (const ACE_TCHAR *filename)
Private Member Functions
int	export_section (const ACE_Configuration_Section_Key &section, const ACE_TString &path, FILE *out)
int	process_previous_line_format (ACE_TCHAR *buffer, ACE_Configuration_Section_Key &section)
	ACE_Registry_ImpExp (const ACE_Registry_ImpExp &)
ACE_Registry_ImpExp &	operator= (const ACE_Registry_ImpExp &)

---

Detailed Description

Configuration object that imports/exports data to a file formatted using the Win32 Registry file export format. This format looks like [Section] "key"="String Data" "key"=dword: numeric data in hexidecimal format "key"=hex: binary data.

Todo:

-Add dynamic buffer when importing. currently it will not allow importing of values greater than a fixed ammount (4096 bytes)

Definition at line 94 of file Configuration_Import_Export.h.

---

Constructor & Destructor Documentation

ACE_Registry_ImpExp::ACE_Registry_ImpExp (  ACE_Configuration &   )

Construction. Definition at line 20 of file Configuration_Import_Export.cpp. : ACE_Config_ImpExp_Base (config) { }

ACE_Registry_ImpExp::~ACE_Registry_ImpExp (  void   )  [virtual]

Destruction. Definition at line 25 of file Configuration_Import_Export.cpp. { }

ACE_Registry_ImpExp::ACE_Registry_ImpExp (  const ACE_Registry_ImpExp &   )  [private]

---

Member Function Documentation

int ACE_Registry_ImpExp::export_config (  const ACE_TCHAR *  filename  )  [virtual]

This method exports the entire configuration database to filename. Once the file is opened this method calls export_section() passing the root section. Implements ACE_Config_ImpExp_Base. Definition at line 218 of file Configuration_Import_Export.cpp. References ACE_TCHAR, ACE_TEXT, export_section(), ACE_OS::fclose(), ACE_OS::fopen(), and ACE_Configuration::root_section(). Referenced by ACE_Configuration::export_config(). { if (0 == filename) { errno = EINVAL; return -1; } int result = -1; FILE* out = ACE_OS::fopen (filename, ACE_TEXT ("w")); if (out) { result = this->export_section (config_.root_section (), ACE_TEXT (""), out); // The data may have been buffered and will be flush on close, // so we need to check that the close succeeds. if (ACE_OS::fclose (out) < 0) result = -7; } return result; }

int ACE_Registry_ImpExp::export_section (  const ACE_Configuration_Section_Key &  section, const ACE_TString &  path, FILE *  out )  [private]

Definition at line 246 of file Configuration_Import_Export.cpp. References ACE_TCHAR, ACE_TEXT, ACE_TString, ACE_Configuration::enumerate_sections(), ACE_Configuration::enumerate_values(), ACE_String_Base< CHAR >::fast_rep(), ACE_OS::fputs(), ACE_Configuration::get_binary_value(), ACE_Configuration::get_integer_value(), ACE_Configuration::get_string_value(), ACE_String_Base< CHAR >::length(), ACE_Configuration::open_section(), and ACE_OS::sprintf(). Referenced by export_config(). { // don't export the root if (path.length ()) { // Write out the section header ACE_TString header = ACE_TEXT ("["); header += path; header += ACE_TEXT ("]"); header += ACE_TEXT (" \n"); if (ACE_OS::fputs (header.fast_rep (), out) < 0) return -1; // Write out each value int index = 0; ACE_TString name; ACE_Configuration::VALUETYPE type; ACE_TString line; ACE_TCHAR int_value[32]; ACE_TCHAR bin_value[3]; void* binary_data; size_t binary_length; ACE_TString string_value; while (!config_.enumerate_values (section, index, name, type)) { line = ACE_TEXT ("\"") + name + ACE_TEXT ("\"="); switch (type) { case ACE_Configuration::INTEGER: { u_int value; if (config_.get_integer_value (section, name.fast_rep (), value)) return -2; ACE_OS::sprintf (int_value, ACE_TEXT ("%08x"), value); line += ACE_TEXT ("dword:"); line += int_value; break; } case ACE_Configuration::STRING: { if (config_.get_string_value (section, name.fast_rep (), string_value)) return -2; line += ACE_TEXT ("\""); line += string_value + ACE_TEXT ("\""); break; } #ifdef _WIN32 case ACE_Configuration::INVALID: break; // JDO added break. Otherwise INVALID is processed // like BINARY. If that's correct, please remove the // break and these comments #endif case ACE_Configuration::BINARY: { // not supported yet - maybe use BASE64 codeing? if (config_.get_binary_value (section, name.fast_rep (), binary_data, binary_length)) return -2; line += ACE_TEXT ("hex:"); unsigned char* ptr = (unsigned char*)binary_data; while (binary_length) { if (ptr != binary_data) { line += ACE_TEXT (","); } ACE_OS::sprintf (bin_value, ACE_TEXT ("%02x"), *ptr); line += bin_value; --binary_length; ++ptr; } delete [] (char*) binary_data; break; } default: return -3; } line += ACE_TEXT ("\n"); if (ACE_OS::fputs (line.fast_rep (), out) < 0) return -4; ++index; } } // Export all sub sections int index = 0; ACE_TString name; ACE_Configuration_Section_Key sub_key; ACE_TString sub_section; while (!config_.enumerate_sections (section, index, name)) { ACE_TString sub_section (path); if (path.length ()) sub_section += ACE_TEXT ("\\"); sub_section += name; if (config_.open_section (section, name.fast_rep (), 0, sub_key)) return -5; if (export_section (sub_key, sub_section.fast_rep (), out)) return -6; ++index; } return 0; }

int ACE_Registry_ImpExp::import_config (  const ACE_TCHAR *  filename  )  [virtual]

Imports the configuration database from filename. No existing data is removed. Implements ACE_Config_ImpExp_Base. Definition at line 32 of file Configuration_Import_Export.cpp. References ACE_NEW_NORETURN, ACE_NEW_RETURN, ACE_TCHAR, ACE_TEXT, ACE_Configuration::expand_path(), ACE_OS::fclose(), ACE_OS::fgets(), ACE_OS::fopen(), ACE_OS::memcpy(), process_previous_line_format(), ACE_Configuration::root_section(), ACE_Configuration::set_binary_value(), ACE_Configuration::set_integer_value(), ACE_Configuration::set_string_value(), ACE_OS::strchr(), ACE_OS::strlen(), ACE_OS::strncmp(), ACE_OS::strrchr(), and ACE_OS::strtoul(). Referenced by ACE_Configuration::import_config(). { if (0 == filename) { errno = EINVAL; return -1; } FILE* in = ACE_OS::fopen (filename, ACE_TEXT ("r")); if (!in) return -1; u_int buffer_size = 4096; u_int read_pos = 0; ACE_TCHAR *buffer = 0; ACE_NEW_NORETURN (buffer, ACE_TCHAR[buffer_size]); if (!buffer) { ACE_Errno_Guard guard (errno); (void) ACE_OS::fclose (in); return -1; } ACE_Configuration_Section_Key section; ACE_TCHAR *end = 0; while (ACE_OS::fgets (buffer+read_pos, buffer_size - read_pos, in)) { // Check if we got all the line. end = ACE_OS::strrchr (buffer + read_pos, ACE_TEXT ('\n')); // look for end of line if (!end) // we havn't reach the end of the line yet { // allocate a new buffer - double size the previous one ACE_TCHAR *temp_buffer; ACE_NEW_NORETURN (temp_buffer, ACE_TCHAR[buffer_size * 2]); if (!temp_buffer) { ACE_Errno_Guard guard (errno); delete [] buffer; (void) ACE_OS::fclose (in); return -1; } // copy the beginnning of the line ACE_OS::memcpy (temp_buffer, buffer, buffer_size); read_pos = buffer_size - 1; buffer_size *= 2; delete [] buffer; buffer = temp_buffer; continue; } read_pos = 0; // Check for a comment if (buffer[0] == ACE_TEXT (';') || buffer[0] == ACE_TEXT ('#')) continue; if (buffer[0] == ACE_TEXT ('[')) { // We have a new section here, strip out the section name end = ACE_OS::strrchr (buffer, ACE_TEXT (']')); if (!end) { ACE_OS::fclose (in); delete [] buffer; return -3; } *end = 0; if (config_.expand_path (config_.root_section (), buffer + 1, section, 1)) { ACE_OS::fclose (in); delete [] buffer; return -3; } continue; } // end if firs char is a [ if (buffer[0] == ACE_TEXT ('"')) { // we have a value end = ACE_OS::strchr (buffer+1, '"'); if (!end) // no closing quote, not a value so just skip it continue; // null terminate the name *end = 0; ACE_TCHAR* name = buffer + 1; end+=2; // determine the type if (*end == '\"') { // string type // truncate trailing " ++end; ACE_TCHAR* trailing = ACE_OS::strrchr (end, '"'); if (trailing) *trailing = 0; if (config_.set_string_value (section, name, end)) { ACE_OS::fclose (in); delete [] buffer; return -4; } } else if (ACE_OS::strncmp (end, ACE_TEXT ("dword:"), 6) == 0) { // number type ACE_TCHAR* endptr = 0; unsigned long value = ACE_OS::strtoul (end + 6, &endptr, 16); if (config_.set_integer_value (section, name, value)) { ACE_OS::fclose (in); delete [] buffer; return -4; } } else if (ACE_OS::strncmp (end, ACE_TEXT ("hex:"), 4) == 0) { // binary type size_t string_length = ACE_OS::strlen (end + 4); // divide by 3 to get the actual buffer length size_t length = string_length / 3; size_t remaining = length; u_char* data = 0; ACE_NEW_RETURN (data, u_char[length], -1); u_char* out = data; ACE_TCHAR* inb = end + 4; ACE_TCHAR* endptr = 0; while (remaining) { u_char charin = (u_char) ACE_OS::strtoul (inb, &endptr, 16); *out = charin; ++out; --remaining; inb += 3; } if (config_.set_binary_value (section, name, data, length)) { ACE_OS::fclose (in); delete [] data; delete [] buffer; return -4; } else delete [] data; } else { // invalid type, ignore continue; } }// end if first char is a " else { // if the first character is not a ", [, ;, or # we may be // processing a file in the old format. // Try and process the line as such and if it fails, // return an error int rc = process_previous_line_format (buffer, section); if (rc != 0) { ACE_OS::fclose (in); delete [] buffer; return rc; } } // end if maybe old format } // end while fgets if (ferror (in)) { ACE_OS::fclose (in); delete [] buffer; return -1; } ACE_OS::fclose (in); delete [] buffer; return 0; }

ACE_Registry_ImpExp& ACE_Registry_ImpExp::operator= (  const ACE_Registry_ImpExp &   )  [private]

int ACE_Registry_ImpExp::process_previous_line_format (  ACE_TCHAR *  buffer, ACE_Configuration_Section_Key &  section )  [private]

Definition at line 358 of file Configuration_Import_Export.cpp. References ACE_TCHAR, ACE_TEXT, ACE_OS::atoi(), ACE_Configuration::set_integer_value(), ACE_Configuration::set_string_value(), ACE_OS::strchr(), and ACE_OS::strpbrk(). Referenced by import_config(). { // Chop any cr/lf at the end of the line. ACE_TCHAR *endp = ACE_OS::strpbrk (buffer, ACE_TEXT ("\r\n")); if (endp != 0) *endp = '\0'; // assume this is a value, read in the value name ACE_TCHAR* end = ACE_OS::strchr (buffer, '='); if (end) // no =, not a value so just skip it { // null terminate the name *end = 0; ++end; // determine the type if (*end == '\"') { // string type if(config_.set_string_value (section, buffer, end + 1)) return -4; } else if (*end == '#') { // number type u_int value = ACE_OS::atoi (end + 1); if (config_.set_integer_value (section, buffer, value)) return -4; } } return 0; } // end read_previous_line_format

---

The documentation for this class was generated from the following files:

• Configuration_Import_Export.h
• Configuration_Import_Export.cpp

---
