ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES > Class Template Reference

Defines a helper class for the Caching Strategies. More...

#include <Caching_Utility_T.h>

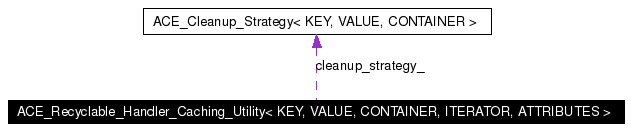

Collaboration diagram for ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_Recyclable_Handler_Cleanup_Strategy<
KEY, VALUE, CONTAINER > 		CLEANUP_STRATEGY
typedef ACE_Cleanup_Strategy<
KEY, VALUE, CONTAINER > 		CLEANUP_STRATEGY_BASE

Public Member Functions

 ACE_Recyclable_Handler_Caching_Utility (ACE_Cleanup_Strategy< KEY, VALUE, CONTAINER > *cleanup_strategy=0, int delete_cleanup_strategy=0)
 Constructor.

 ~ACE_Recyclable_Handler_Caching_Utility (void)
 Destructor.

int clear_cache (CONTAINER &container, double purge_percent)

Protected Member Functions

void minimum (CONTAINER &container, KEY *&key_to_remove, VALUE *&value_to_remove)
 Find the entry with minimum caching attributes.


Protected Attributes

CLEANUP_STRATEGY_BASE * cleanup_strategy_
 This is the default Cleanup Strategy for this utility.

int delete_cleanup_strategy_
 Whether the cleanup_strategy should be destroyed or not.


Private Member Functions

void operator= (const ARHUTIL< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES > &)
 ARHUTIL (const ARHUTIL< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES > &)

Detailed Description

template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
class ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >

Defines a helper class for the Caching Strategies.

This class defines the methods commonly used by the different caching strategies. For instance: method which decides and purges the entry from the container.

Note:
This class helps in the caching_strategies using a container containing entries of <KEY, Svc_Handler> kind. The attributes helps in deciding the entries to be purged. The Cleanup_Strategy is the callback class to which the entries to be cleaned up will be delegated.

Definition at line 103 of file Caching_Utility_T.h.

Member Typedef Documentation

template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
typedef ACE_Recyclable_Handler_Cleanup_Strategy<KEY, VALUE, CONTAINER> ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::CLEANUP_STRATEGY


Definition at line 108 of file Caching_Utility_T.h.

template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
typedef ACE_Cleanup_Strategy<KEY, VALUE, CONTAINER> ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::CLEANUP_STRATEGY_BASE


Definition at line 109 of file Caching_Utility_T.h.

Constructor & Destructor Documentation

template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::ACE_Recyclable_Handler_Caching_Utility (  ACE_Cleanup_Strategy< KEY, VALUE, CONTAINER > *  cleanup_strategy = 0,
int  delete_cleanup_strategy = 0
)


Constructor.

Definition at line 120 of file Caching_Utility_T.cpp.

References ACE_NEW.

00122   : cleanup_strategy_ (cleanup_strategy),
00123     delete_cleanup_strategy_ (delete_cleanup_strategy)
00124 {
00125   if (cleanup_strategy == 0)
00126     {
00127       ACE_NEW (this->cleanup_strategy_,
00128                CLEANUP_STRATEGY);
00129       this->delete_cleanup_strategy_ = 1;
00130     }
00131 }

template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::~ACE_Recyclable_Handler_Caching_Utility (  void   )


Destructor.

Definition at line 134 of file Caching_Utility_T.cpp.

00135 {
00136   if (this->delete_cleanup_strategy_)
00137     delete this->cleanup_strategy_;
00138 }

Member Function Documentation

template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::ARHUTIL (  const ARHUTIL< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES > &   )  [private]


template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
int ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::clear_cache (  CONTAINER &  container,
double  purge_percent
)


Purge entries from the . The Cleanup_Strategy will do the actual job of cleanup once the entries to be cleaned up are decided.

Definition at line 141 of file Caching_Utility_T.cpp.

References ACE_MAX, ACE_Cleanup_Strategy< KEY, VALUE, CONTAINER >::cleanup(), and ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::minimum().

00143 {
00144   // Check that the purge_percent is non-zero.
00145   if (purge_percent == 0)
00146     return 0;
00147
00148   // Get the number of entries in the container.
00149   size_t current_map_size = container.current_size ();
00150
00151   // Also whether the number of entries in the cache is just one!
00152   // Oops! then there is no way out but exiting. So return an error.
00153   //  if (current_map_size <= 1)
00154   if (current_map_size == 0)
00155     return 0;
00156
00157   // Calculate the no of entries to remove from the cache depending
00158   // upon the <purge_percent>.
00159   size_t const entries_to_remove
00160     = ACE_MAX (static_cast<size_t> (1),
00161                static_cast<size_t> (static_cast<double> (purge_percent)
00162                                     / 100 * current_map_size));
00163
00164   KEY *key_to_remove = 0;
00165   VALUE *value_to_remove = 0;
00166
00167   for (size_t i = 0; i < entries_to_remove ; ++i)
00168     {
00169       this->minimum (container,
00170                      key_to_remove,
00171                      value_to_remove);
00172
00173       // Simply verifying that the key is non-zero.
00174       // This is important for strategies where the minimum
00175       // entry cant be found due to constraints on the type of entry
00176       // to remove.
00177       if (key_to_remove == 0)
00178         return 0;
00179
00180       if (this->cleanup_strategy_->cleanup (container,
00181                                             key_to_remove,
00182                                             value_to_remove) == -1)
00183         return -1;
00184     }
00185
00186   return 0;
00187 }

template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
void ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::minimum (  CONTAINER &  container,
KEY *&  key_to_remove,
VALUE *&  value_to_remove
)  [protected]


Find the entry with minimum caching attributes.

Definition at line 190 of file Caching_Utility_T.cpp.

References ACE_RECYCLABLE_IDLE_AND_PURGABLE, and ACE_RECYCLABLE_PURGABLE_BUT_NOT_IDLE.

Referenced by ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::clear_cache().

00193 {
00194   // Starting values.
00195   ITERATOR end = container.end ();
00196   ITERATOR iter = container.begin ();
00197   ATTRIBUTES min = (*iter).int_id_.second ();
00198   key_to_remove = 0;
00199   value_to_remove = 0;
00200   // Found the minimum entry to be purged?
00201   int found = 0;
00202
00203   // The iterator moves thru the container searching for the entry
00204   // with the lowest ATTRIBUTES.
00205   for (;
00206        iter != end;
00207        ++iter)
00208     {
00209       // If the <min> entry isnt IDLE_AND_PURGABLE continue until you reach
00210       // the first entry which can be purged. This is the minimum with
00211       // which you will compare the rest of the purgable entries.
00212       if ((*iter).ext_id_.recycle_state () == ACE_RECYCLABLE_IDLE_AND_PURGABLE ||
00213           (*iter).ext_id_.recycle_state () == ACE_RECYCLABLE_PURGABLE_BUT_NOT_IDLE)
00214         {
00215           if (found == 0)
00216             {
00217               min = (*iter).int_id_.second ();
00218               key_to_remove = &(*iter).ext_id_;
00219               value_to_remove = &(*iter).int_id_;
00220               found = 1;
00221             }
00222           else
00223             {
00224               // Ah! an entry with lower ATTTRIBUTES...
00225               if (min > (*iter).int_id_.second ())
00226                 {
00227                   min = (*iter).int_id_.second ();
00228                   key_to_remove = &(*iter).ext_id_;
00229                   value_to_remove = &(*iter).int_id_;
00230                 }
00231             }
00232         }
00233     }
00234 }

template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
void ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::operator= (  const ARHUTIL< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES > &   )  [private]


Member Data Documentation

template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
CLEANUP_STRATEGY_BASE* ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::cleanup_strategy_ [protected]


This is the default Cleanup Strategy for this utility.

Definition at line 134 of file Caching_Utility_T.h.

template<class KEY, class VALUE, class CONTAINER, class ITERATOR, class ATTRIBUTES>
int ACE_Recyclable_Handler_Caching_Utility< KEY, VALUE, CONTAINER, ITERATOR, ATTRIBUTES >::delete_cleanup_strategy_ [protected]


Whether the cleanup_strategy should be destroyed or not.

Definition at line 137 of file Caching_Utility_T.h.

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 12:56:49 2008 for ACE by doxygen 1.3.6
