ACE_Multihomed_INET_Addr Class Reference

Extends ACE_INET_Addr with support for multi-homed addresses. More...

#include <Multihomed_INET_Addr.h>

Inheritance diagram for ACE_Multihomed_INET_Addr:

Inheritance graph
[legend]

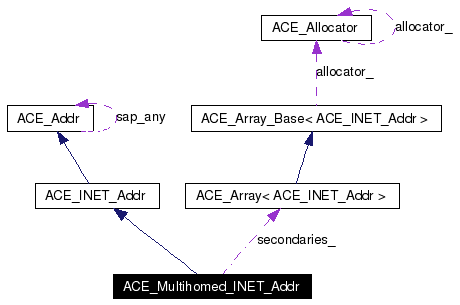

Collaboration diagram for ACE_Multihomed_INET_Addr:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 ACE_Multihomed_INET_Addr (void)
 Default constructor.

 ACE_Multihomed_INET_Addr (const char address[])
 ACE_Multihomed_INET_Addr (u_short port_number, const char primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const char *(secondary_host_names[])=0, size_t size=0)
 ACE_Multihomed_INET_Addr (u_short port_number, ACE_UINT32 primary_ip_addr=INADDR_ANY, int encode=1, const ACE_UINT32 *secondary_ip_addrs=0, size_t size=0)
 ACE_Multihomed_INET_Addr (u_short port_number, const wchar_t primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const wchar_t *(secondary_host_names[])=0, size_t size=0)
int set (u_short port_number, const wchar_t primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const wchar_t *(secondary_host_names[])=0, size_t size=0)
 ~ACE_Multihomed_INET_Addr (void)
 Use compiler-generated copy constructor. Use compiler-generated assignment operator. Default dtor.

int set (u_short port_number, const char primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const char *(secondary_host_names[])=0, size_t size=0)
int set (u_short port_number, ACE_UINT32 primary_ip_addr=INADDR_ANY, int encode=1, const ACE_UINT32 *secondary_ip_addrs=0, size_t size=0)
void set_port_number (u_short, int encode=1)
size_t get_num_secondary_addresses () const
int get_secondary_addresses (ACE_INET_Addr *secondary_addrs, size_t size) const
void get_addresses (sockaddr_in *addrs, size_t size) const
void get_addresses (sockaddr_in6 *addrs, size_t size) const
 IPV6 version of the above.


Private Attributes

ACE_Array< ACE_INET_Addr > secondaries_

Detailed Description

Extends ACE_INET_Addr with support for multi-homed addresses.

Definition at line 35 of file Multihomed_INET_Addr.h.

Constructor & Destructor Documentation

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr (  void   )


Default constructor.

Definition at line 22 of file Multihomed_INET_Addr.cpp.

References ACE_TRACE.

00023   : secondaries_ (0)
00024 {
00025   ACE_TRACE ("ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr");
00026 }

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr (  const char  address[]  )  [explicit]


Initializes an from the , which can be "ip-number:port-number" (e.g., "tango.cs.wustl.edu:1234" or "128.252.166.57:1234"). If there is no ':' in the it is assumed to be a port number, with the IP address being INADDR_ANY.

Definition at line 28 of file Multihomed_INET_Addr.cpp.

00029  : ACE_INET_Addr (address),
00030    secondaries_ (0)
00031 {
00032 }

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr (  u_short  port_number,
const char  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const char *  (secondary_host_names[]) = 0,
size_t  size = 0
)


Constructs an from a , a , and an array of . size is taken to be the length of the array. If is non-zero, then is converted into network byte order; otherwise it is assumed to be in network byte order already and is passed straight through. can be used to select IPv4/IPv6 if the OS has IPv6 capability (ACE_HAS_IPV6 is defined). To specify IPv6, use the value AF_INET6. To specify IPv4, use AF_INET.

Definition at line 34 of file Multihomed_INET_Addr.cpp.

References ACE_DEBUG, ACE_TEXT, ACE_TEXT_CHAR_TO_TCHAR, LM_DEBUG, secondaries_, ACE_Array_Base< ACE_INET_Addr >::set(), ACE_INET_Addr::set(), and ACE_Array_Base< ACE_INET_Addr >::size().

00039                                                                {
00040
00041   // Initialize the primary INET addr
00042   ACE_INET_Addr::set(port_number, host_name, encode, address_family);
00043
00044   // check for secondary INET addrs
00045   if (secondary_host_names && size){
00046     // we have a non-zero pointer and size
00047     this->secondaries_.size(size); // size the array
00048
00049     size_t next_empty_slot = 0;
00050     for (size_t i = 0; i < size; ++i) {
00051       int ret = this->secondaries_[next_empty_slot].set(port_number,
00052                                                        secondary_host_names[i],
00053                                                        encode,
00054                                                        address_family);
00055       if (ret) {
00056         ACE_DEBUG ((LM_DEBUG,
00057                     ACE_TEXT ("Invalid INET addr (%s:%u) will be ignored\n"),
00058                     ACE_TEXT_CHAR_TO_TCHAR (secondary_host_names[i]), port_number));
00059         this->secondaries_.size(this->secondaries_.size() - 1);
00060       }
00061       else
00062         ++next_empty_slot;
00063     }
00064   }
00065
00066   return;
00067 }

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr (  u_short  port_number,
ACE_UINT32  primary_ip_addr = INADDR_ANY,
int  encode = 1,
const ACE_UINT32 *  secondary_ip_addrs = 0,
size_t  size = 0
)


Constructs an from a port_number, a primary_ip_addr, and an array of secondary_ip_addrs. size is taken to be the length of the array. If encode is non-zero, then the port number and the IP addresses are converted into network byte order; otherwise they are assumed to be in network byte order already and are passed straight through.

Definition at line 106 of file Multihomed_INET_Addr.cpp.

References ACE_DEBUG, LM_DEBUG, secondaries_, ACE_Array_Base< ACE_INET_Addr >::set(), ACE_INET_Addr::set(), and ACE_Array_Base< ACE_INET_Addr >::size().

00110                                                                {
00111
00112   // Initialize the primary INET addr
00113   ACE_INET_Addr::set(port_number, primary_ip_addr, encode);
00114
00115   // check for secondary INET addrs
00116   if (secondary_ip_addrs && size){
00117     // we have a non-zero pointer and size
00118     this->secondaries_.size(size); // size the array
00119
00120     size_t next_empty_slot = 0;
00121     for (size_t i = 0; i < size; ++i) {
00122       int const ret = this->secondaries_[next_empty_slot].set(port_number,
00123                                                               secondary_ip_addrs[i],
00124                                                               encode);
00125
00126       if (ret) {
00127         ACE_DEBUG ((LM_DEBUG,
00128                     "Invalid INET addr (%u:%u) will be ignored\n",
00129                     secondary_ip_addrs[i], port_number));
00130         this->secondaries_.size(this->secondaries_.size() - 1);
00131       }
00132       else
00133         ++next_empty_slot;
00134     }
00135   }
00136
00137   return;
00138 }

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr (  u_short  port_number,
const wchar_t  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const wchar_t *  (secondary_host_names[]) = 0,
size_t  size = 0
)


WCHAR versions of the methods that take char's as arguments.

Definition at line 70 of file Multihomed_INET_Addr.cpp.

References ACE_DEBUG, ACE_TEXT, ACE_TEXT_WCHAR_TO_TCHAR, LM_DEBUG, secondaries_, ACE_Array_Base< ACE_INET_Addr >::set(), ACE_INET_Addr::set(), and ACE_Array_Base< ACE_INET_Addr >::size().

00075                                                                {
00076
00077   // Initialize the primary INET addr
00078   ACE_INET_Addr::set(port_number, host_name, encode, address_family);
00079
00080   // check for secondary INET addrs
00081   if (secondary_host_names && size){
00082     // we have a non-zero pointer and size
00083     this->secondaries_.size(size); // size the array
00084
00085     size_t next_empty_slot = 0;
00086     for (size_t i = 0; i < size; ++i) {
00087       int ret = this->secondaries_[next_empty_slot].set(port_number,
00088                                                        secondary_host_names[i],
00089                                                        encode,
00090                                                        address_family);
00091       if (ret) {
00092         ACE_DEBUG ((LM_DEBUG,
00093                     ACE_TEXT ("Invalid INET addr (%s:%u) will be ignored\n"),
00094                     ACE_TEXT_WCHAR_TO_TCHAR (secondary_host_names[i]), port_number));
00095         this->secondaries_.size(this->secondaries_.size() - 1);
00096       }
00097       else
00098         ++next_empty_slot;
00099     }
00100   }
00101
00102   return;
00103 }

ACE_Multihomed_INET_Addr::~ACE_Multihomed_INET_Addr (  void   )


Use compiler-generated copy constructor. Use compiler-generated assignment operator. Default dtor.

Definition at line 295 of file Multihomed_INET_Addr.cpp.

00296 {
00297
00298 }

Member Function Documentation

void ACE_Multihomed_INET_Addr::get_addresses (  sockaddr_in6 *  addrs,
size_t  size
)  const


IPV6 version of the above.

Definition at line 271 of file Multihomed_INET_Addr.cpp.

References ACE_INET_Addr::get_addr(), secondaries_, and ACE_Array_Base< ACE_INET_Addr >::size().

00273 {
00274   // Copy primary address to the first slot of the user-supplied array
00275   if (size > 0)
00276     {
00277       addrs[0] = *reinterpret_cast<sockaddr_in6*> (this->get_addr ());
00278     }
00279
00280   // Copy secondary addresses to remaining slots of the user-supplied
00281   // array.  Secondary address [i] is copied to slot [i+1]
00282   size_t top =
00283     size - 1 < this->secondaries_.size() ?
00284     size - 1 : this->secondaries_.size();
00285
00286   for (size_t i = 0; i < top; ++i)
00287     {
00288       addrs[i+1] =
00289         *reinterpret_cast<sockaddr_in6*> (this->secondaries_[i].get_addr());
00290     }
00291 }

void ACE_Multihomed_INET_Addr::get_addresses (  sockaddr_in *  addrs,
size_t  size
)  const


Initialize user-supplied array with the the current primary and secondary addresses. size is taken as the size of this array.

Definition at line 249 of file Multihomed_INET_Addr.cpp.

References ACE_INET_Addr::get_addr(), secondaries_, and ACE_Array_Base< ACE_INET_Addr >::size().

Referenced by ACE_SOCK_SEQPACK_Connector::shared_connect_start(), and ACE_SOCK_SEQPACK_Acceptor::shared_open().

00251 {
00252   // Copy primary address to the first slot of the user-supplied array
00253   if (size > 0) {
00254     addrs[0] = *reinterpret_cast<sockaddr_in*> (this->get_addr ());
00255   }
00256
00257   // Copy secondary addresses to remaining slots of the user-supplied
00258   // array.  Secondary address [i] is copied to slot [i+1]
00259
00260   size_t top = size - 1 < this->secondaries_.size() ?
00261     size - 1 : this->secondaries_.size();
00262
00263   for (size_t i = 0; i < top; ++i) {
00264     addrs[i+1] =
00265       *reinterpret_cast<sockaddr_in*> (this->secondaries_[i].get_addr());
00266   }
00267 }

ACE_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE size_t ACE_Multihomed_INET_Addr::get_num_secondary_addresses (   )  const


Returns the number of secondary addresses.

Definition at line 10 of file Multihomed_INET_Addr.inl.

References secondaries_, and ACE_Array_Base< ACE_INET_Addr >::size().

Referenced by ACE_SOCK_SEQPACK_Connector::shared_connect_start(), and ACE_SOCK_SEQPACK_Acceptor::shared_open().

00011 {
00012   return this->secondaries_.size();
00013 }

int ACE_Multihomed_INET_Addr::get_secondary_addresses (  ACE_INET_Addr *  secondary_addrs,
size_t  size
)  const


Initialize user-supplied array with the current secondary addresses. size is taken as the size of this array.

Definition at line 228 of file Multihomed_INET_Addr.cpp.

References secondaries_, ACE_INET_Addr::set(), and ACE_Array_Base< ACE_INET_Addr >::size().

00230 {
00231   size_t top =
00232     size < this->secondaries_.size() ?
00233     size : this->secondaries_.size();
00234
00235   for (size_t i = 0; i < top; ++i)
00236     {
00237
00238       int ret =
00239         secondary_addrs[i].set (this->secondaries_[i]);
00240
00241       if (ret)
00242         return ret;
00243     }
00244
00245   return 0;
00246 }

int ACE_Multihomed_INET_Addr::set (  u_short  port_number,
ACE_UINT32  primary_ip_addr = INADDR_ANY,
int  encode = 1,
const ACE_UINT32 *  secondary_ip_addrs = 0,
size_t  size = 0
)


Initializes an from a port_number, a primary_ip_addr, and an array of secondary_ip_addrs. size is taken to be the length of the array. If encode is non-zero, then the port number and the IP addresses are converted into network byte order; otherwise they are assumed to be in network byte order already and are passed straight through.

Definition at line 195 of file Multihomed_INET_Addr.cpp.

References secondaries_, ACE_INET_Addr::set(), ACE_Array_Base< ACE_INET_Addr >::set(), and ACE_Array_Base< ACE_INET_Addr >::size().

00200 {
00201   this->secondaries_.size(size);
00202
00203   for (size_t i = 0; i < size; ++i) {
00204
00205     int ret = this->secondaries_[i].set(port_number,
00206                                        secondary_ip_addrs[i],
00207                                        encode);
00208
00209     if (ret) {
00210       return ret;
00211     }
00212   }
00213
00214   return ACE_INET_Addr::set(port_number, primary_ip_addr, encode);
00215 }

int ACE_Multihomed_INET_Addr::set (  u_short  port_number,
const char  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const char *  (secondary_host_names[]) = 0,
size_t  size = 0
)


Initializes an from a , a , and an array of . size is taken to be the length of the array. If is non-zero, then is converted into network byte order; otherwise it is assumed to be in network byte order already and is passed straight through. can be used to select IPv4/IPv6 if the OS has IPv6 capability (ACE_HAS_IPV6 is defined). To specify IPv6, use the value AF_INET6. To specify IPv4, use AF_INET.

Definition at line 142 of file Multihomed_INET_Addr.cpp.

References secondaries_, ACE_INET_Addr::set(), ACE_Array_Base< ACE_INET_Addr >::set(), and ACE_Array_Base< ACE_INET_Addr >::size().

00148 {
00149   this->secondaries_.size(size);
00150
00151   for (size_t i = 0; i < size; ++i) {
00152
00153     int const ret = this->secondaries_[i].set(port_number,
00154                                               secondary_host_names[i],
00155                                               encode,
00156                                               address_family);
00157     if (ret) {
00158       return ret;
00159     }
00160   }
00161
00162   return ACE_INET_Addr::set(port_number, host_name, encode, address_family);
00163 }

int ACE_Multihomed_INET_Addr::set (  u_short  port_number,
const wchar_t  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const wchar_t *  (secondary_host_names[]) = 0,
size_t  size = 0
)


Definition at line 170 of file Multihomed_INET_Addr.cpp.

References secondaries_, ACE_INET_Addr::set(), ACE_Array_Base< ACE_INET_Addr >::set(), and ACE_Array_Base< ACE_INET_Addr >::size().

00176 {
00177   this->secondaries_.size(size);
00178
00179   for (size_t i = 0; i < size; ++i) {
00180
00181     int ret = this->secondaries_[i].set(port_number,
00182                                        secondary_host_names[i],
00183                                        encode,
00184                                        address_family);
00185     if (ret) {
00186       return ret;
00187     }
00188   }
00189
00190   return ACE_INET_Addr::set(port_number, host_name, encode, address_family);
00191 }

void ACE_Multihomed_INET_Addr::set_port_number (  u_short  ,
int  encode = 1
)


Sets the port number without affecting the host name. The port numbers of the primary address, and of any and all secondary addresses, are affected. If is enabled, then is converted into network byte order, otherwise it is assumed to be in network byte order already and is passed straight through.

Reimplemented from ACE_INET_Addr.

Definition at line 218 of file Multihomed_INET_Addr.cpp.

References secondaries_, ACE_INET_Addr::set_port_number(), and ACE_Array_Base< ACE_INET_Addr >::size().

00219 {
00220   size_t i = 0;
00221   while (i < secondaries_.size())
00222     secondaries_[i++].set_port_number(port_number, encode);
00223
00224   this->ACE_INET_Addr::set_port_number(port_number, encode);
00225 }

Member Data Documentation

ACE_Array<ACE_INET_Addr> ACE_Multihomed_INET_Addr::secondaries_ [private]


Definition at line 187 of file Multihomed_INET_Addr.h.

Referenced by ACE_Multihomed_INET_Addr(), get_addresses(), get_num_secondary_addresses(), get_secondary_addresses(), set(), and set_port_number().

The documentation for this class was generated from the following files:
Generated on Sun Jan 27 12:55:56 2008 for ACE by doxygen 1.3.6
