ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX > Class Template Reference

A connection strategy which caches connections to peers (represented by instances), thereby allowing subsequent re-use of unused, but available, connections. This strategy should be used when the cache is bounded by maximum size. More...

#include <Cached_Connect_Strategy_T.h>

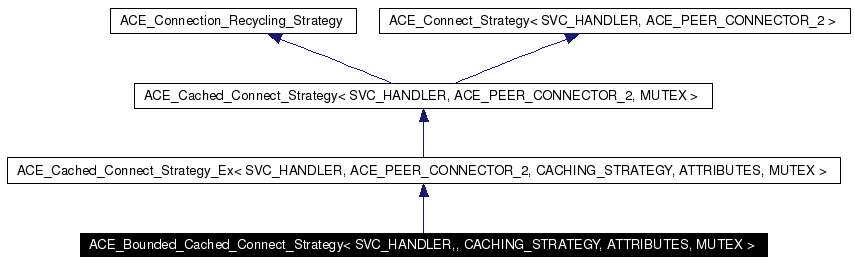

Inheritance diagram for ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >:

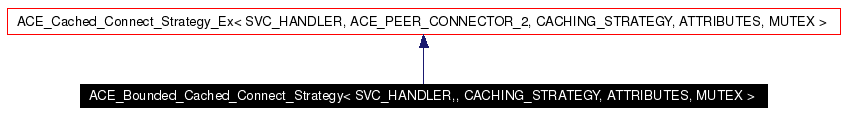

[legend]Collaboration diagram for ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >:

[legend]List of all members.


Public Member Functions
	ACE_Bounded_Cached_Connect_Strategy (size_t max_size, CACHING_STRATEGY &caching_s, ACE_Creation_Strategy< SVC_HANDLER > cre_s=0, ACE_Concurrency_Strategy< SVC_HANDLER > con_s=0, ACE_Recycling_Strategy< SVC_HANDLER > rec_s=0, MUTEX lock=0, int delete_lock=0)
	Constructor.
virtual	~ACE_Bounded_Cached_Connect_Strategy (void)
	Destructor.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Member Functions
virtual int	find_or_create_svc_handler_i (SVC_HANDLER &sh, const ACE_PEER_CONNECTOR_ADDR &remote_addr, ACE_Time_Value timeout, const ACE_PEER_CONNECTOR_ADDR &local_addr, int reuse_addr, int flags, int perms, ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, ACE_Pair< SVC_HANDLER , ATTRIBUTES > > &entry, int &found)
Protected Attributes
size_t	max_size_
	max items in the cache, used as a bound for the creation of svc_handlers.
Private Types
typedef ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, ACE_PEER_CONNECTOR_2, CACHING_STRATEGY, ATTRIBUTES, MUTEX >	CCSEBASE
typedef ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >	REFCOUNTED_HASH_RECYCLABLE_ADDRESS

Detailed Description

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1, class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>
class ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >

is intended to be used as a plug-in connection strategy for ACE_Strategy_Connector. It's added value is re-use of established connections and tweaking the role of the cache as per the caching strategy. Thanks to Edan Ayal <edana@bandwiz.com> for contributing this class and Susan Liebeskind <shl@janis.gtri.gatech.edu> for brainstorming about it.

Definition at line 204 of file Cached_Connect_Strategy_T.h.

Member Typedef Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>

typedef ACE_Cached_Connect_Strategy_Ex<SVC_HANDLER, ACE_PEER_CONNECTOR_2, CACHING_STRATEGY, ATTRIBUTES, MUTEX> ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::CCSEBASE [private]

Definition at line 209 of file Cached_Connect_Strategy_T.h.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>

typedef ACE_Refcounted_Hash_Recyclable<ACE_PEER_CONNECTOR_ADDR> ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::REFCOUNTED_HASH_RECYCLABLE_ADDRESS [private]

Reimplemented from ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, ACE_PEER_CONNECTOR_2, CACHING_STRATEGY, ATTRIBUTES, MUTEX >.
Definition at line 213 of file Cached_Connect_Strategy_T.h.

Constructor & Destructor Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>

ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::ACE_Bounded_Cached_Connect_Strategy ( size_t max_size,

CACHING_STRATEGY & caching_s,

ACE_Creation_Strategy< SVC_HANDLER > * cre_s = 0,

ACE_Concurrency_Strategy< SVC_HANDLER > * con_s = 0,

ACE_Recycling_Strategy< SVC_HANDLER > * rec_s = 0,

MUTEX * lock = 0,

int delete_lock = 0

)

Constructor.

template<class KEY, class VALUE, class CMAP_TYPE, class ITERATOR_IMPL, class REVERSE_ITERATOR_IMPL, class CACHING_STRATEGY, class ATTRIBUTES>

ACE_Bounded_Cached_Connect_Strategy< KEY, VALUE, CMAP_TYPE, ITERATOR_IMPL, REVERSE_ITERATOR_IMPL, CACHING_STRATEGY, ATTRIBUTES >::~ACE_Bounded_Cached_Connect_Strategy ( void ) [virtual]

Destructor.

Definition at line 579 of file Cached_Connect_Strategy_T.cpp.

00580 { 00581 }

Member Function Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>

virtual int ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::find_or_create_svc_handler_i ( SVC_HANDLER *& sh,

const ACE_PEER_CONNECTOR_ADDR & remote_addr,

ACE_Time_Value * timeout,

const ACE_PEER_CONNECTOR_ADDR & local_addr,

int reuse_addr,

int flags,

int perms,

ACE_Hash_Map_Entry< ACE_Refcounted_Hash_Recyclable< ACE_PEER_CONNECTOR_ADDR >, ACE_Pair< SVC_HANDLER *, ATTRIBUTES > > *& entry,

int & found

) [protected, virtual]

Reimplemented from ACE_Cached_Connect_Strategy_Ex< SVC_HANDLER, ACE_PEER_CONNECTOR_2, CACHING_STRATEGY, ATTRIBUTES, MUTEX >.

Member Data Documentation

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>

ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_Connect_Strategy< SVC_HANDLER, ACE_PEER_CONNECTOR_2 >.
Definition at line 230 of file Cached_Connect_Strategy_T.h.

template<class SVC_HANDLER, ACE_PEER_CONNECTOR_1 , class CACHING_STRATEGY, class ATTRIBUTES, class MUTEX>

size_t ACE_Bounded_Cached_Connect_Strategy< SVC_HANDLER,, CACHING_STRATEGY, ATTRIBUTES, MUTEX >::max_size_ [protected]

max items in the cache, used as a bound for the creation of svc_handlers.

Definition at line 248 of file Cached_Connect_Strategy_T.h.

The documentation for this class was generated from the following files:
