ACE_Based_Pointer_Repository_Rep Class Reference

Implementation for the ACE_Based_Pointer_Repository. More...

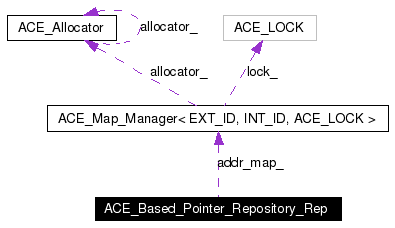

Collaboration diagram for ACE_Based_Pointer_Repository_Rep:

[legend]List of all members.

Public Types
typedef ACE_Map_Manager< void *, size_t, ACE_Null_Mutex >	MAP_MANAGER
typedef ACE_Map_Iterator< void *, size_t, ACE_Null_Mutex >	MAP_ITERATOR
typedef ACE_Map_Entry< void *, size_t >	MAP_ENTRY
Public Attributes
MAP_MANAGER	addr_map_
ACE_SYNCH_MUTEX	lock_
	Synchronize concurrent access to the map.

---

Detailed Description

Implementation for the ACE_Based_Pointer_Repository.

Every memory pool in ACE binds it's mapping base address and the mapped size to this repository every time it maps/remaps a new chunk of memory successfully.

Definition at line 21 of file Based_Pointer_Repository.cpp.

---

Member Typedef Documentation

typedef ACE_Map_Entry<void *, size_t> ACE_Based_Pointer_Repository_Rep::MAP_ENTRY

Definition at line 27 of file Based_Pointer_Repository.cpp. Referenced by ACE_Based_Pointer_Repository::find(), and ACE_Based_Pointer_Repository::unbind().

typedef ACE_Map_Iterator<void *, size_t, ACE_Null_Mutex> ACE_Based_Pointer_Repository_Rep::MAP_ITERATOR

Definition at line 26 of file Based_Pointer_Repository.cpp. Referenced by ACE_Based_Pointer_Repository::find(), and ACE_Based_Pointer_Repository::unbind().

typedef ACE_Map_Manager<void *, size_t, ACE_Null_Mutex> ACE_Based_Pointer_Repository_Rep::MAP_MANAGER

Definition at line 25 of file Based_Pointer_Repository.cpp.

---

Member Data Documentation

MAP_MANAGER ACE_Based_Pointer_Repository_Rep::addr_map_

Keeps track of the mapping between addresses and their associated values. Definition at line 31 of file Based_Pointer_Repository.cpp. Referenced by ACE_Based_Pointer_Repository::bind(), and ACE_Based_Pointer_Repository::unbind().

ACE_SYNCH_MUTEX ACE_Based_Pointer_Repository_Rep::lock_

Synchronize concurrent access to the map. Definition at line 34 of file Based_Pointer_Repository.cpp.

---

The documentation for this class was generated from the following file:

• Based_Pointer_Repository.cpp

---
