ACE_Accept_Strategy< SVC_HANDLER, > Class Template Reference

Defines the interface for specifying a passive connection acceptance strategy for a SVC_HANDLER. More...

#include <Strategies_T.h>

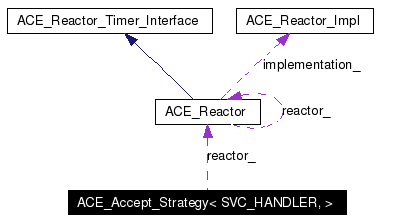

Collaboration diagram for ACE_Accept_Strategy< SVC_HANDLER, >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef ACE_PEER_ACCEPTOR_ADDR addr_type
typedef ACE_PEER_ACCEPTOR acceptor_type
typedef SVC_HANDLER handler_type
typedef SVC_HANDLER::stream_type stream_type

Public Member Functions

 ACE_Accept_Strategy (ACE_Reactor *reactor=ACE_Reactor::instance())
 Default constructor.

 ACE_Accept_Strategy (const ACE_PEER_ACCEPTOR_ADDR &local_addr, int restart=0, ACE_Reactor *reactor=ACE_Reactor::instance())
 Initialize the peer_acceptor_ with local_addr.

virtual int open (const ACE_PEER_ACCEPTOR_ADDR &local_addr, int reuse_addr=0)
virtual ACE_HANDLE get_handle (void) const
 Return the underlying ACE_HANDLE of the .

virtual ACE_PEER_ACCEPTOR & acceptor (void) const
 Return a reference to the .

virtual ~ACE_Accept_Strategy (void)
virtual int accept_svc_handler (SVC_HANDLER *)
void dump (void) const
 Dump the state of an object.


Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.


Protected Attributes

ACE_PEER_ACCEPTOR peer_acceptor_
 Factory that establishes connections passively.

ACE_Reactor * reactor_
 Pointer to the reactor used by the Acceptor.

int reuse_addr_
 Needed to reopen the socket if fails.

ACE_PEER_ACCEPTOR_ADDR peer_acceptor_addr_
 Needed to reopen the socket if fails.

Detailed Description

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1>
class ACE_Accept_Strategy< SVC_HANDLER, >

Defines the interface for specifying a passive connection acceptance strategy for a SVC_HANDLER.

This class provides a strategy that manages passive connection acceptance of a client.

Definition at line 498 of file Strategies_T.h.

Member Typedef Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
typedef ACE_PEER_ACCEPTOR ACE_Accept_Strategy< SVC_HANDLER, >::acceptor_type


Definition at line 504 of file Strategies_T.h.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
typedef ACE_PEER_ACCEPTOR_ADDR ACE_Accept_Strategy< SVC_HANDLER, >::addr_type


Definition at line 503 of file Strategies_T.h.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
typedef SVC_HANDLER ACE_Accept_Strategy< SVC_HANDLER, >::handler_type


Definition at line 505 of file Strategies_T.h.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
typedef SVC_HANDLER::stream_type ACE_Accept_Strategy< SVC_HANDLER, >::stream_type


Definition at line 506 of file Strategies_T.h.

Constructor & Destructor Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, >::ACE_Accept_Strategy (  ACE_Reactor *  reactor = ACE_Reactor::instance()  )


Default constructor.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, >::ACE_Accept_Strategy (  const ACE_PEER_ACCEPTOR_ADDR &  local_addr,
int  restart = 0,
ACE_Reactor *  reactor = ACE_Reactor::instance()
)


Initialize the peer_acceptor_ with local_addr.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
virtual ACE_Accept_Strategy< SVC_HANDLER, >::~ACE_Accept_Strategy (  void   )  [virtual]


Member Function Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
virtual int ACE_Accept_Strategy< SVC_HANDLER, >::accept_svc_handler (  SVC_HANDLER *   )  [virtual]


The default behavior delegates to the method of the PEER_ACCEPTOR.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
virtual ACE_PEER_ACCEPTOR& ACE_Accept_Strategy< SVC_HANDLER, >::acceptor (  void   )  const [virtual]


Return a reference to the .

Referenced by ACE_Strategy_Acceptor< SVC_HANDLER, >::acceptor(), and ACE_Strategy_Acceptor< SVC_HANDLER, >::operator ACE_PEER_ACCEPTOR &().

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
void ACE_Accept_Strategy< SVC_HANDLER, >::dump (  void   )  const


Dump the state of an object.

Referenced by ACE_Strategy_Acceptor< SVC_HANDLER, >::dump().

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
virtual ACE_HANDLE ACE_Accept_Strategy< SVC_HANDLER, >::get_handle (  void   )  const [virtual]


Return the underlying ACE_HANDLE of the .

Referenced by ACE_Strategy_Acceptor< SVC_HANDLER, >::get_handle().

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
virtual int ACE_Accept_Strategy< SVC_HANDLER, >::open (  const ACE_PEER_ACCEPTOR_ADDR &  local_addr,
int  reuse_addr = 0
)  [virtual]


Initialize the with local_addr, indicating whether to reuse_addr if it's already in use.

Member Data Documentation

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, >::ACE_ALLOC_HOOK_DECLARE


Declare the dynamic allocation hooks.

Definition at line 539 of file Strategies_T.h.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_PEER_ACCEPTOR ACE_Accept_Strategy< SVC_HANDLER, >::peer_acceptor_ [protected]


Factory that establishes connections passively.

Definition at line 543 of file Strategies_T.h.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_PEER_ACCEPTOR_ADDR ACE_Accept_Strategy< SVC_HANDLER, >::peer_acceptor_addr_ [protected]


Needed to reopen the socket if fails.

Definition at line 552 of file Strategies_T.h.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
ACE_Reactor* ACE_Accept_Strategy< SVC_HANDLER, >::reactor_ [protected]


Pointer to the reactor used by the Acceptor.

Definition at line 546 of file Strategies_T.h.

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >
int ACE_Accept_Strategy< SVC_HANDLER, >::reuse_addr_ [protected]


Needed to reopen the socket if fails.

Definition at line 549 of file Strategies_T.h.

The documentation for this class was generated from the following file:
