TAO_EC_Reactive_Timeout_Generator Class Reference

A simple implementation of the Timeout_Generator based on the Reactor. More...

Inheritance diagram for TAO_EC_Reactive_Timeout_Generator:

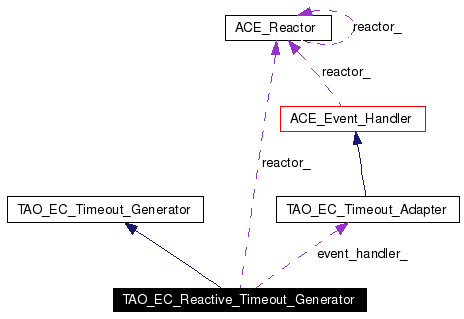

[legend]Collaboration diagram for TAO_EC_Reactive_Timeout_Generator:


Public Member Functions
	TAO_EC_Reactive_Timeout_Generator (ACE_Reactor *reactor=0)
virtual	~TAO_EC_Reactive_Timeout_Generator (void)
	destructor
virtual void	activate (void)
	Activate any internal threads.
virtual void	shutdown (void)
virtual int	schedule_timer (TAO_EC_Timeout_Filter *filter, const ACE_Time_Value &delta, const ACE_Time_Value &interval)
	Add a timer at the given priority, returns the timer ID.
virtual int	cancel_timer (const TAO_EC_QOS_Info &info, int id)
	Cancel a timer at the given priority.
Private Attributes
ACE_Reactor *	reactor_
	The reactor.
TAO_EC_Timeout_Adapter	event_handler_
	An adapter to receive the timeout events.

Detailed Description

A simple implementation of the Timeout_Generator based on the Reactor.

Implements the Timeout_Generator using an ACE_Reactor. Usually the same reactor that is used by the ORB where the EC runs.

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Reactive_Timeout_Generator::TAO_EC_Reactive_Timeout_Generator ( ACE_Reactor * reactor = 0 )

Constructor. If is 0 then we use the reactor in the ORB singleton.
Definition at line 13 of file EC_Reactive_Timeout_Generator.cpp.

00014 : reactor_ (reactor) 00015 { 00016 }

TAO_EC_Reactive_Timeout_Generator::~TAO_EC_Reactive_Timeout_Generator ( void ) [virtual]

destructor

Definition at line 18 of file EC_Reactive_Timeout_Generator.cpp.

00019 { 00020 }

void TAO_EC_Reactive_Timeout_Generator::activate ( void ) [virtual]

Activate any internal threads.

Implements TAO_EC_Timeout_Generator.
Definition at line 23 of file EC_Reactive_Timeout_Generator.cpp.

00024 { 00025 }

int TAO_EC_Reactive_Timeout_Generator::cancel_timer ( const TAO_EC_QOS_Info & info,

int id

) [virtual]

Cancel a timer at the given priority.

Implements TAO_EC_Timeout_Generator.
Definition at line 47 of file EC_Reactive_Timeout_Generator.cpp.
References ACE_Reactor::cancel_timer().

00050 { 00051 const void *vp; 00052 00053 return this->reactor_->cancel_timer (id, &vp); 00054 }

int TAO_EC_Reactive_Timeout_Generator::schedule_timer ( TAO_EC_Timeout_Filter * filter,

const ACE_Time_Value & delta,

const ACE_Time_Value & interval

) [virtual]

Add a timer at the given priority, returns the timer ID.

Implements TAO_EC_Timeout_Generator.
Definition at line 35 of file EC_Reactive_Timeout_Generator.cpp.
References ACE_Reactor::schedule_timer().

00039 { 00040 return this->reactor_->schedule_timer (&this->event_handler_, 00041 static_cast<void*> (filter), 00042 delta, 00043 interval); 00044 }

void TAO_EC_Reactive_Timeout_Generator::shutdown ( void ) [virtual]

Deactivate any internal threads, clients can destroy the object after calling this method.
Implements TAO_EC_Timeout_Generator.
Definition at line 28 of file EC_Reactive_Timeout_Generator.cpp.
References ACE_Reactor::cancel_timer(), and ACE_Event_Handler::reactor().

00029 { 00030 this->reactor_->cancel_timer (&this->event_handler_); 00031 this->event_handler_.reactor (0); 00032 }

The documentation for this class was generated from the following files:
