TAO_EC_Reactive_SupplierControl Class Reference

SupplierControl. More...

#include <EC_Reactive_SupplierControl.h>

Inheritance diagram for TAO_EC_Reactive_SupplierControl:

Inheritance graph
[legend]

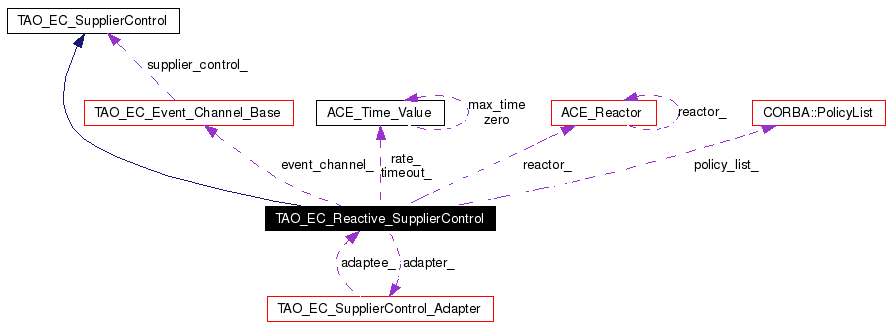

Collaboration diagram for TAO_EC_Reactive_SupplierControl:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_EC_Reactive_SupplierControl (const ACE_Time_Value &rate, const ACE_Time_Value &timeout, TAO_EC_Event_Channel_Base *event_channel, CORBA::ORB_ptr orb)
virtual ~TAO_EC_Reactive_SupplierControl (void)
 Destructor.

void handle_timeout (const ACE_Time_Value &tv, const void *arg)
 Receive the timeout from the adapter.

virtual int activate (void)
virtual int shutdown (void)
virtual void supplier_not_exist (TAO_EC_ProxyPushConsumer *proxy)
virtual void system_exception (TAO_EC_ProxyPushConsumer *proxy, CORBA::SystemException &)

Private Member Functions

void query_suppliers ()

Private Attributes

ACE_Time_Value rate_
 The polling rate.

ACE_Time_Value timeout_
 The polling timeout.

TAO_EC_SupplierControl_Adapter adapter_
 The Adapter for the reactor events.

TAO_EC_Event_Channel_Base * event_channel_
 The event channel.

CORBA::ORB_var orb_
 The ORB.

CORBA::PolicyCurrent_var policy_current_
 To control the timeout policy in the thread.

CORBA::PolicyList policy_list_
 Precomputed policy list to the set timeout.

ACE_Reactor * reactor_
 The ORB reactor.

long timer_id_
 The timer id.

Detailed Description

SupplierControl.

Defines the interface for the supplier control strategy. This strategy handles misbehaving or failing suppliers.

Definition at line 82 of file EC_Reactive_SupplierControl.h.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Reactive_SupplierControl::TAO_EC_Reactive_SupplierControl (  const ACE_Time_Value &  rate,
const ACE_Time_Value &  timeout,
TAO_EC_Event_Channel_Base *  event_channel,
CORBA::ORB_ptr  orb
)


Constructor. It does not assume ownership of the event_channel parameter.

Definition at line 23 of file EC_Reactive_SupplierControl.cpp.

References TAO_HAS_CORBA_MESSAGING.

00027   : rate_ (rate),
00028     timeout_ (timeout),
00029     adapter_ (this),
00030     event_channel_ (ec),
00031     orb_ (CORBA::ORB::_duplicate (orb))
00032 #if defined (TAO_HAS_CORBA_MESSAGING) && TAO_HAS_CORBA_MESSAGING != 0
00033     , timer_id_ (-1)
00034 #endif /* TAO_HAS_CORBA_MESSAGING != 0*/
00035 {
00036   this->reactor_ =
00037     this->orb_->orb_core ()->reactor ();
00038 }

TAO_EC_Reactive_SupplierControl::~TAO_EC_Reactive_SupplierControl (  void   )  [virtual]


Destructor.

Definition at line 40 of file EC_Reactive_SupplierControl.cpp.

00041 {
00042 }

Member Function Documentation

int TAO_EC_Reactive_SupplierControl::activate (  void   )  [virtual]


Activate any internal threads or timers used to poll the state of the suppliers

Reimplemented from TAO_EC_SupplierControl.

Definition at line 97 of file EC_Reactive_SupplierControl.cpp.

References CORBA::PolicyCurrent::_narrow(), ACE_CATCHANY, ACE_ENDTRY, ACE_ENV_ARG_PARAMETER, ACE_TRY_CHECK, ACE_TRY_NEW_ENV, TAO::unbounded_object_reference_sequence< Policy, Policy_var >::length(), ACE_Reactor::schedule_timer(), and ACE_Time_Value::usec().

00098 {
00099 #if defined (TAO_HAS_CORBA_MESSAGING) && TAO_HAS_CORBA_MESSAGING != 0
00100   ACE_TRY_NEW_ENV
00101     {
00102       // Get the PolicyCurrent object
00103       CORBA::Object_var tmp =
00104         this->orb_->resolve_initial_references ("PolicyCurrent"
00105                                                  ACE_ENV_ARG_PARAMETER);
00106       ACE_TRY_CHECK;
00107
00108       this->policy_current_ =
00109         CORBA::PolicyCurrent::_narrow (tmp.in ()
00110                                         ACE_ENV_ARG_PARAMETER);
00111       ACE_TRY_CHECK;
00112
00113       // Timeout for polling state (default = 10 msec)
00114       TimeBase::TimeT timeout = timeout_.usec() * 10;
00115       CORBA::Any any;
00116       any <<= timeout;
00117
00118       this->policy_list_.length (1);
00119       this->policy_list_[0] =
00120         this->orb_->create_policy (
00121                Messaging::RELATIVE_RT_TIMEOUT_POLICY_TYPE,
00122                any
00123                ACE_ENV_ARG_PARAMETER);
00124       ACE_TRY_CHECK;
00125
00126       // Only schedule the timer, when the rate is not zero
00127       if (this->rate_ != ACE_Time_Value::zero)
00128       {
00129         // Schedule the timer after these policies has been set, because the
00130         // handle_timeout uses these policies, if done in front, the channel
00131         // can crash when the timeout expires before initiazation is ready.
00132         timer_id_ = this->reactor_->schedule_timer (&this->adapter_,
00133                                                     0,
00134                                                     this->rate_,
00135                                                     this->rate_);
00136         if (timer_id_ == -1)
00137           return -1;
00138       }
00139     }
00140   ACE_CATCHANY
00141     {
00142       return -1;
00143     }
00144   ACE_ENDTRY;
00145 #endif /* TAO_HAS_CORBA_MESSAGING */
00146
00147   return 0;
00148 }

void TAO_EC_Reactive_SupplierControl::handle_timeout (  const ACE_Time_Value &  tv,
const void *  arg
)


Receive the timeout from the adapter.

Definition at line 55 of file EC_Reactive_SupplierControl.cpp.

References ACE_CATCHANY, ACE_ENDTRY, ACE_ENV_ARG_PARAMETER, ACE_ENV_SINGLE_ARG_PARAMETER, ACE_TRY_CHECK, ACE_TRY_NEW_ENV, and query_suppliers().

Referenced by TAO_EC_SupplierControl_Adapter::handle_timeout().

00058 {
00059   ACE_TRY_NEW_ENV
00060     {
00061       // Query the state of the Current object *before* we initiate
00062       // the iteration...
00063       CORBA::PolicyTypeSeq types;
00064       CORBA::PolicyList_var policies =
00065         this->policy_current_->get_policy_overrides (types
00066                                                       ACE_ENV_ARG_PARAMETER);
00067       ACE_TRY_CHECK;
00068
00069       // Change the timeout
00070       this->policy_current_->set_policy_overrides (this->policy_list_,
00071                                                    CORBA::ADD_OVERRIDE
00072                                                     ACE_ENV_ARG_PARAMETER);
00073       ACE_TRY_CHECK;
00074
00075       // Query the state of the suppliers...
00076       this->query_suppliers (ACE_ENV_SINGLE_ARG_PARAMETER);
00077       ACE_TRY_CHECK;
00078
00079       this->policy_current_->set_policy_overrides (policies.in (),
00080                                                    CORBA::SET_OVERRIDE
00081                                                     ACE_ENV_ARG_PARAMETER);
00082       ACE_TRY_CHECK;
00083       for (CORBA::ULong i = 0; i != policies->length (); ++i)
00084         {
00085           policies[i]->destroy (ACE_ENV_SINGLE_ARG_PARAMETER);
00086           ACE_TRY_CHECK;
00087         }
00088     }
00089   ACE_CATCHANY
00090     {
00091       // Ignore all exceptions
00092     }
00093   ACE_ENDTRY;
00094 }

void TAO_EC_Reactive_SupplierControl::query_suppliers (   )  [private]


Check if the suppliers still exists. It is a helper method for handle_timeout() to isolate the exceptions.

Definition at line 45 of file EC_Reactive_SupplierControl.cpp.

References ACE_CHECK, ACE_ENV_ARG_PARAMETER, and TAO_EC_Event_Channel_Base::for_each_supplier().

Referenced by handle_timeout().

00047 {
00048   TAO_EC_Ping_Supplier worker (this);
00049   this->event_channel_->for_each_supplier (&worker
00050                                            ACE_ENV_ARG_PARAMETER);
00051   ACE_CHECK;
00052 }

int TAO_EC_Reactive_SupplierControl::shutdown (  void   )  [virtual]


Reimplemented from TAO_EC_SupplierControl.

Definition at line 151 of file EC_Reactive_SupplierControl.cpp.

References ACE_Reactor::cancel_timer(), and ACE_Event_Handler::reactor().

00152 {
00153   int r = 0;
00154
00155 #if defined (TAO_HAS_CORBA_MESSAGING) && TAO_HAS_CORBA_MESSAGING != 0
00156   r = this->reactor_->cancel_timer (timer_id_);
00157 #endif /* TAO_HAS_CORBA_MESSAGING */
00158   this->adapter_.reactor (0);
00159   return r;
00160 }

void TAO_EC_Reactive_SupplierControl::supplier_not_exist (  TAO_EC_ProxyPushConsumer *  proxy  )  [virtual]


Invoked by helper classes when they detect that a supplier does not exists (i.e. _non_existent() returns true and/or the CORBA::OBJECT_NOT_EXIST exception has been raised).

Reimplemented from TAO_EC_SupplierControl.

Definition at line 163 of file EC_Reactive_SupplierControl.cpp.

References ACE_CATCHANY, ACE_ENDTRY, ACE_ENV_SINGLE_ARG_PARAMETER, ACE_TRY, and ACE_TRY_CHECK.

00166 {
00167   ACE_TRY
00168     {
00169       //ACE_DEBUG ((LM_DEBUG,
00170       //            "EC_Reactive_SupplierControl(%P|%t) - "
00171       //            "Consumer %x does not exists\n", long(proxy)));
00172       proxy->disconnect_push_consumer (ACE_ENV_SINGLE_ARG_PARAMETER);
00173       ACE_TRY_CHECK;
00174     }
00175   ACE_CATCHANY
00176     {
00177       // Ignore all exceptions..
00178     }
00179   ACE_ENDTRY;
00180 }

void TAO_EC_Reactive_SupplierControl::system_exception (  TAO_EC_ProxyPushConsumer *  proxy,
CORBA::SystemException &
)  [virtual]


Some system exception was raised while trying to contact the supplier

Reimplemented from TAO_EC_SupplierControl.

Definition at line 183 of file EC_Reactive_SupplierControl.cpp.

References ACE_CATCHANY, ACE_ENDTRY, ACE_ENV_SINGLE_ARG_PARAMETER, ACE_TRY, ACE_TRY_CHECK, and TAO_EC_ProxyPushConsumer::disconnect_push_consumer().

00187 {
00188   ACE_TRY
00189     {
00190       // The current implementation is very strict, and kicks out a
00191       // client on the first system exception. We may
00192       // want to be more lenient in the future, for example,
00193       // this is TAO's minor code for a failed connection.
00194       //
00195       // if (CORBA::TRANSIENT::_narrow (&exception) != 0
00196       //     && exception->minor () == 0x54410085)
00197       //   return;
00198
00199       // Anything else is serious, including timeouts...
00200       proxy->disconnect_push_consumer (ACE_ENV_SINGLE_ARG_PARAMETER);
00201       ACE_TRY_CHECK;
00202     }
00203   ACE_CATCHANY
00204     {
00205       // Ignore all exceptions..
00206     }
00207   ACE_ENDTRY;
00208 }

Member Data Documentation

TAO_EC_SupplierControl_Adapter TAO_EC_Reactive_SupplierControl::adapter_ [private]


The Adapter for the reactor events.

Definition at line 121 of file EC_Reactive_SupplierControl.h.

TAO_EC_Event_Channel_Base* TAO_EC_Reactive_SupplierControl::event_channel_ [private]


The event channel.

Definition at line 124 of file EC_Reactive_SupplierControl.h.

CORBA::ORB_var TAO_EC_Reactive_SupplierControl::orb_ [private]


The ORB.

Definition at line 127 of file EC_Reactive_SupplierControl.h.

CORBA::PolicyCurrent_var TAO_EC_Reactive_SupplierControl::policy_current_ [private]


To control the timeout policy in the thread.

Definition at line 130 of file EC_Reactive_SupplierControl.h.

CORBA::PolicyList TAO_EC_Reactive_SupplierControl::policy_list_ [private]


Precomputed policy list to the set timeout.

Definition at line 133 of file EC_Reactive_SupplierControl.h.

ACE_Time_Value TAO_EC_Reactive_SupplierControl::rate_ [private]


The polling rate.

Definition at line 115 of file EC_Reactive_SupplierControl.h.

ACE_Reactor* TAO_EC_Reactive_SupplierControl::reactor_ [private]


The ORB reactor.

Definition at line 136 of file EC_Reactive_SupplierControl.h.

ACE_Time_Value TAO_EC_Reactive_SupplierControl::timeout_ [private]


The polling timeout.

Definition at line 118 of file EC_Reactive_SupplierControl.h.

long TAO_EC_Reactive_SupplierControl::timer_id_ [private]


The timer id.

Definition at line 140 of file EC_Reactive_SupplierControl.h.

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 13:15:32 2006 for TAO_RTEvent by doxygen 1.3.6
