TAO_EC_Gateway_IIOP Class Reference

Event Channel Gateway using IIOP. More...

#include <EC_Gateway_IIOP.h>

Inheritance diagram for TAO_EC_Gateway_IIOP:

Inheritance graph
[legend]

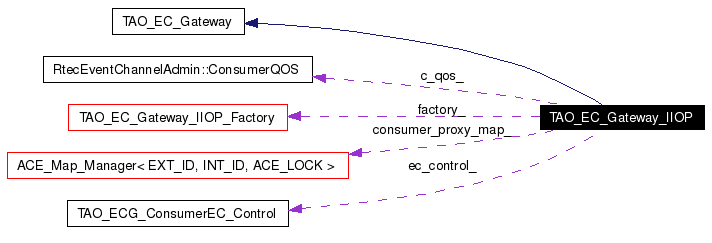

Collaboration diagram for TAO_EC_Gateway_IIOP:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 TAO_EC_Gateway_IIOP (void)
virtual ~TAO_EC_Gateway_IIOP (void)
int init (RtecEventChannelAdmin::EventChannel_ptr supplier_ec, RtecEventChannelAdmin::EventChannel_ptr consumer_ec ACE_ENV_ARG_DECL)
void disconnect_push_supplier (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
 The channel is disconnecting.

void disconnect_push_consumer (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
 The channel is disconnecting.

void push (const RtecEventComm::EventSet &events ACE_ENV_ARG_DECL_WITH_DEFAULTS)
int shutdown (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
 Disconnect and shutdown the gateway.

virtual void close (ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS)
virtual void update_consumer (const RtecEventChannelAdmin::ConsumerQOS &sub ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void update_supplier (const RtecEventChannelAdmin::SupplierQOS &pub ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
void reconnect_consumer_ec (ACE_ENV_SINGLE_ARG_DECL)
CORBA::Boolean consumer_ec_non_existent (CORBA::Boolean_out disconnected ACE_ENV_ARG_DECL)
 Check whether the consumer event channel is non existent or not.

void cleanup_consumer_proxies (ACE_ENV_SINGLE_ARG_DECL)
int cleanup_consumer_ec (void)
int cleanup_supplier_ec (void)
void suspend_supplier_ec (ACE_ENV_SINGLE_ARG_DECL)
 Suspend the connection to the supplier ec.

void resume_supplier_ec (ACE_ENV_SINGLE_ARG_DECL)
 Resume the connection to the supplier ec.


Protected Types

typedef ACE_Map_Manager< RtecEventComm::EventSourceID,
RtecEventChannelAdmin::ProxyPushConsumer_ptr,
ACE_Null_Mutex > 		Consumer_Map
typedef ACE_Map_Iterator<
RtecEventComm::EventSourceID,
RtecEventChannelAdmin::ProxyPushConsumer_ptr,
ACE_Null_Mutex > 		Consumer_Map_Iterator

Protected Member Functions

int init_i (RtecEventChannelAdmin::EventChannel_ptr supplier_ec, RtecEventChannelAdmin::EventChannel_ptr consumer_ec ACE_ENV_ARG_DECL)
 Do the real work in init().


Protected Attributes

TAO_SYNCH_MUTEX lock_
 Lock to synchronize internal changes.

CORBA::ULong busy_count_
int update_posted_
RtecEventChannelAdmin::ConsumerQOS c_qos_
int cleanup_posted_
int supplier_ec_suspended_
RtecEventChannelAdmin::EventChannel_var supplier_ec_
RtecEventChannelAdmin::EventChannel_var consumer_ec_
 The event channel acting as consumer of this gateway.

RtecBase::handle_t supplier_info_
 Our RT_Infos for the event channel that is the supplier.

RtecBase::handle_t consumer_info_
 Our RT_Infos for the event channel that is the consumer.

ACE_PushConsumer_Adapter<
TAO_EC_Gateway_IIOP > 		consumer_
 Our consumer personality....

int consumer_is_active_
 If it is not 0 then we must deactivate the consumer.

ACE_PushSupplier_Adapter<
TAO_EC_Gateway_IIOP > 		supplier_
 Our supplier personality....

int supplier_is_active_
 If it is not 0 then we must deactivate the supplier.

Consumer_Map consumer_proxy_map_
RtecEventChannelAdmin::ProxyPushConsumer_var default_consumer_proxy_
RtecEventChannelAdmin::ProxyPushSupplier_var supplier_proxy_
TAO_ECG_ConsumerEC_Control * ec_control_
TAO_EC_Gateway_IIOP_Factory * factory_
 The Gateway IIOP Factory for all the settings.

int use_ttl_
 If 1, we use the TTL flags, if 0, we just ignore TTL.

int use_consumer_proxy_map_

Private Member Functions

void close_i (ACE_ENV_SINGLE_ARG_DECL)
void disconnect_supplier_proxy_i (ACE_ENV_SINGLE_ARG_DECL)
 Disconnect the supplier proxy.

void disconnect_consumer_proxies_i (ACE_ENV_SINGLE_ARG_DECL)
 Disconnect all consumer proxies.

void cleanup_consumer_proxies_i (ACE_ENV_SINGLE_ARG_DECL)
 Remove all consumer proxies without calling disconnect on them.

void update_consumer_i (const RtecEventChannelAdmin::ConsumerQOS &sub ACE_ENV_ARG_DECL)
void open_i (const RtecEventChannelAdmin::ConsumerQOS &sub ACE_ENV_ARG_DECL)
 Create all connections to consumer ec and to supplier ec.

CORBA::Boolean is_consumer_ec_connected_i (void) const
 Helper method to see if consumer ec is connected.

void push_to_consumer (RtecEventChannelAdmin::ProxyPushConsumer_ptr consumer, const RtecEventComm::EventSet &event ACE_ENV_ARG_DECL)
 Push the event to the consumer.

void cleanup_consumer_ec_i (void)
void cleanup_supplier_ec_i (void)

Detailed Description

Event Channel Gateway using IIOP.

This class mediates among two event channels, it connects as a consumer of events with a remote event channel, and as a supplier of events with the local EC. As a consumer it gives a QoS designed to only accept the events in which *local* consumers are interested. Eventually the local EC should create this object and compute its QoS in an automated manner; but this requires some way to filter out the peers registered as consumers, otherwise we will get loops in the QoS graph. It uses exactly the same set of events in the publications list when connected as a supplier.

Note:
An alternative implementation would be to register with the remote EC as a supplier, and then filter on the remote EC, but one of the objectives is to minimize network traffic. On the other hand the events will be pushed to remote consumers, event though they will be dropped upon receipt (due to the TTL field); IMHO this is another suggestion that the EC needs to know (somehow) which consumers are truly its peers in disguise.

Todo:
: The class makes an extra copy of the events, we need to investigate if closer collaboration with its collocated EC could be used to remove that copy.

Definition at line 65 of file EC_Gateway_IIOP.h.

Member Typedef Documentation

typedef ACE_Map_Manager<RtecEventComm::EventSourceID,RtecEventChannelAdmin::ProxyPushConsumer_ptr,ACE_Null_Mutex> TAO_EC_Gateway_IIOP::Consumer_Map [protected]


Definition at line 220 of file EC_Gateway_IIOP.h.

typedef ACE_Map_Iterator<RtecEventComm::EventSourceID,RtecEventChannelAdmin::ProxyPushConsumer_ptr,ACE_Null_Mutex> TAO_EC_Gateway_IIOP::Consumer_Map_Iterator [protected]


Definition at line 221 of file EC_Gateway_IIOP.h.

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_EC_Gateway_IIOP::TAO_EC_Gateway_IIOP (  void   )


Definition at line 19 of file EC_Gateway_IIOP.cpp.

References ACE_NEW, ACE_Dynamic_Service< TYPE >::instance(), TAO_EC_Gateway_IIOP_Factory::use_consumer_proxy_map(), use_consumer_proxy_map_, TAO_EC_Gateway_IIOP_Factory::use_ttl(), and use_ttl_.

00020   :  busy_count_ (0),
00021      update_posted_ (0),
00022      cleanup_posted_ (0),
00023      supplier_ec_suspended_ (0),
00024      supplier_info_ (0),
00025      consumer_info_ (0),
00026      consumer_ (this),
00027      consumer_is_active_ (0),
00028      supplier_ (this),
00029      supplier_is_active_ (0),
00030      ec_control_ (0),
00031      factory_ (0),
00032      use_ttl_ (1),
00033      use_consumer_proxy_map_ (1)
00034 {
00035   if (this->factory_ == 0)
00036     {
00037       this->factory_ =
00038              ACE_Dynamic_Service<TAO_EC_Gateway_IIOP_Factory>::instance ("EC_Gateway_IIOP_Factory");
00039
00040       if (this->factory_ == 0)
00041         {
00042           TAO_EC_Gateway_IIOP_Factory *f = 0;
00043           ACE_NEW (f,
00044                    TAO_EC_Gateway_IIOP_Factory);
00045           this->factory_ = f;
00046         }
00047     }
00048
00049   if (this->factory_ != 0)
00050     {
00051       this->use_ttl_ = this->factory_->use_ttl();
00052       this->use_consumer_proxy_map_ = this->factory_->use_consumer_proxy_map();
00053     }
00054 }

TAO_EC_Gateway_IIOP::~TAO_EC_Gateway_IIOP (  void   )  [virtual]


Definition at line 56 of file EC_Gateway_IIOP.cpp.

References ec_control_.

00057 {
00058    delete ec_control_;
00059    ec_control_ = 0;
00060 }

Member Function Documentation

int TAO_EC_Gateway_IIOP::cleanup_consumer_ec (  void   )


Cleanup the connection to the consumer ec. Doesn't call anything on the ec again, just set the object to nil

Definition at line 623 of file EC_Gateway_IIOP.cpp.

References ACE_GUARD_RETURN, cleanup_consumer_ec_i(), and TAO_SYNCH_MUTEX.

Referenced by TAO_ECG_Reactive_ConsumerEC_Control::system_exception().

00624 {
00625   ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, -1);
00626
00627   this->cleanup_consumer_ec_i ();
00628
00629   return 0;
00630 }

void TAO_EC_Gateway_IIOP::cleanup_consumer_ec_i (  void   )  [private]


Definition at line 643 of file EC_Gateway_IIOP.cpp.

References consumer_ec_.

Referenced by cleanup_consumer_ec().

00644 {
00645   this->consumer_ec_ =
00646     RtecEventChannelAdmin::EventChannel::_nil ();
00647 }

void TAO_EC_Gateway_IIOP::cleanup_consumer_proxies (  ACE_ENV_SINGLE_ARG_DECL   )


Cleanup all consumer proxies we have without trying to tell the consumer that we are going to disconnect. This can be used to cleanup the consumer proxy administration in case we know that the consumers are all unreachable.

Referenced by TAO_ECG_Reconnect_ConsumerEC_Control::system_exception(), and TAO_ECG_Reactive_ConsumerEC_Control::system_exception().

void TAO_EC_Gateway_IIOP::cleanup_consumer_proxies_i (  ACE_ENV_SINGLE_ARG_DECL   )  [private]


Remove all consumer proxies without calling disconnect on them.

int TAO_EC_Gateway_IIOP::cleanup_supplier_ec (  void   )


Cleanup the connection to the supplier ec. Doesn't call anything on the ec again, just set the object to nil

Definition at line 633 of file EC_Gateway_IIOP.cpp.

References ACE_GUARD_RETURN, cleanup_supplier_ec_i(), and TAO_SYNCH_MUTEX.

00634 {
00635   ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, -1);
00636
00637   this->cleanup_supplier_ec_i ();
00638
00639   return 0;
00640 }

void TAO_EC_Gateway_IIOP::cleanup_supplier_ec_i (  void   )  [private]


Definition at line 650 of file EC_Gateway_IIOP.cpp.

References supplier_ec_.

Referenced by cleanup_supplier_ec().

00651 {
00652   this->supplier_ec_ =
00653     RtecEventChannelAdmin::EventChannel::_nil ();
00654 }

virtual void TAO_EC_Gateway_IIOP::close (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )  [virtual]


The gateway must disconnect from all the relevant event channels, or any other communication media (such as multicast groups).

Implements TAO_EC_Gateway.

void TAO_EC_Gateway_IIOP::close_i (  ACE_ENV_SINGLE_ARG_DECL   )  [private]


CORBA::Boolean TAO_EC_Gateway_IIOP::consumer_ec_non_existent (  CORBA::Boolean_out disconnected  ACE_ENV_ARG_DECL  )


Check whether the consumer event channel is non existent or not.

Definition at line 663 of file EC_Gateway_IIOP.cpp.

References CORBA::Object::_duplicate(), ACE_CHECK_RETURN, ACE_ENV_SINGLE_ARG_PARAMETER, ACE_GUARD_THROW_EX, is_consumer_ec_connected_i(), and TAO_SYNCH_MUTEX.

Referenced by TAO_ECG_Reconnect_ConsumerEC_Control::query_eventchannel(), TAO_ECG_Reactive_ConsumerEC_Control::query_eventchannel(), and TAO_ECG_Reconnect_ConsumerEC_Control::try_reconnect().

00666 {
00667   CORBA::Object_var consumer_ec;
00668   {
00669     ACE_GUARD_THROW_EX (
00670         TAO_SYNCH_MUTEX, ace_mon, this->lock_,
00671         CORBA::INTERNAL ());
00672     ACE_CHECK_RETURN (0);
00673
00674     disconnected = 0;
00675     if (this->is_consumer_ec_connected_i () == 0)
00676       {
00677         disconnected = 1;
00678         return 0;
00679       }
00680
00681     consumer_ec = CORBA::Object::_duplicate (this->consumer_ec_.in ());
00682   }
00683
00684 #if (TAO_HAS_MINIMUM_CORBA == 0)
00685   return consumer_ec->_non_existent (ACE_ENV_SINGLE_ARG_PARAMETER);
00686 #else
00687   return 0;
00688 #endif /* TAO_HAS_MINIMUM_CORBA */
00689 }

void TAO_EC_Gateway_IIOP::disconnect_consumer_proxies_i (  ACE_ENV_SINGLE_ARG_DECL   )  [private]


Disconnect all consumer proxies.

void TAO_EC_Gateway_IIOP::disconnect_push_consumer (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )


The channel is disconnecting.

void TAO_EC_Gateway_IIOP::disconnect_push_supplier (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )


The channel is disconnecting.

void TAO_EC_Gateway_IIOP::disconnect_supplier_proxy_i (  ACE_ENV_SINGLE_ARG_DECL   )  [private]


Disconnect the supplier proxy.

int TAO_EC_Gateway_IIOP::init (  RtecEventChannelAdmin::EventChannel_ptr  supplier_ec,
RtecEventChannelAdmin::EventChannel_ptr consumer_ec  ACE_ENV_ARG_DECL
)


To do its job this class requires to know the local and remote ECs it will connect to.

Returns:
0 in case of success, -1 in case of failure

Definition at line 63 of file EC_Gateway_IIOP.cpp.

References ACE_ENV_ARG_PARAMETER, ACE_GUARD_RETURN, init_i(), and TAO_SYNCH_MUTEX.

00066 {
00067   ACE_GUARD_RETURN (TAO_SYNCH_MUTEX, ace_mon, this->lock_, -1);
00068
00069   return this->init_i (supplier_ec, consumer_ec ACE_ENV_ARG_PARAMETER);
00070 }

int TAO_EC_Gateway_IIOP::init_i (  RtecEventChannelAdmin::EventChannel_ptr  supplier_ec,
RtecEventChannelAdmin::EventChannel_ptr consumer_ec  ACE_ENV_ARG_DECL
)  [protected]


Do the real work in init().

Definition at line 73 of file EC_Gateway_IIOP.cpp.

References ACE_ERROR_RETURN, TAO_ECG_ConsumerEC_Control::activate(), consumer_ec_, TAO_EC_Gateway_IIOP_Factory::create_consumerec_control(), ec_control_, CORBA::is_nil(), LM_ERROR, and supplier_ec_.

Referenced by TAO_EC_Gateway_Sched::init(), and init().

00076 {
00077   if (CORBA::is_nil (this->supplier_ec_.in ()) && CORBA::is_nil (this->consumer_ec_.in ()))
00078   {
00079     this->supplier_ec_ =
00080       RtecEventChannelAdmin::EventChannel::_duplicate (supplier_ec);
00081     this->consumer_ec_ =
00082       RtecEventChannelAdmin::EventChannel::_duplicate (consumer_ec);
00083
00084         if (ec_control_ == 0)
00085      {
00086         ec_control_ = factory_->create_consumerec_control(this);
00087         ec_control_->activate();
00088      }
00089
00090     return 0;
00091   }
00092   else
00093     ACE_ERROR_RETURN ((LM_ERROR,
00094                        "TAO_EC_Gateway_IIOP - init_i "
00095                        "Supplier and consumer event channel reference "
00096                        "should be nil.\n"), -1);
00097 }

CORBA::Boolean TAO_EC_Gateway_IIOP::is_consumer_ec_connected_i (  void   )  const [private]


Helper method to see if consumer ec is connected.

Definition at line 657 of file EC_Gateway_IIOP.cpp.

References CORBA::is_nil().

Referenced by consumer_ec_non_existent().

00658 {
00659   return !CORBA::is_nil (this->consumer_ec_.in ());
00660 }

void TAO_EC_Gateway_IIOP::open_i (  const RtecEventChannelAdmin::ConsumerQOS &sub  ACE_ENV_ARG_DECL  )  [private]


Create all connections to consumer ec and to supplier ec.

void TAO_EC_Gateway_IIOP::push (  const RtecEventComm::EventSet &events  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )


This is the consumer side behavior, it pushes the events to the local event channel.

void TAO_EC_Gateway_IIOP::push_to_consumer (  RtecEventChannelAdmin::ProxyPushConsumer_ptr  consumer,
const RtecEventComm::EventSet &event  ACE_ENV_ARG_DECL
)  [private]


Push the event to the consumer.

void TAO_EC_Gateway_IIOP::reconnect_consumer_ec (  ACE_ENV_SINGLE_ARG_DECL   )


Referenced by TAO_ECG_Reconnect_ConsumerEC_Control::reconnect().

void TAO_EC_Gateway_IIOP::resume_supplier_ec (  ACE_ENV_SINGLE_ARG_DECL   )


Resume the connection to the supplier ec.

int TAO_EC_Gateway_IIOP::shutdown (  ACE_ENV_SINGLE_ARG_DECL_WITH_DEFAULTS   )


Disconnect and shutdown the gateway.

void TAO_EC_Gateway_IIOP::suspend_supplier_ec (  ACE_ENV_SINGLE_ARG_DECL   )


Suspend the connection to the supplier ec.

Referenced by TAO_ECG_Reconnect_ConsumerEC_Control::system_exception().

virtual void TAO_EC_Gateway_IIOP::update_consumer (  const RtecEventChannelAdmin::ConsumerQOS &sub  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException) [virtual]


void TAO_EC_Gateway_IIOP::update_consumer_i (  const RtecEventChannelAdmin::ConsumerQOS &sub  ACE_ENV_ARG_DECL  )  [private]


virtual void TAO_EC_Gateway_IIOP::update_supplier (  const RtecEventChannelAdmin::SupplierQOS &pub  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException) [virtual]


Member Data Documentation

CORBA::ULong TAO_EC_Gateway_IIOP::busy_count_ [protected]


How many threads are running push() we cannot make changes until that reaches 0

Definition at line 174 of file EC_Gateway_IIOP.h.

RtecEventChannelAdmin::ConsumerQOS TAO_EC_Gateway_IIOP::c_qos_ [protected]


Definition at line 182 of file EC_Gateway_IIOP.h.

int TAO_EC_Gateway_IIOP::cleanup_posted_ [protected]


We have a cleanup outstanding and must wait doing cleanup until all pushes are ready.

Definition at line 188 of file EC_Gateway_IIOP.h.

ACE_PushConsumer_Adapter<TAO_EC_Gateway_IIOP> TAO_EC_Gateway_IIOP::consumer_ [protected]


Our consumer personality....

Definition at line 208 of file EC_Gateway_IIOP.h.

RtecEventChannelAdmin::EventChannel_var TAO_EC_Gateway_IIOP::consumer_ec_ [protected]


The event channel acting as consumer of this gateway.

Definition at line 200 of file EC_Gateway_IIOP.h.

Referenced by cleanup_consumer_ec_i(), and init_i().

RtecBase::handle_t TAO_EC_Gateway_IIOP::consumer_info_ [protected]


Our RT_Infos for the event channel that is the consumer.

Definition at line 205 of file EC_Gateway_IIOP.h.

int TAO_EC_Gateway_IIOP::consumer_is_active_ [protected]


If it is not 0 then we must deactivate the consumer.

Definition at line 211 of file EC_Gateway_IIOP.h.

Consumer_Map TAO_EC_Gateway_IIOP::consumer_proxy_map_ [protected]


We talk to the EC (as a supplier) using either an per-supplier proxy or a generic proxy for the type only subscriptions. We push the events to these proxies

Definition at line 226 of file EC_Gateway_IIOP.h.

RtecEventChannelAdmin::ProxyPushConsumer_var TAO_EC_Gateway_IIOP::default_consumer_proxy_ [protected]


Definition at line 227 of file EC_Gateway_IIOP.h.

TAO_ECG_ConsumerEC_Control* TAO_EC_Gateway_IIOP::ec_control_ [protected]


The consumer ec control which controls the behaviour in case of a misbehaving consumer ec

Definition at line 235 of file EC_Gateway_IIOP.h.

Referenced by init_i(), and ~TAO_EC_Gateway_IIOP().

TAO_EC_Gateway_IIOP_Factory* TAO_EC_Gateway_IIOP::factory_ [protected]


The Gateway IIOP Factory for all the settings.

Definition at line 238 of file EC_Gateway_IIOP.h.

TAO_SYNCH_MUTEX TAO_EC_Gateway_IIOP::lock_ [protected]


Lock to synchronize internal changes.

Definition at line 170 of file EC_Gateway_IIOP.h.

ACE_PushSupplier_Adapter<TAO_EC_Gateway_IIOP> TAO_EC_Gateway_IIOP::supplier_ [protected]


Our supplier personality....

Definition at line 214 of file EC_Gateway_IIOP.h.

RtecEventChannelAdmin::EventChannel_var TAO_EC_Gateway_IIOP::supplier_ec_ [protected]


The event channel acting as supplier for this gateway so we can reconnect when the list changes.

Definition at line 197 of file EC_Gateway_IIOP.h.

Referenced by cleanup_supplier_ec_i(), and init_i().

int TAO_EC_Gateway_IIOP::supplier_ec_suspended_ [protected]


Is the supplier ec suspended?

Definition at line 193 of file EC_Gateway_IIOP.h.

RtecBase::handle_t TAO_EC_Gateway_IIOP::supplier_info_ [protected]


Our RT_Infos for the event channel that is the supplier.

Definition at line 203 of file EC_Gateway_IIOP.h.

int TAO_EC_Gateway_IIOP::supplier_is_active_ [protected]


If it is not 0 then we must deactivate the supplier.

Definition at line 217 of file EC_Gateway_IIOP.h.

RtecEventChannelAdmin::ProxyPushSupplier_var TAO_EC_Gateway_IIOP::supplier_proxy_ [protected]


We talk to the EC (as a consumer) using this proxy. We receive the events from these proxy

Definition at line 231 of file EC_Gateway_IIOP.h.

int TAO_EC_Gateway_IIOP::update_posted_ [protected]


An update_consumer() message arrived *while* we were doing a push() the modification is stored, if multiple update_consumer messages arrive only the last one is executed.

Definition at line 181 of file EC_Gateway_IIOP.h.

int TAO_EC_Gateway_IIOP::use_consumer_proxy_map_ [protected]


The flag for using the consumer proxy map. With 1 the consumer proxy map is used, meaning that for each unique source id we use a different proxy push consumer, if 0, we only use one proxy push consumer (the default) for all source ids.

Definition at line 247 of file EC_Gateway_IIOP.h.

Referenced by TAO_EC_Gateway_IIOP().

int TAO_EC_Gateway_IIOP::use_ttl_ [protected]


If 1, we use the TTL flags, if 0, we just ignore TTL.

Definition at line 241 of file EC_Gateway_IIOP.h.

Referenced by TAO_EC_Gateway_IIOP().

The documentation for this class was generated from the following files:
Generated on Thu Nov 9 13:14:49 2006 for TAO_RTEvent by doxygen 1.3.6
