TAO_POA_Manager Class Reference

#include <POAManager.h>

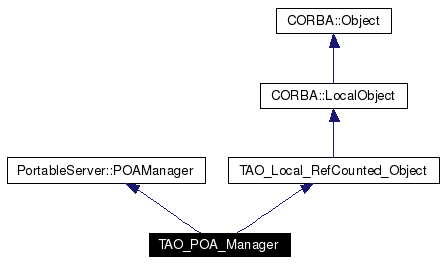

Inheritance diagram for TAO_POA_Manager:

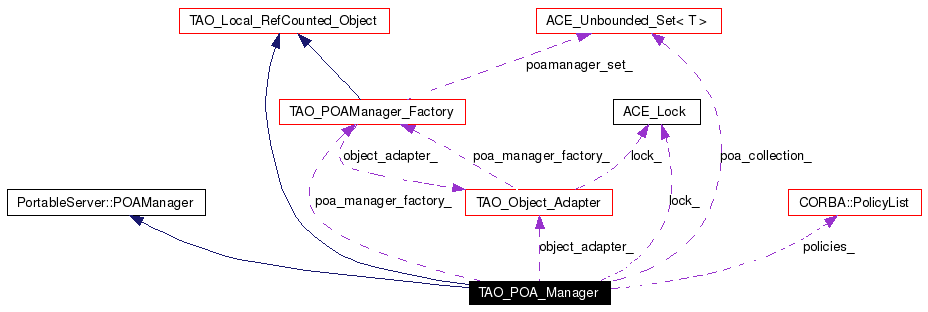

[legend]Collaboration diagram for TAO_POA_Manager:

[legend]List of all members.

Public Member Functions
void	activate () throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)
void	hold_requests (CORBA::Boolean wait_for_completion) throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)
void	discard_requests (CORBA::Boolean wait_for_completion) throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)
void	deactivate (CORBA::Boolean etherealize_objects, CORBA::Boolean wait_for_completion) throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)
PortableServer::POAManager::State	get_state () throw (CORBA::SystemException)
char *	get_id () throw (CORBA::SystemException)
	TAO_POA_Manager (TAO_Object_Adapter &object_adapter, const char *id, const::CORBA::PolicyList &policies, PortableServer::POAManagerFactory_ptr poa_manager_factory)
	~TAO_POA_Manager (void)
void	check_state ()
	Check the state of this POA manager.
PortableServer::POAManager::State	get_state_i () throw (CORBA::SystemException)
virtual CORBA::ORB_ptr	_get_orb ()
CORBA::PolicyList &	get_policies ()
Protected Types
typedef ACE_Unbounded_Set< TAO_Root_POA * >	POA_COLLECTION
Protected Member Functions
void	activate_i () throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)
void	deactivate_i (CORBA::Boolean etherealize_objects, CORBA::Boolean wait_for_completion) throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)
void	adapter_manager_state_changed (PortableServer::POAManager::State state) throw (CORBA::SystemException)
void	hold_requests_i (CORBA::Boolean wait_for_completion) throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)
void	discard_requests_i (CORBA::Boolean wait_for_completion) throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)
ACE_Lock &	lock (void)
int	remove_poa (TAO_Root_POA *poa)
int	register_poa (TAO_Root_POA *poa)
Protected Attributes
PortableServer::POAManager::State	state_
ACE_Lock &	lock_
POA_COLLECTION	poa_collection_
TAO_Object_Adapter &	object_adapter_
CORBA::String_var	id_
TAO_POAManager_Factory &	poa_manager_factory_
CORBA::PolicyList	policies_
Private Member Functions
char *	generate_manager_id (void) const
Friends
class	TAO_Root_POA
class	TAO_Object_Adapter

---

Member Typedef Documentation

typedef ACE_Unbounded_Set<TAO_Root_POA *> TAO_POA_Manager::POA_COLLECTION [protected]

Definition at line 155 of file POAManager.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_POA_Manager::TAO_POA_Manager (  TAO_Object_Adapter &  object_adapter, const char *  id, const::CORBA::PolicyList &  policies, PortableServer::POAManagerFactory_ptr  poa_manager_factory )

Definition at line 21 of file POAManager.cpp. References TAO_Local_RefCounted_Object::_add_ref(), and PortableServer::POAManagerFactory_ptr. : state_ (PortableServer::POAManager::HOLDING), lock_ (object_adapter.lock ()), poa_collection_ (), object_adapter_ (object_adapter), id_ (id == 0 ? this->generate_manager_id () : CORBA::string_dup (id)), #if !defined (CORBA_E_COMPACT) && !defined (CORBA_E_MICRO) poa_manager_factory_ (* dynamic_cast <TAO_POAManager_Factory*> (poa_manager_factory)), #endif policies_ (policies) { #if !defined (CORBA_E_COMPACT) && !defined (CORBA_E_MICRO) poa_manager_factory_._add_ref (); #endif }

TAO_POA_Manager::~TAO_POA_Manager (  void   )

Definition at line 41 of file POAManager.cpp. References TAO_Local_RefCounted_Object::_remove_ref(). { #if !defined (CORBA_E_COMPACT) && !defined (CORBA_E_MICRO) poa_manager_factory_._remove_ref (); #endif }

---

Member Function Documentation

CORBA::ORB_ptr TAO_POA_Manager::_get_orb (   )  [virtual]

Reimplemented from CORBA::LocalObject. Definition at line 408 of file POAManager.cpp. References CORBA::ORB::_duplicate(). { return CORBA::ORB::_duplicate (this->object_adapter_.orb_core ().orb ()); }

ACE_INLINE void TAO_POA_Manager::activate (   )  throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)

Implements PortableServer::POAManager. Definition at line 17 of file POAManager.i. References ACE_ENV_SINGLE_ARG_PARAMETER, and TAO_OBJECT_ADAPTER_GUARD. { // Lock access to the POAManager for the duration of this transaction TAO_OBJECT_ADAPTER_GUARD; this->activate_i (ACE_ENV_SINGLE_ARG_PARAMETER); }

void TAO_POA_Manager::activate_i (   )  throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive) [protected]

Definition at line 56 of file POAManager.cpp. References ACE_CHECK, ACE_ENV_ARG_PARAMETER, and ACE_THROW. { // This operation changes the state of the POA manager to active. If // issued while the POA manager is in the inactive state, the // AdapterInactive exception is raised. Entering the active state // enables the associated POAs to process requests. if (this->state_ == PortableServer::POAManager::INACTIVE) { ACE_THROW (PortableServer::POAManager::AdapterInactive ()); } else { this->state_ = PortableServer::POAManager::ACTIVE; // Find the poas that applied the custom servant dispatching // strategy to launch the dispatching threads. for (POA_COLLECTION::iterator iterator = this->poa_collection_.begin (); iterator != this->poa_collection_.end (); ++iterator) { (*iterator)->poa_activated_hook (); } } this->adapter_manager_state_changed (this->state_ ACE_ENV_ARG_PARAMETER); ACE_CHECK; }

void TAO_POA_Manager::adapter_manager_state_changed (  PortableServer::POAManager::State  state  )  throw (CORBA::SystemException) [protected]

Method needed for notifying the IORInterceptors that the state of POAManager changed. Definition at line 169 of file POAManager.cpp. References ACE_CHECK, ACE_ENV_ARG_PARAMETER, and TAO_IORInterceptor_Adapter::adapter_manager_state_changed(). { PortableInterceptor::AdapterState adapter_state = static_cast<PortableInterceptor::AdapterState> (state); TAO_IORInterceptor_Adapter *ior_adapter = this->object_adapter_.orb_core ().ior_interceptor_adapter (); if (ior_adapter) { ior_adapter->adapter_manager_state_changed (this->id_.in (), adapter_state ACE_ENV_ARG_PARAMETER); ACE_CHECK; } }

void TAO_POA_Manager::check_state (   )

Check the state of this POA manager. Definition at line 338 of file POAManager.cpp. References ACE_THROW, TAO_POA_DISCARDING, TAO_POA_HOLDING, and TAO_POA_INACTIVE. Referenced by TAO::Portable_Server::LifespanStrategyTransient::check_state(), and TAO::Portable_Server::LifespanStrategyPersistent::check_state(). { if (state_ == PortableServer::POAManager::ACTIVE) { // When a POA manager is in the active state, the associated // POAs will receive and start processing requests (assuming // that appropriate thread resources are available). return; } if (state_ == PortableServer::POAManager::DISCARDING) { // When a POA manager is in the discarding state, the associated // POAs will discard all incoming requests (whose processing has // not yet begun). When a request is discarded, the TRANSIENT // system exception, with standard minor code 1, must be // returned to the client-side to indicate that the request // should be re-issued. (Of course, an ORB may always reject a // request for other reasons and raise some other system // exception.) ACE_THROW ( CORBA::TRANSIENT ( CORBA::SystemException::_tao_minor_code ( TAO_POA_DISCARDING, 1), CORBA::COMPLETED_NO)); } if (state_ == PortableServer::POAManager::HOLDING) { // When a POA manager is in the holding state, the associated // POAs will queue incoming requests. The number of requests // that can be queued is an implementation limit. If this limit // is reached, the POAs may discard requests and return the // TRANSIENT system exception, with standard minor code 1, to // the client to indicate that the client should reissue the // request. (Of course, an ORB may always reject a request for // other reasons and raise some other system exception.) // Since there is no queuing in TAO, we immediately raise a // TRANSIENT exception. ACE_THROW (CORBA::TRANSIENT ( CORBA::SystemException::_tao_minor_code ( TAO_POA_HOLDING, 1), CORBA::COMPLETED_NO)); } if (state_ == PortableServer::POAManager::INACTIVE) { // The inactive state is entered when the associated POAs are to // be shut down. Unlike the discarding state, the inactive state // is not a temporary state. When a POA manager is in the // inactive state, the associated POAs will reject new // requests. The rejection mechanism used is specific to the // vendor. The GIOP location forwarding mechanism and // CloseConnection message are examples of mechanisms that could // be used to indicate the rejection. If the client is // co-resident in the same process, the ORB could raise the // OBJ_ADAPTER system exception, with standard minor code 1, to // indicate that the object implementation is unavailable. ACE_THROW (CORBA::OBJ_ADAPTER ( CORBA::SystemException::_tao_minor_code ( TAO_POA_INACTIVE, 1), CORBA::COMPLETED_NO)); } }

ACE_INLINE void TAO_POA_Manager::deactivate (  CORBA::Boolean  etherealize_objects, CORBA::Boolean  wait_for_completion )  throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)

Definition at line 54 of file POAManager.i. References ACE_ENV_ARG_PARAMETER, and TAO_OBJECT_ADAPTER_GUARD. { // Lock access to the POAManager for the duration of this transaction TAO_OBJECT_ADAPTER_GUARD; this->deactivate_i (etherealize_objects, wait_for_completion ACE_ENV_ARG_PARAMETER); }

void TAO_POA_Manager::deactivate_i (  CORBA::Boolean  etherealize_objects, CORBA::Boolean  wait_for_completion )  throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive) [protected]

Definition at line 89 of file POAManager.cpp. References ACE_CHECK, ACE_ENV_ARG_PARAMETER, ACE_THROW, TAO_Root_POA::check_for_valid_wait_for_completions(), TAO_Root_POA::deactivate_all_objects_i(), and TAO_Root_POA::poa_deactivated_hook(). { // Is the <wait_for_completion> semantics for this thread correct? TAO_Root_POA::check_for_valid_wait_for_completions (this->object_adapter_.orb_core (), wait_for_completion ACE_ENV_ARG_PARAMETER); ACE_CHECK; // This operation changes the state of the POA manager to // inactive. If issued while the POA manager is in the inactive // state, the AdapterInactive exception is raised. Entering the // inactive state causes the associated POAs to reject requests that // have not begun to be executed as well as any new requests. if (this->state_ == PortableServer::POAManager::INACTIVE) { ACE_THROW (PortableServer::POAManager::AdapterInactive ()); } else { this->state_ = PortableServer::POAManager::INACTIVE; } // After changing the state, if the etherealize_objects parameter is: // // a) TRUE - the POA manager will cause all associated POAs that // have the RETAIN and USE_SERVANT_MANAGER policies to perform the // etherealize operation on the associated servant manager for all // active objects. // // b) FALSE - the etherealize operation is not called. The purpose // is to provide developers with a means to shut down POAs in a // crisis (for example, unrecoverable error) situation. // If the wait_for_completion parameter is FALSE, this operation // will return immediately after changing the state. If the // parameter is TRUE and the current thread is not in an invocation // context dispatched by some POA belonging to the same ORB as this // POA, this operation does not return until there are no actively // executing requests in any of the POAs associated with this POA // manager (that is, all requests that were started prior to the // state change have completed) and, in the case of a TRUE // etherealize_objects, all invocations of etherealize have // completed for POAs having the RETAIN and USE_SERVANT_MANAGER // policies. If the parameter is TRUE and the current thread is in // an invocation context dispatched by some POA belonging to the // same ORB as this POA the BAD_INV_ORDER exception is raised and // the state is not changed. for (POA_COLLECTION::iterator iterator = this->poa_collection_.begin (); iterator != this->poa_collection_.end (); ++iterator) { TAO_Root_POA *poa = *iterator; // Notify the poas that applied the custom servant dispatching // strategy to stop the dispatching threads. poa->poa_deactivated_hook (); poa->deactivate_all_objects_i (etherealize_objects, wait_for_completion ACE_ENV_ARG_PARAMETER); ACE_CHECK; } // If the ORB::shutdown operation is called, it makes a call on // deactivate with a TRUE etherealize_objects parameter for each POA // manager known in the process; the wait_for_completion parameter // to deactivate will be the same as the similarly named parameter // of ORB::shutdown. this->adapter_manager_state_changed (this->state_ ACE_ENV_ARG_PARAMETER); ACE_CHECK; }

ACE_INLINE void TAO_POA_Manager::discard_requests (  CORBA::Boolean  wait_for_completion  )  throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)

Definition at line 42 of file POAManager.i. References ACE_ENV_ARG_PARAMETER, and TAO_OBJECT_ADAPTER_GUARD. { // Lock access to the POAManager for the duration of this transaction TAO_OBJECT_ADAPTER_GUARD; this->discard_requests_i (wait_for_completion ACE_ENV_ARG_PARAMETER); }

void TAO_POA_Manager::discard_requests_i (  CORBA::Boolean  wait_for_completion  )  throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive) [protected]

Definition at line 251 of file POAManager.cpp. References ACE_CHECK, ACE_ENV_ARG_PARAMETER, ACE_THROW, TAO_Root_POA::check_for_valid_wait_for_completions(), and TAO_Root_POA::wait_for_completions(). { // Is the <wait_for_completion> semantics for this thread correct? TAO_Root_POA::check_for_valid_wait_for_completions (this->object_adapter_.orb_core (), wait_for_completion ACE_ENV_ARG_PARAMETER); ACE_CHECK; // This operation changes the state of the POA manager to // discarding. If issued while the POA manager is in the inactive // state, the AdapterInactive exception is raised. Entering the // discarding state causes the associated POAs to discard incoming // requests. In addition, any requests that have been queued but // have not started executing are discarded. When a request is // discarded, a TRANSIENT system exception is returned to the // client. if (this->state_ == PortableServer::POAManager::INACTIVE) { ACE_THROW (PortableServer::POAManager::AdapterInactive ()); } else { this->state_ = PortableServer::POAManager::DISCARDING; } // If the wait_for_completion parameter is FALSE, this operation // returns immediately after changing the state. If the // parameter is TRUE and the current thread is not in an // invocation context dispatched by some POA belonging to the // same ORB as this POA, this operation does not return until // either there are no actively executing requests in any of the // POAs associated with this POA manager (that is, all requests // that were started prior to the state change have completed) // or the state of the POA manager is changed to a state other // than discarding. If the parameter is TRUE and the current // thread is in an invocation context dispatched by some POA // belonging to the same ORB as this POA the BAD_INV_ORDER // exception is raised and the state is not changed. if (wait_for_completion) { for (POA_COLLECTION::iterator iterator = this->poa_collection_.begin (); iterator != this->poa_collection_.end (); ++iterator) { TAO_Root_POA *poa = *iterator; poa->wait_for_completions (wait_for_completion ACE_ENV_ARG_PARAMETER); ACE_CHECK; } } this->adapter_manager_state_changed (this->state_ ACE_ENV_ARG_PARAMETER); }

ACE_INLINE char * TAO_POA_Manager::generate_manager_id (  void   )  const [private]

Generate an id for this POAManager. Returns: A value that uniquely identifies the POAManager within a given process. Note: : The id_ has the ownership of the memory allocated in this method. Definition at line 88 of file POAManager.i. References ACE_OS::sprintf(). { // The AdapterManagerId must be unique across all Adapter Managers // (e.g. POAManagers) within a given process. To avoid locking // overhead, the address of the POAManager object is used as the // AdapterManagerId. This guarantees that the AdapterManagerId is // unique. // // For 64-bit platforms, only the lower 32 bits are used. Hopefully // that will be enough to ensure uniqueness. // This is basically the same trick used in // TAO_GIOP_Invocation::generate_request_id(). However, no right // shifting of 64 bit addresses is performed since the // TAO_POA_Manager object is not large enough to allow that trick. CORBA::Long id = 0; // Note that we reinterpret_cast to an "unsigned long" instead of // CORBA::ULong since we need to first cast to an integer large // enough to hold an address to avoid compile-time warnings on some // 64-bit platforms. if (sizeof (this) == 4) // 32 bit address id = reinterpret_cast <ptrdiff_t> (this); else if (sizeof (this) == 8) // 64 bit address -- use lower 32 bits id = reinterpret_cast <ptrdiff_t> (this) & 0xFFFFFFFFu; // @@ If we ever hit a platform where neither of the above cases are // satisfied, we're up the creek! // else // // Fallback on an atomically incremented variable specific to the // // ORB, or perhaps specific to the process. // id = ...GENERATE_ID_ATOMICALLY...; // Fallback char* buf = new char [25]; ACE_OS::sprintf (buf, "POAManager%d", id); return buf; }

char * TAO_POA_Manager::get_id (   )  throw (CORBA::SystemException)

Implements PortableServer::POAManager. Definition at line 49 of file POAManager.cpp. References CORBA::string_dup(). { return CORBA::string_dup (this->id_.in ()); }

ACE_INLINE CORBA::PolicyList & TAO_POA_Manager::get_policies (   )

Definition at line 131 of file POAManager.i. { return this->policies_; }

ACE_INLINE PortableServer::POAManager::State TAO_POA_Manager::get_state (   )  throw (CORBA::SystemException)

Implements PortableServer::POAManager. Definition at line 78 of file POAManager.i. References TAO_OBJECT_ADAPTER_GUARD_RETURN. { // Lock access to the POAManager for the duration of this transaction TAO_OBJECT_ADAPTER_GUARD_RETURN (this->state_); return this->get_state_i (); }

ACE_INLINE PortableServer::POAManager::State TAO_POA_Manager::get_state_i (   )  throw (CORBA::SystemException)

Definition at line 71 of file POAManager.i. Referenced by TAO::Portable_Server::LifespanStrategyTransient::check_state(). { return this->state_; }

ACE_INLINE void TAO_POA_Manager::hold_requests (  CORBA::Boolean  wait_for_completion  )  throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive)

Definition at line 30 of file POAManager.i. References ACE_ENV_ARG_PARAMETER, and TAO_OBJECT_ADAPTER_GUARD. { // Lock access to the POAManager for the duration of this transaction TAO_OBJECT_ADAPTER_GUARD; this->hold_requests_i (wait_for_completion ACE_ENV_ARG_PARAMETER); }

void TAO_POA_Manager::hold_requests_i (  CORBA::Boolean  wait_for_completion  )  throw (CORBA::SystemException, PortableServer::POAManager::AdapterInactive) [protected]

Definition at line 191 of file POAManager.cpp. References ACE_CHECK, ACE_ENV_ARG_PARAMETER, ACE_THROW, TAO_Root_POA::check_for_valid_wait_for_completions(), and TAO_Root_POA::wait_for_completions(). { // Is the <wait_for_completion> semantics for this thread correct? TAO_Root_POA::check_for_valid_wait_for_completions (this->object_adapter_.orb_core (), wait_for_completion ACE_ENV_ARG_PARAMETER); ACE_CHECK; // This operation changes the state of the POA manager to // holding. If issued while the POA manager is in the inactive // state, the AdapterInactive exception is raised. Entering the // holding state causes the associated POAs to queue incoming // requests. Any requests that have been queued but have not // started executing will continue to be queued while in the holding // state. if (this->state_ == PortableServer::POAManager::INACTIVE) { ACE_THROW (PortableServer::POAManager::AdapterInactive ()); } else { this->state_ = PortableServer::POAManager::HOLDING; } // If the wait_for_completion parameter is FALSE, this operation // returns immediately after changing the state. If the parameter is // TRUE and the current thread is not in an invocation context // dispatched by some POA belonging to the same ORB as this POA, // this operation does not return until either there are no actively // executing requests in any of the POAs associated with this POA // manager (that is, all requests that were started prior to the // state change have completed) or the state of the POA manager is // changed to a state other than holding. If the parameter is TRUE // and the current thread is in an invocation context dispatched by // some POA belonging to the same ORB as this POA the BAD_INV_ORDER // exception is raised and the state is not changed. if (wait_for_completion) { for (POA_COLLECTION::iterator iterator = this->poa_collection_.begin (); iterator != this->poa_collection_.end (); ++iterator) { TAO_Root_POA *poa = *iterator; poa->wait_for_completions (wait_for_completion ACE_ENV_ARG_PARAMETER); ACE_CHECK; } } this->adapter_manager_state_changed (this->state_ ACE_ENV_ARG_PARAMETER); ACE_CHECK; }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_Lock & TAO_POA_Manager::lock (  void   )  [protected]

Definition at line 11 of file POAManager.i. { return this->lock_; }

int TAO_POA_Manager::register_poa (  TAO_Root_POA *  poa  )  [protected]

Definition at line 332 of file POAManager.cpp. References ACE_Unbounded_Set< T >::insert(), and poa_collection_. Referenced by TAO_Root_POA::TAO_Root_POA(). { return this->poa_collection_.insert (poa); }

int TAO_POA_Manager::remove_poa (  TAO_Root_POA *  poa  )  [protected]

Definition at line 314 of file POAManager.cpp. References ACE_Unbounded_Set< T >::is_empty(), poa_collection_, ACE_Unbounded_Set< T >::remove(), and TAO_POAManager_Factory::remove_poamanager(). Referenced by TAO_Root_POA::complete_destruction_i(), and TAO_Root_POA::TAO_Root_POA(). { int const result = this->poa_collection_.remove (poa); if (result == 0) { if (this->poa_collection_.is_empty ()) { #if !defined (CORBA_E_COMPACT) && !defined (CORBA_E_MICRO) this->poa_manager_factory_.remove_poamanager (this); #endif } } return result; }

---

Friends And Related Function Documentation

friend class TAO_Object_Adapter [friend]

Definition at line 58 of file POAManager.h.

friend class TAO_Root_POA [friend]

Definition at line 57 of file POAManager.h.

---

Member Data Documentation

CORBA::String_var TAO_POA_Manager::id_ [protected]

Definition at line 161 of file POAManager.h.

ACE_Lock& TAO_POA_Manager::lock_ [protected]

Definition at line 153 of file POAManager.h.

TAO_Object_Adapter& TAO_POA_Manager::object_adapter_ [protected]

Definition at line 159 of file POAManager.h.

POA_COLLECTION TAO_POA_Manager::poa_collection_ [protected]

Definition at line 157 of file POAManager.h. Referenced by register_poa(), and remove_poa().

TAO_POAManager_Factory& TAO_POA_Manager::poa_manager_factory_ [protected]

Definition at line 164 of file POAManager.h.

CORBA::PolicyList TAO_POA_Manager::policies_ [protected]

Definition at line 167 of file POAManager.h.

PortableServer::POAManager::State TAO_POA_Manager::state_ [protected]

Definition at line 151 of file POAManager.h.

---

The documentation for this class was generated from the following files:

• POAManager.h
• POAManager.cpp
• POAManager.i

---
