TAO_Dynamic_Hash_OpTable Class Reference

Dynamic Hashing scheme for CORBA IDL operation name lookup. More...

#include <Operation_Table_Dynamic_Hash.h>

Inheritance diagram for TAO_Dynamic_Hash_OpTable:

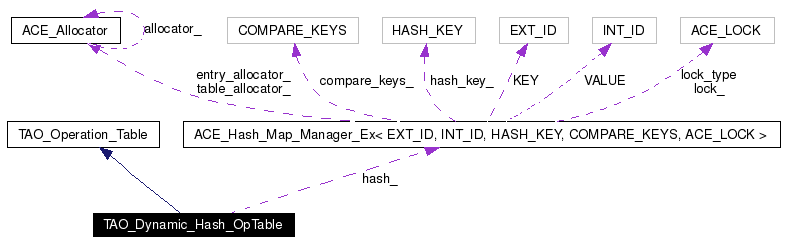

[legend]Collaboration diagram for TAO_Dynamic_Hash_OpTable:

[legend]List of all members.

Public Member Functions
	TAO_Dynamic_Hash_OpTable (const TAO_operation_db_entry *db, CORBA::ULong dbsize, CORBA::ULong hashtblsize, ACE_Allocator *alloc)
	~TAO_Dynamic_Hash_OpTable (void)
	Destructor.
virtual int	bind (const char *opname, const TAO::Operation_Skeletons skel_ptr)
	See the documentation in the base class for details.
virtual int	find (const char *opname, TAO_Skeleton &skelfunc, const unsigned int length=0)
virtual int	find (const char *opname, TAO_Collocated_Skeleton &skelfunc, TAO::Collocation_Strategy s, const unsigned int length=0)
Private Types
typedef ACE_Hash_Map_Manager_Ex< const char *, TAO::Operation_Skeletons, ACE_Hash< const char * >, ACE_Equal_To< const char * >, ACE_Null_Mutex >	OP_MAP_MANAGER
Private Attributes
OP_MAP_MANAGER	hash_
	The hash table data structure.

---

Detailed Description

Dynamic Hashing scheme for CORBA IDL operation name lookup.

Definition at line 36 of file Operation_Table_Dynamic_Hash.h.

---

Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex<const char *, TAO::Operation_Skeletons, ACE_Hash<const char *>, ACE_Equal_To<const char *>, ACE_Null_Mutex> TAO_Dynamic_Hash_OpTable::OP_MAP_MANAGER [private]

Definition at line 75 of file Operation_Table_Dynamic_Hash.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Dynamic_Hash_OpTable::TAO_Dynamic_Hash_OpTable (  const TAO_operation_db_entry *  db, CORBA::ULong  dbsize, CORBA::ULong  hashtblsize, ACE_Allocator *  alloc )

Initialize the dynamic hash operation table with a database of operation names. The hash table size may be different from the size of the database. Hence we use the third argument to specify the size of the internal hash table. The argument is used to determine where the memory comes from (usually from ). Definition at line 35 of file Operation_Table_Dynamic_Hash.cpp. References ACE_ERROR, ACE_TEXT(), bind(), TAO_operation_db_entry::direct_skel_ptr, TAO::Operation_Skeletons::direct_skel_ptr, LM_ERROR, TAO_operation_db_entry::skel_ptr, TAO::Operation_Skeletons::skel_ptr, and TAO::Operation_Skeletons::thruPOA_skel_ptr. : hash_ (hashtblsize, alloc) { // Iterate thru each entry in the database and bind the operation // name to its corresponding skeleton. for (CORBA::ULong i = 0; i < dbsize; ++i) { TAO::Operation_Skeletons s; s.skel_ptr = db[i].skel_ptr; s.thruPOA_skel_ptr = db[i].skel_ptr; s.direct_skel_ptr = db[i].direct_skel_ptr; // @@ (ASG): what happens if bind fails ??? if (this->bind (db[i].opname, s) == -1) ACE_ERROR ((LM_ERROR, ACE_TEXT ("(%P|%t) %p\n"), ACE_TEXT ("bind failed"))); } }

TAO_Dynamic_Hash_OpTable::~TAO_Dynamic_Hash_OpTable (  void   )

Destructor. Definition at line 59 of file Operation_Table_Dynamic_Hash.cpp. References CORBA::string_free(). { // Initialize an iterator. We need to go thru each entry and free // up storage allocated to hold the external ids. In this case, // these are strings. OP_MAP_MANAGER::ITERATOR iterator (this->hash_); for (OP_MAP_MANAGER::ENTRY *entry = 0; iterator.next (entry) != 0; iterator.advance ()) { // We had allocated memory and stored the string. So we free the // memory. CORBA::string_free ((char *) entry->ext_id_); entry->ext_id_ = 0; } }

---

Member Function Documentation

int TAO_Dynamic_Hash_OpTable::bind (  const char *  opname, const TAO::Operation_Skeletons  skel_ptr )  [virtual]

See the documentation in the base class for details. Implements TAO_Operation_Table. Definition at line 78 of file Operation_Table_Dynamic_Hash.cpp. References ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::bind(). Referenced by TAO_Dynamic_Hash_OpTable(). { return this->hash_.bind (CORBA::string_dup (opname), skel_ptr); }

int TAO_Dynamic_Hash_OpTable::find (  const char *  opname, TAO_Collocated_Skeleton &  skelfunc, TAO::Collocation_Strategy  s, const unsigned int  length = 0 )  [virtual]

Uses opname to look up the collocated skeleton function and pass it back in skelfunc. Returns non-negative integer on success, or -1 on failure. Implements TAO_Operation_Table. Definition at line 106 of file Operation_Table_Dynamic_Hash.cpp. References ACE_FUNCTION_TIMEPROBE, TAO::Operation_Skeletons::direct_skel_ptr, ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::find(), and TAO_Collocated_Skeleton. { ACE_FUNCTION_TIMEPROBE (TAO_DYNAMIC_HASH_OPTABLE_FIND_START); TAO::Operation_Skeletons skel; int retval = this->hash_.find ((const char *)opname, skel); if (retval != -1) { switch (s) { case TAO::TAO_CS_DIRECT_STRATEGY: skel_ptr = skel.direct_skel_ptr; break; default: return -1; } } return retval; }

int TAO_Dynamic_Hash_OpTable::find (  const char *  opname, TAO_Skeleton &  skelfunc, const unsigned int  length = 0 )  [virtual]

Uses opname to look up the skeleton function and pass it back in skelfunc. Returns non-negative integer on success, or -1 on failure. Implements TAO_Operation_Table. Definition at line 86 of file Operation_Table_Dynamic_Hash.cpp. References ACE_FUNCTION_TIMEPROBE, ACE_Hash_Map_Manager_Ex< EXT_ID, INT_ID, HASH_KEY, COMPARE_KEYS, ACE_LOCK >::find(), TAO::Operation_Skeletons::skel_ptr, and TAO_Skeleton. { ACE_FUNCTION_TIMEPROBE (TAO_DYNAMIC_HASH_OPTABLE_FIND_START); TAO::Operation_Skeletons s; int retval = this->hash_.find ((const char *)opname, s); if (retval != -1) { skel_ptr = s.skel_ptr; } return retval; }

---

Member Data Documentation

OP_MAP_MANAGER TAO_Dynamic_Hash_OpTable::hash_ [private]

The hash table data structure. Definition at line 78 of file Operation_Table_Dynamic_Hash.h.

---

The documentation for this class was generated from the following files:

• Operation_Table_Dynamic_Hash.h
• Operation_Table_Dynamic_Hash.cpp

---
