TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER > Class Template Reference

Extend the Proxy_Admin interface to provide methods for filtering. More...

#include <ESF_Peer_Admin.h>

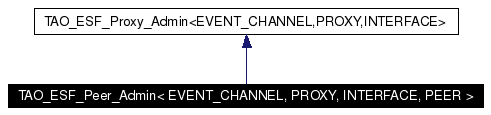

Inheritance diagram for TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >:

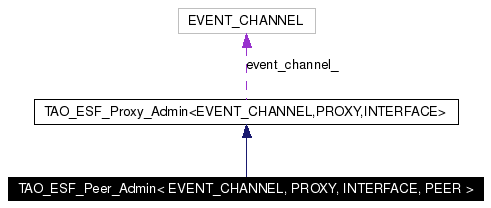

[legend]Collaboration diagram for TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >:

[legend]List of all members.

Public Member Functions
	TAO_ESF_Peer_Admin (EVENT_CHANNEL *ec)
	Constructor.
virtual	~TAO_ESF_Peer_Admin (void)
	destructor

---

Detailed Description

template<class EVENT_CHANNEL, class PROXY, class INTERFACE, class PEER>
class TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >

Extend the Proxy_Admin interface to provide methods for filtering.

Some Event Services that perform filtering have to propagate the consumer connect/disconnect activities to the suppliers, and vice-versa. In that scenario the ESF_Proxy_Admin<> interface is augmented with connected()/reconnected()/disconnected() operations for the proxy peers (i.e. the ProxySuppliers for the ProxyConsumers and vice-versa).

Requirements

In addition to the requirements imposed by ESF_Proxy_Admin<> the PROXY interface must implement:

 * void connected (PEER *peer ACE_ENV_ARG_DECL_NOT_USED) throw ();
 * void reconnected (PEER *peer ACE_ENV_ARG_DECL_NOT_USED) throw ();
 * void disconnected (PEER *peer ACE_ENV_ARG_DECL_NOT_USED) throw ();
 *

Similarly, the PEER interface must implement:

 * void connected (PROXY *proxy ACE_ENV_ARG_DECL_NOT_USED) throw ();
 * void reconnected (PROXY *proxy ACE_ENV_ARG_DECL_NOT_USED) throw ();
 * void disconnected (PROXY *proxy ACE_ENV_ARG_DECL_NOT_USED) throw ();
 *

Definition at line 58 of file ESF_Peer_Admin.h.

---

Constructor & Destructor Documentation

template<class EVENT_CHANNEL, class PROXY, class INTERFACE, class PEER> TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::TAO_ESF_Peer_Admin (  EVENT_CHANNEL *  ec  )

Constructor. Definition at line 12 of file ESF_Peer_Admin.cpp. : TAO_ESF_Proxy_Admin<EVENT_CHANNEL,PROXY,INTERFACE> (ec) { }

template<class EVENT_CHANNEL, class PROXY, class INTERFACE, class PEER> TAO_ESF_Peer_Admin< EVENT_CHANNEL, PROXY, INTERFACE, PEER >::~TAO_ESF_Peer_Admin (  void   )  [virtual]

destructor Definition at line 19 of file ESF_Peer_Admin.cpp. { }

---

The documentation for this class was generated from the following files:

• ESF_Peer_Admin.h
• ESF_Peer_Admin.cpp

---
