CosNotifyChannelAdmin::ProxySupplier Interface Reference

Defines the interface shared by all supplier proxies. More...

import "CosNotifyChannelAdmin.idl";

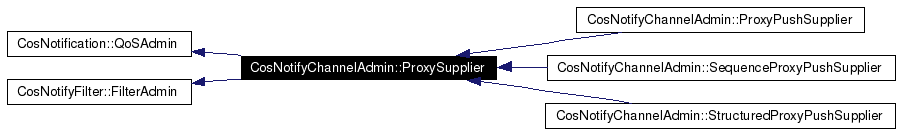

Inheritance diagram for CosNotifyChannelAdmin::ProxySupplier:

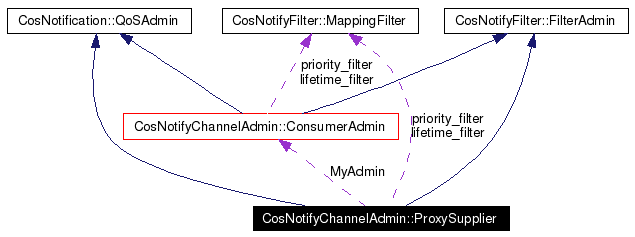

[legend]Collaboration diagram for CosNotifyChannelAdmin::ProxySupplier:

[legend]List of all members.

Public Member Functions
CosNotification::EventTypeSeq	obtain_offered_types (in ObtainInfoMode mode)
void	validate_event_qos (in CosNotification::QoSProperties required_qos, out CosNotification::NamedPropertyRangeSeq available_qos) raises (CosNotification::UnsupportedQoS)
	Validate a list of QoS properties for an event.
Public Attributes
readonly attribute ProxyType	MyType
	The style and event format for this proxy.
readonly attribute ConsumerAdmin	MyAdmin
	The ConsumerAdmin this proxy belongs to.
attribute CosNotifyFilter::MappingFilter	priority_filter
attribute CosNotifyFilter::MappingFilter	lifetime_filter

---

Detailed Description

Defines the interface shared by all supplier proxies.

Supplier proxies are used by consumers to communicate with the Notification Service, this interface captures the shared operations in all those proxies.

Definition at line 173 of file CosNotifyChannelAdmin.idl.

---

Member Function Documentation

CosNotification::EventTypeSeq CosNotifyChannelAdmin::ProxySupplier::obtain_offered_types (  in ObtainInfoMode  mode  )

Parameters: mode  Describe how the publications should be fetched Returns: The list of current subscriptions, if requested in the mode argument

void CosNotifyChannelAdmin::ProxySupplier::validate_event_qos (  in CosNotification::QoSProperties  required_qos, out CosNotification::NamedPropertyRangeSeq  available_qos )  raises (CosNotification::UnsupportedQoS)

Validate a list of QoS properties for an event. Applications send events with specific QoS properties, the following operation allows consumers to verify if a given set of QoS properties would be honored by the proxy. Parameters: required_qos  The QoS properties required by the supplier available_qos  If the QoS properties required are supported this argument returns any other QoS properties that the application may set without breaking the proxy capabilities. Exceptions: CosNotification::UnsupportedQoS  if the QoS properties required cannot be supported. The exception describes the problems and any legal values in detail.

---

Member Data Documentation

attribute CosNotifyFilter::MappingFilter CosNotifyChannelAdmin::ProxySupplier::lifetime_filter

The filter is initialized to the nil reference Definition at line 195 of file CosNotifyChannelAdmin.idl.

readonly attribute ConsumerAdmin CosNotifyChannelAdmin::ProxySupplier::MyAdmin

The ConsumerAdmin this proxy belongs to. Definition at line 181 of file CosNotifyChannelAdmin.idl.

readonly attribute ProxyType CosNotifyChannelAdmin::ProxySupplier::MyType

The style and event format for this proxy. Definition at line 178 of file CosNotifyChannelAdmin.idl.

attribute CosNotifyFilter::MappingFilter CosNotifyChannelAdmin::ProxySupplier::priority_filter

The filter is initialized to the nil reference Definition at line 188 of file CosNotifyChannelAdmin.idl.

---

The documentation for this interface was generated from the following file:

• CosNotifyChannelAdmin.idl

---
