TAO_Notify_Event_Map_Entry_T< PROXY > Class Template Reference

The entry stored in the event map. More...

#include <Event_Map_Entry_T.h>

Inheritance diagram for TAO_Notify_Event_Map_Entry_T< PROXY >:

Inheritance graph
[legend]

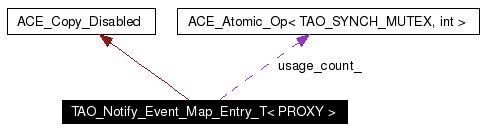

Collaboration diagram for TAO_Notify_Event_Map_Entry_T< PROXY >:

Collaboration graph
[legend]
List of all members.

Public Types

typedef TAO_ESF_Proxy_Collection<
PROXY > 		COLLECTION

Public Member Functions

 TAO_Notify_Event_Map_Entry_T (void)
 Constructor.

 ~TAO_Notify_Event_Map_Entry_T (void)
 Destructor.

void init ()
 Init - Allocates collection.

void connected (PROXY *proxy)
 Connect.

void disconnected (PROXY *proxy)
 Disconnect.

COLLECTION * collection (void)
 Collection accessor.

int count (void)
 Count accessor.

CORBA::ULong _incr_refcnt (void)
 = Reference counting methods.

CORBA::ULong _decr_refcnt (void)

Protected Attributes

COLLECTION * collection_
 The Collection.

int count_
 Count of PROXY's connected in the collection;.

ACE_Atomic_Op< TAO_SYNCH_MUTEX,
int > 		usage_count_
 Count of users accessing this entry.

Detailed Description

template<class PROXY>
class TAO_Notify_Event_Map_Entry_T< PROXY >

The entry stored in the event map.

Definition at line 41 of file Event_Map_Entry_T.h.

Member Typedef Documentation

template<class PROXY>
typedef TAO_ESF_Proxy_Collection<PROXY> TAO_Notify_Event_Map_Entry_T< PROXY >::COLLECTION


Definition at line 44 of file Event_Map_Entry_T.h.

Constructor & Destructor Documentation

template<class PROXY>
TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Notify_Event_Map_Entry_T< PROXY >::TAO_Notify_Event_Map_Entry_T (  void   )


Constructor.

Definition at line 23 of file Event_Map_Entry_T.cpp.

00024   : collection_ (0), count_ (0), usage_count_ (1)
00025 {
00026 }

template<class PROXY>
TAO_Notify_Event_Map_Entry_T< PROXY >::~TAO_Notify_Event_Map_Entry_T (  void   )


Destructor.

Definition at line 29 of file Event_Map_Entry_T.cpp.

00030 {
00031   delete collection_;
00032 }

Member Function Documentation

template<class PROXY>
ACE_INLINE CORBA::ULong TAO_Notify_Event_Map_Entry_T< PROXY >::_decr_refcnt (  void   )


Definition at line 26 of file Event_Map_Entry_T.inl.

References TAO_Notify_Event_Map_Entry_T< PROXY >::usage_count_.

00027 {
00028   return --this->usage_count_;
00029 }

template<class PROXY>
ACE_INLINE CORBA::ULong TAO_Notify_Event_Map_Entry_T< PROXY >::_incr_refcnt (  void   )


= Reference counting methods.

Definition at line 20 of file Event_Map_Entry_T.inl.

References TAO_Notify_Event_Map_Entry_T< PROXY >::usage_count_.

00021 {
00022   return ++this->usage_count_;
00023 }

template<class PROXY>
TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE ACE_TYPENAME TAO_Notify_Event_Map_Entry_T< PROXY >::COLLECTION * TAO_Notify_Event_Map_Entry_T< PROXY >::collection (  void   )


Collection accessor.

Definition at line 9 of file Event_Map_Entry_T.inl.

00009                                                      {
00010   return collection_;
00011 }

template<class PROXY>
void TAO_Notify_Event_Map_Entry_T< PROXY >::connected (  PROXY *  proxy  )


Connect.

Definition at line 43 of file Event_Map_Entry_T.cpp.

References ACE_ENV_ARG_PARAMETER.

00044 {
00045   this->collection_->connected (proxy ACE_ENV_ARG_PARAMETER);
00046   ++count_;
00047 }

template<class PROXY>
ACE_INLINE int TAO_Notify_Event_Map_Entry_T< PROXY >::count (  void   )


Count accessor.

Definition at line 14 of file Event_Map_Entry_T.inl.

00015 {
00016   return this->count_;
00017 }

template<class PROXY>
void TAO_Notify_Event_Map_Entry_T< PROXY >::disconnected (  PROXY *  proxy  )


Disconnect.

Definition at line 50 of file Event_Map_Entry_T.cpp.

References ACE_ENV_ARG_PARAMETER.

00051 {
00052   this->collection_->disconnected (proxy ACE_ENV_ARG_PARAMETER);
00053   --count_;
00054 }

template<class PROXY>
void TAO_Notify_Event_Map_Entry_T< PROXY >::init (   )


Init - Allocates collection.

Definition at line 35 of file Event_Map_Entry_T.cpp.

References ACE_ENV_ARG_PARAMETER, TAO_Notify_Factory::create(), and TAO_Singleton< TYPE, ACE_LOCK >::instance().

00036 {
00037   TAO_Notify_Factory* factory = TAO_Notify_PROPERTIES::instance ()->factory ();
00038
00039   factory->create (collection_ ACE_ENV_ARG_PARAMETER);
00040 }

Member Data Documentation

template<class PROXY>
COLLECTION* TAO_Notify_Event_Map_Entry_T< PROXY >::collection_ [protected]


The Collection.

Definition at line 76 of file Event_Map_Entry_T.h.

template<class PROXY>
int TAO_Notify_Event_Map_Entry_T< PROXY >::count_ [protected]


Count of PROXY's connected in the collection;.

Definition at line 79 of file Event_Map_Entry_T.h.

template<class PROXY>
ACE_Atomic_Op<TAO_SYNCH_MUTEX,int> TAO_Notify_Event_Map_Entry_T< PROXY >::usage_count_ [protected]


Count of users accessing this entry.

Definition at line 82 of file Event_Map_Entry_T.h.

Referenced by TAO_Notify_Event_Map_Entry_T< PROXY >::_decr_refcnt(), and TAO_Notify_Event_Map_Entry_T< PROXY >::_incr_refcnt().

The documentation for this class was generated from the following files:
