TAO_Stub_Factory Class Reference

#include <Stub_Factory.h>

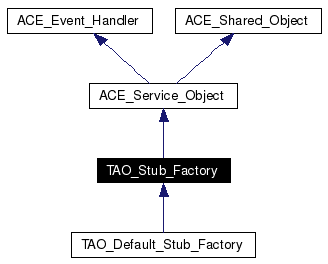

Inheritance diagram for TAO_Stub_Factory:

[legend]Collaboration diagram for TAO_Stub_Factory:

[legend]List of all members.

Public Member Functions
virtual	~TAO_Stub_Factory (void)
	Destructor.
virtual TAO_Stub *	create_stub (const char *repository_id, const TAO_MProfile &profiles, TAO_ORB_Core *orb_core)=0
	Creates a Stub Object.

---

Detailed Description

This class is a factory whose product is the plain TAO_Stub used by TAO. Its subclasses build Stub object that are specialization of the TAO_Stub. As an example TAO_RT_Stub_Factory creates RT_TAO_Stub. This factory, or one of its subclasses is dynamically plugged into the ORB_Core, and is used by the ORB_Core to create Stub Objects.

Definition at line 56 of file Stub_Factory.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Stub_Factory::~TAO_Stub_Factory (  void   )  [virtual]

Destructor. Definition at line 11 of file Stub_Factory.cpp. { }

---

Member Function Documentation

virtual TAO_Stub* TAO_Stub_Factory::create_stub (  const char *  repository_id, const TAO_MProfile &  profiles, TAO_ORB_Core *  orb_core )  [pure virtual]

Creates a Stub Object. Implemented in TAO_Default_Stub_Factory. Referenced by TAO_ORB_Core::create_stub().

---

The documentation for this class was generated from the following files:

• Stub_Factory.h
• Stub_Factory.cpp

---
