TAO_Fault_Tolerance_Service Class Reference

TAO_Fault_Tolerant_Service. More...

#include <Fault_Tolerance_Service.h>

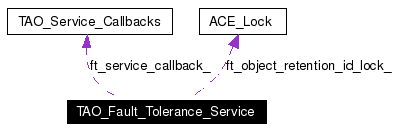

Collaboration diagram for TAO_Fault_Tolerance_Service:

[legend]List of all members.

Public Member Functions
	TAO_Fault_Tolerance_Service (void)
	Ctor.
	~TAO_Fault_Tolerance_Service (void)
	Dtor.
void	init (TAO_ORB_Core *orb_core)
	Initialise the internal data structures.
TAO_Service_Callbacks *	service_callback (void)
	Return the underlying callback object.
const ACE_CString &	client_id (void)
	Return the underlying .
void	client_id (const char *id)
	Set the client id.
CORBA::Long	retention_id (void)
	Generate and return a new retention id.
Private Attributes
TAO_Service_Callbacks *	ft_service_callback_
	hook to callback on to the service
ACE_CString	ft_object_id_
	The object id that would be used if the ft service is loaded.
CORBA::Long	ft_object_retention_id_
ACE_Lock *	ft_object_retention_id_lock_
	Lock for the retention id.

---

Detailed Description

TAO_Fault_Tolerant_Service.

A collection of ORB & ORB_Core related stuff that is needed at the ORB level. The ORB Core would carry an instance of this class and invoke methods on this. Note: This collection would be really useful when we have logging in place. The contents of this class can be logged at regular check point intervals.

Definition at line 52 of file Fault_Tolerance_Service.h.

---

Constructor & Destructor Documentation

TAO_BEGIN_VERSIONED_NAMESPACE_DECL ACE_INLINE TAO_Fault_Tolerance_Service::TAO_Fault_Tolerance_Service (  void   )

Ctor. Definition at line 8 of file Fault_Tolerance_Service.i. : ft_service_callback_ (0), ft_object_id_ (), ft_object_retention_id_ (-1), ft_object_retention_id_lock_ (0) { }

TAO_BEGIN_VERSIONED_NAMESPACE_DECL TAO_Fault_Tolerance_Service::~TAO_Fault_Tolerance_Service (  void   )

Dtor. Definition at line 18 of file Fault_Tolerance_Service.cpp. References ft_object_retention_id_lock_, and ft_service_callback_. { delete this->ft_service_callback_; delete this->ft_object_retention_id_lock_; }

---

Member Function Documentation

ACE_INLINE void TAO_Fault_Tolerance_Service::client_id (  const char *  id  )

Set the client id. Definition at line 29 of file Fault_Tolerance_Service.i. References ft_object_id_. { this->ft_object_id_ = id; }

ACE_INLINE const ACE_CString & TAO_Fault_Tolerance_Service::client_id (  void   )

Return the underlying . Definition at line 23 of file Fault_Tolerance_Service.i. References ft_object_id_. Referenced by CORBA::ORB::_tao_ft_client_id(). { return this->ft_object_id_; }

void TAO_Fault_Tolerance_Service::init (  TAO_ORB_Core *  orb_core  )

Initialise the internal data structures. Definition at line 25 of file Fault_Tolerance_Service.cpp. References TAO_Services_Activate::activate_services(), TAO_ORB_Core::client_factory(), TAO_Client_Strategy_Factory::create_ft_service_retention_id_lock(), ft_object_id_, ft_object_retention_id_lock_, and ft_service_callback_. Referenced by TAO_ORB_Core::services_callbacks_init(). { // Look in to the svc conf stuff to get an instance of the // FT_Service. if (this->ft_service_callback_ == 0) { TAO_Services_Activate *service = ACE_Dynamic_Service <TAO_Services_Activate>::instance ("FT_ClientService_Activate"); // Activate the callback if (service) this->ft_service_callback_ = service->activate_services (orb_core); } // If we have a valid service then we instantiate our lock and the // client id if (this->ft_service_callback_) { // Initialize the lock this->ft_object_retention_id_lock_ = orb_core->client_factory () ->create_ft_service_retention_id_lock (); // Initialize the client id this->ft_object_id_ = "TAO_Client"; } return; }

CORBA::Long TAO_Fault_Tolerance_Service::retention_id (  void   )

Generate and return a new retention id. Definition at line 56 of file Fault_Tolerance_Service.cpp. References ACE_GUARD_RETURN, and ft_object_retention_id_. { ACE_MT (ACE_GUARD_RETURN (ACE_Lock, guard, *this->ft_object_retention_id_lock_, 0)); return ++this->ft_object_retention_id_; }

ACE_INLINE TAO_Service_Callbacks * TAO_Fault_Tolerance_Service::service_callback (  void   )

Return the underlying callback object. Definition at line 17 of file Fault_Tolerance_Service.i. References ft_service_callback_. Referenced by TAO_ORB_Core::hash_service(), TAO_ORB_Core::is_profile_equivalent(), TAO_ORB_Core::object_is_nil(), TAO_ORB_Core::reset_service_profile_flags(), TAO_ORB_Core::service_profile_reselection(), TAO_ORB_Core::service_profile_selection(), TAO_ORB_Core::service_raise_comm_failure(), and TAO_ORB_Core::service_raise_transient_failure(). { return this->ft_service_callback_; }

---

Member Data Documentation

ACE_CString TAO_Fault_Tolerance_Service::ft_object_id_ [private]

The object id that would be used if the ft service is loaded. Definition at line 83 of file Fault_Tolerance_Service.h. Referenced by client_id(), and init().

CORBA::Long TAO_Fault_Tolerance_Service::ft_object_retention_id_ [private]

This and the act as unique identifiers for the request sent from the source Object. Modification of this value is done by the loaded FT Definition at line 90 of file Fault_Tolerance_Service.h. Referenced by retention_id().

ACE_Lock* TAO_Fault_Tolerance_Service::ft_object_retention_id_lock_ [private]

Lock for the retention id. Definition at line 93 of file Fault_Tolerance_Service.h. Referenced by init(), and ~TAO_Fault_Tolerance_Service().

TAO_Service_Callbacks* TAO_Fault_Tolerance_Service::ft_service_callback_ [private]

hook to callback on to the service Definition at line 80 of file Fault_Tolerance_Service.h. Referenced by init(), service_callback(), and ~TAO_Fault_Tolerance_Service().

---

The documentation for this class was generated from the following files:

• Fault_Tolerance_Service.h
• Fault_Tolerance_Service.cpp
• Fault_Tolerance_Service.i

---
