TAO_Basic_StreamCtrl Class Reference

Base class for StreamCtrl, implements basic stream start and stop functionality. More...

#include <AVStreams_i.h>

Inheritance diagram for TAO_Basic_StreamCtrl:

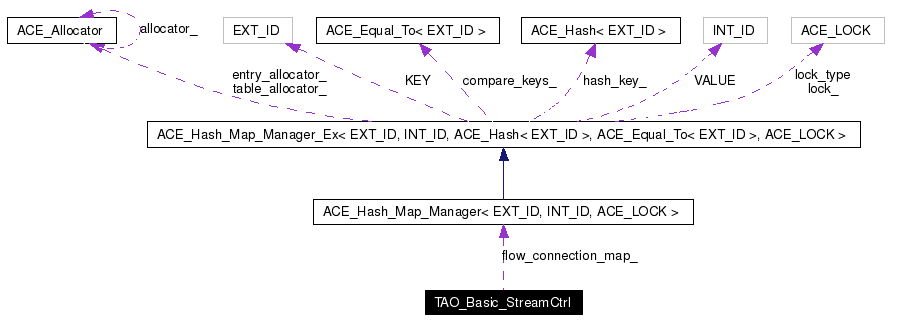

[legend]Collaboration diagram for TAO_Basic_StreamCtrl:

[legend]List of all members.

Public Member Functions
	TAO_Basic_StreamCtrl (void)
	Default Constructor.
virtual void	stop (const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow)
virtual void	start (const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow)
virtual void	destroy (const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow)
virtual CORBA::Boolean	modify_QoS (AVStreams::streamQoS &new_qos, const AVStreams::flowSpec &the_spec ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow, AVStreams::QoSRequestFailed)
virtual void	push_event (const struct CosPropertyService::Property &the_event ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException)
virtual void	set_FPStatus (const AVStreams::flowSpec &the_spec, const char *fp_name, const CORBA::Any &fp_settings ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow, AVStreams::FPError)
	Used to control the flow protocol parameters.
virtual CORBA::Object_ptr	get_flow_connection (const char *flow_name ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow, AVStreams::notSupported)
virtual void	set_flow_connection (const char *flow_name, CORBA::Object_ptr flow_connection ACE_ENV_ARG_DECL_WITH_DEFAULTS) throw (CORBA::SystemException, AVStreams::noSuchFlow, AVStreams::notSupported)
Protected Types
typedef ACE_Hash_Map_Manager< ACE_CString, AVStreams::FlowConnection_var, ACE_Null_Mutex >	FlowConnection_Map
	Hash table for the flow names and its corresponding flowconnection object reference.
typedef ACE_Hash_Map_Iterator< ACE_CString, AVStreams::FlowConnection_var, ACE_Null_Mutex >	FlowConnection_Map_Iterator
typedef ACE_Hash_Map_Entry< ACE_CString, AVStreams::FlowConnection_var >	FlowConnection_Map_Entry
Protected Member Functions
virtual	~TAO_Basic_StreamCtrl (void)
	Destructor.
Protected Attributes
AVStreams::VDev_var	vdev_a_
	The Virtual Devices for this stream.
AVStreams::VDev_var	vdev_b_
AVStreams::StreamEndPoint_A_var	sep_a_
	The Endpoints for this stream.
AVStreams::StreamEndPoint_B_var	sep_b_
FlowConnection_Map	flow_connection_map_
AVStreams::FlowConnection_seq	flowConnections_
u_int	flow_count_
	sequence of flow names.
AVStreams::flowSpec	flows_

---

Detailed Description

Base class for StreamCtrl, implements basic stream start and stop functionality.

Definition at line 75 of file AVStreams_i.h.

---

Member Typedef Documentation

typedef ACE_Hash_Map_Manager<ACE_CString,AVStreams::FlowConnection_var,ACE_Null_Mutex> TAO_Basic_StreamCtrl::FlowConnection_Map [protected]

Hash table for the flow names and its corresponding flowconnection object reference. Definition at line 164 of file AVStreams_i.h.

typedef ACE_Hash_Map_Entry<ACE_CString,AVStreams::FlowConnection_var> TAO_Basic_StreamCtrl::FlowConnection_Map_Entry [protected]

Definition at line 166 of file AVStreams_i.h.

typedef ACE_Hash_Map_Iterator<ACE_CString,AVStreams::FlowConnection_var,ACE_Null_Mutex> TAO_Basic_StreamCtrl::FlowConnection_Map_Iterator [protected]

Definition at line 165 of file AVStreams_i.h.

---

Constructor & Destructor Documentation

TAO_Basic_StreamCtrl::TAO_Basic_StreamCtrl (  void   )

Default Constructor. Definition at line 74 of file AVStreams_i.cpp. :flow_count_ (0) { }

TAO_Basic_StreamCtrl::~TAO_Basic_StreamCtrl (  void   )  [protected, virtual]

Destructor. Definition at line 326 of file AVStreams_i.cpp. { }

---

Member Function Documentation

virtual void TAO_Basic_StreamCtrl::destroy (  const AVStreams::flowSpec &the_spec  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, AVStreams::noSuchFlow) [virtual]

Tears down the stream. This will close the connection, and delete the streamendpoint and vdev associated with this stream Empty the_spec means apply operation to all flows Reimplemented in TAO_StreamCtrl.

virtual CORBA::Object_ptr TAO_Basic_StreamCtrl::get_flow_connection (  const char *flow_name  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, AVStreams::noSuchFlow, AVStreams::notSupported) [virtual]

Not implemented in the light profile, will raise the notsupported exception

virtual CORBA::Boolean TAO_Basic_StreamCtrl::modify_QoS (  AVStreams::streamQoS &  new_qos, const AVStreams::flowSpec &the_spec  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, AVStreams::noSuchFlow, AVStreams::QoSRequestFailed) [virtual]

Changes the QoS associated with the stream Empty the_spec means apply operation to all flows Reimplemented in TAO_StreamCtrl.

virtual void TAO_Basic_StreamCtrl::push_event (  const struct CosPropertyService::Property &the_event  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException) [virtual]

Used by StreamEndPoint and VDev to inform StreamCtrl of events. E.g., loss of flow, reestablishment of flow, etc..

virtual void TAO_Basic_StreamCtrl::set_flow_connection (  const char *  flow_name, CORBA::Object_ptr flow_connection  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, AVStreams::noSuchFlow, AVStreams::notSupported) [virtual]

Not implemented in the light profile, will raise the notsupported exception

virtual void TAO_Basic_StreamCtrl::set_FPStatus (  const AVStreams::flowSpec &  the_spec, const char *  fp_name, const CORBA::Any &fp_settings  ACE_ENV_ARG_DECL_WITH_DEFAULTS )  throw (CORBA::SystemException, AVStreams::noSuchFlow, AVStreams::FPError) [virtual]

Used to control the flow protocol parameters.

virtual void TAO_Basic_StreamCtrl::start (  const AVStreams::flowSpec &the_spec  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, AVStreams::noSuchFlow) [virtual]

Start the transfer of data in the stream. Empty the_spec means apply operation to all flows Reimplemented in TAO_StreamCtrl.

virtual void TAO_Basic_StreamCtrl::stop (  const AVStreams::flowSpec &the_spec  ACE_ENV_ARG_DECL_WITH_DEFAULTS  )  throw (CORBA::SystemException, AVStreams::noSuchFlow) [virtual]

Stop the transfer of data of the stream Empty the_spec means apply operation to all flows Reimplemented in TAO_StreamCtrl.

---

Member Data Documentation

FlowConnection_Map TAO_Basic_StreamCtrl::flow_connection_map_ [protected]

Definition at line 167 of file AVStreams_i.h.

u_int TAO_Basic_StreamCtrl::flow_count_ [protected]

sequence of flow names. Definition at line 171 of file AVStreams_i.h.

AVStreams::FlowConnection_seq TAO_Basic_StreamCtrl::flowConnections_ [protected]

Definition at line 168 of file AVStreams_i.h.

AVStreams::flowSpec TAO_Basic_StreamCtrl::flows_ [protected]

Definition at line 172 of file AVStreams_i.h.

AVStreams::StreamEndPoint_A_var TAO_Basic_StreamCtrl::sep_a_ [protected]

The Endpoints for this stream. Definition at line 160 of file AVStreams_i.h.

AVStreams::StreamEndPoint_B_var TAO_Basic_StreamCtrl::sep_b_ [protected]

Definition at line 161 of file AVStreams_i.h.

AVStreams::VDev_var TAO_Basic_StreamCtrl::vdev_a_ [protected]

The Virtual Devices for this stream. Definition at line 156 of file AVStreams_i.h.

AVStreams::VDev_var TAO_Basic_StreamCtrl::vdev_b_ [protected]

Definition at line 157 of file AVStreams_i.h.

---

The documentation for this class was generated from the following files:

• AVStreams_i.h
• AVStreams_i.cpp

---
