ACEXML_Element_Tree_List_Node Class Reference

An abstract base class for describing a node list in a DTD child element definition. More...

#include <parser/debug_validator/Element_Tree.h>

Inheritance diagram for ACEXML_Element_Tree_List_Node:

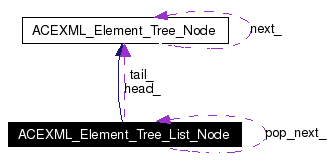

[legend]Collaboration diagram for ACEXML_Element_Tree_List_Node:


Public Types
enum	LIST_TYPE { SEQUENCE, CHOICE }
Public Member Functions
	ACEXML_Element_Tree_List_Node (void)
	Default constructor.
virtual	~ACEXML_Element_Tree_List_Node (void)
	Destructor.
int	insert (ACEXML_Element_Tree_Node *node)
	Insert a new ACEXML_Element_Tree_Node into the list.
LIST_TYPE	get (void)
	Get/set the type of list.
int	set (LIST_TYPE type)
virtual void	dump ()
	Displaying the content.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
Protected Attributes
LIST_TYPE	type_
ACEXML_Element_Tree_Node *	head_
ACEXML_Element_Tree_Node *	tail_
ACEXML_Element_Tree_List_Node *	pop_next_
Friends
class	ACEXML_Element_Tree_List_Stack

Detailed Description

An abstract base class for describing a node list in a DTD child element definition.

See also:: ACEXML_Element_Tree_Node, ACEXML_Element_Tree_Name_Node

Definition at line 91 of file Element_Tree.h.

Member Enumeration Documentation

enum ACEXML_Element_Tree_List_Node::LIST_TYPE

Enumeration values:

SEQUENCE

CHOICE

Definition at line 97 of file Element_Tree.h.

00097 { 00098 SEQUENCE, 00099 CHOICE 00100 } LIST_TYPE;

Constructor & Destructor Documentation

ACEXML_INLINE ACEXML_Element_Tree_List_Node::ACEXML_Element_Tree_List_Node ( void )

Default constructor.

Definition at line 36 of file Element_Tree.i.

00037 : type_ (SEQUENCE), 00038 head_ (0), 00039 tail_ (0), 00040 pop_next_ (0) 00041 { 00042 }

ACEXML_Element_Tree_List_Node::~ACEXML_Element_Tree_List_Node ( void ) [virtual]

Destructor.

Definition at line 24 of file Element_Tree.cpp.

00025 { 00026 delete this->head_; 00027 }

Member Function Documentation

void ACEXML_Element_Tree_List_Node::dump ( ) [virtual]

Displaying the content.

Implements ACEXML_Element_Tree_Node.
Definition at line 45 of file Element_Tree.cpp.
References ACE_TEXT, ACEXML_Char, ACEXML_Element_Tree_Node::dump(), ACEXML_Element_Tree_Node::next(), and SEQUENCE.

00046 { 00047 ACEXML_Element_Tree_Node *ptr = this->head_; 00048 const ACEXML_Char *separator = (this->type_ == SEQUENCE) ? ACE_TEXT(" , ") : ACE_TEXT(" | "); 00049 00050 cout << "("; 00051 00052 if (ptr != 0) 00053 { 00054 ptr->dump (); 00055 ptr = ptr->next (); 00056 00057 while (ptr != 0) 00058 { 00059 cout << separator; 00060 ptr->dump (); 00061 ptr->next (); 00062 } 00063 } 00064 00065 cout << ")"; 00066 }

ACEXML_INLINE ACEXML_Element_Tree_List_Node::LIST_TYPE ACEXML_Element_Tree_List_Node::get ( void )

Get/set the type of list.

Definition at line 45 of file Element_Tree.i.

00046 { 00047 return this->type_; 00048 }

int ACEXML_Element_Tree_List_Node::insert ( ACEXML_Element_Tree_Node * node )

Insert a new ACEXML_Element_Tree_Node into the list.

Definition at line 30 of file Element_Tree.cpp.
References ACEXML_Element_Tree_Node::next().
Referenced by ACEXML_Debug_Element_Builder::startChildGroup().

00031 { 00032 if (this->head_ == 0) 00033 { 00034 this->tail_ = this->head_ = node; 00035 } 00036 else 00037 { 00038 this->tail_->next (node); 00039 this->tail_ = node; 00040 } 00041 return 0; 00042 }
