ACE_RMCast::From Struct Reference

#include <Protocol.h>

Inheritance diagram for ACE_RMCast::From:

Inheritance graph
[legend]

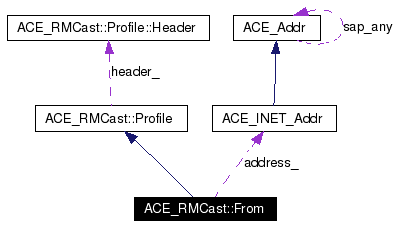

Collaboration diagram for ACE_RMCast::From:

Collaboration graph
[legend]
List of all members.

Public Member Functions

 From (Header const &h, istream &is)
 From (Address const &addr)
From_ptr clone ()
Address const & address () const
virtual void serialize_body (ostream &os) const
virtual void serialize_body (sstream &ss) const

Static Public Attributes

u16 const  id = 0x0001

Protected Member Functions

virtual Profile_ptr clone_ ()
 From (From const &from)

Private Attributes

Address address_

Constructor & Destructor Documentation

ACE_RMCast::From::From (  Header const &  h,
istream &  is
)  [inline]


Definition at line 380 of file Protocol.h.

References ACE_RMCast::istream, ACE_RMCast::u16, and ACE_RMCast::u32.

00382         :
00383     From (Header const& h, istream& is)
00384         : Profile (h)
00385     {
00386       u32 addr;
00387       u16 port;
00388
00389       is >> addr;
00390       is >> port;

ACE_RMCast::From::From (  Address const &  addr  )  [inline]


Definition at line 392 of file Protocol.h.

00396         : Profile (id), address_ (addr)

ACE_RMCast::From::From (  From const &  from  )  [inline, protected]


Definition at line 411 of file Protocol.h.

00415         : Profile (from),

Member Function Documentation

Address const& ACE_RMCast::From::address (  void   )  const [inline]


Definition at line 419 of file Protocol.h.

References ACE_RMCast::Address.

00420         :
00421     Address const&
00422     address () const
    {

From_ptr ACE_RMCast::From::clone (  void   )  [inline]


Reimplemented from ACE_RMCast::Profile.

Definition at line 399 of file Protocol.h.

00403     {

virtual Profile_ptr ACE_RMCast::From::clone_ (   )  [inline, protected, virtual]


Implements ACE_RMCast::Profile.

Definition at line 406 of file Protocol.h.

References ACE_RMCast::Profile_ptr.

00407            :
00408     virtual Profile_ptr
00409     clone_ ()
    {

virtual void ACE_RMCast::From::serialize_body (  sstream &  ss  )  const [inline, virtual]


Implements ACE_RMCast::Profile.

Definition at line 436 of file Protocol.h.

00440     {
00441       u32 addr (0);
00442       u16 port (0);
00443

virtual void ACE_RMCast::From::serialize_body (  ostream &  os  )  const [inline, virtual]


Implements ACE_RMCast::Profile.

Definition at line 426 of file Protocol.h.

References ACE_INET_Addr::get_ip_address(), ACE_INET_Addr::get_port_number(), ACE_RMCast::ostream, ACE_RMCast::u16, and ACE_RMCast::u32.

00427         :
00428     virtual void
00429     serialize_body (ostream& os) const
00430     {
00431       u32 addr (address_.get_ip_address ());
00432       u16 port (address_.get_port_number ());
00433
      os << addr;

Member Data Documentation

Address ACE_RMCast::From::address_ [private]


Definition at line 446 of file Protocol.h.

u16 const ACE_RMCast::From::id = 0x0001 [static]


Definition at line 9 of file Protocol.cpp.

The documentation for this struct was generated from the following files:
